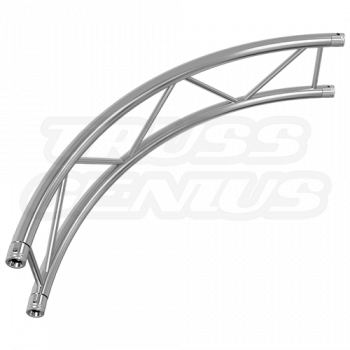

Global Truss IB-C2-V90 Vertical Circle
78.72-Inches Outer Diameter – F32 I-Beam Aluminum Circular Truss
The modular design of the IB-C2-V90 F32 I-Beam Aluminum Circular Truss allows portability and ease of set-up. The IB-C2-V90 is a medium-duty truss that is perfect for applications that require small trusses. The F32 Truss Series are fabricated according to TUV specifications and made with the highest quality 6082-T6 alloy aluminum. The F32 Truss consists of an upper and a lower main chord, and The truss also includes welded diagonal bracings. The trusses are connected using the simple, fast, and secure conical connection system, consisting of the conical receiver and the conical coupler, always secured together for safety, with the coupler pin and r-clip.
Custom Powder Coat Finishes Available Upon Request
Our line of 50mm 1.96″ – Clamps were specifically developed for this truss system.
Do not exceed the load capacity of the IB-C2-V90. No loads are permitted or should be supported from the connection point of the trusses. The IB-C2-V90 should thoroughly be inspected before use. In the occurrence of any damage or defect, the IB-C2-V90 should not be used. Handle the truss segments with care and caution. Don’t drop them, drag them, and don’t throw truss segments on top of each other. Truss assembly should be carried out by those who are familiar with trussing. Do not attach truss with damaged or fewer coupler connectors than required. Make sure the coupler connectors are installed correctly and that the coupler pin and cotter pins are in place and secured.
