SQ-4112 | 6.56ft (2.0m)

Product Description

We are introducing the Global Truss SQ-4112 78.72-Inches Long Square Aluminum Truss! This high-quality truss is designed to provide strength and style, making it the perfect choice for many applications.

With a length of 2.0 meters and an overall truss diameter of 290mm x 290mm, the SQ-4112 offers impressive weight-loading capabilities. The truss is made of the highest-quality aluminum alloy AW-6082 T6 and is fabricated according to TUV specifications, ensuring its durability and reliability.

Let’s take a closer look at the load capacities of the SQ-4112. The truss can support a uniformly distributed load (UDL) of 270 pounds, with a deflection of just 0.07 inches. The center point load (CPL) capacity is 1600 pounds, with a deflection of 0.10 inches. The third point load (TPL) capacity is 950 pounds, with a deflection of 0.09 inches, and the quarter point load capacity is 600 pounds, with a deflection of 0.08 inches. These impressive load capacities make the SQ-4112 ideal for various applications, from concerts and music festivals to trade shows and theatrical productions.

In addition to its strength, the SQ-4112 is also designed for ease of use. The trusses are connected using a simple, fast, and secure conical connection system consisting of a conical receiver and a conical coupler. These are always secured together for safety with a coupler pin and an r-clip. This system ensures that the truss is quick and easy to set up and disassemble, making it the perfect choice for traveling productions and events that require quick and efficient rigging solutions.

The SQ-4112 is a medium-duty truss that offers a decorative look and is finished with a brushed aluminum finish. The truss consists of two upper and two lower primary chords arranged in a square shape and welded diagonal bracings that stiffen the truss at all four sides.

The TUV CE certification process comprehensively assesses a product’s design, production, and quality control. In addition, the TUV inspects the manufacturing facilities to ensure that the product is produced safely and environmentally responsibly and conducts thorough testing to verify the product’s performance, reliability, and safety. This rigorous process ensures that customers have peace of mind knowing that the SQ-4112 is of the highest quality and meets all necessary safety standards.

In conclusion, the Global Truss SQ-4112 is an adaptable, dependable, and stylish solution perfect for a wide range of applications, including entertainment, trade shows, industrial and commercial settings, theatre and stage productions, retail, and hospitality. With its impressive load capacities, ease of use, and TUV CE certification, you can rest assured that the SQ-4112 is the right choice for all your rigging needs.

Our line of 50mm 1.96″ – Clamps were developed explicitly for this truss system.

Guidelines for Safe Use of the SQ-4112 Truss
It is essential to follow the guidelines to ensure the safe and effective use of the SQ-4112 truss.
1. Load Capacity: Do not exceed the specified load capacity of the SQ-4112 truss. All loads must be distributed equally between both cords.
2. Inspection: Before use, thoroughly inspect the truss for damage or defects. If any damage is found, the truss must immediately be taken out of service and marked with “DO NOT USE.”
3. Handling: Handle the truss segments carefully and cautiously. Avoid dropping, dragging, or stacking them on top of each other.
4. Assembly: Truss assembly should only be carried out by those familiar with trussing techniques.
5. Coupler Connectors: Do not attach the truss with damaged coupler connectors or fewer connectors than required. Ensure the coupler connectors are installed correctly and the coupler pin and cotter pins are secured.
6. Design and Rigging: When designing and rigging truss systems, consider the effects of transverse forces, such as wind load.
7. Compatibility: Using trusses or parts from different manufacturers is prohibited.
8. Professional Review: The purchase of this product does not authorize or approve a specific installation or use of the aluminum box truss. A licensed professional engineer must review all structures, lighting plots, or other aluminum truss uses.

SQ-4112 – F34 Load Span Reference
Limited based on Strength and L/180 Deflections
Uniformly Distributed Load (UDL): 270-Lbs
Deflection: 0.07-Inches
Center Point Load (CPL): 1600-Lbs
Deflection: 0.10-Inches
Third Point Loads (TPL): 950-Lbs
Deflection: 0.09-Inches
Quarter Point Loads: 600-Lbs
Deflection: 0.08-Inches

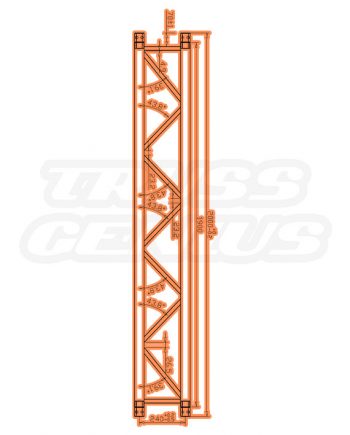

SQ-4112 Specifications
Model Number: SQ-4112
Truss Series: F34
Brand Name: Global Truss America
Place of Origin: Shenzhen, China
Material: Aluminum Alloy AW-6082 T6
Measurement System: Metric
Length: 2.0-Meter
Overall Truss Diameter: 290mm x 290mm
Main Tubing Outer Diameter: 50mm
Main Tubing Wall Thickness: 2mm
Brace Tubing Outer Diameter: 20mm
Brace Tubing Wall Thickness: 2mm
Finish: Brushed Aluminum
Shape: Square Straight Section
Certification: TUV
Product Weight: 13.60Kgs
