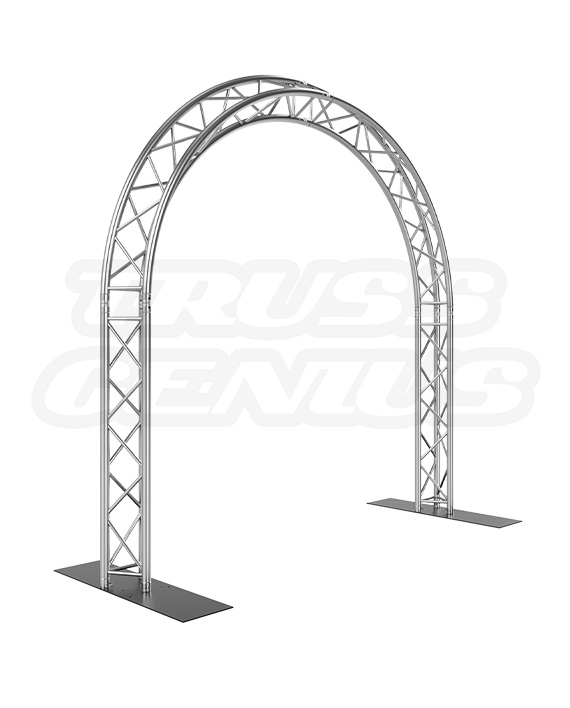

10x10 Triangular Truss Arch System | EVT290T-Grover

Original price was: $4,836.00.Current price is: $2,418.00.

Medium-Duty Triangular Aluminum Truss Arch System

Truss System Dimensions
Overall Truss System Height: 9.84 ft (3 m)
Overall Truss System Width: 9.84 ft (3 m)

Truss Dimensions
Overall Truss Width: 11.41 in (290 mm)
Main Tubing: 1.96 in (50 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 180 lb (81.64 kg)

In stock

SKU: EVT290T-AR-10x10-GROVER Category:

EVT290T Circular Arch Knowledge Center

Create a Lightweight Circular Entrance.
A 10x10 Triangular Truss Arch for Events, Photography, Floral Design, and Branded Displays.

The EVT290T-Grover is a portable 10x10 circular arch truss system built from medium-duty EVT290T triangular aluminum truss. It is designed for event entrances, photography and film sets, floral installations, temporary displays, scenic environments, and branded activations.

System Facts

ModelEVT290T-Grover
SKUEVT290T-AR-10x10-GROVER
System TypeCircular Triangular Truss Arch
Overall Size9.84 ft W x 9.84 ft H
System Weight180 lb / 81.64 kg
MaterialEN AW-6082 T6
9.84 ftOverall Width
9.84 ftOverall Height
290 mmTriangular Profile
180 lbSystem Weight
2 PeopleSource Setup Crew

System Overview

A Circular Event Arch Built from Triangular Truss.

The Grover combines a symmetrical circular opening with the compact three-chord profile of EVT290T triangular truss.

Circular Architectural Profile
Creates a defined curved opening for entrances, backdrops, floral work, and scenic installations.
Portable Event Format
Designed for repeated assembly, transport, and temporary installation.
EVT290T Construction
Uses medium-duty 290 mm triangular truss with 50 mm main chords and 20 mm diagonal bracing.
Conical Connection System
Couplers, tapered pins, and R-clips support fast, repeatable assembly.

Applications

Designed for Entrances, Photography, Floral Installations, and Scenic Displays.

Wedding and Event Entrances
Creates a recognizable circular gateway for ceremonies, receptions, galas, and private events.
Floral Installations
Provides a professional framework for properly secured flowers, greenery, drape, and decorative elements.
Photography and Film Sets
Frames portraits, product shoots, scenic environments, and temporary production sets.
Branded Activations
Supports properly rated signage, graphics, lighting, and branded decorative elements.
Temporary Installations
Suitable for mobile displays, exhibit environments, and short-duration event use.

Who It Is For

Built for Event, Floral, Scenic, and Production Professionals.

Event Production Companies
For entrances, backdrops, branded displays, and recurring temporary installations.
Floral Designers
For substantial floral arches and decorative structures installed within approved load limits.
Photographers and Scenic Teams
For portrait frames, film sets, product photography, and scenic environments.
Activation Agencies
For product launches, branded entrances, photo moments, and promotional displays.
Rental Companies
For reusable triangular-truss arch inventory suited to multiple event formats.

Technical Details

Detailed Specifications.

Identification

Product Information

ModelEVT290T-Grover
SKUEVT290T-AR-10x10-GROVER
System TypeMedium-Duty Circular Triangular Truss Arch

Physical Dimensions

Overall Size

Overall Width9.84 ft / 3 m
Overall Height9.84 ft / 3 m
Truss Profile11.41 in / 290 mm Triangular
System Weight180 lb / 81.64 kg

Construction

Materials and Tubing

MaterialEN AW-6082 T6 Aluminum
Main Chords50 mm / 1.96 in OD, 2 mm Wall
Diagonal Bracing20 mm / 0.78 in, 2 mm Wall
FinishBrushed Aluminum
CertificationTUV Certified

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips
Assembly ToolSteel Hammer
Assembly CrewTwo People Familiar with Truss Structures

System Compatibility

EVT290T, F33, and Standard 290 mm Triangular Truss Systems.

EVT290T-Grover uses 290 mm triangular truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, connection geometry, and engineering data.

EVT290T Compatibility
Integrates with compatible EVT290T straight sections, curved sections, junctions, and expansion components.
F33 Compatibility
Compatible with matching F33 290 mm triangular truss geometry and conical hardware.
Standard 290 mm Triangular Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
50 mm Clamp Compatibility
Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Sequence

Build the Circular Arch in a Controlled Ground-Level Sequence.

The source states that two people familiar with truss structures can assemble the system using a steel hammer. Additional assistance may be appropriate for lifting and final positioning.

01 — Lay Out Components
Arrange curved sections, lower supports, bases, and connection hardware in their intended positions.
02 — Inspect Every Part
Remove damaged truss, couplers, pins, R-clips, or base components from service.
03 — Assemble the Crown
Connect the curved upper sections at ground level using the complete conical hardware set.
04 — Build the Lower Supports
Assemble both lower sides and confirm matching geometry.
05 — Raise and Connect
Use a controlled method appropriate for the system weight and approved installation plan.
06 — Final Inspection
Confirm every connection, base condition, attachment, ballast measure, and R-clip before use.

Safety and Engineering

Evaluate the Circular Arch as A Complete Installed Structure.

Do not exceed the allowable load capacity of the complete EVT290T-Grover configuration.
Distribute applied loads equally between the appropriate main chords.
Do not apply concentrated loads directly at truss connections unless specifically approved.
Include lighting, signage, graphics, floral materials, drape, clamps, cables, and decorative elements in the total applied load.
Use ballast or anchoring appropriate for the final configuration, attached surfaces, wind exposure, and installation site.
Inspect every truss section, base component, coupler, tapered pin, and R-clip before use.
Assembly should be completed only by personnel familiar with trussing techniques.
A licensed professional engineer must review the final structure and loading where required.

Frequently Asked Questions

EVT290T-Grover Questions.

What are the overall dimensions?

The documented overall size is 9.84 ft wide by 9.84 ft high, using a 290 mm triangular truss profile.

How many people are needed for assembly?

The source states that two people familiar with truss structures can assemble the system using a steel hammer.

What material is used?

The system is constructed from EN AW-6082 T6 aluminum with a brushed finish.

Is it compatible with F33 truss?

Yes, when the F33 system uses matching 290 mm triangular geometry and conical hardware. Verify receiver spacing, coupler dimensions, connection geometry, and engineering data before combining systems.

Can the arch be expanded?

Compatible EVT290T sections may be used to modify the configuration, but every changed structure must be reviewed before use.

What applications is it suited for?

It is suited to event entrances, floral installations, photography and film sets, scenic displays, branded activations, and temporary installations.

Planning a circular entrance, floral arch, or branded event structure?

Contact us for arch selection, attachment planning, ballast requirements, expansion components, and freight assistance.
