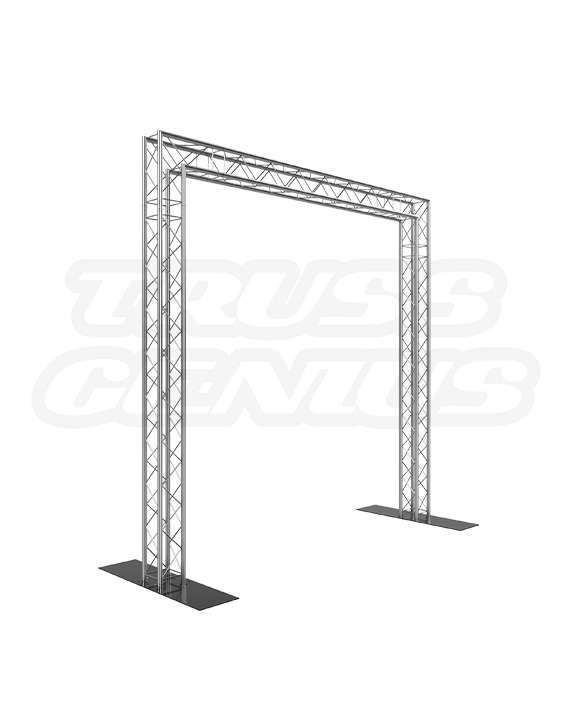

10x10 Goal Post Square Truss System Evt220s Goleta 1

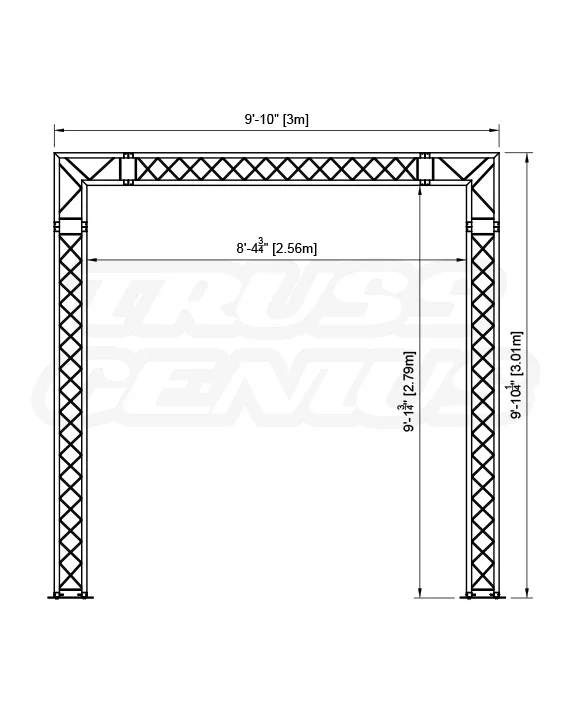

10x10-Goal-Post-Square-Truss-System-EVT220S-Goleta-Front-View-Dimensions-Cutsheet

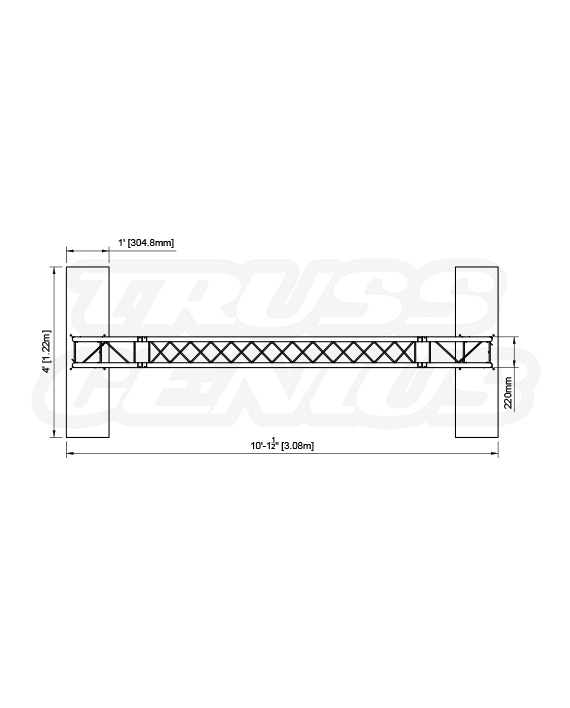

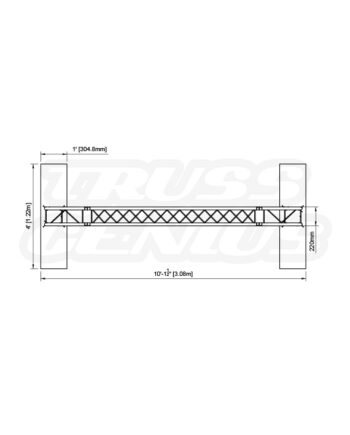

10x10 Goal Post Square Truss System Evt220s Goleta Top View Dimensions 1
10x10 Goal Post Square Truss System Evt220s Goleta 1
10x10-Goal-Post-Square-Truss-System-EVT220S-Goleta-Front-View-Dimensions-Cutsheet
10x10 Goal Post Square Truss System Evt220s Goleta Top View Dimensions 1

10x10 Square Truss Goal Post System | EVT220S-Goleta

Original price was: $4,720.00.Current price is: $2,360.00.

10x10 Light-Duty Square Truss Goal Post System — 8-Inch (220mm) Display Truss

Dimensions & Specs
Overall Width: 10 ft (3.04 m)
Overall Height: 9.84 ft (3 m)
Truss Profile: 8.66 in (220 mm) Square Display Truss
Type: Light-Duty Goal Post System

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.37 in (35 mm) OD / 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.31 in (8 mm) Diagonal Bracing / 0.078 in (2 mm) Wall Thickness
Hardware Included: Connecting hardware

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Weight: 150 lb (68 kg)

In stock

SKU: EVT220S-GP-10x10-GOLETA Category:

EVT220S Goal Post Truss System Knowledge Center

Create a Compact Event Gateway.
A Lightweight 10x10 Goal Post for Entrances, Backdrops, Finish Lines, and Branded Displays.

The EVT220S-Goleta is a compact 10x10 goal-post truss system designed for entrances, photography backdrops, finish lines, signage, lighting, graphic panels, film sets, trade shows, and outdoor events. Built from modular EVT220S components, it provides a clean rectangular frame with a conical connection system for efficient assembly and disassembly.

System Facts

ModelEVT220S-Goleta
SKUEVT220S-GP-10x10-GOLETA
System TypeLight-Duty Goal Post Truss
Overall Size10 ft W x 9.84 ft H
System Weight150 lb / 68 kg
MaterialEN AW-6082 T6
10 ftOverall Width
9.84 ftOverall Height
220 mmTruss Profile
150 lbSystem Weight
Ground SupportedInstallation Type

System Overview

A Lightweight Rectangular Frame for Fast Event Deployment.

The Goleta provides a practical structure for backdrops, branded entrances, finish lines, lighting, signage, and graphic-panel installations.

Compact 10x10 Format
Creates a clean entryway or display frame without the footprint of a larger truss system.
Light-Duty EVT220S Construction
Uses 220 mm square truss with 35 mm main chords and 8 mm diagonal bracing.
Portable Goal Post Layout
Designed for repeated assembly, transport, and temporary ground-supported installations.
Quick Assembly Format
The modular connection method supports efficient setup, takedown, and transport between events.

Applications

Designed for Entrances, Backdrops, Finish Lines, and Branded Displays.

Photography Backdrops
Creates a defined rectangular frame for photo activations, portraits, and branded content.
Temporary Entryways
Provides a visible entrance structure for events, exhibits, and controlled access points.
Race Finish Lines
Functions as a lightweight overhead marker for runs, marathons, and community races.
Trade Show Displays
Supports properly rated lighting, signage, and graphic panels for exhibit environments.
Film Sets and Outdoor Events
Provides a portable frame for temporary production and event installations.

Who It Is For

A Practical System for Creative and Event Professionals.

Photographers
For portable backdrop structures and branded photo environments.
Event Producers
For entrances, signage frames, sponsor zones, and temporary installations.
Race Organizers
For lightweight start or finish structures where fast setup is important.
Exhibit Teams
For trade show displays that need an open rectangular frame for graphics and lighting.
Rental Companies
For reusable light-duty inventory suited to multiple event formats.

Technical Details

Detailed Specifications.

Identification

Product Information

ModelEVT220S-Goleta
SKUEVT220S-GP-10x10-GOLETA
System TypeLight-Duty Ground-Supported Goal Post

Physical Dimensions

Overall Size

Overall Width10 ft / 3.04 m
Overall Height9.84 ft / 3 m
Truss Profile8.66 in / 220 mm
System Weight150 lb / 68 kg

Construction

Materials and Tubing

MaterialEN AW-6082 T6 Aluminum
Main Chords35 mm / 1.37 in OD, 2 mm Wall
Diagonal Bracing8 mm / 0.31 in, 2 mm Wall
FinishBrushed Aluminum
CertificationTUV Certified

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Pins and Safety Clips
Assembly ToolsSteel Hammer
Assembly CrewTrained Truss Personnel
Installation TypeGround Supported

System Compatibility

EVT220S, F24, and Standard 220 mm Square Truss Systems.

EVT220S-Goleta uses 220 mm square truss geometry, 35 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, connection geometry, and engineering data.

EVT220S Compatibility
Integrates with compatible EVT220S straight sections, corners, base components, and expansion pieces.
F24 Compatibility
Compatible with matching F24 220 mm square truss geometry and conical hardware.
Standard 220 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
35 mm Clamp Compatibility
Main chords accept properly rated clamps designed for 35 mm tubing.

Modular Expansion

Adapt the Goal Post with Compatible EVT220S Components.

The modular EVT220S platform allows compatible pieces to be added or reconfigured. Any changed configuration must be evaluated before installation.

Adjust Width
Add compatible EVT220S straight sections to create a different engineered span.
Adjust Height
Use compatible sections to create a taller or shorter engineered configuration where appropriate.
Add Display Elements
Integrate properly rated lighting, signage, and graphic panels within the approved loading plan.
Engineering Review
Modified structures require review for loading, ballast, geometry, and site conditions.

Assembly Sequence

Build the Goal Post in a Controlled Ground-Level Sequence.

Assembly should be completed by personnel familiar with aluminum truss systems. Follow the supplied drawing and the approved installation plan.

01 — Lay Out Components
Arrange the horizontal span, vertical supports, corners, base plates, and hardware in their intended positions.
02 — Inspect Every Part
Remove damaged truss, couplers, pins, safety clips, or base components from service.
03 — Assemble the Crossbeam
Connect the horizontal span at ground level using the complete conical hardware set.
04 — Build the Vertical Supports
Assemble both legs and confirm matching orientation.
05 — Raise and Connect
Use a controlled method suitable for the complete system weight and site conditions.
06 — Final Inspection
Confirm every connection, base plate, attachment, ballast condition, and safety clip before use.

Safety, Loading, and Engineering

Plan Every Installation for Loads, Ballast, and Site Conditions.

The EVT220S-Goleta is a light-duty, ground-supported display system.
Do not exceed the allowable load capacity of the truss or any connected component.
Distribute loads evenly between the appropriate main chords.
Do not place concentrated loads directly on connection points unless specifically approved.
Include lighting, signage, graphic panels, cables, clamps, and all accessories in the total applied load.
Ballast and anchoring requirements depend on the final configuration, attached surfaces, wind exposure, and installation site.
Inspect all truss sections, base plates, and connection hardware before every use.
A licensed professional engineer must review the final structure and loading where required.

Frequently Asked Questions

EVT220S-Goleta Questions.

What is included in the kit?
The kit includes the required EVT220S truss segments, corners, base plates, and conical connecting hardware for the complete 10x10 goal post.
What are the overall dimensions?
The documented overall size is approximately 10 ft wide by 9.84 ft high, using a 220 mm square truss profile.
What applications is it suited for?
It is suited to photography backdrops, film sets, temporary entryways, race finish lines, trade shows, signage, and branded displays.
What truss systems are compatible?
Compatibility includes EVT220S, matching F24 geometry, and standard 220 mm square truss systems using matching conical hardware.
Is a 3D model available?
Yes. The product source includes a GLB 3D model for the EVT220S-Goleta.
Is local pickup available?
Yes. The source states that local pickup is available through the on-site pickup option.

Planning a 10x10 trade show exhibit?

Contact us for booth configuration, technical drawings, engineering services, graphics, lighting accessories, ballast planning, and freight assistance.
