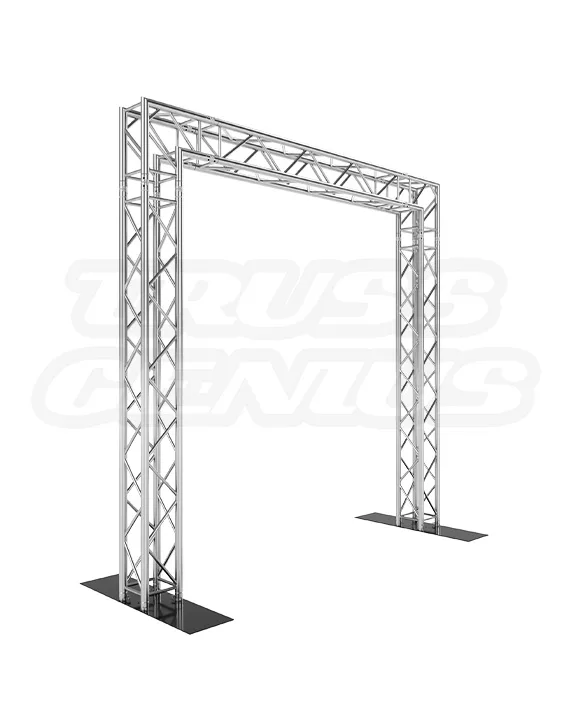

EVT290S‑Gilroy 10×10 goal‑post square aluminum truss system with upright columns and horizontal header for live event entrances and step‑and‑repeat backdrops
10x10 Goal Post Square Truss System EVT290S-Gilroy in Black Powder Coat, strong and stylish event support
EVT290S‑Gilroy 10×10 goal‑post square aluminum truss system with upright columns and horizontal header for live event entrances and step‑and‑repeat backdrops
10x10 Goal Post Square Truss System EVT290S-Gilroy in Black Powder Coat, strong and stylish event support

10x10 Square Truss Goal Post System | EVT290S-Gilroy

Price range: $2,879.00 through $3,301.00

10x10 Square Truss Goal Post System — Medium-Duty Display Kit

Dimensions & Specs
Overall Width: 9.84 ft (3 m)
Overall Height: 9.84 ft (3 m)
Inside Width: 7.94 ft (2.42 m)
Inside Height: 8.89 ft (2.70 m)
Truss Profile: 11.41 in (290 mm) Square Truss
Type: Medium-Duty Goal Post System

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) OD / 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing / 0.078 in (2 mm) Wall Thickness
Hardware Included: Connecting hardware

Finish & Features
Surface: Available in Aluminum Brush or Matte Black Powder Coat
Certification: TUV Certified

SKU: EVT290S-GP-10x10-GILROY Category:

EVT290S System Knowledge Center

A Clean 10x10 Frame.
Built for Fast Event Setup.

The EVT290S-Gilroy is a freestanding 10x10 goal-post truss system designed for live event entrances, step-and-repeat backdrops, branded activations, photo opportunities, signage, and lighting displays. Built from modular EVT290S square aluminum truss, it provides a professional open-frame structure that can be assembled, transported, reconfigured, and expanded as project requirements change.

System Facts

Model EVT290S-Gilroy
System Type 10x10 Goal Post
Overall Width 118.11 in
Overall Height 118.11 in
Truss Series EVT290S
Material EN AW-6082 T6
10x10 ft Nominal Format
290 mm Square Truss
50 mm Main Chords
2 Finishes Available
Conical Connection System

System Overview

A Professional Goal Post Without a Permanent Build.

The EVT290S-Gilroy creates a clean freestanding frame using modular square truss sections, corner components, base plates, and conical connection hardware.

Freestanding 10x10 Format
Provides a balanced goal-post layout for entrances, backdrops, signage, and light-duty event display applications.
Modular Construction
Built from standard EVT290S components that can be reused, reconfigured, or incorporated into future systems.
Fast Conical Assembly
Conical couplers, tapered pins, and R-clips provide repeatable assembly without bolted splice plates.
Two Finish Options
Available in brushed aluminum or matte black powder coat to suit the visual requirements of the production.

Common Applications

Designed for High-Visibility Event Spaces.

The open-frame design supports a range of temporary event, exhibit, promotional, and production uses.

01
Live Event Entrances
Create a defined architectural entrance for concerts, galas, launches, and branded guest experiences.
02
Step-and-Repeat Backdrops
Support banners, printed graphics, drape, and branded media walls for photo opportunities and press areas.
03
Trade Show Displays
Frame product displays, overhead branding, booth entrances, and promotional graphics.
04
Race & Finish-Line Structures
Provide a visible frame for start lines, finish lines, timing displays, and sponsor branding.
05
Stage & Scenic Backdrops
Create a clean support frame for scenic elements, lightweight fixtures, and visual production components.

Who It’s For

Built for Teams That Need A Reusable Event Frame.

Best suited for professionals who repeatedly build temporary entrances, backdrops, branded displays, and modular event structures.

Event Production Companies
For entrances, stage backdrops, sponsor displays, and recurring live-production installations.
Trade Show & Exhibit Builders
For reusable booth entrances, branded portals, graphics, and display frames.
Rental Companies
For inventory packages that can be repeatedly deployed and later expanded with additional EVT290S components.
Marketing & Activation Agencies
For product launches, red-carpet events, branded photo areas, and temporary promotional environments.
Venues & In-House AV Teams
For repeatable event entrances, media walls, signage frames, and temporary production layouts.
Race & Sports Organizers
For start-line, finish-line, sponsor, timing, and event-wayfinding structures.

System Package

Components Required for the Complete Goal Post.

The system package includes the EVT290S truss sections, corner components, base plates, and conical connection hardware required to assemble the standard 10x10 configuration.

Vertical Truss Sections
Form the left and right upright columns of the goal-post structure.
Horizontal Truss Sections
Form the overhead header span across the top of the structure.
90-Degree Corner Components
Connect the upright columns to the horizontal header.
Base Plates
Provide the lower mounting platform for each upright column.
Conical Connection Hardware
Includes the couplers, tapered pins, and retaining clips required for the supplied components.
Ballast, anchors, banners, clamps, fixtures, and safety accessories are not assumed unless specifically listed in the order.

Confirm the complete quotation and project requirements before installation.

Technical Reference

Complete System Specifications

Nominal dimensions, construction details, finish options, and connection data.

System Details

Identification

Model EVT290S-Gilroy
Product Group ID EVT290S-GP-10x10-GILROY
Brand Evolve Truss
System Type Freestanding Goal Post

Overall Size

Dimensions

Overall Width 118.11 in / 3,000 mm
Overall Height 118.11 in / 3,000 mm
Truss Depth 11.41 in / 290 mm
Nominal Format 10x10 ft

Truss Construction

Materials

Truss Series EVT290S
Material EN AW-6082 T6 Aluminum
Main Chord OD 1.96 in / 50 mm
Connection Type Conical Coupler System

Appearance & Fit

Finish & Compatibility

Standard Finish Brushed Aluminum
Optional Finish Matte Black Powder Coat
Clamp Compatibility Standard 50 mm Clamps
Truss Compatibility EVT290S, F34 & Standard 290 mm Systems

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

EVT290S-Gilroy uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.
F34 Compatibility
Compatible with matching F34 290 mm square truss geometry and conical hardware.
Standard 290 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
50 mm Clamp Compatibility
Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Header First. Then Raise the Uprights.

Assembly should be performed by trained personnel using the supplied connection hardware and project-specific setup requirements.

01 — Inspect Components
Check all truss sections, corners, base plates, couplers, pins, and clips before assembly.
02 — Position Base Plates
Place the base plates at the required spacing on a level surface.
03 — Build the Header
Assemble the horizontal span and connect the two upper corner components while the structure is at working height.
04 — Assemble Uprights
Connect the vertical truss sections to the base plates and prepare both columns for lifting.
05 — Raise and Connect
Lift the header and connect it to the upright columns using the conical hardware.
06 — Secure and Verify
Install ballast or anchors as required, verify plumb and level, and inspect every connection before use.

Safety & Engineering

The Goal Post Must Be Evaluated as A Complete Structure.

Allowable loading and required stabilization depend on the completed system, installed accessories, ballast or anchorage, support conditions, load placement, indoor or outdoor use, and environmental forces.

Inspect every truss section, corner, base plate, coupler, tapered pin, and retaining clip before assembly.
Do not use cracked, bent, deformed, or heavily worn components.
Confirm every tapered pin is fully seated and every retaining clip is properly installed.
Use appropriate ballast or anchorage based on the complete configuration and site conditions.
Do not attach banners, lighting, signage, drape, or accessories without evaluating their added loads and wind exposure.
Outdoor installations require project-specific engineering and weather monitoring.
Assembly and operation must be performed by trained personnel in accordance with applicable requirements.

System Questions

Frequently Asked Questions

What is included in the EVT290S-Gilroy kit?

The package includes the EVT290S truss sections, corner components, base plates, and conical connection hardware required for the standard 10x10 goal-post configuration.

What finish options are available?

The system is available in brushed aluminum and matte black powder coat.

Can the width or height be changed later?

Yes. Because the system uses modular EVT290S components, compatible straight sections can be added or changed to create alternate dimensions. Any modified configuration must be evaluated before use.

Is it compatible with F34-style truss?

It uses standard 290 mm square conical truss geometry. Verify connector dimensions, chord spacing, and system data before mixing brands.

How many people are recommended for assembly?

The source describes assembly by two people familiar with truss systems. Additional personnel or lifting equipment may be required based on the site, configuration, and applicable safety procedures.

Planning an entrance, backdrop, or branded event structure?

Contact us for system selection, finish options, expansion components, ballast planning, and freight assistance.
