What is included in the EVT290S-Geyser octagon arch kit?

The kit includes all necessary medium-duty 290mm square aluminum truss segments, specialized corner blocks, base plates, and conical connecting hardware required to build the complete 10x10 octagonal arch.

What finish colors are available for this arch system?

The EVT290S-Geyser is available in two finish options: a standard Aluminum Brush finish and a Matte Black Powder Coat finish.

Is this arch system compatible with other truss brands?

Yes, it is fabricated from EN AW-6082 T6 aluminum alloy and is fully compatible with standard 290mm square truss systems using conical couplers, such as the F34 series.

Can I pick up this system locally?

Yes, local pickup is available for the EVT290S-Geyser. Please select the On-Site Pickup option during the checkout process.

10x10 Octagon Arch Truss System – Event Entrance & Step-and-Repeat

EVT290S Octagon Arch Knowledge Center

Create a Bold Geometric Entrance.
A 10x10 Octagon Arch for Events, Exhibits, Photography, and Brand Activations.

The EVT290S-Geyser is a portable 10x10 octagon arch truss system designed for trade shows, event entrances, step-and-repeat backdrops, photography sets, temporary installations, and branded activations. Its eight-sided profile creates a distinctive architectural frame while retaining the modular advantages of EVT290S square truss construction.

System Facts

ModelEVT290S-Geyser

Product Group IDEVT290S-OC-10x10-GEYSER

System Type10x10 Octagon Arch

Overall Size9.84 ft W x 9.84 ft H

System Weight216 lb / 97.97 kg

MaterialEN AW-6082 T6

9.84x9.84 ftOverall Size

290 mmSquare Truss Profile

50 mmMain Chords

216 lbSystem Weight

2 PeopleSource Setup Crew

System Overview

A Distinctive Octagon Profile Built from Modular Square Truss.

The Geyser creates a symmetrical eight-sided opening using EVT290S straight sections, specialized angled corners, base components, and a conical connection system.

High-Impact Geometry

The octagonal outline creates a stronger visual identity than a conventional rectangular entrance.

Portable Event Format

Designed for repeated assembly, transport, and temporary event installation.

EVT290S Construction

Uses medium-duty 290 mm square truss with 50 mm main chords and 20 mm diagonal bracing.

Two Finish Options

Available in brushed aluminum or matte black powder coat.

Applications

Designed for Entrances, Backdrops, Exhibits, and Branded Experiences.

Event Entrances

Creates a bold geometric gateway for launches, galas, private events, and hospitality environments.

Step-and-Repeat Backdrops

Frames photography areas, sponsor walls, media moments, and red-carpet installations.

Trade Show Displays

Provides a recognizable structural entrance for exhibit booths and branded floor spaces.

Photography and Film Sets

Creates a defined geometric frame for portraits, product shoots, scenic sets, and content production.

Brand Activations

Supports properly rated graphics, lighting, signage, and decorative elements within the approved load plan.

Who It Is For

Built for Teams That Need A Reusable Geometric Event Frame.

Event Production Companies

For entrances, media walls, sponsor zones, and recurring event installations.

Trade Show and Exhibit Builders

For branded portals, booth entrances, graphics, and modular display structures.

Photography and Scenic Teams

For geometric backdrops, portrait frames, film sets, and temporary scenic environments.

Marketing and Activation Agencies

For product launches, photo moments, branded arrivals, and promotional installations.

Rental Companies

For reusable medium-duty arch inventory with two finish options.

Technical Details

Detailed Specifications.

Identification

Product Information

ModelEVT290S-Geyser

Product Group IDEVT290S-OC-10x10-GEYSER

System TypeMedium-Duty Octagon Arch System

Physical Dimensions

Overall Size

Overall Width9.84 ft / 3 m

Overall Height9.84 ft / 3 m

Truss Profile11.41 in / 290 mm Square

System Weight216 lb / 97.97 kg

Construction

Materials and Tubing

MaterialEN AW-6082 T6 Aluminum

Main Chords50 mm / 1.96 in OD, 2 mm Wall

Diagonal Bracing20 mm / 0.78 in, 2 mm Wall

CertificationTUV Certified

Finish and Setup

Configuration Details

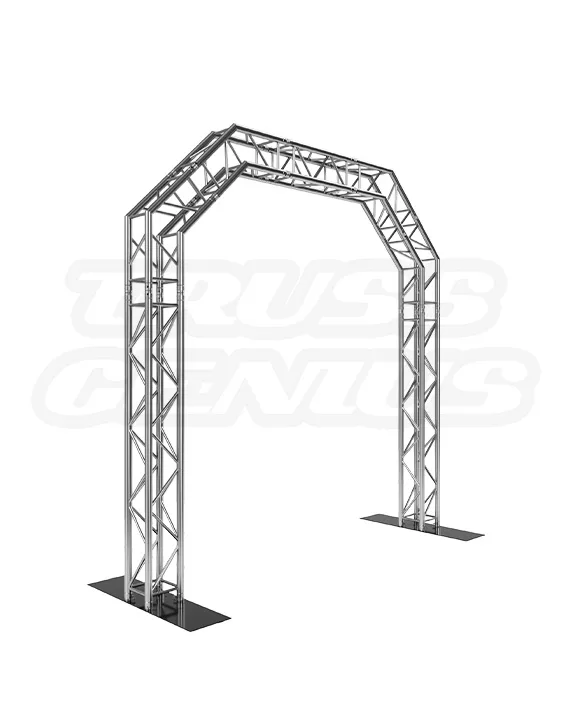

Standard FinishBrushed Aluminum

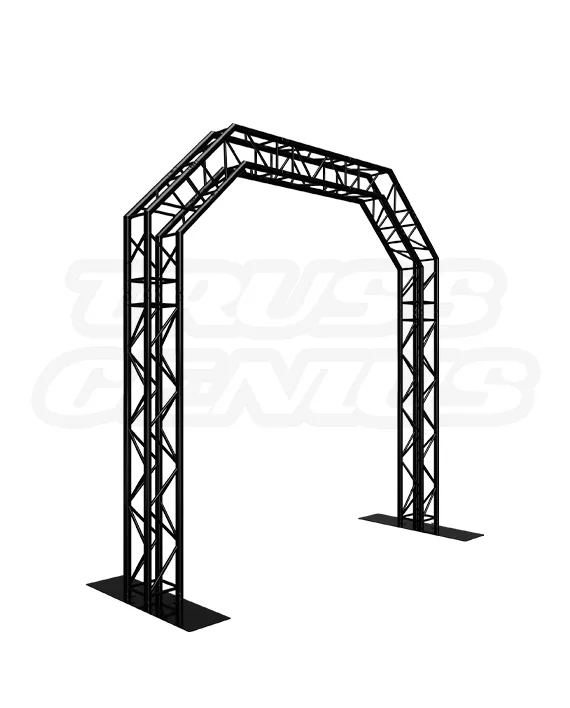

Optional FinishMatte Black Powder Coat

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly ToolSteel Hammer

Assembly CrewTwo People Familiar with Truss Structures

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

EVT290S-Geyser uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility

Integrates with compatible EVT290S straight sections, angled corners, junctions, and expansion components.

F34 Compatibility

Compatible with matching F34 290 mm square truss geometry and conical hardware.

Standard 290 mm Square Systems

Verify receiver spacing, connection geometry, and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Sequence

Build the Octagon in a Controlled Ground-Level Sequence.

The source states that two people familiar with truss structures can assemble the system using a steel hammer. Additional assistance may be appropriate for lifting and final positioning.

01 — Lay Out Components

Arrange straight sections, angled corners, bases, and connection hardware in the intended octagon layout.

02 — Inspect Every Part

Remove damaged truss, couplers, pins, R-clips, or base components from service.

03 — Assemble the Upper Frame

Connect the angled top sections at ground level using the complete conical hardware set.

04 — Build the Lower Supports

Assemble the side sections and bases while maintaining matching geometry on both sides.

05 — Raise and Connect

Use a controlled method appropriate for the system weight and final installation plan.

06 — Final Inspection

Confirm every pin, R-clip, base condition, attachment, and stability measure before use.

Safety and Engineering

Evaluate the Octagon Arch as A Complete Installed Structure.

Do not exceed the allowable load capacity of the complete EVT290S-Geyser configuration.

Distribute applied loads equally between the appropriate main chords.

Do not apply concentrated loads directly at truss connections unless specifically approved.

Include lighting, signage, graphics, floral materials, clamps, cables, and decorative elements in the total applied load.

Use ballast or anchoring appropriate for the final configuration, attached surfaces, wind exposure, and installation site.

Inspect every truss section, angled corner, base component, coupler, tapered pin, and R-clip before use.

Assembly should be completed only by personnel familiar with trussing techniques.

A licensed professional engineer must review the final structure and loading where required.

Frequently Asked Questions

EVT290S-Geyser Questions.

What are the overall dimensions?

The documented overall size is 9.84 ft wide by 9.84 ft high, using a 290 mm square truss profile.

What finish options are available?

The system is available in brushed aluminum and matte black powder coat.

How many people are needed for assembly?

The source states that two people familiar with truss structures can assemble the system using a steel hammer.

Can the dimensions be changed later?

Compatible EVT290S straight sections and angled components may be reconfigured, but every modified structure must be reviewed before use.

Is it compatible with F34 truss?

Yes, when the F34 system uses matching 290 mm square geometry and conical hardware. Verify receiver spacing, coupler dimensions, connection geometry, and engineering data before combining systems.

What applications is it suited for?

It is suited to event entrances, trade shows, step-and-repeat backdrops, photography sets, branded activations, and temporary installations.

Planning a octagon entrance, branded backdrop, or geometric event structure?

Contact us for system selection, finish options, attachment planning, ballast requirements, expansion components, and freight assistance.
