Name: 10x10 Suspended Triangle Truss System | SkyGrid-TRI100
Brand: Evolve Truss
SKU: SkyGrid-TRI-10x10-100
Price: 2340.00 USD
Availability: InStock

SkyGrid Suspended Triangle System Knowledge Center

Create a Distinct Overhead Geometry.
A Professional 10x10 Triangle for Lighting, AV, and Event Production.

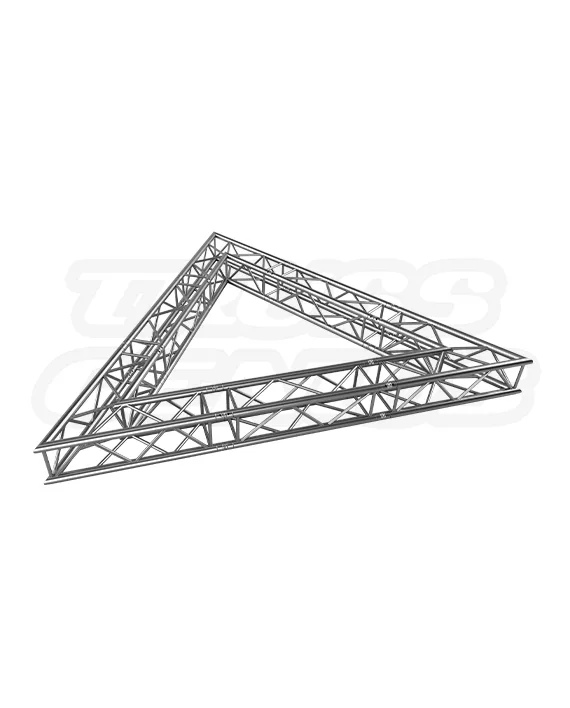

The SkyGrid-TRI100 is a modular 10x10 suspended triangle truss system designed for overhead lighting, AV equipment, signage, exhibits, retail displays, studios, and event staging. Built from EVT290S 290 mm square aluminum truss, it creates a distinctive triangular overhead frame with a conical connection system.

System Facts

ModelSkyGrid-TRI100

SKUSkyGrid-TRI-10x10-100

System TypeSuspended Triangle Truss

Overall Size9.84 x 9.84 ft / 3 x 3 m

System Weight126 lb / 57.15 kg

MaterialEN AW-6082 T6

10x10 ft Nominal Grid

290 mm Square Truss

126 lb System Weight

Conical Connections

Overhead Application

System Overview

A Modular Overhead Framework Built to Keep Floor Space Open.

The SkyGrid-TRI100 forms a rigid square perimeter using straight EVT290S truss sections, corner junctions, and secure connection hardware.

Suspended 10x10 Layout

Creates an overhead perimeter for fixtures, signage, scenic elements, and production equipment.

Modular Construction

Uses standard EVT290S components that can be expanded or reconfigured for future installations.

Conical Connection System

Couplers, tapered pins, R-clips, and M12 hardware at applicable junctions create secure repeatable connections.

Ground Assembly

The complete grid is assembled and inspected at floor level before being lifted into position.

Common Applications

Designed for Overhead Production Environments.

The SkyGrid-TRI100 supports temporary and permanent-style overhead layouts where clear floor space and organized fixture placement are priorities.

Trade Show Exhibitions

Support lighting, banners, signage, and suspended booth elements above the exhibit footprint.

Retail Displays & Showrooms

Create an overhead framework for accent lighting, displays, and visual merchandising elements.

Broadcast Studios

Organize lighting and production equipment above controlled studio spaces.

Photography Studios

Suspend lighting, modifiers, and accessories while keeping stands and cables away from the active floor area.

Live Event Lighting Grids

Provide a compact overhead structure for lighting and production equipment.

Who It’s For

Built for Professionals Managing Overhead Equipment.

Best suited for teams that understand suspended truss, load planning, lifting operations, and venue rigging requirements.

Production Companies

For compact lighting grids, suspended scenic systems, and repeatable event installations.

Rigging Companies

For engineered suspended layouts using venue-approved rigging points and lifting equipment.

Trade Show Contractors

For overhead booth lighting, branding, signage, and display structures.

Studios & Content Facilities

For broadcast, photography, video, and controlled lighting environments.

Retail & Showroom Designers

For suspended lighting and visual elements above product displays.

Venue Technical Teams

For venue-specific overhead installations reviewed and approved for the available support structure.

System Package

Components for the Complete Grid Frame.

The package includes the truss sections, corner components, and connection hardware required to assemble the standard SkyGrid-TRI100 frame.

Straight EVT290S Truss Sections

Form the four perimeter sides of the suspended grid.

Corner Junctions

Connect the perimeter sections into the complete square configuration.

Conical Hardware

Includes couplers, tapered pins, and R-clips for standard truss connections.

Junction Hardware

M12 bolts are included where applicable for junction block connections.

Technical Drawing

A detailed 3D drawing with dimensions and part labels is included for assembly reference.

Suspension hardware is not included.

Span sets, shackles, motors, chain falls, rigging points, and attachment hardware are site-specific and must be selected for the approved rigging plan. A qualified rigging crew and rated lifting equipment are required for every SkyGrid installation.

Technical Reference

Complete Grid Specifications

Overall dimensions, construction details, finish, weight, and connection data.

System Details

Identification

Model SkyGrid-TRI100

SKU SkyGrid-TRI-10x10-100

Brand Evolve Truss

System Type Suspended Truss Grid

Overall Size

Dimensions

Width 9.84 ft / 3 m

Depth 9.84 ft / 3 m

Inside Width 6.56 ft / 2 m

Inside Length 6.56 ft / 2 m

Truss Height 11.41 in / 290 mm

Nominal Format 10x10 ft

Construction

Materials & Weight

Truss Series EVT290S

Material EN AW-6082 T6 Aluminum

Main Chord Tubing50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in Diagonal, 2 mm Wall

CertificationTUV Certified

System Weight 126 lb / 57.15 kg

Finish Brushed Aluminum

Installation Planning

Assembly & Rigging Requirements

Connection Type Conical Couplers, Tapered Pins and R-Clips

Assembly Tools Steel Hammer and M10 Hex Key

Assembly Crew Minimum 2 Qualified Riggers; 3 Recommended

Lifting Equipment Rated Motors, Chain Falls and/or Other Approved Lifting Equipment

Assembly Location Ground Level Before Lifting

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The SkyGrid-TRI100 uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, connection geometry, and engineering data.

EVT290S Compatibility

Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.

F34 Compatibility

Compatible with matching F34 290 mm square truss geometry and conical hardware.

Standard 290 mm Square Systems

Verify receiver spacing, connection geometry, and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Assemble on the Ground. Inspect Before Every Lift.

Ground assembly must be completed by qualified truss technicians. Suspension, lifting, leveling, and final positioning require a qualified rigging crew using rated lifting equipment under the approved rigging plan and venue requirements.

01 — Lay Out Components

Arrange the straight truss sections, corners, and connection hardware in the final square configuration.

02 — Inspect Every Part

Check truss, junctions, couplers, pins, R-clips, and bolts for damage, wear, or deformation.

03 — Connect the Grid

Install conical couplers, tapered pins, R-clips, and applicable junction bolts.

04 — Verify Geometry

Confirm the grid is square, all connections are seated, and every fastener is properly secured.

05 — Attach Suspension Hardware

Install the approved span sets, shackles, motors, or chain falls according to the engineered rigging plan.

06 — Lift as a Complete Assembly

A qualified rigging crew must raise the grid evenly with rated lifting equipment, monitor every lifting point, and stop immediately if the grid racks, twists, or lifts unevenly.

Safety & Engineering

Overhead Loads Require Project-Specific Engineering.

The allowable load depends on suspension-point quantity and location, truss orientation, support conditions, attached equipment, load distribution, lifting method, and the rated capacity of the venue structure.

A qualified engineer must determine the allowable distributed and point loads for the specific rigging plan.

Verify the building structure, rigging points, motors, shackles, span sets, and all suspension hardware are rated for the complete load.

Inspect every truss section, junction, coupler, pin, clip, and bolt before each lift.

Do not use any component showing cracks, bends, deformation, severe wear, or damaged welds.

Assemble the complete grid at ground level before lifting.

Use independently rated secondary safeties for overhead fixtures and accessories where required.

Overhead installation and lifting must be performed only by qualified rigging professionals.

System Questions

Frequently Asked Questions

Does the SkyGrid-TRI100 include suspension hardware?

No. The system includes the truss sections, corners, and connection hardware. Span sets, shackles, motors, chain falls, rigging points, and related suspension equipment are site-specific and purchased separately.

How is the grid assembled?

The grid is assembled at ground level by connecting the four perimeter sides and corner junctions. All connections must be inspected before the complete grid is lifted into position.

What is the load capacity?

There is no universal load value for every installation. Capacity depends on the suspension plan, number and location of pick points, attached loads, and venue structure. A structural engineer must determine the allowable load.

Can the grid size be expanded?

Yes. Compatible EVT290S straight sections and junction components can be used to create alternate dimensions. The revised system must be evaluated before use.

What inspections are required?

Every component and connection must be visually inspected before each lift. Documented periodic inspections should also be performed by a competent person according to applicable requirements.
