10x10 Suspended Truss Grid System | SkyGrid-100

Original price was: $8,600.00.Current price is: $4,300.00.

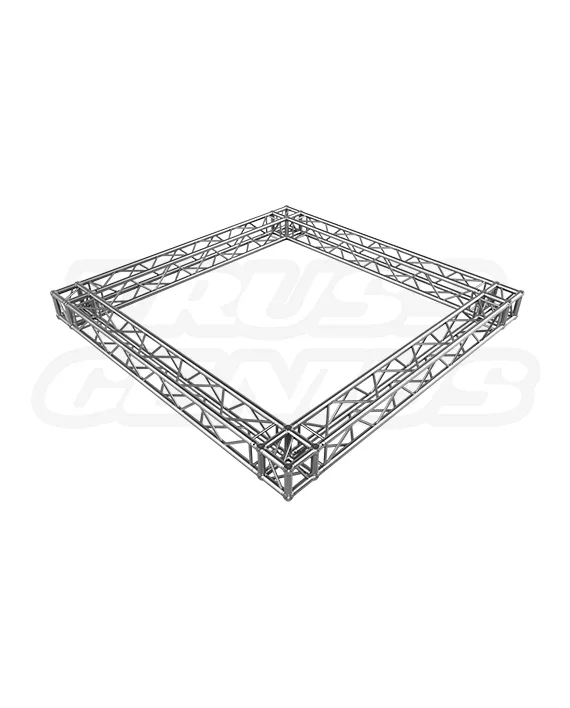

SkyGrid-100 — 10' x 10' Suspended Square Aluminum Truss Grid System

System Dimensions
Overall Grid Dimensions: 10 ft x 10 ft (3.05 m x 3.05 m)
Interior Grid Dimensions: 8.20 ft x 8.20 ft (2.50 m x 2.50 m)

Truss Construction
Truss Profile: 11.41 in (290 mm) Square
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Total System Weight: 204 lbs (92.53 kg)

In stock

SKU: SkyGrid-GRD-10x10-100 Category:

SkyGrid Suspended Square System Knowledge Center

Keep the Floor Open.
Build a 10-Foot Square Overhead Perimeter.

The SkyGrid-100 is a four-sided, 10 x 10 ft suspended square truss grid built from EVT290S 290 mm square aluminum truss. The overall frame geometry is square, and the truss members also have a square 290 mm profile. It creates an overhead perimeter for planned lighting, signage, scenic, display, studio, and technical installations while keeping the floor area below clear. The completed structure must be assembled, suspended, and loaded only under a project-specific rigging and engineering plan.

Identity and Core Facts

ModelSkyGrid-100
SKUSkyGrid-GRD-10x10-100
Overall GeometrySquare Perimeter Grid
Overall Dimensions10 x 10 ft / 3.05 x 3.05 m
Interior Dimensions8.20 x 8.20 ft / 2.50 x 2.50 m
System Weight204 lb / 92.53 kg
10 x 10 ftOverall Grid Dimensions
8.20 x 8.20 ftInterior Dimensions
290 mmSquare Truss Profile
204 lbDocumented System Weight
4 SetsIncluded Conical Hardware

What It Is

A Four-Sided Overhead Frame for Compact Square Production Zones.

SkyGrid-100 is a square perimeter structure made from straight EVT290S square-profile truss sections, four corner junctions, and conical connection hardware. Its four sides create a compact 10 x 10 ft overhead zone. The 290 mm square profile describes the truss cross-section; the 10 x 10 ft dimensions describe the frame’s square plan geometry.

Square Perimeter Geometry
The overall structure has four perimeter sides and four corner junctions that form a 10 x 10 ft square frame.
290 mm Square Truss Profile
Each perimeter member uses the EVT290S 290 mm square aluminum truss profile.
Compact Overhead Zone
The frame establishes a defined overhead perimeter for planned equipment, lighting, signage, scenic, or display layouts.
Not a Universal Hanging System
The frame does not include site-specific suspension hardware or establish an allowable load for every rigging configuration.

Geometry Matters

A 10 x 10 Foot Perimeter Is A Layout Constraint and a Planning Tool.

The SkyGrid-100 has reported overall dimensions of 120.07 x 120.07 in, approximately 10 x 10 ft / 3.05 x 3.05 m, with a reported interior of 8.20 x 8.20 ft / 2.50 x 2.50 m. Use the current technical drawing to confirm exact exterior dimensions, interior clearance, corner geometry, fixture positions, pick-point locations, and required clearances before finalizing a project.

Four-Sided Layout
Plan the support, equipment, cable, and access approach around four structural corners and the actual square perimeter.
Overall Frame Area
The reported overall dimensions establish the footprint occupied by the assembled perimeter frame.
Interior Clear Area
The reported 8.20 x 8.20 ft interior dimension should be verified against the current drawing and the intended installation.
Load Planning Is Layout-Specific
Pick-point locations, load distribution, truss orientation, and attached equipment must be analyzed for the actual square frame and support arrangement.

When to Select It

Choose It When the Project Needs A Compact Square Overhead Perimeter.

Select SkyGrid-100 when a 10 x 10 ft square footprint supports the approved production, exhibit, studio, retail, or technical layout. The system is appropriate only where the venue structure, rigging plan, suspension equipment, installed loads, and qualified review support the completed overhead configuration.

Compact Lighting Grids
For lighting layouts organized around a 10 x 10 ft overhead perimeter where fixture positions are developed in the approved plan.
Trade Show and Exhibit Booths
For booth lighting, signage, branding, and display elements where a compact square overhead form matches the exhibit footprint.
Studios and Content Facilities
For controlled lighting, camera, audio, or sensor layouts above compact studio work areas.
Retail and Showroom Displays
For approved overhead lighting and visual elements above product displays or architectural features.

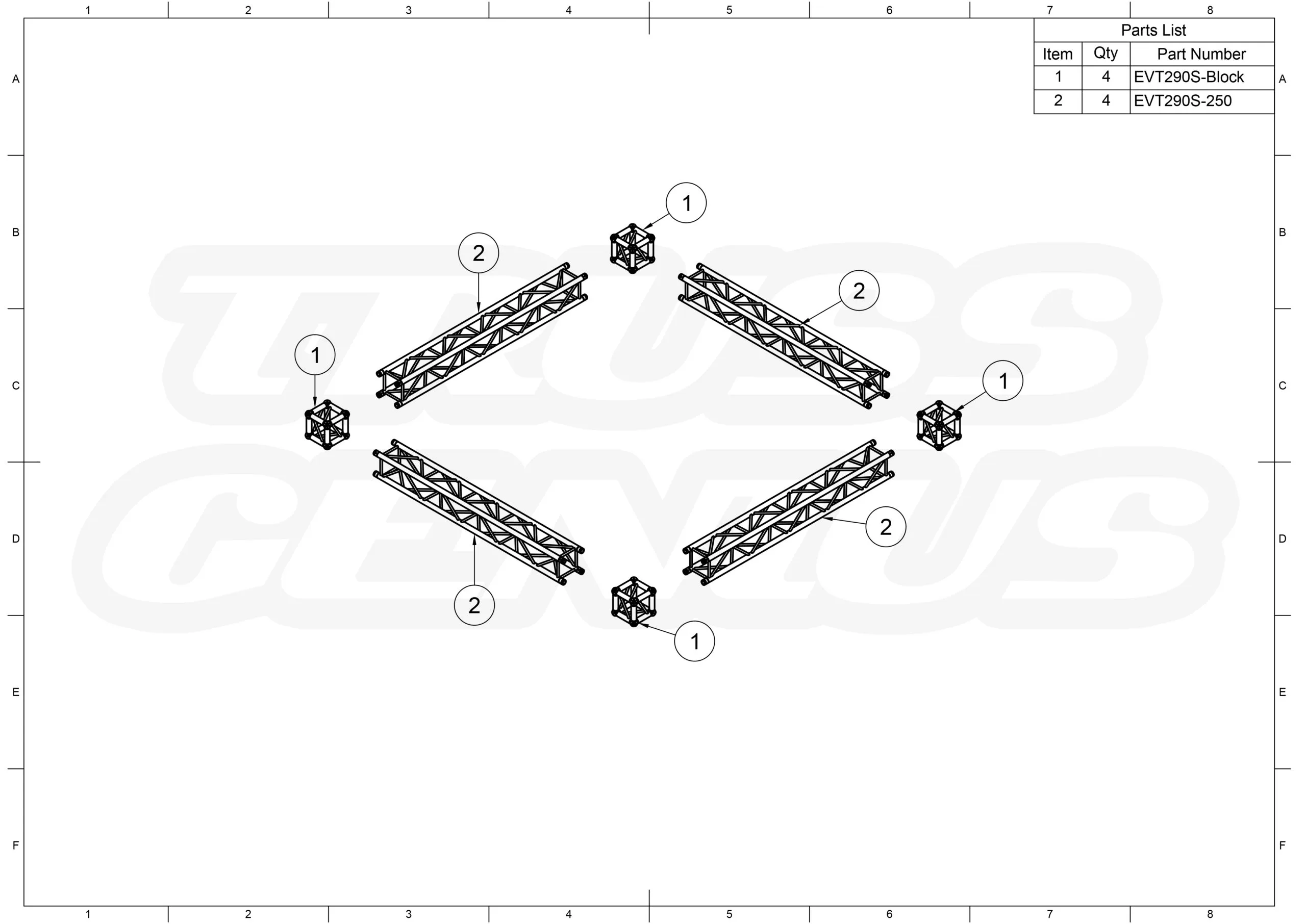

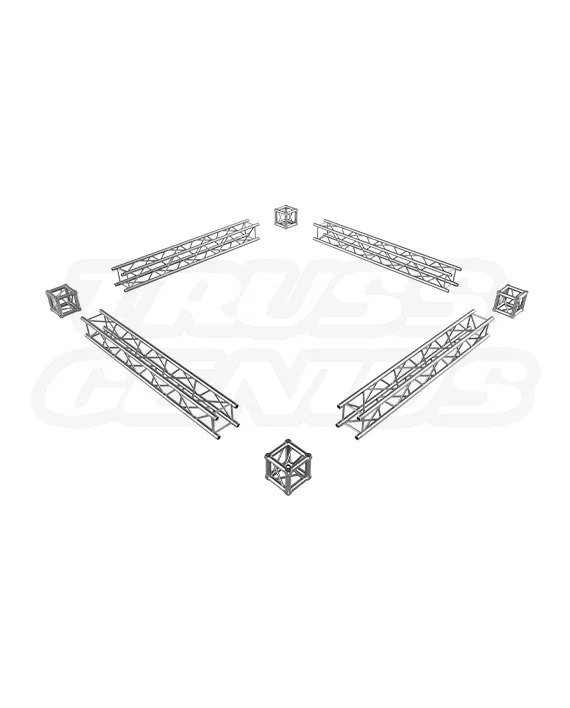

Included Frame Components

Components and Hardware for the Complete Square Frame.

The SkyGrid-100 package includes the EVT290S truss sections, four corner components, and four complete conical connection-hardware sets for assembly of the standard 10 x 10 ft square frame. Confirm the current bill of materials against the sales order, packing list, and technical drawing before assembly.

Straight EVT290S Truss Sections
Form the four perimeter sides of the square frame.
Four Corner Junctions
Connect the four perimeter sides at the structural corners according to the current technical drawing and approved assembly plan.
4 Conical Hardware Sets
Four complete hardware sets are included for the documented truss connections in the standard SkyGrid-100 configuration.
16 Couplers, 32 Pins, and 32 R-Clips
Each set includes four conical couplers, eight coupler pins, and eight R-clips. Four sets provide 16 couplers, 32 pins, and 32 R-clips total.
Applicable M12 Junction Hardware
M12 bolts are included where required for applicable junction block connections. Verify quantities against the packing list and technical drawing.

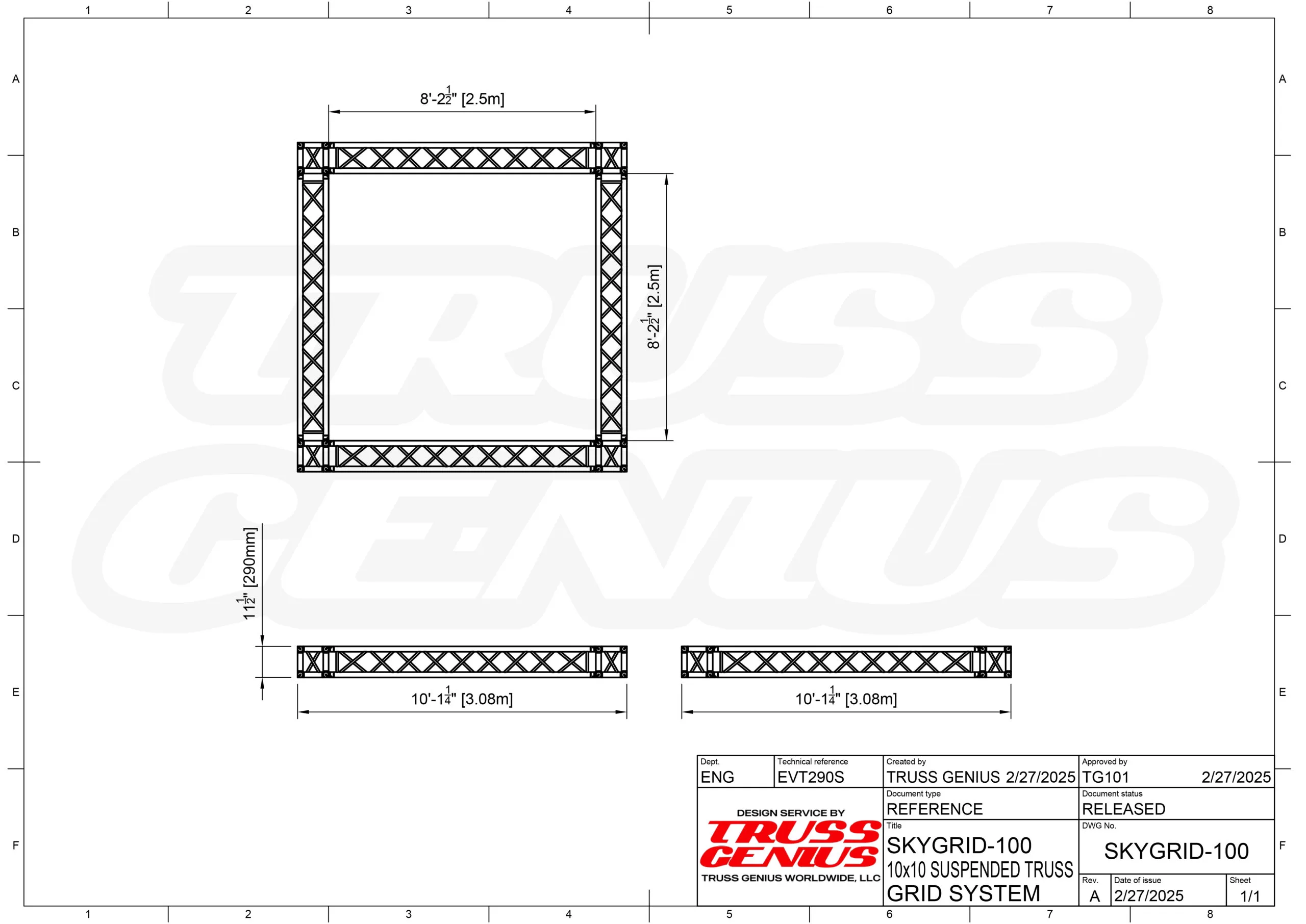

Technical Drawing
A detailed technical drawing with dimensions and part labels is included for assembly reference.
Suspension hardware is not included.

Span sets, shackles, motors, chain falls, rigging points, and attachment hardware are site-specific. Select them only for the approved rigging plan and the actual venue structure.

Specifications

SkyGrid-100 Factual Product Reference.

Identification

System Record

ModelSkyGrid-100
SKUSkyGrid-GRD-10x10-100
BrandEvolve Truss
Product TypeSuspended Square Truss Grid

Overall Geometry

Reported Dimensions

Overall GeometrySquare Perimeter Grid
Overall Width120.07 in / 10 ft / 3.05 m
Overall Depth120.07 in / 10 ft / 3.05 m
Interior Dimensions8.20 x 8.20 ft / 2.50 x 2.50 m
System Weight204 lb / 92.53 kg

Truss Construction

EVT290S Profile

Truss Profile290 mm / 11.41 in Square
MaterialEN AW-6082 T6 Aluminum
Main Chords50 mm OD / 2 mm Wall
Diagonal Braces20 mm OD / 2 mm Wall
FinishBrushed Aluminum
CertificationTUV Certified

Connections and Supply

Assembly Conditions

Conical Hardware Sets4 Sets
Included Couplers16 Total
Included Coupler Pins32 Total
Included R-Clips32 Total
Applicable Junction HardwareM12 Bolts Where Required
Suspension HardwareNot Included

System Compatibility

EVT290S, F34, and Matching 290 mm Square-Profile Conical Truss Systems.

The SkyGrid-100 uses 290 mm square-profile truss geometry, 50 mm main chords, and a conical connection system. Compatibility with other components requires matching receiver spacing, coupler dimensions, chord geometry, corner or junction geometry, and engineering data for the revised complete structure. “Square-profile” describes the truss cross-section; the frame’s 10 x 10 ft plan geometry is also square.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components when the complete configuration is reviewed.
F34 Compatibility
Compatible with matching F34 290 mm square-profile geometry and conical hardware when physical interfaces and engineering data match.
Standard 290 mm Square Systems
Do not rely on the 290 mm classification alone. Verify receiver spacing, connection geometry, corner interfaces, and engineering data before combining systems.
50 mm Clamp Interface
The 50 mm main chords may accept compatible professional truss clamps where placement, load, orientation, and the complete rigging plan are approved.

Assembly and Lifting

Assemble the Square at Ground Level. Inspect the Complete Frame Before Every Lift.

Ground assembly must be completed by qualified truss technicians. Suspension, lifting, leveling, and final positioning require a qualified rigging crew, rated lifting equipment, and an approved rigging plan. The following steps describe the required planning sequence; use the current technical drawing and project documentation for exact component orientation and connections.

01 — Confirm the Square Layout
Lay out the straight sections and four corner components in the actual square configuration shown by the approved drawing.
02 — Inspect Every Component
Check truss, corners, junctions, all 16 couplers, 32 pins, 32 R-clips, and applicable M12 hardware for damage, wear, cracks, deformation, or incomplete hardware.
03 — Connect the Four Sides
Install conical couplers, tapered pins, R-clips, and applicable junction bolts according to the approved assembly drawing.
04 — Verify Square Geometry
Confirm the square perimeter, corner orientation, connection seating, and all fasteners before attaching suspension hardware.
05 — Install Approved Suspension Hardware
Install site-specific span sets, shackles, motors, chain falls, or other rated lifting equipment only under the approved rigging plan.
06 — Lift Evenly and Monitor
A qualified rigging crew must raise the complete frame according to the plan, monitor each pick point, and stop if the frame racks, twists, or lifts unevenly.

Safety and Engineering

There Is No Universal Hanging Load for This System. Allowable Load Is Project-Specific.

The supplied product information does not establish one allowable load for every SkyGrid-100 installation. Capacity depends on suspension-point quantity and location, truss orientation, support conditions, attached equipment, load distribution, lifting method, venue structure, and every component in the load path. A qualified engineer must determine the allowable distributed and point loads for the actual rigging plan.

A qualified engineer must determine allowable distributed and point loads for the specific square frame, support arrangement, and rigging plan.
Verify the building structure, rigging points, motors, shackles, span sets, and all suspension hardware are rated for the complete installed load.
Inspect every truss section, corner or junction component, all installed couplers, pins, R-clips, and bolts before each lift.
Do not use components showing cracks, bends, deformation, severe wear, damaged welds, or incomplete connection hardware.
Assemble and inspect the complete square frame at ground level before lifting.
Use independently rated secondary safeties for overhead fixtures and accessories where required by the approved plan and applicable rules.
Do not use a straight-span assumption or a different grid geometry as the engineering basis for this square frame.
Overhead installation and lifting must be performed only by qualified rigging professionals.

Evidence and Review

What This Page Confirms, and What the Project Must Still Establish.

This page records the product identity, square shape, 290 mm square truss profile, material, reported dimensions, system weight, connection type, and confirmed four-set hardware package. It does not replace the current technical drawing, sales-order bill of materials, load documentation, venue approval, rigging plot, or qualified engineer’s project-specific review.

Confirmed Product Facts
Square 10 x 10 ft frame, 8.20 x 8.20 ft reported interior, EVT290S 290 mm square profile, EN AW-6082 T6 aluminum, 204 lb system weight, and 4 hardware sets totaling 16 couplers, 32 pins, and 32 R-clips.
Project-Specific Facts
Pick-point locations, allowable loads, venue support capacity, motors, suspension hardware, fixture layout, and secondary retention must be established for the project.
Evidence Worth Retaining
Keep the current drawing, packing list, component inspection record, rigging plot, venue approval, and engineer or qualified-rigger review with the project file.
No Invented Experience Claims
Do not describe the frame as field-proven for a particular load, venue, or pick-point layout unless those claims are supported by attributable project records and technical review.

System Questions

Frequently Asked Questions

Is SkyGrid-100 a square system?

Yes. SkyGrid-100 is a four-sided 10 x 10 ft square perimeter grid. The EVT290S members also use a 290 mm square truss profile.

How much conical connection hardware is included?

Four hardware sets are included. Each set contains four couplers, eight coupler pins, and eight R-clips, for totals of 16 couplers, 32 pins, and 32 R-clips.

Does the system include suspension hardware?

No. Span sets, shackles, motors, chain falls, rigging points, and related suspension hardware are site-specific and separate from the frame package.

What is the system load capacity?

There is no universal allowable load for every installation. A qualified engineer must determine allowable distributed and point loads for the actual square geometry, pick points, support structure, hardware, and attached equipment.

Can compatible EVT290S components expand or alter the frame?

Compatible components may support an alternate configuration, but any revised geometry, components, suspension plan, and load arrangement must be evaluated before use.

What inspections are required?

Inspect every truss section, corner or junction, coupler, pin, R-clip, bolt, and suspension component before each lift. Perform documented periodic inspections by a competent person as required by the governing conditions.
