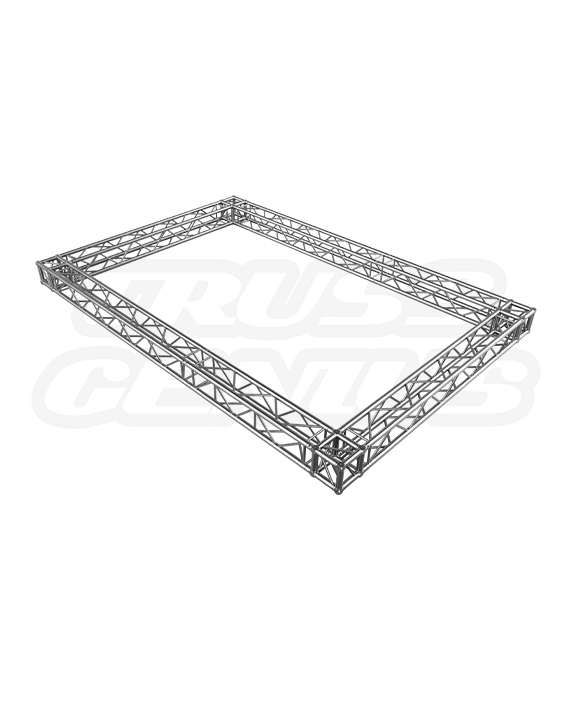

10x15 Suspended Truss Grid System — SkyGrid-150

Dimensions & Specs
Overall Width: 10 ft (3.05 m)
Inside Width: 8.20 ft (2.5 m)
Overall Length: 15.02 ft (4.57 m)
Inside Length: 13.12 ft (4.0 m)
Truss Profile: 11.41 in (290 mm)
Type: Suspended Truss Grid System

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) OD / 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing / 0.078 in (2 mm) Wall Thickness
Hardware Included: Connecting Hardware

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Weight: 250 lbs (113.39 kg)

In stock

SKU: SkyGrid-GRD-10x15-150 Category:

SkyGrid System Knowledge Center

Extend the Overhead Work Zone.
A Professional 10x15 Grid for Lighting, Rigging, and Production.

The SkyGrid-150 is a modular 10x15 suspended truss grid designed for lighting, rigging, signage, and overhead production equipment. Built from EVT290S medium-duty square aluminum truss, it creates a clean, expandable framework for trade shows, retail displays, broadcast studios, photography environments, and live event production.

System Facts

Model SkyGrid-150
SKU SkyGrid-GRD-10x15-150
System Type Suspended Truss Grid
Overall Size 120.07 x 179.92 in
System Weight 250 lb
Material EN AW-6082 T6
10x15 ft Nominal Grid
290 mm Square Truss
250 lb System Weight
Conical Connections
Overhead Application

System Overview

A Modular Overhead Framework Built to Keep Floor Space Open.

The SkyGrid-150 forms a rigid square perimeter using straight EVT290S truss sections, corner junctions, and secure connection hardware.

Suspended 10x15 Layout
Creates an overhead perimeter for fixtures, signage, scenic elements, and production equipment.
Modular Construction
Uses standard EVT290S components that can be expanded or reconfigured for future installations.
Conical Connection System
Couplers, tapered pins, R-clips, and M12 hardware at applicable junctions create secure repeatable connections.
Ground Assembly
The complete grid is assembled and inspected at floor level before being lifted into position.

Common Applications

Designed for Overhead Production Environments.

The SkyGrid-150 supports temporary and permanent-style overhead layouts where clear floor space and organized fixture placement are priorities.

01
Trade Show Exhibitions
Support lighting, banners, signage, and suspended booth elements above the exhibit footprint.
02
Retail Displays & Showrooms
Create an overhead framework for accent lighting, displays, and visual merchandising elements.
03
Broadcast Studios
Organize lighting and production equipment above controlled studio spaces.
04
Photography Studios
Suspend lighting, modifiers, and accessories while keeping stands and cables away from the active floor area.
05
Live Event Lighting Grids
Provide a compact overhead structure for lighting and production equipment.

Who It’s For

Built for Professionals Managing Overhead Equipment.

Best suited for teams that understand suspended truss, load planning, lifting operations, and venue rigging requirements.

Production Companies
For compact lighting grids, suspended scenic systems, and repeatable event installations.
Rigging Companies
For engineered suspended layouts using venue-approved rigging points and lifting equipment.
Trade Show Contractors
For overhead booth lighting, branding, signage, and display structures.
Studios & Content Facilities
For broadcast, photography, video, and controlled lighting environments.
Retail & Showroom Designers
For suspended lighting and visual elements above product displays.
Venue Technical Teams
For venue-specific overhead installations reviewed and approved for the available support structure.

System Package

Components for the Complete Grid Frame.

The package includes the truss sections, corner components, and connection hardware required to assemble the standard SkyGrid-150 frame.

Straight EVT290S Truss Sections
Form the four perimeter sides of the suspended grid.
Corner Junctions
Connect the perimeter sections into the complete square configuration.
Conical Hardware
Includes couplers, tapered pins, and R-clips for standard truss connections.
Junction Hardware
M12 bolts are included where applicable for junction block connections.
Technical Drawing
A detailed 3D drawing with dimensions and part labels is included for assembly reference.
Suspension hardware is not included.

Span sets, shackles, motors, chain falls, rigging points, and attachment hardware are site-specific and must be selected for the approved rigging plan. A qualified rigging crew and rated lifting equipment are required for every SkyGrid installation.

Technical Reference

Complete Grid Specifications

Overall dimensions, construction details, finish, weight, and connection data.

System Details

Identification

Model SkyGrid-150
SKU SkyGrid-GRD-10x15-150
Brand Evolve Truss
System Type Suspended Truss Grid

Overall Size

Dimensions

Width 120.07 in / 10 ft / 3.05 m
Depth 179.92 in / 15.02 ft / 4.57 m
Inside Width 8.20 ft / 2.5 m
Inside Length 13.12 ft / 4.0 m
Truss Height 11.41 in / 290 mm
Nominal Format 10x15 ft

Construction

Materials & Weight

Truss Series EVT290S
Material EN AW-6082 T6 Aluminum
Main Chord Tubing 50 mm / 1.96 in OD, 2 mm Wall
Brace Tubing 20 mm / 0.78 in Diagonal, 2 mm Wall
System Weight 250 lb / 113.39 kg
Finish Brushed Aluminum

Installation Planning

Assembly & Rigging Requirements

Connection Type Conical Couplers, Tapered Pins and R-Clips
Assembly Tools Steel Hammer and M10 Hex Key
Assembly Crew Minimum 2 Qualified Riggers; 3 Recommended
Lifting Equipment Rated Motors, Chain Falls and/or Other Approved Lifting Equipment
Assembly Location Ground Level Before Lifting

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The SkyGrid-150 uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, connection geometry, and engineering data.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.
F34 Compatibility
Compatible with matching F34 290 mm square truss geometry and conical hardware.
Standard 290 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
50 mm Clamp Compatibility
Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Assemble on the Ground. Inspect Before Every Lift.

Ground assembly must be completed by qualified truss technicians. Suspension, lifting, leveling, and final positioning require a qualified rigging crew using rated lifting equipment under the approved rigging plan and venue requirements.

01 — Lay Out Components
Arrange the straight truss sections, corners, and connection hardware in the final square configuration.
02 — Inspect Every Part
Check truss, junctions, couplers, pins, R-clips, and bolts for damage, wear, or deformation.
03 — Connect the Grid
Install conical couplers, tapered pins, R-clips, and applicable junction bolts.
04 — Verify Geometry
Confirm the grid is square, all connections are seated, and every fastener is properly secured.
05 — Attach Suspension Hardware
Install the approved span sets, shackles, motors, or chain falls according to the engineered rigging plan.
06 — Lift as a Complete Assembly
A qualified rigging crew must raise the grid evenly with rated lifting equipment, monitor every lifting point, and stop immediately if the grid racks, twists, or lifts unevenly.

Safety & Engineering

Overhead Loads Require Project-Specific Engineering.

The allowable load depends on suspension-point quantity and location, truss orientation, support conditions, attached equipment, load distribution, lifting method, and the rated capacity of the venue structure.

A qualified engineer must determine the allowable distributed and point loads for the specific rigging plan.
Verify the building structure, rigging points, motors, shackles, span sets, and all suspension hardware are rated for the complete load.
Inspect every truss section, junction, coupler, pin, clip, and bolt before each lift.
Do not use any component showing cracks, bends, deformation, severe wear, or damaged welds.
Assemble the complete grid at ground level before lifting.
Use independently rated secondary safeties for overhead fixtures and accessories where required.
Overhead installation and lifting must be performed only by qualified rigging professionals.

System Questions

Frequently Asked Questions

Does the SkyGrid-150 include suspension hardware?

No. The system includes the truss sections, corners, and connection hardware. Span sets, shackles, motors, chain falls, rigging points, and related suspension equipment are site-specific and purchased separately.

How is the grid assembled?

The grid is assembled at ground level by connecting the four perimeter sides and corner junctions. All connections must be inspected before the complete grid is lifted into position.

What is the load capacity?

There is no universal load value for every installation. Capacity depends on the suspension plan, number and location of pick points, attached loads, and venue structure. A structural engineer must determine the allowable load.

Can the grid size be expanded?

Yes. Compatible EVT290S straight sections and junction components can be used to create alternate dimensions. The revised system must be evaluated before use.

What inspections are required?

Every component and connection must be visually inspected before each lift. Documented periodic inspections should also be performed by a competent person according to applicable requirements.
