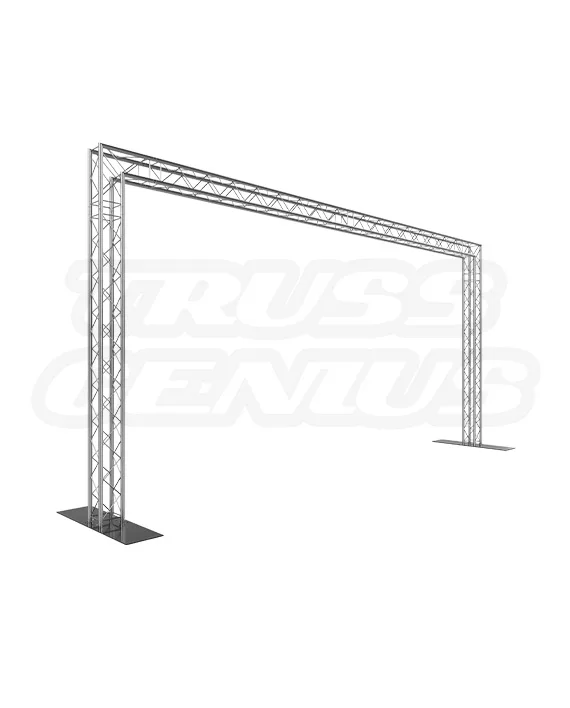

EVT220S‑Delano 10×20 goal post truss system with portable rectangular frame for finish lines and step‑and‑repeat walls

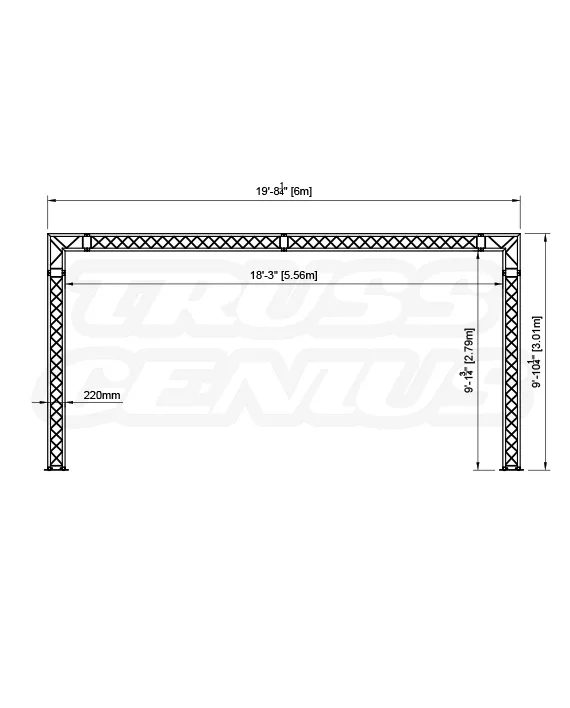

10x20 Goal Post Square Truss System EVT220S-Delano Front View Dimensions, reliable and versatile event structure
EVT290S-BP36S 36-Inch Steel Base Plate for EVT290S Aluminum Square Truss, ultimate stability and support
EVT220S‑Delano 10×20 goal post truss system with portable rectangular frame for finish lines and step‑and‑repeat walls
10x20 Goal Post Square Truss System EVT220S-Delano Front View Dimensions, reliable and versatile event structure
EVT290S-BP36S 36-Inch Steel Base Plate for EVT290S Aluminum Square Truss, ultimate stability and support

10x20 Square Truss Goal Post System | EVT220S-Delano

Original price was: $5,720.00.Current price is: $2,860.00.

10x20 Aluminum Truss Goal Post Kit — 8-Inch Light-Duty Display Truss System

Dimensions & Specs
Width: 19.68 ft (6 m)
Height: 9.84 ft (3 m)
Truss Profile: 8-Inch / 220 mm Square Display Truss
Type: Portable Goal Post / Finish Line System

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.37 in (35 mm) OD / 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.31 in (8 mm) Diagonal Bracing / 0.08 in (2 mm) Wall Thickness
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Application: Race Finish Lines, DJ Lighting Stands, Trade Show Entrances
Weight: 176 lb (79.83 kg)

In stock

SKU: EVT220S-GP-10x20-DELANO Category:

EVT220S Goal Post Truss System Knowledge Center

Span a Wider Event Entrance.
A Portable 10x20 Goal Post for Finish Lines, Backdrops, Trade Shows, and Mobile Lighting.

The EVT220S-Delano is a portable 10x20 goal-post truss system designed for finish lines, step-and-repeat walls, trade-show entrances, sports events, signage, and mobile DJ lighting rigs. Its clean rectangular frame uses modular EVT220S square truss for fast assembly, transport, and future reconfiguration.

System Facts

ModelEVT220S-Delano
SKUEVT220S-GP-10x20-DELANO
System Type10x20 Goal Post Truss
Overall Size19.68 ft W x 9.84 ft H
System Weight176 lb / 79.83 kg
MaterialEN AW-6082 T6
19.68 ftOverall Width
9.84 ftOverall Height
220 mmSquare Truss Profile
176 lbSystem Weight
2 PeopleSource Setup Crew

System Overview

A Wide Rectangular Frame for Fast Event Deployment.

The Delano creates a 19.68 ft-wide opening using lightweight EVT220S square truss, making it suitable for larger entrances and finish-line applications without moving into a heavier truss profile.

Wide 10x20 Format
Provides a broad opening for races, trade-show entrances, sponsor displays, and mobile event setups.
Light-Duty EVT220S Construction
Uses 220 mm square truss with 35 mm main chords and 8 mm diagonal bracing.
Portable Goal Post Layout
Designed for repeated assembly, transport, and temporary ground-supported installations.
Modular Expansion
Compatible EVT220S sections and junction components can support future reconfiguration when properly reviewed.

Applications

Designed for Finish Lines, Backdrops, Entrances, and Mobile Lighting.

Race Finish Lines
Creates a wide overhead marker for marathons, runs, sports events, and community races.
Step-and-Repeat Walls
Frames sponsor graphics, media walls, photography backdrops, and branded content areas.
Trade Show Entrances
Provides a clean rectangular portal for exhibit spaces, branded aisles, and display environments.
Mobile DJ Lighting
Supports properly rated 35 mm clamps and lighting accessories within the approved load plan.
Sports and Outdoor Events
Suitable for temporary installations when stability, wind exposure, ballast, and anchoring are properly addressed.

Who It Is For

Built for Race, Event, Exhibit, and Mobile Production Teams.

Race Organizers
For finish-line structures, sponsor signage, timing areas, and participant entrances.
Event Producers
For wide entrances, branded portals, sponsor zones, and temporary event structures.
Exhibit Builders
For trade-show entrances, step-and-repeat walls, and modular display layouts.
Mobile DJs and AV Teams
For portable lighting positions and mobile entertainment setups using proper 35 mm clamps.
Rental Companies
For reusable light-duty inventory that can support multiple event formats.

Technical Details

Detailed Specifications.

Identification

Product Information

ModelEVT220S-Delano
SKUEVT220S-GP-10x20-DELANO
System TypePortable Light-Duty Goal Post Truss

Physical Dimensions

Overall Size

Overall Width19.68 ft / 6 m
Overall Height9.84 ft / 3 m
Truss Profile8.66 in / 220 mm Square
System Weight176 lb / 79.83 kg

Construction

Materials and Tubing

MaterialEN AW-6082 T6 Aluminum
Main Chords35 mm / 1.37 in OD, 2 mm Wall
Diagonal Bracing8 mm / 0.31 in, 2 mm Wall
FinishBrushed Aluminum
CertificationTUV Certified

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips
Assembly ToolSteel Hammer
Assembly CrewTwo People Familiar with Truss Structures
Installation TypeGround Supported

System Compatibility

EVT220S, F24, and Standard 220 mm Square Truss Systems.

EVT220S-Delano uses 220 mm square truss geometry, 35 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT220S Compatibility
Integrates with compatible EVT220S straight sections, corners, junctions, and expansion components.
F24 Compatibility
Compatible with matching F24 220 mm square truss geometry and conical hardware.
Standard 220 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
35 mm Clamp Compatibility
Main chords require properly rated clamps designed for 35 mm tubing. Standard 50 mm / 2 in clamps will not fit.

Modular Expansion

Reconfigure the Delano with Compatible EVT220S Components.

The source describes the Delano as a modular system that can be adjusted in width or height and expanded into larger or more complex layouts.

Adjust Width
Add compatible EVT220S straight sections to create a different engineered span.
Adjust Height
Use compatible sections to create a taller or shorter engineered configuration where appropriate.
Add Junction Components
Compatible 3-way or 4-way junctions may support alternate booth, grid, or backdrop concepts.
Engineering Review
Every modified structure requires review for span, loading, stability, ballast, and site conditions.

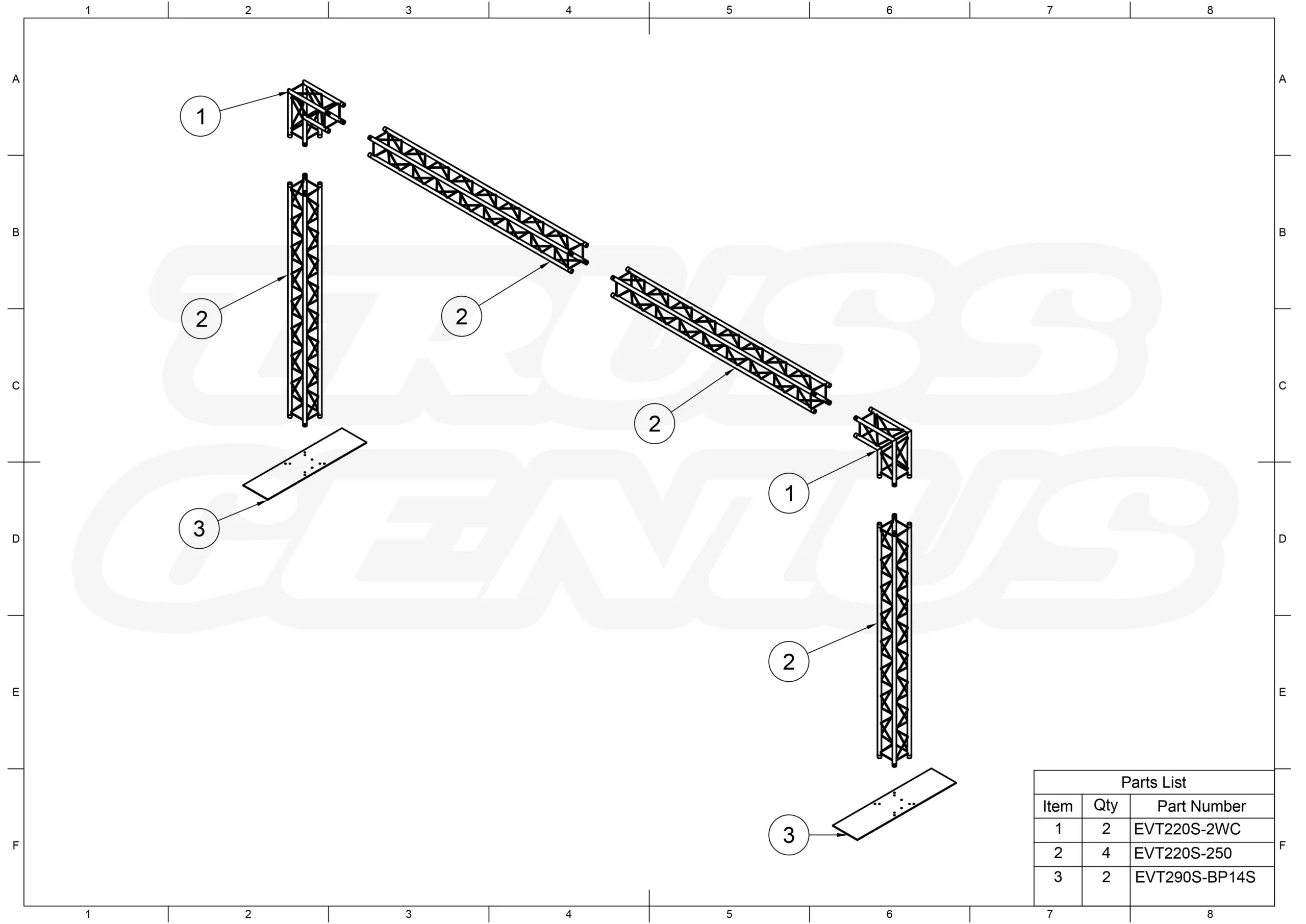

Assembly Sequence

Build the Crossbeam First. Then Raise and Connect the Legs.

The source states that two people familiar with truss structures can assemble the system using a steel hammer. Use additional personnel or lifting equipment whenever the site or lifting method requires it.

01 — Lay Out Components
Arrange the crossbeam, vertical supports, corners, base plates, and connection hardware.
02 — Inspect Every Part
Remove damaged truss, couplers, tapered pins, R-clips, or base components from service.
03 — Assemble the Crossbeam
Build the complete 19.68 ft horizontal span at ground level.
04 — Assemble the Legs
Build both vertical supports and confirm matching orientation and length.
05 — Raise and Connect
Use a controlled method appropriate for the complete system weight and site conditions.
06 — Secure and Inspect
Verify every connection, base condition, attachment, ballast measure, and R-clip before use.

Safety, Loading, and Engineering

Evaluate the Goal Post as A Complete Installed Structure.

Do not exceed the allowable load capacity of the complete EVT220S-Delano configuration.
Distribute loads equally between the appropriate main chords.
Do not place concentrated loads directly on truss connections unless specifically approved.
Include lighting, signage, graphics, banners, clamps, cables, and all accessories in the total applied load.
Use ballast or anchoring appropriate for the final configuration, attached surfaces, wind exposure, and installation site.
Standard 50 mm clamps do not fit the 35 mm main chords; use properly rated 35 mm clamps only.
Inspect all truss sections, base plates, and connection hardware before every use.
A licensed professional engineer must review the final structure and loading where required.

Frequently Asked Questions

EVT220S-Delano Questions.

What are the overall dimensions?
The documented overall size is 19.68 ft wide by 9.84 ft high, using a 220 mm square truss profile.
How much does the complete system weigh?
The documented system weight is approximately 176 lb / 79.83 kg.
How many people are needed for assembly?
The source describes assembly by two people familiar with truss structures using a steel hammer.
What clamps are required?
Use properly rated 35 mm clamps. Standard 50 mm / 2 in clamps will not fit the 35 mm main chords.
Can the width or height be changed?
Yes. Compatible EVT220S sections may be used to modify the configuration, but every changed structure must be reviewed before use.
What truss systems are compatible?
Compatibility includes EVT220S, matching F24 geometry, and standard 220 mm square truss systems using matching conical hardware.
What applications is it suited for?
It is suited to finish lines, step-and-repeat walls, trade-show entrances, sports events, signage, and mobile DJ lighting rigs.

Planning a 10x20 trade show exhibit?

Contact us for booth configuration, technical drawings, engineering services, graphics, lighting accessories, ballast planning, and freight assistance.
