What is the load capacity of the 10x20 Goal Post Square Truss System EVT290S-Dinuba?

The EVT290S-Dinuba system supports a maximum load of 200 lb per linear foot on a 10-foot span and 120 lb per linear foot on a 20-foot span, assuming even distribution and no bridling. Always use 1400 lbs ballast per corner or anchor to concrete when adding rear scrims, and inspect for damage before use.

How do you assemble the EVT290S-Dinuba 10x20 square truss goal post?

Assembly requires only a steel hammer and can be done by two people familiar with truss; it uses a secure conical connection system with pins and r-clips for quick setup. Handle segments carefully to avoid damage, ensure all couplers are secure, and follow TUV safety guidelines.

10x20 Square Truss Goal Post System

EVT290S Goal Post Truss System Knowledge Center

Create a Wide, Professional Event Gateway.
A 10x20 Goal Post for Finish Lines, Signage, Lighting, and Mobile Installations.

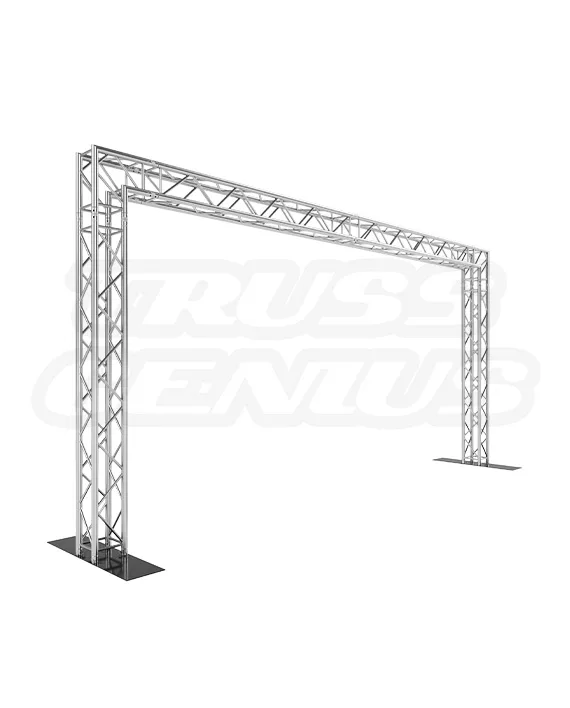

The EVT290S-Dinuba is a portable 10x20 square-truss goal post system designed for finish lines, signage, branded entrances, sports events, temporary installations, lighting, and mobile event production. Its open-span format provides a clean overhead mounting structure with a secure conical connection system.

System Facts

ModelEVT290S-Dinuba

SKUEVT290S-GP-10x20-DINUBA

System TypePortable Goal Post Truss

Overall Size19.68 ft W x 9.84 ft H

System Weight233 lb / 105.68 kg

MaterialEN AW-6082 T6

19.68 ftOverall Width

9.84 ftOverall Height

290 mmTruss Profile

233 lbSystem Weight

2 PeopleSource Setup Crew

System Overview

A Straightforward Goal Post Built for Fast Event Deployment.

The Dinuba provides a clean, professional overhead structure for event entrances, finish lines, signage, and temporary production environments.

Wide Open Span

The 19.68 ft overall width creates a strong overhead frame for signage, lighting, and event branding.

Portable Goal Post Format

Designed for repeated setup, takedown, transportation, and temporary event installations.

EVT290S Square Truss

Uses 290 mm square truss with 50 mm main chords and 20 mm diagonal bracing.

Conical Connection System

Couplers, tapered pins, and retaining clips support quick, repeatable assembly.

Applications

Built for Finish Lines, Entrances, Signage, and Event Production.

Finish Lines

Creates a clear overhead marker for races, endurance events, and timed competitions.

Branded Entrances

Defines controlled entry points for festivals, activations, trade shows, and private events.

Signage and Banners

Provides an elevated structure for properly rated graphics and branding elements.

Lighting and AV

Supports appropriately rated clamps and hardware for event lighting and production equipment.

Temporary Installations

Suitable for mobile events, sports productions, and short-duration installations.

Who It Is For

A Practical System for Event and Production Professionals.

Race Organizers

For professional start and finish structures that need fast deployment and a wide clear span.

Event Producers

For temporary entrances, sponsor zones, lighting positions, and branded installations.

Rental Companies

For reusable goal-post inventory that can serve multiple event formats.

Sports Production Teams

For visible course markers, participant areas, and event branding.

Brand Activation Teams

For launch events, sponsor displays, signage, and arrival experiences.

System Components

A Complete Goal Post Built from Modular EVT290S Components.

Horizontal EVT290S Span

Creates the main 19.68 ft overhead crossbeam.

Vertical EVT290S Legs

Support the crossbeam and establish the 9.84 ft overall system height.

Connection Hardware

Connecting hardware is included with the system.

Modular Expansion

Compatible EVT290S sections can be added to create a larger engineered configuration.

Technical Details

Detailed Specifications.

Identification

Product Information

ModelEVT290S-Dinuba

SKUEVT290S-GP-10x20-DINUBA

System TypePortable Goal Post Truss System

Physical Dimensions

Overall Size

Overall Width19.68 ft / 6 m

Overall Height9.84 ft / 3 m

Truss Profile11.41 in / 290 mm

Construction

Materials and Tubing

MaterialEN AW-6082 T6 Aluminum

Main Chords50 mm / 1.96 in OD, 2 mm Wall

Diagonal Bracing20 mm / 0.78 in, 2 mm Wall

FinishBrushed Aluminum

CertificationTUV Certified

System Weight233 lb / 105.68 kg

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly ToolsSteel Hammer

Assembly CrewTwo People Familiar with Truss Structures

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

EVT290S-Dinuba uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility

Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.

F34 Compatibility

Compatible with matching F34 290 mm square truss geometry and conical hardware.

Standard 290 mm Square Systems

Verify receiver spacing, connection geometry, and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Modular Expansion

Expand the Goal Post with Compatible EVT290S Components.

The source states that the system can be expanded by adding compatible EVT290S pieces. Any modified configuration must be reviewed for loading, stability, geometry, and site conditions.

Increase Width

Add compatible EVT290S straight sections to develop a wider engineered span.

Increase Height

Use compatible sections to create a taller engineered configuration where appropriate.

Grow Rental Inventory

Use shared EVT290S components across compatible systems and future builds.

Engineering Review

Modified structures require professional review before installation or use.

Assembly Sequence

Build the Goal Post in a Controlled Sequence.

Assembly should be completed by two people familiar with truss structures. Inspect all components before use and follow the supplied drawing and approved installation plan.

01 — Lay Out Components

Arrange the crossbeam sections, vertical legs, and connection hardware in their intended positions.

02 — Inspect Every Part

Remove damaged truss, couplers, pins, or retaining clips from service.

03 — Assemble the Crossbeam

Connect the horizontal span at ground level using the complete conical hardware set.

04 — Assemble the Legs

Build both vertical supports and verify matching orientation.

05 — Raise and Connect

Use a controlled method appropriate for the system weight and final installation plan.

06 — Final Inspection

Confirm every connection, retaining clip, attachment, ballast, and support condition before use.

Safety and Engineering

Plan Every Installation for Loads, Stability, and Site Conditions.

Do not exceed the allowable load capacity of the complete EVT290S-Dinuba configuration.

The documented distributed-load guidance is 200 lb per linear foot on a 10 ft span and 120 lb per linear foot on a 20 ft span, with loads evenly distributed and no bridling.

When using a rear scrim or banner, the source specifies 1,400 lb of ballast at each corner or anchorage to concrete.

Inspect all truss sections and connection hardware before every use. Remove damaged components from service immediately.

Distribute loads equally between the appropriate chords and do not apply loads at truss connections.

Account for wind, transverse forces, banners, scrims, lighting, signage, and all other attached equipment.

Use only properly rated clamps and attachment hardware for the 50 mm main chords.

A licensed professional engineer must review the final structure and loading where required.

Frequently Asked Questions

EVT290S-Dinuba Questions.

What are the overall dimensions?

The documented overall size is 19.68 ft wide by 9.84 ft high, using a 290 mm square truss profile.

How many people are needed for assembly?

The source states that two people familiar with truss structures can assemble the system.

What tool is required?

The source identifies a steel hammer for the conical connection system.

What is the documented load guidance?

The source lists 200 lb per linear foot on a 10 ft span and 120 lb per linear foot on a 20 ft span, assuming even distribution and no bridling.

Is ballast required with a rear scrim?

Yes. The source specifies 1,400 lb of ballast at each corner or anchorage to concrete when a rear scrim or banner is used.

Can the system be expanded?

Yes. Compatible EVT290S pieces may be added, but the modified structure must be reviewed for loading, stability, geometry, and site conditions.

Planning a 10x20 trade show exhibit?

Contact us for booth configuration, technical drawings, engineering services, graphics, lighting accessories, ballast planning, and freight assistance.
