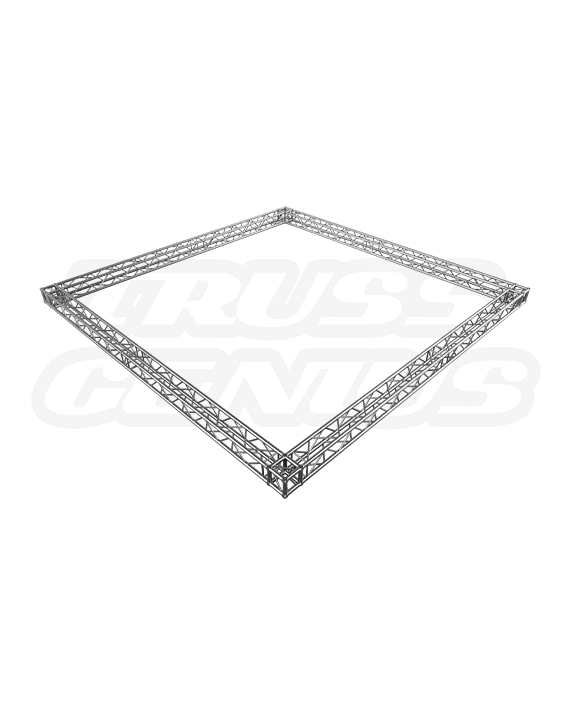

20×20 SkyGrid‑400 suspended aluminum truss grid system with 290 mm square truss forming a large overhead rigging frame for lighting and signage

20x20 Suspended Truss Grid System | SkyGrid-400

Original price was: $13,656.00.Current price is: $6,828.00.

20x20 Suspended Truss Grid System — SkyGrid-400

Dimensions & Specs
Overall Width: 19.94 ft (6.07 m)
Inside Width: 18.04 ft (5.49 m)
Overall Length: 19.94 ft (6.07 m)
Inside Length: 18.04 ft (5.49 m)
Truss Profile: 11.41 in (290 mm)
Type: Suspended Truss Grid System

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) OD / 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing / 0.078 in (2 mm) Wall Thickness
Hardware Included: Connecting Hardware

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Weight: 324 lbs (146.96 kg)

In stock

SKU: SkyGrid-GRD-20x20-400 Category:

SkyGrid Suspended Truss System Knowledge Center

A 20x20 Suspended Truss Grid.
Built for Large-Format Overhead Rigging.

The SkyGrid-400 is a 20x20 suspended aluminum truss grid designed for large-format lighting layouts, overhead signage, immersive event environments, studios, retail feature zones, and high-traffic trade show spaces. Built from EVT290S 290 mm square truss, it provides balanced overhead coverage across all four sides.

System Facts

ModelSkyGrid-400
SKUSkyGrid-GRD-20x20-400
Overall Size19.94 x 19.94 ft
Inside Opening18.04 x 18.04 ft
Truss ProfileEVT290S / 290 mm
System Weight324 lb / 146.96 kg
20x20 ftGrid Class
400 sq ftOverhead Coverage
290 mmSquare Truss
324 lbSystem Weight
2 Riggers Min.Qualified Crew

System Overview

A Modular Overhead Framework Built to Keep Floor Space Open.

The SkyGrid-400 forms a rigid square perimeter using straight EVT290S truss sections, corner junctions, and secure connection hardware.

Suspended 20x20 Layout
Creates an overhead perimeter for fixtures, signage, scenic elements, and production equipment.
Modular Construction
Uses standard EVT290S components that can be expanded or reconfigured for future installations.
Conical Connection System
Couplers, tapered pins, R-clips, and M12 hardware at applicable junctions create secure repeatable connections.
Ground Assembly
The complete grid is assembled and inspected at floor level before being lifted into position.

Common Applications

Designed for EVT290S, F34, and Standard 290 mm Square Truss Systems.

The SkyGrid-400 supports temporary and permanent-style overhead layouts where clear floor space and organized fixture placement are priorities.

01
Trade Show Exhibitions
Support lighting, banners, signage, and suspended booth elements above the exhibit footprint.
02
Retail Displays & Showrooms
Create an overhead framework for accent lighting, displays, and visual merchandising elements.
03
Broadcast Studios
Organize lighting and production equipment above controlled studio spaces.
04
Photography Studios
Suspend lighting, modifiers, and accessories while keeping stands and cables away from the active floor area.
05
Live Event Lighting Grids
Provide a compact overhead structure for lighting and production equipment.

Who It’s For

Built for Professionals Managing Overhead Equipment.

Best suited for teams that understand suspended truss, load planning, lifting operations, and venue rigging requirements.

Production Companies
For compact lighting grids, suspended scenic systems, and repeatable event installations.
Rigging Companies
For engineered suspended layouts using venue-approved rigging points and lifting equipment.
Trade Show Contractors
For overhead booth lighting, branding, signage, and display structures.
Studios & Content Facilities
For broadcast, photography, video, and controlled lighting environments.
Retail & Showroom Designers
For suspended lighting and visual elements above product displays.
Venue Technical Teams
For venue-specific overhead installations reviewed and approved for the available support structure.

System Package

Components for the Complete Grid Frame.

The package includes the truss sections, corner components, and connection hardware required to assemble the standard SkyGrid-400 frame.

Straight EVT290S Truss Sections
Form the four perimeter sides of the suspended grid.
Corner Junctions
Connect the perimeter sections into the complete square configuration.
Conical Hardware
Includes couplers, tapered pins, and R-clips for standard truss connections.
Junction Hardware
M12 bolts are included where applicable for junction block connections.
Technical Drawing
A detailed 3D drawing with dimensions and part labels is included for assembly reference.
Suspension hardware is not included.

Span sets, shackles, motors, chain falls, rigging points, and attachment hardware are site-specific and must be selected for the approved rigging plan.

Technical Reference

Complete Grid Specifications

Overall dimensions, construction details, finish, weight, and connection data.

System Details

Identification

Model SkyGrid-400
SKU SkyGrid-GRD-20x20-400
Brand Evolve Truss
System Type Suspended Truss Grid

Overall Size

Dimensions

Overall Width 19.94 ft / 6.07 m / 238.97 in
Overall Length 19.94 ft / 6.07 m / 238.97 in
Inside Opening 18.04 x 18.04 ft / 5.49 x 5.49 m
Nominal Format 20x20 ft

Construction

Materials & Weight

Truss Series EVT290S
Material EN AW-6082 T6 Aluminum
System Weight 324 lb / 146.96 kg
Main Tubing 50 mm / 1.96 in OD, 2 mm Wall
Brace Tubing 20 mm / 0.78 in, 2 mm Wall
Finish Brushed Aluminum
Certification TUV Certified

Installation Planning

Rigging Requirements

Connection Type Conical Couplers, Tapered Pins and R-Clips
Assembly Tools Steel Hammer and M10 Hex Allen Wrench
Assembly Crew Minimum 2 Qualified Riggers; 3 Recommended
Lifting Equipment Rated Motors, Chain Falls and/or Other Approved Lifting Equipment
Assembly Location Ground Level Before Lifting

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The SkyGrid-400 uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, connection geometry, and engineering data.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.
F34 Compatibility
Compatible with matching F34 290 mm square truss geometry and conical hardware.
Standard 290 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
50 mm Clamp Compatibility
Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Assemble on the Ground. Inspect Before Every Lift.

Assembly, suspension, lifting, leveling, and final positioning must be completed by qualified riggers using rated lifting equipment and following the approved rigging plan, engineering requirements, and venue rules.

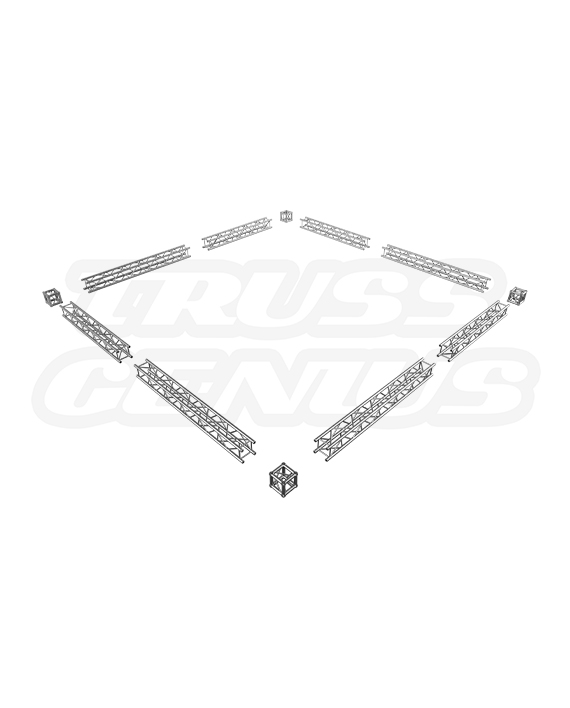

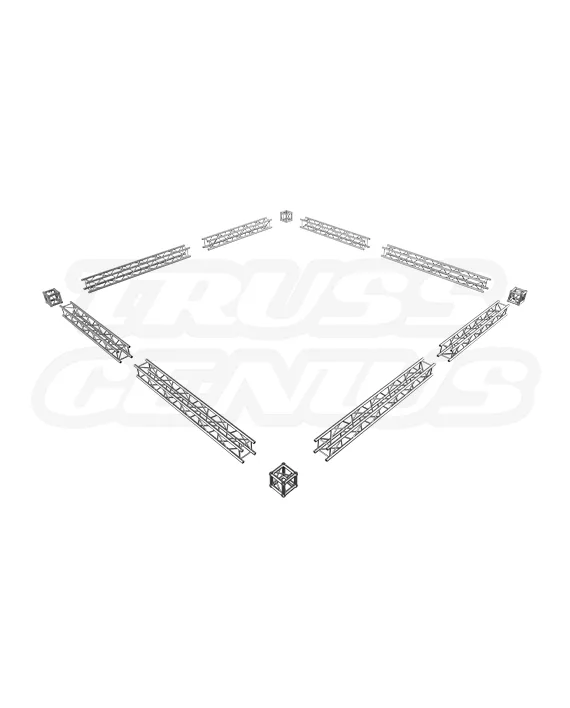

01 — Lay Out Components
Arrange the straight truss sections, corners, and connection hardware in the final square configuration.
02 — Inspect Every Part
Check truss, junctions, couplers, pins, R-clips, and bolts for damage, wear, or deformation.
03 — Connect the Grid
Install conical couplers, tapered pins, R-clips, and applicable junction bolts.
04 — Verify Geometry
Confirm the grid is square, all connections are seated, and every fastener is properly secured.
05 — Attach Suspension Hardware
Install the approved span sets, shackles, motors, or chain falls according to the engineered rigging plan.
06 — Lift as a Complete Assembly
Raise the grid evenly, monitor all lifting points, and stop immediately if the grid racks, twists, or lifts unevenly.

Safety & Engineering

Overhead Loads Require Project-Specific Engineering.

The allowable load depends on suspension-point quantity and location, truss orientation, support conditions, attached equipment, load distribution, lifting method, and the rated capacity of the venue structure.

A qualified engineer must determine the allowable distributed and point loads for the specific rigging plan.
Verify the building structure, rigging points, motors, shackles, span sets, and all suspension hardware are rated for the complete load.
Inspect every truss section, junction, coupler, pin, clip, and bolt before each lift.
Do not use any component showing cracks, bends, deformation, severe wear, or damaged welds.
Assemble the complete grid at ground level before lifting.
Use independently rated secondary safeties for overhead fixtures and accessories where required.
Overhead installation and lifting must be performed only by qualified rigging professionals.
Every SkyGrid installation requires qualified riggers and rated motors, chain falls, or other approved lifting equipment.

System Questions

Frequently Asked Questions

Does the SkyGrid-400 include suspension hardware?

No. The system includes the truss sections, corners, and connection hardware. Span sets, shackles, motors, chain falls, rigging points, and related suspension equipment are site-specific and purchased separately.

How is the grid assembled?

The grid is assembled at ground level by connecting the four perimeter sides and corner junctions. All connections must be inspected before the complete grid is lifted into position.

What is the load capacity?

There is no universal load value for every installation. Capacity depends on the suspension plan, number and location of pick points, attached loads, and venue structure. A structural engineer must determine the allowable load.

Can the grid size be expanded?

Yes. Compatible EVT290S straight sections and junction components can be used to create alternate dimensions. The revised system must be evaluated before use.

What inspections are required?

Every component and connection must be visually inspected before each lift. Documented periodic inspections should also be performed by a competent person according to applicable requirements.

Planning a suspended lighting or equipment grid?

Contact us for grid selection, compatible components, technical drawings, engineering services, and freight assistance.
