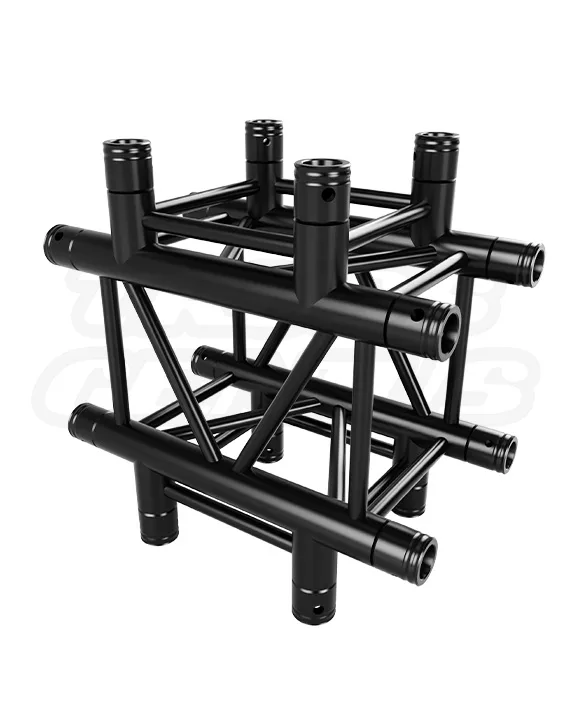

EVT290S‑4WC Black — precision‑engineered 4‑way cross T‑junction for EVT290S 290 mm (F34) square conical truss. Finished in a durable, non‑reflective matte‑black powder coat, this “+” junction joins four runs at a central point and mounts vertical or horizontal — ideal for complex overhead grids, exhibit centers, and elaborate staging layouts. Click for gallery, dimensions, and installation notes.

EVT290S-4WC Black | 4 Way Cross

Original price was: $1,005.00.Current price is: $688.00.

EVT290S-4WC Black — 0.5m (1.64 ft) 4-Way Cross Junction Square Aluminum Truss (Matte Black)

Dimensions
Overall Truss Length: 1.64 ft (0.5 m)
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 23 lb (10.43 kg)

In stock

SKU: EVT290S-4WC-Black Category:

EVT290S Truss Systems Knowledge Center

EVT290S-4WC Black 4-Way Cross Junction.
For F34 Square Truss Systems.

The EVT290S-4WC Black is a matte-black fixed 4-way cross junction for compatible EVT290S, F34, and matching 290 mm square truss systems. Use this component where a planned truss layout requires four connected directions at a central point. It can be used in vertical or horizontal layouts for overhead grids, exhibit centers, stage structures, AV systems, and other compatible production frameworks.

Product Facts

Model / SKUEVT290S-4WC Black
Junction ConfigurationFixed 4-Way Cross Junction
Overall Length0.5 m / 1.64 ft
Truss Profile290 mm / 11.41 in Square
Section Weight23 lb / 10.43 kg
FinishMatte Black Powder Coat
4-WayCross Junction Configuration
0.5 mOverall Length
290 mmSquare Truss Profile
23 lbComponent Weight
2 SetsHardware Included

F34 4-Way Cross Junction Overview

A Fixed Cross Junction for F34 Square Truss Systems.

The EVT290S-4WC Black is a fixed 4-way cross junction for compatible 290 mm square truss systems. It is used where the project drawing calls for four connected directions at a central intersection. It is not a 3-way T-junction, a 3-way 90-degree corner, or a universal junction block.

Fixed 4-Way Cross Junction
Use this component where a compatible truss system requires four connected directions at a central intersection.
Vertical or Horizontal Layouts
The product can be positioned within a compatible vertical or horizontal cross-junction layout as specified by the project drawing.
0.5 m Junction Section
The 0.5 m / 1.64 ft overall section fits within planned 290 mm square-truss layouts.
Fixed Connection Layout
The EVT290S-4WC Black is a dedicated fixed cross-junction component, not an adjustable or universal connection block.

How the Cross Junction Is Used

A Central Connection Point for Compatible Truss Layouts.

Use the EVT290S-4WC Black when the project drawing requires a fixed four-way cross junction in a compatible 290 mm square-truss system. The component can be used in vertical or horizontal layouts for overhead grids, exhibit centers, stage structures, AV systems, lighting grids, ceiling grids, and modular production frameworks.

Overhead Grid Centers
Use the fixed cross junction within a reviewed overhead lighting, video, or technical grid layout built from compatible square-truss components.
Exhibit Centers
Use in compatible exhibit and trade-show layouts where four truss directions meet at a central display or framework location.
Stage and AV Frameworks
Use in planned stage, video, projection, camera, lighting, audio, and cable-management truss layouts.
Ceiling Grid Layouts
Use in compatible ceiling-grid systems where the completed support, loading, and venue requirements have been reviewed.
Cross Junction Use Note
The EVT290S-4WC Black is a component for a compatible completed truss layout. It does not independently approve or rate an overhead grid, ceiling grid, stage structure, AV framework, exhibit structure, or public-facing installation.

Common Applications

For Central Intersections in Production and Exhibit Systems.

The EVT290S-4WC Black can be incorporated into compatible, project-specific truss systems that use a fixed 4-way cross junction. The final system determines support points, loading, rigging, equipment attachment, connection hardware, and required approvals.

01
Lighting Grids
Use at planned central intersections in lighting-grid systems for theater, studio, venue, and event-production applications.
02
Stage Structures
Use in compatible stage frames, scenic structures, video frameworks, backdrop systems, and presentation layouts.
03
AV Systems
Use within reviewed truss layouts for video, projection, lighting, audio, camera, cable-management, and display equipment.
04
Trade-Show Displays
Use in compatible booth frames, exhibit centers, overhead identity elements, and branded presentation environments.
05
Rental Systems
Add a dedicated matte-black 4-way cross junction to inventory supporting compatible EVT290S and F34 truss systems.

Matte Black Finish

A Low-Reflection Option for Studio and Stage Environments.

The EVT290S-4WC Black has a matte-black powder coat. This finish can help reduce visible reflection and visual prominence compared with natural aluminum where truss is used around cameras, LED displays, screens, lighting fixtures, black drape, or scenic elements.

Broadcast and Camera Areas
The matte finish can be useful where glare and on-camera appearance are practical production considerations.
Black-Box Theaters
The dark finish can visually blend with black drape, dark scenery, and low-light theatrical surroundings.
LED and Video Systems
Use a visually subdued finish where the truss is near screens, media walls, projection surfaces, and video equipment.
Finish Does Not Set Capacity
Finish selection does not change load capacity, connection requirements, inspection requirements, engineering review, or safety obligations.

Included Connection Hardware

Hardware for Two Connecting Sides.

The confirmed hardware package is supplied for two connecting sides of the EVT290S-4WC Black. Its fixed 4-way cross-junction configuration does not mean that hardware for all four sides is included. Confirm the project drawing and connection schedule to identify any additional compatible hardware needed for the remaining truss connections.

8 Conical Couplers
Eight conical couplers are included for the two supplied connecting sides.
16 Coupler-Pins
Sixteen coupler-pins are included to secure compatible connection positions after the mating truss components are aligned and fully seated.
16 r-Clips
Sixteen r-clips are included to retain the installed coupler-pins at the supplied connecting sides.

Technical Reference

EVT290S-4WC Black Specifications.

These values describe the EVT290S-4WC Black as manufactured. Confirm current drawings, manufacturer instructions, connection hardware, and technical documentation before ordering or assembling a compatible system.

Identification

Product Details

Model / SKUEVT290S-4WC Black
BrandEvolve Truss
Product TypeMatte Black Fixed 4-Way Cross Junction
CertificationTUV Certified

Overall Size

Dimensions

Overall Length0.5 m / 1.64 ft
Overall Width290 mm / 11.41 in
Overall Height500 mm / 19.69 in
Weight23 lb / 10.43 kg

Construction

Material and Tubing

MaterialAluminum Alloy EN AW-6082 T6
Main Tubing50 mm OD / 1.96 in, 2 mm Wall / 0.078 in
Diagonal Bracing20 mm OD / 0.78 in, 2 mm Wall / 0.078 in
FinishMatte Black Powder Coat

Connections

System Interface

Junction ConfigurationFixed 4-Way Cross Junction
Connection TypeConical Coupler System
Included Hardware8 Conical Couplers, 16 Coupler-Pins, 16 r-Clips
Included Hardware ScopeTwo Connecting Sides

System Compatibility

Verify the Connection Interface Before Combining Components.

The EVT290S-4WC Black is intended for compatible EVT290S, F34, and matching 290 mm square truss systems using conical connections. Compatibility requires more than matching profile size: confirm receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information.

EVT290S Series
Designed for the EVT290S square aluminum truss series.
F34 Format
Compatible with F34-format truss when receiver spacing and conical connection dimensions match.
Other 290 mm Square Truss
Other 290 mm square conical systems may require dimensional and engineering verification before they are combined.
Compatible 50 mm Clamps
The 50 mm / 1.96 in main chords accept compatible clamps for approved attachments within the completed system design.

Assembly Overview

Set the Cross Junction Position, Then Inspect Every Required Connection.

Assembly should be completed by trained personnel using compatible components, the project drawing, supplied hardware for the two included connecting sides, and the approved support or rigging plan. Work on a stable surface and retain access to inspect every required connection position.

01 — Inspect the Component
Check chords, braces, welds, receivers, conical couplers, coupler-pins, and r-clips. Do not use damaged, worn, contaminated, or improperly fitting components.
02 — Confirm the Cross Layout
Position the component to match the approved vertical or horizontal cross-junction layout before connection work begins.
03 — Install Supplied Couplers
Insert the supplied conical couplers into the compatible receivers for the two included connecting sides.
04 — Align Mating Truss
Bring compatible truss faces together evenly. They should close without forcing, spreading, or pulling the connections into alignment.
05 — Secure Coupler-Pins and r-Clips
Fully install each required coupler-pin and secure every installed coupler-pin with its r-clip.
06 — Perform Final Inspection
Verify connection retention, support planning, and the completed configuration before movement, lifting, rigging, or load application.
If a Connection Does Not Close
Stop assembly. Inspect receiver spacing, coupler fit, debris, hardware condition, damage, and alignment. Do not modify the component or drive a coupler-pin against resistance.

Safety and Engineering

A Cross Junction Is Not a Standalone Load or Span Rating.

The EVT290S-4WC Black does not independently establish a span, load, wind, suspension, or freestanding-structure rating. Determine suitability from the complete configuration, including connected components, spans, orientation, supports, connection hardware, bracing, rigging method, applied loads, lighting, AV equipment, displays, signage, base plates, ballast or anchorage, environmental conditions, venue requirements, and applicable approvals.

Do not use a straight-section load-span table to independently rate this cross junction or the completed truss system.
Do not treat an individual cross junction as evidence that an overhead grid, ceiling grid, stage structure, AV framework, exhibit structure, suspended configuration, or public-facing structure has adequate capacity.
Confirm project-specific support, rigging, bracing, base-plate, ballast, and anchorage plans before erection or loading.
Assess wind, banners, screens, displays, suspended equipment, public access, and other operational or environmental forces as part of the complete project review.
Inspect every conical coupler, coupler-pin, r-clip, clamp, base connection, sling, shackle, safety cable, and attachment point before use.
Use trained personnel and obtain the project-specific engineering, facility, venue, and regulatory review required for the intended use.
Documentation and Project Review
Product specifications, included hardware, compatibility information, pricing, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, component condition, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular entertainment-truss layout, span, loading condition, rigging plan, support arrangement, outdoor installation, suspended configuration, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, theatrical, concert, touring, or otherwise regulated entertainment-truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Product Questions

EVT290S-4WC Black Frequently Asked Questions.

What is an F34 4-way cross junction used for?

A fixed 4-way cross junction is used where a compatible 290 mm square-truss layout calls for four connected directions at a central point. The EVT290S-4WC Black can be used in vertical or horizontal layouts for overhead grids, lighting grids, ceiling grids, stage structures, AV systems, exhibit centers, and other compatible frameworks.

Is the EVT290S-4WC Black a T-junction or a 3-way corner?

No. The EVT290S-4WC Black is a fixed 4-way cross junction. It is not a 3-way T-junction, a 3-way 90-degree corner, or a universal junction block. Use the component specified by the project drawing.

What connection hardware is included?

The confirmed package contains hardware for two connecting sides: 8 conical couplers, 16 coupler-pins, and 16 r-clips. Confirm the project drawing and connection schedule for any additional compatible hardware needed for the remaining truss connections.

Why choose a matte-black cross junction?

The matte-black powder coat can help reduce visible reflection and visual prominence in studios, theaters, video environments, and stage-production applications. It does not change capacity, engineering, connection, or inspection requirements.

Is it compatible with all 290 mm square truss?

No compatibility should be assumed from size or appearance alone. Confirm receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information before mixing components.

Does this cross junction establish capacity for a finished truss system?

No. Capacity depends on the complete configuration, including connected truss, supports, rigging, connection hardware, applied loads, attachments, environmental conditions, venue requirements, and approvals.

Planning a compatible EVT290S or F34 cross-junction layout?

Contact us for matching straight sections, corners, T-junctions, base plates, compatible 50 mm clamps, current technical documents, quantity pricing, and project coordination.

Contact UsRequest a Quote

Structural Solutions, Unmatched Innovation
