EVT12S-1FT — 1-Foot (12-Inch) Aluminum Truss Spacer for 12-Inch Square End-Plate Bolt Truss

EVT12S System Knowledge Center

One Foot Aluminum Truss Section.
Adds a 12 Inch Section Between Compatible End-Plate Truss Components.

The EVT12S-1FT is a 12-inch aluminum end-plate truss section for adding a one-foot length within a 12-inch end-plated box truss system. It helps configure overall run dimensions when a standard section length is too long or too short. Allowable loading depends on the completed truss system, including its span, supports, connections, and applied loads.

Product Facts

Model / SKUEVT12S-1FT

Product Type1 Foot Aluminum End-Plate Truss Section

Overall Size12 x 12 x 12 in

Spacer Length12 in / 1 ft / 304.8 mm

MaterialEN AW-6061-T6 Aluminum

FinishBrushed Aluminum

1 ftSection Length

12 × 12 inTruss Profile

50 mmMain Tubing

Listed WeightSee Specifications

4-BoltEnd-Plate Connection

Product Overview

A One Foot Aluminum Section for 12 Inch End-Plated Box Truss Systems.

The EVT12S-1FT supplies a one-foot section for adding length within a 12-inch end-plated box truss system. Its 12-inch length provides an intermediate option when a standard section length is too long or too short. The listed finish is brushed aluminum.

One Foot Section

Adds 12 in / 1 ft / 304.8 mm at a compatible end-plate connection.

Brushed Aluminum Finish

Listed brushed aluminum surface.

12 Inch Square Size

Overall dimensions: 12 x 12 x 12 in / 304.8 x 304.8 x 304.8 mm.

Bolt Connection

Uses end-plated nut-and-bolt hardware.

Application Uses

For 12-Inch End-Plated Box Truss Systems.

The one-foot aluminum section may be considered for compatible lighting grids, scenic structures, trade-show displays, venue systems, touring equipment, and rental inventory where a 12-inch section is specified. The required supports, span, and loads must be evaluated for the full installation rather than inferred from this section length.

12-Inch End-Plated Systems

A brushed aluminum component for compatible 12-inch end-plated box truss runs.

Lighting Grids

For compatible end-plated truss grid systems.

Scenic Structures

For compatible stage and scenic truss assemblies.

Trade Displays

For compatible exhibit structures that call for a 12 inch section.

Rental Inventory

Provides a one-foot brushed-aluminum option in compatible inventory.

Included Hardware

Supplied with Hardware for One Four-Point Connection.

The source lists four Grade 8 bolts, four nuts, and four washers. Hardware finish may differ from the brushed aluminum truss-section finish. Confirm the fastener requirements at every actual joint, including bolt length, condition, engagement, and the manufacturer tightening procedure.

4 Grade 8 Bolts

Listed for the four-point end-plate connection.

4 Nuts

Listed with the supplied bolts.

4 Washers

Included in the listed hardware set.

Connection Count

Account for the hardware needed at each joint in the full system.

Technical Reference

EVT12S-1FT Truss Section Specifications.

Identification

Product Details

Model / SKUEVT12S-1FT

BrandEvolve Truss

Product Type1 Foot Square Aluminum End-Plate Truss Section

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length12 in / 1 ft / 304.8 mm

WeightNot listed in reliable structured product data

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061-T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

FinishBrushed Aluminum

Surface NoteCoating is a finish characteristic

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CompatibilityStandard 12-Inch End-Plated Truss Systems

CertificationTÜV Certified

Fit NoticeExact fit with other systems is not guaranteed

System Compatibility

For Standard 12-Inch End-Plated Truss Systems. Verify Every Connection.

The product is listed for EVT12S and other standard 12 inch end-plate bolt truss systems using compatible bolt connections, but exact fit with other systems is not guaranteed. The coating is a finish characteristic and does not establish connection compatibility. Before connecting different systems, verify end-plate dimensions and thickness, bolt-hole positions, chord alignment, hardware, fastener engagement, and completed-joint seating.

EVT12S

Designed for compatible EVT12S end-plate bolt truss components.

End Plates

Compare plate dimensions and bolt-hole positions.

Hardware

Confirm the appropriate fasteners and engagement.

Completed Joint

Inspect alignment and full seating before use.

Assembly Overview

Align the End Plates. Install and Check All Four Fasteners.

Assembly should be performed by personnel qualified for the truss system in accordance with applicable manufacturer requirements. This outline provides neither torque values nor installation approval.

01 — Inspect

Check tubing, welds, plates, holes, finish, and hardware for damage.

02 — Align

Bring compatible end plates together without forcing distorted parts.

03 — Install Hardware

Fit the specified fasteners at all four locations with adequate engagement.

04 — Tighten

Follow the applicable manufacturer fastener procedure.

05 — Check Seating

Confirm the required hardware and full plate seating.

06 — Inspect Before Service

Review the completed truss system and supports before loading.

Engineering Reference

Load-Span Reference for Completed EVT12S Truss Runs.

All truss loading calculations are based on a completed compatible 12 x 12 aluminum-truss run supported or suspended at both ends, under one stated static-load alternative. The values below do not rate an individual spacer, plate, or one-foot section. A spacer or short section changes the overall length and adds a bolted joint; it does not increase the completed system’s allowable capacity.

Allowable loading reference for the documented 12 x 12 aluminum-truss analysis.
Load Case	Unit	10 ft 3.05 m	20 ft 6.11 m	30 ft 9.14 m	40 ft 12.23 m
Uniformly Distributed Load	lb/ft	472	115	60	31
Deflection	in	0.21	0.65	1.63	2.68
Center Point Load	lb	2,710	1,206	580	272
Deflection	in	0.20	0.56	1.31	2.04
Third Point Loads	lb each	1,744	888	600	442
Deflection	in	0.32	0.68	1.48	2.62
Quarter Point Loads	lb each	1,110	633	428	308
Deflection	in	0.33	0.68	1.54	2.54

Load cases: CPL — one center load · TPL — two equal third-point loads · QPL — two equal quarter-point loads · UDL — load distributed over the complete span

Load-Span Assumptions and Project Review

Table assumptions: The reference evaluates unbraced truss configured as a simply supported beam. The primary analyzed spans were 10 ft, 20 ft, 30 ft, and 40 ft. If CPL, TPL, or QPL loading occurs at a truss connection, a minimum of two chords is assumed to support the vertical load.

Not included: Shock loads, dynamic loads, and resultant horizontal rigging forces, including forces from bridles or baskets. UDL applies only when the load is evenly distributed across the entire span. Published load cases are alternatives and are not additive.

Licensed structural-engineer review is required for every truss system. These values are general planning reference only and do not approve or rate an individual straight section, a completed lighting plot, a ground-support structure, a goal post, a tower, a start/finish arch, a suspended configuration, an outdoor installation, a mixed-component build, or any other assembled truss system. Confirm the complete configuration, supports, connections, span, applied loads, attachment points, rigging, ballast or anchorage, environmental conditions, and applicable code requirements with a licensed structural engineer before use.

Current documentation: Product specifications, included hardware, compatibility information, and availability are subject to change. Verify current product drawings, manufacturer instructions, connection hardware, and applicable engineering information before ordering, assembling, or using this product.

Safety and Engineering

A Truss Section Adds Length. It Does Not Increase Truss Capacity.

Allowable loading depends on the complete truss system, including span, supports, orientation, joints, suspension method, and applied loads. Suspended, load-bearing, dynamic-load, and complex applications require qualified structural or entertainment-rigging review. No stand-alone capacity value or torque value is provided here.

Inspect the truss section, welds, plates, bolt holes, hardware, and connected truss before every use.

Remove any component with cracks, bends, elongated holes, plate deformation, damaged welds, or substantial finish damage from service.

Install and tighten all required fasteners using the applicable manufacturer procedure.

Do not support loads directly from connection points without approval for the complete truss system.

Verify connection interfaces and completed-system suitability before combining different systems.

Have a competent person perform a documented inspection at least annually and remove unsafe parts from service.

Truss Section Questions

EVT12S-1FT Frequently Asked Questions.

What finish is listed for this section?

This version is listed with a brushed aluminum finish. Its listed dimensions, material, and end-plate connection format match the one-foot truss section format.

What hardware is included?

The listing identifies four Grade 8 bolts, four nuts, and four washers. Hardware finish may differ from the truss-section finish. Confirm the hardware needed at every connection in the completed system.

Can I combine it with other truss sections or spacers?

Additional compatible components may be considered, but every added joint needs its required hardware and the completed truss system must be reviewed for the intended use.

Does the section change truss capacity?

It does not increase capacity. Allowable loading depends on the complete system and its support and loading conditions.

Need a One Foot EVT12S Truss Section?

Contact us for truss section selection, listed compatibility information, product documentation, and quantity-quote support.

Structural Solutions, Unmatched Innovation

EVT12S-1FT

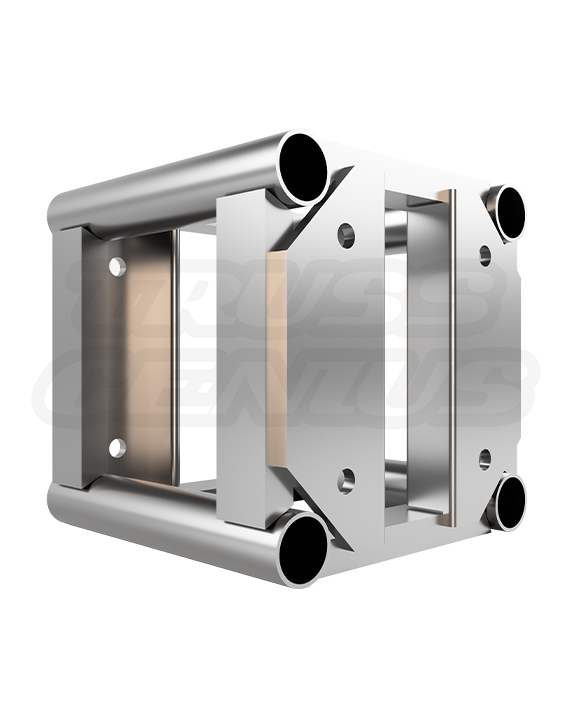

EVT12S-1FT — 12" Truss Spacer Plate – 12" x 12" Square Aluminum End-Plate Truss Spacer
