Product Description

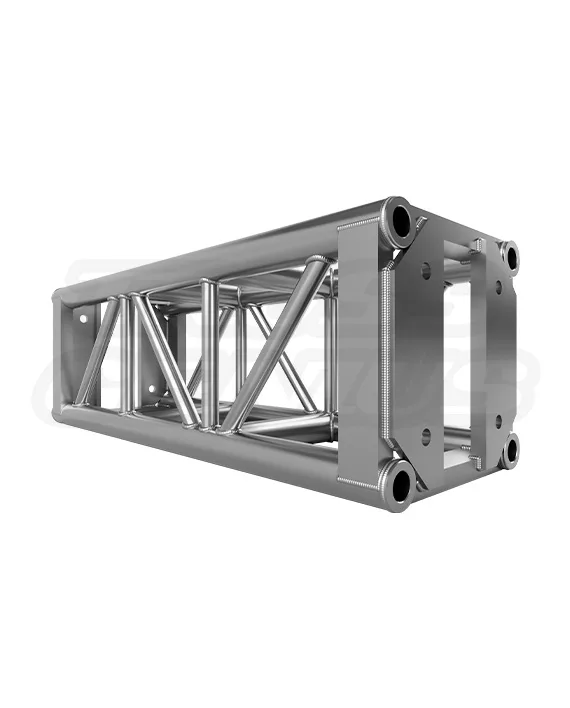

EVT12S-3FT | 3-Foot Aluminum Truss Section (12×12 Box Truss Plated)

The EVT12S-3FT Aluminum Truss Section is a precision-engineered 3-foot straight segment designed specifically for 12-inch square end-plated aluminum truss systems. Manufactured from high-quality 6061-T6 aluminum alloy, this component provides added span length and structural flexibility while maintaining proper alignment and load continuity within the grid.

Function & Compatibility:

Unlike conical systems, the EVT12S series utilizes an industry-standard nut-and-bolt end-plate connection. This 3-foot section features a rigid square profile that matches the geometry of standard 12″ box truss, ensuring a seamless structural transition. It serves as an excellent mid-length segment for bridging gaps between shorter and longer truss sections.

Key Features

• Modular Length: 3-foot straight section, perfect for extending spans and refining system layouts.
• Included Hardware: Ships complete with 4x Grade 8 Bolts, Nuts, and Washers for immediate, high-strength assembly.
• Heavy-Duty Construction: Fabricated from 6061-T6 Aluminum Alloy for superior strength-to-weight ratio.
• End-Plated Design: Compatible with EVT12S and other standard 12-inch plated truss systems using bolt connections.
• TÜV Specifications: Fabricated in accordance with strict TUV manufacturing standards.
• Professional Finish: Clean aluminum surface integrates seamlessly with standard silver trussing.

Designed by Evolve Truss, the EVT12S-3FT delivers the reliability and structural consistency demanded by professional production environments.

⚠️ Safety & Engineering Notice

❗ Critical Load Rating Information: The rated load capacity for this 3-foot segment depends entirely on the full system configuration. The truss section itself is typically not the limiting factor in a properly designed system. For precise load specifications, always refer to the official EVT12S Truss Series Load Tables for the specific span length you are building. Consult a qualified engineer before use.

Important Guidelines for Safe Use:

• Inspect the end plates and bolt holes for deformation or wear before every use.
• Ensure all Grade 8 bolts are properly torqued to manufacturer specifications.
• Do not mix truss components from different manufacturers unless the bolt pattern and plate dimensions have been strictly verified.
• The purchase of this product does not authorize specific installations; a licensed professional engineer shall review all structures, lighting plots, or other aluminum truss uses.

⚠️ Compatibility Warning for Mixed-Brand Builds

Crucial Steps for Safe Assembly:

• Verify Bolt Patterns: Plated truss varies by manufacturer. Compare your existing truss plate dimensions against EVT12S specifications before purchase.
• Check Alignment: Ensure chord alignment is precise to prevent uneven loading on the bolts.
• Mixing incompatible plated truss can lead to structural failure.
