How durable is the matte black powder coat finish?

The finish is a professional-grade powder coat applied over the 6061-T6 aluminum frame. It resists scratches and UV fading under normal use. To maintain appearance, avoid dragging components across hard surfaces during assembly and store with protective padding between sections when transporting.

Is the EVT12S-4IN Black compatible with standard 12-inch box truss?

Yes, structurally this spacer is identical to standard 12x12 plated truss. It uses a standard bolt pattern compatible with brands like Tomcat, James Thomas Engineering, Milos, and Show Solutions. However, for aesthetic consistency, we recommend matching black components with black truss.

What is the intended use and load limitation of this truss?

Trusses are primarily designed to suspend static loads. Assembly must be performed by trained and competent persons. While dynamic loads may be accepted in specific cases, they strictly require review and approval by a structural engineer.

What are the testing and inspection requirements for this truss?

Trusses must be visually checked before every use for deformations, cracks, missing diagonals, bending, or wear on connection points (bolts/sleeves). Additionally, a competent person must perform a documented inspection at least once a year. Any truss deemed unsafe must be immediately taken out of service and marked 'DO NOT USE'.

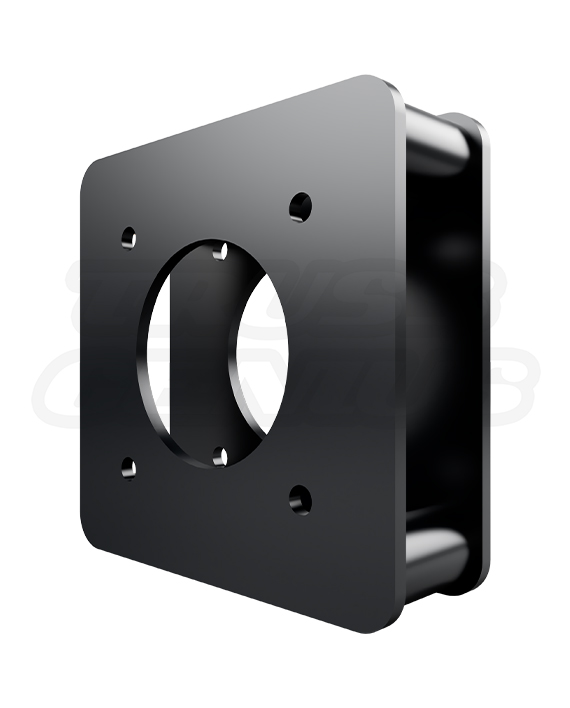

EVT12S-4IN Black | 4-Inch Black Aluminum Truss Spacer for 12-Inch Square End-Plate Bolt Truss

EVT12S-4IN Black Truss Spacer

4 Inch Matte Black Aluminum Truss Spacer.
Adds a 4 Inch Increment Between Compatible End-Plate Truss Components.

The EVT12S-4IN Black is a 4 inch matte black aluminum plated-bolt truss spacer for compatible EVT12S 12 inch square end-plate bolt truss components. It adds a documented 4 inch / 101.6 mm increment between compatible end plates. The spacer adds length and a bolted connection to a completed truss system. It does not increase truss capacity.

Product Facts

Model / SKUEVT12S-4IN-Black

Product Type4 Inch Plated-Bolt Truss Spacer

Overall Size12 x 12 x 4 in

MaterialEN AW-6061 T6 Aluminum

FinishMatte Black Powder Coat

Included Hardware4 Grade 8 Bolt Sets

4 inAdded Length

12 x 12 inSquare Truss Size

Matte BlackPowder-Coat Finish

9.30 lbSpacer Weight

4-BoltEnd-Plate Connection

Product Overview

A 4 Inch Black Truss Spacer for Compatible End-Plate Connections.

The EVT12S-4IN Black is a 4 inch aluminum truss spacer with a 12 x 12 inch square profile and matte black powder-coat finish. It adds a documented 4 inch / 101.6 mm increment between compatible plated end plates. The product listing identifies EN AW-6061 T6 aluminum, 50 mm main tubing, 25 mm brace tubing, a four-bolt end-plated connection, and TÜV certification.

4 Inch Increment

Adds 4 in / 101.6 mm between compatible plated truss components.

12 Inch Square Size

Listed overall dimensions are 12 x 12 x 4 in / 304.8 x 304.8 x 101.6 mm.

Matte Black Finish

Matte black powder coat for compatible truss systems where a black finish is specified.

End-Plate Connection

Uses a compatible four-bolt, end-plated nut-and-bolt connection arrangement.

Application Uses

For Broadcast, Theater, Touring, and Custom Truss Systems.

The EVT12S-4IN Black may be used in compatible plated truss systems for broadcast grids, black-box theaters, corporate stage builds, touring systems, lighting grids, LED wall frames, and rental inventory. The matte black finish supports systems where exposed silver truss is not preferred. Confirm the complete truss system, support conditions, connection count, hardware, and intended use before placing any structure into service.

Broadcast and Film

For compatible camera-facing grids and support systems where a black finish is specified.

Black-Box Theater

For compatible theater truss systems where a matte black component is required.

Corporate Staging

For compatible stage and display structures using black-finish truss components.

LED Wall Frames

For compatible plated truss frames supporting LED wall and display structures.

Touring and Rental

For compatible black truss inventory used in touring, staging, and rental systems.

Included Hardware

Supplied with Hardware for One Four-Point Connection.

The product listing identifies four Grade 8 bolts, four nuts, and four washers with the truss spacer. Confirm the quantity, bolt length, hardware specification, engagement, and tightening requirements for the complete truss system before use. Additional hardware may be required where the system includes multiple connections.

4 Grade 8 Bolts

Bolts listed for the four end-plate connection points.

4 Nuts

Matching nuts listed for securing the supplied bolts.

4 Washers

Washers listed for the supplied connection hardware arrangement.

Full Assembly Check

Do not assume one included set covers every connection in a multi-section truss system.

Technical Reference

EVT12S-4IN Black Truss Spacer Specifications.

Identification

Product Details

Model / SKUEVT12S-4IN-Black

BrandEvolve Truss

Product Type4 Inch Plated-Bolt Truss Spacer

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions and Weight

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length4 in / 101.6 mm

Weight9.30 lb / 4.21 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061 T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

Brace Tubing0.98 in / 25 mm OD, 0.11 in / 3 mm Wall

FinishMatte Black Powder Coat

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CompatibilityCompatible EVT12S 12 Inch Plated Bolt Truss Components

CertificationTÜV Certified

System Compatibility

Compatible EVT12S 12 Inch Plated Bolt Truss. Verify Every Connection Before Assembly.

The EVT12S-4IN Black is designed for compatible EVT12S 12 inch plated bolt truss components. Before joining components from different systems, verify end-plate dimensions, bolt-hole locations, chord alignment, required hardware, fastener engagement, and full seating of the assembled connection.

EVT12S

Designed for compatible EVT12S 12 inch plated bolt truss components.

Compatible End-Plate Systems

Confirm the actual connection interface and completed-system suitability before connecting components from different systems.

End-Plate and Bolt-Hole Check

Compare the actual plate dimensions and bolt-hole locations before attempting connection.

Completed Joint Inspection

Confirm alignment, engagement, hardware, and plate seating at every assembled connection.

Assembly Overview

Align the End Plates. Install and Check All Four Fasteners.

The truss spacer installs between compatible plated truss components using the applicable four-bolt end-plate connection method. Assembly should be completed by personnel qualified for the truss system and according to applicable manufacturer requirements. This overview does not provide torque values or replace approved installation instructions.

01 — Inspect Components

Inspect the spacer, main tubing, brace tubing, end plates, bolt holes, bolts, nuts, washers, and connected truss for damage or deformation.

02 — Align Without Force

Bring compatible end plates together without using bolts to pull distorted or misaligned components into place.

03 — Install Hardware

Install the required four-bolt hardware arrangement with the correct parts and full engagement for the actual connection.

04 — Tighten as Specified

Tighten all fasteners using the applicable truss-system requirements and approved procedure.

05 — Check Seating

Confirm the end plates are fully seated and all required fasteners are present and secured.

06 — Inspect Before Service

Inspect the completed truss system and its support arrangement before applying loads or placing it into service.

Safety and Engineering

A Truss Spacer Adds Length. It Does Not Increase Truss Capacity.

The EVT12S-4IN Black adds 4 inches and a bolted connection to the truss system. The allowable loading and suitability of the completed system depend on the truss model, span, support conditions, connection count, orientation, applied loads, suspension method, and project-specific review. Load-bearing, suspended, dynamic-load, or other complex configurations require review by qualified structural or entertainment-rigging personnel.

Use only undamaged truss spacers, compatible truss components, and complete hardware sets suitable for the actual connection.

Inspect the spacer, welds, end plates, bolt holes, bolts, nuts, washers, and connected truss before every use.

Do not use components with cracks, bends, deformed end plates, elongated holes, damaged welds, or severe wear.

Install all required fasteners and tighten them according to the applicable manufacturer specification and approved procedure.

Do not connect components from different systems unless the connection interface and completed system have been verified for the specific application.

A competent person should perform documented inspection at least annually, and any component deemed unsafe must be removed from service.

Truss Spacer Questions

EVT12S-4IN Black Frequently Asked Questions.

Why choose the matte black version of this spacer?

The matte black powder-coat finish is intended for compatible truss systems where a black finish is specified, including theater, broadcast, film, lighting-grid, and camera-facing structures.

What hardware is included?

The product listing identifies four Grade 8 bolts, four nuts, and four washers. Confirm the hardware requirement for the actual truss system and every connection point.

Can this spacer be connected to another plated truss system?

Verify the actual end plates, bolt-hole locations, chord alignment, hardware, engagement, and completed-system suitability before connecting components from different systems.

Does adding the spacer increase truss capacity?

No. It adds length and a connection. The completed system's allowable loading and suitability depend on the full truss system and applicable review.

Need a 4 Inch Black EVT12S Truss Spacer?

Contact us for truss spacer selection, listed compatibility information, product documentation, and quantity-quote support. For load-bearing or suspended truss systems, coordinate the completed system with qualified engineering or rigging personnel.
