Is the EVT12S-5IN Black the same structurally as the standard aluminum version?

Yes. The matte black powder coat is cosmetic only — it does not change the bolt pattern, plate dimensions, tubing specs, or load characteristics. You get the same 5-inch precision extension with a non-reflective finish designed for environments where the truss needs to be invisible.

What maintenance does the matte black finish require?

Under normal use the powder coat requires no special maintenance. To preserve the finish, avoid metal-on-metal contact during transport and store sections with protective padding. If the finish chips, it does not affect structural integrity — the underlying 6061-T6 aluminum is corrosion-resistant. Touch-up powder coating is available through Truss Genius.

Can I combine the EVT12S-5IN Black with other spacer sizes to create a custom length?

Yes. You can bolt any combination of spacers end-to-end — for example, a 5-inch and a 6-inch for an 11-inch extension. Each connection requires its own set of Grade 8 hardware. For aesthetic consistency, match all visible spacers in the same finish.

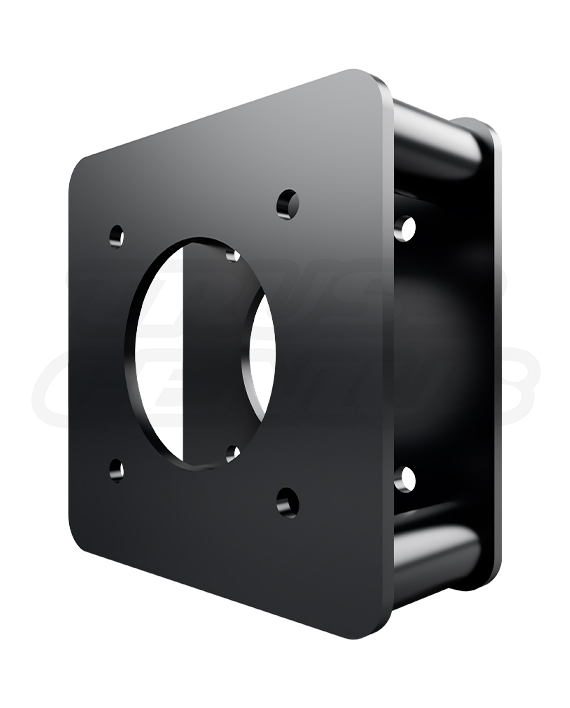

EVT12S-5IN Black | 5-Inch Matte Black Aluminum Truss Spacer for 12-Inch Square End-Plate Bolt Truss

EVT12S-5IN Black Truss Spacer

5 Inch Matte Black Aluminum Truss Spacer.
Adds a 5 Inch Section Between Compatible End-Plate Truss Components.

The EVT12S-5IN Black is a 5 inch matte black aluminum plated-bolt truss spacer for compatible EVT12S 12 inch square end-plate bolt truss components. It adds a 5 inch / 127 mm section between compatible end plates. The spacer adds length and a bolted connection to the completed truss system. It does not increase truss capacity.

Product Facts

Model / SKUEVT12S-5IN-Black

Product Type5 Inch Plated-Bolt Truss Spacer

Overall Size12 x 12 x 5 in

MaterialEN AW-6061 T6 Aluminum

FinishMatte Black Powder Coat

Included Hardware4 Grade 8 Bolt Sets

5 inAdded Section

12 x 12 inSquare Truss Size

Matte BlackPowder-Coat Finish

9.70 lbSpacer Weight

TÜVListed Certification

Product Overview

A 5 Inch Black Truss Spacer for Length Adjustments.

The EVT12S-5IN Black provides a fixed 5 inch / 127 mm section within compatible EVT12S 12 inch square end-plate truss assemblies. The matte black powder-coat finish is intended for systems where a black finish is specified, including camera-facing and dark-stage environments. Its listed 12 x 12 inch profile, connection type, and tubing specifications match the EVT12S product context.

Fixed 5 Inch Section

Adds 5 in / 127 mm between compatible plated truss components.

Matte Black Finish

Matte black powder coat for compatible truss systems where a black finish is specified.

12 Inch Square Truss Size

Listed overall dimensions are 12 x 12 x 5 in / 304.8 x 304.8 x 127 mm.

End-Plate Bolt Connection

Uses a compatible end-plated nut-and-bolt connection arrangement.

Application Uses

For Broadcast, Theater, Touring, and Custom Truss Systems.

The EVT12S-5IN Black may be used in compatible plated truss systems for broadcast grids, black-box theaters, corporate stage builds, touring systems, lighting grids, LED wall frames, and rental inventory. The matte black finish supports systems where exposed silver truss is not preferred. Confirm the complete truss system, support conditions, connection count, hardware, and intended use before placing any structure into service.

Broadcast and Film

For compatible camera-facing grids and support systems where a black finish is specified.

Black-Box Theater

For compatible theater truss systems where a matte black component is required.

Corporate Staging

For compatible stage and display structures using black-finish truss components.

LED Wall Frames

For compatible plated truss frames supporting LED wall and display structures.

Touring and Rental

For compatible black truss inventory used in touring, staging, and rental systems.

Included Hardware

Supplied with Hardware for One Four-Point Connection.

The product listing identifies four Grade 8 bolts, four nuts, and four washers with the spacer. This is the listed hardware set for one four-point end-plate connection. Confirm the required hardware quantity, bolt length, fastener engagement, condition, and tightening requirements for every connection in the completed truss system.

4 Grade 8 Bolts

Listed for the four bolt locations at an end-plate connection.

4 Nuts

Listed as part of the supplied fastener set.

4 Washers

Listed for use with the supplied bolt-and-nut hardware arrangement.

Connection Review

Confirm the actual hardware requirement at every joint before assembly.

Technical Reference

EVT12S-5IN Black Truss Spacer Specifications.

Identification

Product Details

Model / SKUEVT12S-5IN-Black

BrandEvolve Truss

Product Type5 Inch Plated-Bolt Truss Spacer

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions and Weight

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length5 in / 127 mm

Weight9.70 lb / 4.39 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061 T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

Brace Tubing0.98 in / 25 mm OD, 0.11 in / 3 mm Wall

FinishMatte Black Powder Coat

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CertificationTÜV Certified

3D ResourceGLB Model Listed

System Compatibility

Compatible EVT12S 12 Inch Plated Bolt Truss. Verify Every Connection Before Assembly.

The EVT12S-5IN Black is designed for compatible EVT12S 12 inch plated bolt truss components. Before joining components from different systems, verify end-plate dimensions, bolt-hole locations, chord alignment, required hardware, fastener engagement, and full seating of the assembled connection.

EVT12S

Designed for compatible EVT12S 12 inch plated bolt truss components.

Compatible End-Plate Systems

Confirm the actual connection interface and completed-system suitability before connecting components from different systems.

End-Plate and Bolt-Hole Check

Compare the actual plate dimensions and bolt-hole locations before attempting connection.

Completed Joint Inspection

Confirm alignment, engagement, hardware, and plate seating at every assembled connection.

Assembly Overview

Align the End Plates. Install and Check All Four Fasteners.

The spacer installs between compatible plated truss components using the applicable four-bolt end-plate connection method. Assembly should be completed by personnel qualified for the truss system and according to applicable manufacturer requirements. This overview does not provide torque values or replace approved installation instructions.

01 — Inspect Components

Inspect the spacer, tubing, end plates, bolt holes, bolts, nuts, washers, and connected truss for damage or deformation.

02 — Align Without Force

Bring compatible end plates together without using bolts to pull distorted or misaligned components into place.

03 — Install Hardware

Install the required four-bolt hardware arrangement with the correct parts and full engagement for the actual connection.

04 — Tighten as Specified

Tighten all fasteners using the applicable truss-system requirements and approved procedure.

05 — Check Seating

Confirm the end plates are fully seated and all required fasteners are present and secured.

06 — Inspect Before Service

Inspect the completed truss system and its support arrangement before applying loads or placing it into service.

Safety and Engineering

A Truss Spacer Adds Length. It Does Not Increase Truss Capacity.

The EVT12S-5IN Black adds a 5 inch section and a bolted joint to the truss system. The allowable loading and suitability of the completed system depend on the truss model, span, support conditions, connection count, orientation, applied loads, suspension method, and project-specific review. Load-bearing, suspended, dynamic-load, or other complex configurations require review by qualified structural or entertainment-rigging personnel.

Use only undamaged truss spacers, compatible truss components, and complete hardware sets suitable for the actual connection.

Inspect the spacer, welds, end plates, bolt holes, bolts, nuts, washers, and connected truss before every use.

Do not use components with cracks, bends, deformed end plates, elongated holes, damaged welds, or severe wear.

Do not support loads directly from spacer connection points unless the complete design specifically provides for that condition.

Do not connect components from different systems unless the connection interface and completed system have been verified for the specific application.

A competent person should perform documented inspection at least annually, and any component deemed unsafe must be removed from service.

Truss Spacer Questions

EVT12S-5IN Black Frequently Asked Questions.

Why select the black version of the 5 inch spacer?

The matte black powder-coat finish is intended for compatible truss systems where a black finish is specified, including broadcast, theater, corporate staging, and camera-facing applications.

What hardware is included?

The product listing identifies four Grade 8 bolts, four nuts, and four washers. Confirm the required hardware for every connection in the completed system.

Can this spacer be connected to another plated truss system?

Verify the actual end plates, bolt-hole locations, chord alignment, hardware, engagement, and completed-system suitability before connecting components from different systems.

Does the spacer increase the allowable load of a truss run?

No. The allowable load depends on the completed truss system, including its model, span, supports, joints, orientation, suspension method, applied loads, and applicable review.

Need a 5 Inch Black EVT12S Truss Spacer?

Contact us for truss spacer selection, listed compatibility information, product documentation, and quantity-quote support. For load-bearing or suspended truss systems, coordinate the completed system with qualified engineering or rigging personnel.
