Why would I choose a 5-inch spacer over a 4-inch or 6-inch?

The EVT12S-5IN fills a specific dimensional gap that the 4-inch and 6-inch spacers cannot. When your truss run needs exactly 5 more inches to align with a rigging point, match a venue dimension, or fit an LED panel layout, this spacer delivers that precision without forcing you to compromise with a shorter or longer piece.

Does the EVT12S-5IN include all the hardware needed for assembly?

Yes — every EVT12S-5IN ships with 4x Grade 8 Bolts, Nuts, and Washers. This is enough hardware to connect the spacer between two truss sections for immediate, high-strength assembly. No additional hardware purchase is required.

Can I stack multiple spacers together to create a custom length?

Yes. You can bolt two or more spacers end-to-end to achieve a custom total length — for example, combining a 5-inch and a 4-inch spacer for a 9-inch extension. Each connection requires its own set of Grade 8 hardware. Always verify that the total assembled span meets your structural engineer's load requirements.

EVT12S-5IN | 5-Inch Aluminum Truss Spacer for 12-Inch Square End-Plate Bolt Truss

EVT12S-5IN Truss Spacer

5 Inch Aluminum Truss Spacer.
Adds a 5 Inch Section Between Compatible End-Plate Truss Components.

The EVT12S-5IN is a 5 inch aluminum plated-bolt truss spacer for compatible EVT12S 12 inch square end-plate bolt truss components. It adds a 5 inch / 127 mm section between compatible end plates. The spacer adds length and a bolted connection to the completed truss system. It does not increase truss capacity.

Product Facts

Model / SKUEVT12S-5IN

Product Type5 Inch Plated-Bolt Truss Spacer

Overall Size12 x 12 x 5 in

MaterialEN AW-6061 T6 Aluminum

Weight9.70 lb / 4.39 kg

Included Hardware4 Grade 8 Bolt Sets

5 inAdded Section

12 x 12 inSquare Truss Size

9.70 lbSpacer Weight

4-BoltEnd-Plate Connection

TÜVListed Certification

Product Overview

A 5 Inch Truss Spacer for Length Adjustments.

The EVT12S-5IN provides a fixed 5 inch / 127 mm section within compatible EVT12S 12 inch square end-plate truss assemblies. Use it where a truss run, lighting grid, LED wall frame, or display structure requires an additional 5 inches. Its 12 x 12 inch profile and brushed aluminum finish match the listed EVT12S system format.

Fixed 5 Inch Section

Adds 5 in / 127 mm between compatible plated truss components.

12 Inch Square Truss Size

Listed overall dimensions are 12 x 12 x 5 in / 304.8 x 304.8 x 127 mm.

Brushed Aluminum Finish

Listed with a brushed aluminum surface that matches standard silver truss components.

End-Plate Bolt Connection

Uses a compatible end-plated nut-and-bolt connection arrangement.

Truss Spacer Uses

For Touring, Staging, Rental, and Custom Truss Systems.

The EVT12S-5IN may be used in compatible plated truss systems for touring systems, lighting grids, LED wall frames, trade-show structures, rental inventory, and custom truss systems. It provides an additional 5 inch section where that length is required between compatible truss components. Confirm the complete truss system, support conditions, connection count, hardware, and intended use before placing any structure into service.

Touring Systems

For compatible plated truss systems assembled for touring and staging applications.

Lighting Grids

For compatible grid systems that require an additional 5 inch section.

LED Wall Frames

For compatible plated truss frames supporting LED wall and display structures.

Trade Show Structures

For compatible truss systems used in booth and overhead display structures.

Rental Inventory

For rental inventory supporting compatible 12 inch plated bolt-truss components.

Included Hardware

Supplied with Hardware for One Four-Point Connection.

The product listing identifies four Grade 8 bolts, four nuts, and four washers with the spacer. This is the listed hardware set for one four-point end-plate connection. Confirm the required hardware quantity, bolt length, fastener engagement, condition, and tightening requirements for every connection in the completed truss system.

4 Grade 8 Bolts

Listed for the four bolt locations at an end-plate connection.

4 Nuts

Listed as part of the supplied fastener set.

4 Washers

Listed for use with the supplied bolt-and-nut hardware arrangement.

Connection Review

Confirm the actual hardware requirement at every joint before assembly.

Technical Reference

EVT12S-5IN Truss Spacer Specifications.

Identification

Product Details

Model / SKUEVT12S-5IN

BrandEvolve Truss

Product Type5 Inch Plated-Bolt Truss Spacer

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions and Weight

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length5 in / 127 mm

Weight9.70 lb / 4.39 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061 T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

Brace Tubing0.98 in / 25 mm OD, 0.11 in / 3 mm Wall

FinishBrushed Aluminum

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CompatibilityCompatible EVT12S 12 Inch Plated Bolt Truss Components

CertificationTÜV Certified

System Compatibility

Compatible EVT12S 12 Inch Plated Bolt Truss. Verify Every Connection Before Assembly.

The EVT12S-5IN is designed for compatible EVT12S 12 inch plated bolt truss components. Before joining components from different systems, verify end-plate dimensions, bolt-hole locations, chord alignment, required hardware, fastener engagement, and full seating of the assembled connection.

EVT12S

Designed for compatible EVT12S 12 inch plated bolt truss components.

Compatible End-Plate Systems

Confirm the actual connection interface and completed-system suitability before connecting components from different systems.

End-Plate and Bolt-Hole Check

Compare the actual plate dimensions and bolt-hole locations before attempting connection.

Completed Joint Inspection

Confirm alignment, engagement, hardware, and plate seating at every assembled connection.

Assembly Overview

Align the End Plates. Install and Check All Four Fasteners.

The spacer installs between compatible plated truss components using the applicable four-bolt end-plate connection method. Assembly should be completed by personnel qualified for the truss system and according to applicable manufacturer requirements. This overview does not provide torque values or replace approved installation instructions.

01 — Inspect Components

Inspect the spacer, tubing, end plates, bolt holes, bolts, nuts, washers, and connected truss for damage or deformation.

02 — Align Without Force

Bring compatible end plates together without using bolts to pull distorted or misaligned components into place.

03 — Install Hardware

Install the required four-bolt hardware arrangement with the correct parts and full engagement for the actual connection.

04 — Tighten as Specified

Tighten all fasteners using the applicable truss-system requirements and approved procedure.

05 — Check Seating

Confirm the end plates are fully seated and all required fasteners are present and secured.

06 — Inspect Before Service

Inspect the completed truss system and its support arrangement before applying loads or placing it into service.

Safety and Engineering

A Truss Spacer Adds Length. It Does Not Increase Truss Capacity.

The EVT12S-5IN adds a 5 inch section and a bolted joint to the truss system. The allowable loading and suitability of the completed system depend on the truss model, span, support conditions, connection count, orientation, applied loads, suspension method, and project-specific review. Load-bearing, suspended, dynamic-load, or other complex configurations require review by qualified structural or entertainment-rigging personnel.

Use only undamaged truss spacers, compatible truss components, and complete hardware sets suitable for the actual connection.

Inspect the spacer, welds, end plates, bolt holes, bolts, nuts, washers, and connected truss before every use.

Do not use components with cracks, bends, deformed end plates, elongated holes, damaged welds, or severe wear.

Do not support loads directly from spacer connection points unless the complete design specifically provides for that condition.

Do not connect components from different systems unless the connection interface and completed system have been verified for the specific application.

A competent person should perform documented inspection at least annually, and any component deemed unsafe must be removed from service.

Truss Spacer Questions

EVT12S-5IN Frequently Asked Questions.

When should I use a 5 inch truss spacer?

Use it when a compatible truss system requires an additional 5 inch section between truss components.

What hardware is included?

The product listing identifies four Grade 8 bolts, four nuts, and four washers. Confirm the required hardware for every connection in the completed system.

Can this spacer be connected to another plated truss system?

Verify the actual end plates, bolt-hole locations, chord alignment, hardware, engagement, and completed-system suitability before connecting components from different systems.

Does the spacer increase the allowable load of a truss run?

No. The allowable load depends on the completed truss system, including its model, span, supports, joints, orientation, suspension method, applied loads, and applicable review.

Need a 5 Inch EVT12S Truss Spacer?

Contact us for truss spacer selection, listed compatibility information, product documentation, and quantity-quote support. For load-bearing or suspended truss systems, coordinate the completed system with qualified engineering or rigging personnel.

Structural Solutions, Unmatched Innovation

EVT12S-5IN

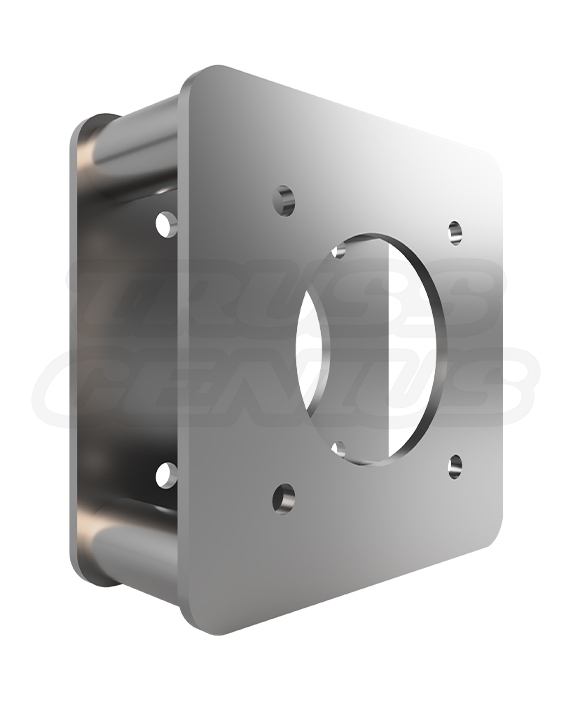

EVT12S-5IN — 5″ Truss Spacer Plate – 12″ x 12″ Square Aluminum End-Plate Truss Spacer

5 Inch Aluminum Truss Spacer.Adds a 5 Inch Section Between Compatible End-Plate Truss Components.
