Why would I choose a 6-inch spacer over combining two shorter spacers?

A single 6-inch spacer creates one rigid connection point instead of two, reducing hardware count, minimizing potential flex between joints, and cutting assembly time in half. It is the cleanest way to add a half-foot increment to any 12-inch plated truss run.

Can the EVT12S-6IN be used to offset truss for centered LED panel mounting?

Yes. Riggers commonly use the 6-inch spacer to push a support beam outward by exactly half a foot, centering an LED panel array within the grid and eliminating the shadow gaps that occur when the structure does not align with the panel module width.

What should I check before connecting the EVT12S-6IN to another manufacturer's 12-inch plated truss?

Confirm that the opposing end plate has the same bolt-hole spacing, plate thickness, and chord alignment as the EVT12S system. Even small differences between manufacturers can cause misalignment under load, so a physical plate-to-plate test fit is recommended before committing to a mixed-brand assembly.

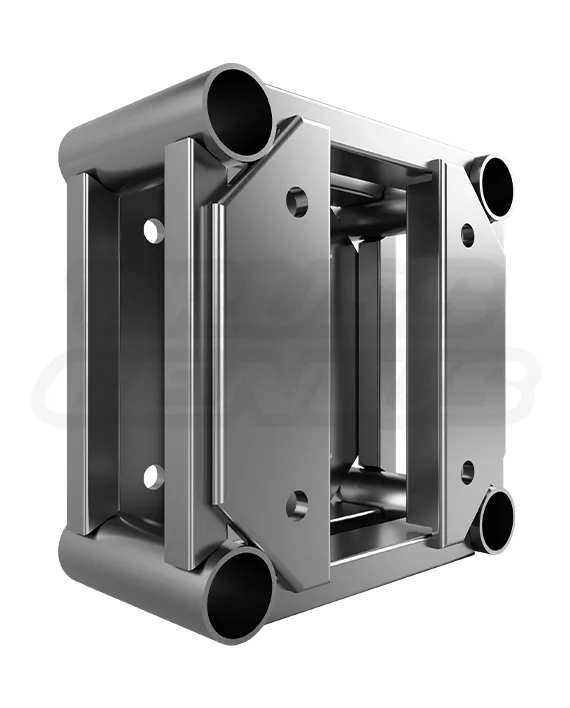

EVT12S-6IN — 6-Inch Plated Bolt Truss Spacer for 12-Inch Square Truss Systems

EVT12S-6IN Truss Spacer

6 Inch Aluminum Truss Spacer.
Adds a Half-Foot Section Between Compatible End-Plate Truss Components.

The EVT12S-6IN is a plated-bolt aluminum truss spacer for compatible EVT12S 12 inch square end-plate truss systems. Its 6 inch / 152.4 mm length adds a half-foot section without substituting a full-length truss section. The added length and bolted connection must be considered as part of the completed system; the spacer does not increase truss capacity.

Product Facts

Model / SKUEVT12S-6IN

Product Type6 Inch Plated-Bolt Truss Spacer

Overall Size12 x 12 x 6 in

MaterialEN AW-6061 T6 Aluminum

Weight10.5 lb

Included Hardware4 Grade 8 Bolt Sets

6 inAdded Length

12 x 12 inSquare Truss Size

10.5 lbSpacer Weight

4-BoltEnd-Plate Connection

TÜVListed Certification

Product Overview

A 6 Inch Truss Spacer for Length Adjustments.

The EVT12S-6IN provides a half-foot section for compatible 12 inch square end-plated truss. Its brushed aluminum finish and bolt-connected end plates follow the listed EVT12S system format. Select the section length required for the complete truss system rather than relying on nominal room dimensions alone.

Half-Foot Section

Adds 6 in / 152.4 mm at a compatible end-plate connection.

12 Inch Square Size

Overall dimensions: 12 x 12 x 6 in / 304.8 x 304.8 x 152.4 mm.

Brushed Aluminum

Listed finish for silver aluminum truss systems.

End-Plated Connection

Nut-and-bolt connection for the specified EVT12S interface.

Application Uses

For Touring, Staging, Rental, and Custom Truss Systems.

A six-inch section can be specified in compatible touring truss, lighting grids, LED wall frames, corporate staging, trade-show structures, and rental systems. Its function is to add the required half-foot section; selection of suspension points and loading belongs to the completed truss design.

Touring Systems

A short section for compatible touring truss runs.

Lighting Grids

For systems requiring an additional half-foot between end-plate components.

LED Wall Frames

For compatible plated frames used with LED wall structures.

Corporate Staging

For compatible truss systems in stage and AV structures.

Rental Inventory

A 6 inch length option for compatible EVT12S inventory.

Included Hardware

Supplied with Hardware for One Four-Point Connection.

The listing identifies four Grade 8 bolts, four nuts, and four washers. Confirm the hardware required at every joint, including bolt length, condition, engagement, and the applicable tightening procedure. Do not assume the included set covers all connections in a multi-section system.

4 Grade 8 Bolts

Listed for a four-point end-plate joint.

4 Nuts

Listed with the supplied bolts.

4 Washers

Listed as part of the hardware set.

Complete-System Check

Account for hardware at every connection in the finished system.

Technical Reference

EVT12S-6IN Truss Spacer Specifications.

Identification

Product Details

Model / SKUEVT12S-6IN

BrandEvolve Truss

Product Type6 Inch Plated-Bolt Truss Spacer

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions and Weight

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length6 in / 152.4 mm

Weight10.5 lb

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061 T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

Brace Tubing0.98 in / 25 mm OD, 0.11 in / 3 mm Wall

FinishBrushed Aluminum

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CompatibilityCompatible EVT12S 12 Inch Plated Bolt Truss Components

CertificationTÜV Certified

3D ResourceGLB Model Listed

System Compatibility

For EVT12S Plated Bolt Truss. Verify Connections Before Assembly.

The EVT12S-6IN is listed for EVT12S and standard 12 inch plated truss systems that use compatible bolt connections. Nominal size alone does not establish fit. Before connecting components from different systems, confirm end-plate dimensions and thickness, bolt-hole locations, chord alignment, fastener requirements, and seating of the assembled joint.

EVT12S System

Listed for compatible EVT12S 12 inch square plated bolt truss components.

End-Plate Check

Compare opposing plates and bolt-hole locations.

Fastener Check

Verify specified bolts, nuts, washers, and engagement.

Joint Inspection

Confirm the end plates seat correctly before use.

Assembly Overview

Align the End Plates. Check the Completed Joint.

Qualified personnel should follow the applicable manufacturer instructions for the complete truss system. This overview is not a torque specification or an installation approval.

01 — Inspect

Check the spacer, tubing, welds, plates, holes, and hardware for damage.

02 — Align

Bring compatible end plates together without forcing misaligned parts into place.

03 — Fit Hardware

Install the required four-point bolt arrangement with appropriate engagement.

04 — Tighten

Use the applicable manufacturer procedure and fastener specification.

05 — Check Seating

Check both plates and every required fastener.

06 — Inspect Before Service

Review the completed system and supports before applying loads.

Safety and Engineering

A Truss Spacer Adds Length. It Does Not Increase Truss Capacity.

The allowable load of a completed truss system depends on its span, supports, orientation, connections, suspension method, applied loads, and approved engineering data. Suspended, load-bearing, dynamic-load, or complex uses require review by qualified structural or entertainment-rigging personnel. No load rating or torque value for this spacer alone is provided here.

Use only undamaged components and hardware appropriate for the actual joint.

Inspect end plates, welds, bolt holes, tubing, fasteners, and connected truss before each use.

Remove components with cracks, bent tubing, deformed plates, elongated holes, or damaged welds from service.

Do not support loads directly from spacer connection points without specific approval for the complete system.

Verify interfaces and completed-system suitability before combining components from different systems.

Have a competent person perform and document an inspection at least annually; remove unsafe components from service.

Truss Spacer Questions

EVT12S-6IN Frequently Asked Questions.

How much length does this spacer add?

It adds a 6 inch / 152.4 mm section between compatible end-plated truss components. Include the added bolted connection in the complete-system review.

What hardware is included?

The listing identifies four Grade 8 bolts, four nuts, and four washers. Check the requirements for each joint in the finished system.

Can it connect to another plated truss system?

Only after the end-plate interface, bolt-hole locations, chord alignment, hardware, and completed-system suitability have been verified for the application.

Does a six-inch spacer increase truss capacity?

No. Determine allowable loading from the completed truss system and its support and loading conditions.

Need a 6 Inch EVT12S Truss Spacer?

Contact us for truss spacer selection, listed compatibility information, product documentation, and quantity-quote support. For load-bearing or suspended truss systems, coordinate the completed system with qualified engineering or rigging personnel.
