What types of structures can the EVT12S-7IN Black be used to build?

This spacer integrates into any structure built on 12-inch square plated truss — lighting grids, speaker arrays, trade show booths, scenic frameworks, camera rigs, overhead motor points, and architectural installations. Anywhere the design calls for a short extension between full-length sections, the 7-inch spacer fills that gap whether the layout runs horizontally, vertically, or at an angle.

What hardware is required for installation?

The spacer connects using Grade 8 zinc-plated steel bolts through the end-plate system. Use only the specified bolt grade and torque values. Do not substitute lower-grade hardware, and verify all connections are secure before loading the structure.

Can this spacer be mounted horizontally between two truss sections, or is it only for vertical stacking?

The EVT12S-7IN Black mounts in any orientation — horizontal, vertical, or angled. It uses the same end-plated bolt connection as every other component in the 12-inch square truss line, so it transfers load evenly regardless of how it is positioned. Horizontal runs for LED wall frames, vertical lifts for speaker arrays, and angled bridging for scenic structures all work with the same hardware and installation method.

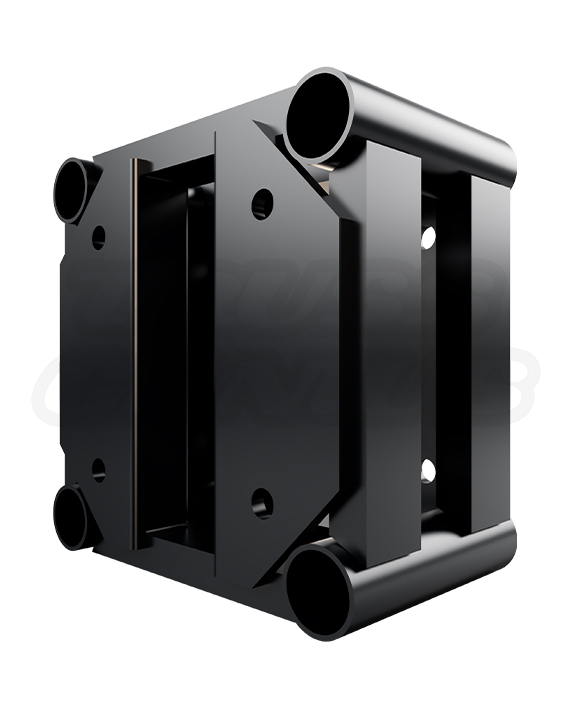

EVT12S-7IN Black — 7-Inch Black Plated Bolt Truss Spacer for 12-Inch Square Truss Systems

EVT12S-7IN-Black Truss Spacer

7 Inch Matte Black Truss Spacer.
Adds a 7 Inch Section Between Compatible End-Plate Truss Components.

The EVT12S-7IN-Black is a matte black, plated-bolt aluminum spacer for compatible EVT12S 12 inch square end-plate truss components. It supplies a 7 inch / 177.8 mm section within a truss run. The finish is listed as matte black powder coat. This component adds length and a bolted connection; it does not increase the capacity of the completed truss system.

Product Facts

Model / SKUEVT12S-7IN-Black

Product Type7 Inch Black Plated-Bolt Truss Spacer

Overall Size12 x 12 x 7 in

MaterialEN AW-6061 T6 Aluminum

FinishMatte Black Powder Coat

Weight15.80 lb / 7.16 kg

7 inAdded Length

12 x 12 inSquare Truss Size

Matte BlackPowder-Coat Finish

15.80 lbSpacer Weight

4-BoltEnd-Plate Connection

Product Overview

A 7 Inch Black Spacer for Compatible Truss Systems.

The EVT12S-7IN-Black supplies a seven-inch section for compatible 12 inch square plated truss systems. Its black powder-coated exterior is suitable when a dark-finish component is required. The listed construction is EN AW-6061 T6 aluminum alloy with an end-plated bolt connection.

Seven Inch Section

Adds 7 in / 177.8 mm at a compatible end-plate connection.

Matte Black Finish

Listed factory-applied powder-coat surface.

12 Inch Square Size

Overall dimensions are 12 x 12 x 7 in.

Bolt Connection

Uses an end-plated nut-and-bolt interface.

Application Uses

For Dark-Finish Truss in Staging, Touring, and Display Systems.

The seven-inch black spacer may be considered for compatible lighting grids, scenic structures, trade-show displays, venue systems, touring equipment, and rental inventory where a dark-finish component and seven-inch section are specified. The entire installation, not the spacer alone, must be evaluated for the intended loading and support conditions.

Dark-Finish Systems

A matte black component for compatible dark-finish truss runs.

Lighting Grids

For compatible end-plated truss grid systems.

Scenic Structures

For compatible stage and scenic truss assemblies.

Trade Displays

For compatible exhibit structures that call for a seven-inch section.

Rental Inventory

Provides a seven-inch black-finish option in compatible inventory.

Included Hardware

Hardware Listed for One Four-Point Connection.

The source lists four Grade 8 bolts, four nuts, and four washers. Verify the hardware requirements at every actual joint, including bolt length, condition, engagement, and the applicable tightening procedure. Other completed-system joints may require additional hardware.

4 Grade 8 Bolts

Listed for the four-point end-plate connection.

4 Nuts

Listed with the supplied bolt set.

4 Washers

Included in the listed hardware set.

Joint Review

Check each completed-system joint before service.

Technical Reference

EVT12S-7IN-Black Specifications.

Identification

Product Details

Model / SKUEVT12S-7IN-Black

BrandEvolve Truss

Product Type7 Inch Black Plated-Bolt Truss Spacer

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions and Weight

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length7 in / 177.8 mm

Weight15.80 lb / 7.16 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061 T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

Brace Tubing0.98 in / 25 mm OD, 0.11 in / 3 mm Wall

FinishMatte Black Powder Coat

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CompatibilityCompatible EVT12S 12 Inch Plated Bolt Truss Components

CertificationTÜV Certified

3D ResourceGLB Model Listed

System Compatibility

For EVT12S Plated Bolt Truss. Verify Every Connection.

The product is listed for EVT12S and other standard 12 inch plated truss systems using compatible bolt connections. Before connecting products from different systems, verify plate dimensions and thickness, bolt-hole positions, chord alignment, hardware requirements, fastener engagement, and complete-joint seating. A shared nominal size alone does not establish connection suitability.

EVT12S

Designed for compatible EVT12S plated bolt truss components.

End Plates

Compare plate size, thickness, and bolt-hole locations.

Hardware

Confirm the required fasteners and engagement.

Completed Joint

Inspect alignment and full plate seating before use.

Assembly Overview

Align the End Plates. Install and Check All Four Fasteners.

Assembly must be performed by personnel qualified for the truss system and in accordance with applicable manufacturer requirements. This outline does not provide torque values or installation approval.

01 — Inspect

Check tubing, welds, plates, holes, and hardware for damage.

02 — Align

Bring compatible end plates together without forcing distorted parts.

03 — Install Hardware

Fit the specified fasteners at all four locations with adequate engagement.

04 — Tighten

Follow the applicable manufacturer fastener procedure.

05 — Check Seating

Confirm full seating and the required hardware.

06 — Inspect Before Service

Review the completed system and supports before loading.

Safety and Engineering

A Truss Spacer Adds Length. It Does Not Increase Truss Capacity.

Allowable loading depends on the complete truss system, including span, supports, orientation, joints, suspension method, and applied loads. Suspended, load-bearing, dynamic-load, and complex applications require qualified structural or entertainment-rigging review. No stand-alone load rating or torque value is provided here.

Inspect the spacer, welds, plates, bolt holes, hardware, and connected truss before every use.

Remove any component with cracks, bends, elongated holes, plate deformation, damaged welds, or substantial finish damage from service.

Install and tighten all required fasteners using the applicable manufacturer procedure.

Do not support loads directly from spacer connection points without approval for the complete truss system.

Verify connection interfaces and completed-system suitability before combining products from different systems.

Have a competent person perform a documented inspection at least annually and remove unsafe parts from service.

Truss Spacer Questions

EVT12S-7IN-Black Frequently Asked Questions.

What is different about the black version?

This version is listed with a matte black powder-coat finish. Its listed dimensions, material, weight, and end-plate connection format match the seven-inch spacer format.

What hardware is included?

The listing identifies four Grade 8 bolts, four nuts, and four washers. Confirm the hardware needed at every connection in the completed system.

Can I combine it with another spacer length?

Additional compatible sections may be considered, but every added joint needs its required hardware and the completed system must be reviewed for the intended use.

Does the spacer change truss capacity?

It does not increase capacity. Allowable loading depends on the complete truss system and its support and loading conditions.

Need a Black 7 Inch EVT12S Truss Spacer?

Contact us for truss spacer selection, listed compatibility information, product documentation, and quantity-quote support. For load-bearing or suspended truss systems, coordinate the completed system with qualified engineering or rigging personnel.
