Why does the spacer lineup include a 7-inch option when most truss sections come in even-inch or foot increments?

Real-world venue dimensions rarely land on round numbers. A 7-inch spacer lets you hit the exact span length dictated by a room width, column spacing, or scenic ground plan without stacking multiple smaller spacers or leaving an unfilled gap at the end of a run.

Can I combine the EVT12S-7IN with other spacer lengths to build a custom total extension?

Yes. Spacers bolt end-to-end just like full truss sections. Combining a 7-inch with a 5-inch spacer gives you exactly 12 inches, or pairing it with a 4-inch spacer yields 11 inches — letting you assemble virtually any fractional dimension from the spacer inventory without cutting or modifying anything.

Can the EVT12S-7IN be installed vertically to adjust the height between stacked truss layers?

Yes. The spacer works in any orientation — horizontal to extend a run or vertical to raise one layer above another. Vertical installation is common when riggers need to increase the gap between a mother grid and a lighting pipe by exactly 7 inches to clear a scenic piece or hit a specific trim height.

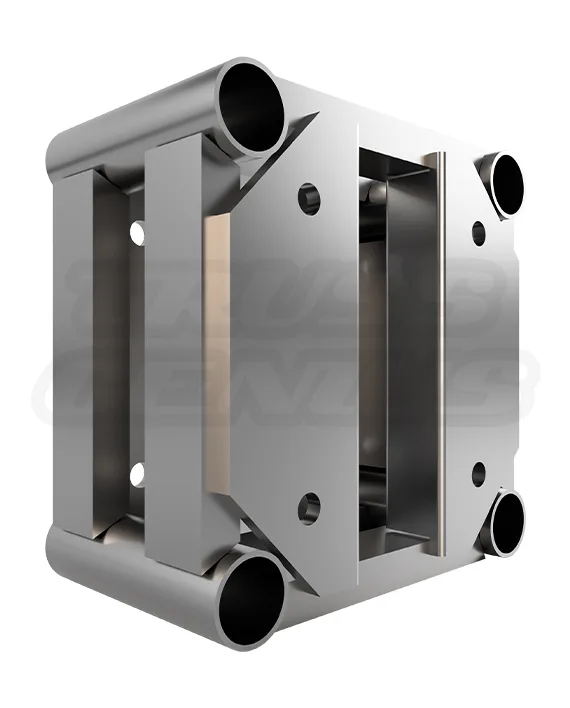

EVT12S-7IN — 7-Inch Plated Bolt Truss Spacer for 12-Inch Square Truss Systems

EVT12S-7IN Truss Spacer

7 Inch Aluminum Truss Spacer.
Adds a 7 Inch Section Between Compatible End-Plate Truss Components.

The EVT12S-7IN is a plated-bolt aluminum truss spacer for compatible EVT12S 12 inch square end-plate truss components. It adds a 7 inch / 177.8 mm section where that length is needed within a truss system. This component adds length and a bolted connection; it does not increase the capacity of the completed truss system.

Product Facts

Model / SKUEVT12S-7IN

Product Type7 Inch Plated-Bolt Truss Spacer

Overall Size12 x 12 x 7 in

MaterialEN AW-6061 T6 Aluminum

Weight15.80 lb / 7.16 kg

Included Hardware4 Grade 8 Bolt Sets

7 inAdded Length

12 x 12 inSquare Truss Size

15.80 lbSpacer Weight

4-BoltEnd-Plate Connection

TÜVListed Certification

Product Overview

A 7 Inch Truss Spacer for Length Adjustments.

The EVT12S-7IN supplies a seven-inch section for compatible 12 inch square plated truss systems. Its odd-inch length is an option when the required truss run calls for seven inches rather than a neighboring spacer length. The brushed aluminum finish matches the listed silver EVT12S system format.

7 Inch Section

Adds 7 in / 177.8 mm at a compatible end-plate connection.

12 Inch Square Size

Overall dimensions: 12 x 12 x 7 in / 304.8 x 304.8 x 177.8 mm.

Brushed Aluminum

Listed surface finish for silver truss systems.

Bolt Connection

Uses end-plated nut-and-bolt hardware.

Application Uses

For Touring, Staging, Rental, and Custom Truss Systems.

The seven-inch component may be considered for compatible touring structures, lighting grids, trade-show displays, rental inventory, and venue truss systems where that section length is specified. The required supports, span, and loads must be evaluated for the full installation rather than inferred from the spacer length.

Venue Truss

For compatible systems with fixed support locations.

Trade Shows

For compatible booth and display truss structures.

Lighting Grids

For compatible end-plated grid systems.

Touring Systems

An odd-inch section option within compatible touring inventory.

Rental Inventory

Provides a seven-inch length in compatible spacer stock.

Included Hardware

Supplied with Hardware for One Four-Point Connection.

The source lists four Grade 8 bolts, four nuts, and four washers. Confirm the fastener requirements at every actual joint, including bolt length, condition, engagement, and the manufacturer tightening procedure. Additional hardware may be needed for other joints in the completed truss system.

4 Grade 8 Bolts

Listed for the four-point end-plate connection.

4 Nuts

Listed with the supplied bolts.

4 Washers

Included in the listed hardware set.

Connection Count

Account for the hardware needed at each joint in the full system.

Technical Reference

EVT12S-7IN Truss Spacer Specifications.

Identification

Product Details

Model / SKUEVT12S-7IN

BrandEvolve Truss

Product Type7 Inch Plated-Bolt Truss Spacer

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions and Weight

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length7 in / 177.8 mm

Weight15.80 lb / 7.16 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061 T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

Brace Tubing0.98 in / 25 mm OD, 0.11 in / 3 mm Wall

FinishBrushed Aluminum

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CompatibilityCompatible EVT12S 12 Inch Plated Bolt Truss Components

CertificationTÜV Certified

3D ResourceGLB Model Listed

System Compatibility

For EVT12S Plated Bolt Truss. Verify Every Connection.

The product is listed for EVT12S and other standard 12 inch plated truss systems using compatible bolt connections. Before connecting different systems, verify end-plate dimensions and thickness, bolt-hole positions, chord alignment, hardware, fastener engagement, and completed-joint seating. A shared nominal size does not by itself establish connection suitability.

EVT12S

Designed for compatible EVT12S plated bolt truss components.

End Plates

Compare plate dimensions and bolt-hole positions.

Hardware

Confirm the appropriate fasteners and engagement.

Completed Joint

Inspect alignment and full seating before use.

Assembly Overview

Align the End Plates. Install and Check All Four Fasteners.

Assembly should be performed by personnel qualified for the truss system in accordance with applicable manufacturer requirements. This outline provides neither torque values nor installation approval.

01 — Inspect

Check tubing, welds, plates, holes, and hardware for damage.

02 — Align

Bring compatible end plates together without forcing distorted parts.

03 — Install Hardware

Fit the specified fasteners at all four locations with adequate engagement.

04 — Tighten

Follow the applicable manufacturer fastener procedure.

05 — Check Seating

Confirm the required hardware and full plate seating.

06 — Inspect Before Service

Review the completed truss system and supports before loading.

Safety and Engineering

A Truss Spacer Adds Length. It Does Not Increase Truss Capacity.

Allowable loading depends on the complete truss system, including span, supports, orientation, joints, suspension method, and applied loads. Suspended, load-bearing, dynamic-load, and complex applications require qualified structural or entertainment-rigging review. No stand-alone load rating or torque value is provided here.

Inspect the spacer, welds, plates, bolt holes, hardware, and connected truss before every use.

Remove any component with cracks, bends, elongated holes, plate deformation, or damaged welds from service.

Install and tighten all required fasteners using the applicable manufacturer procedure.

Do not support loads directly from spacer connection points without approval for the complete truss system.

Verify connection interfaces and completed-system suitability before combining different systems.

Have a competent person perform a documented inspection at least annually and remove unsafe parts from service.

Truss Spacer Questions

EVT12S-7IN Frequently Asked Questions.

When would I use a 7 inch spacer?

Use it when a compatible end-plated truss system calls for a seven-inch section between components.

What hardware is included?

The listing identifies four Grade 8 bolts, four nuts, and four washers. Confirm the hardware needed at every connection in the completed system.

Can I combine it with another spacer length?

Additional compatible sections may be considered, but every extra joint needs its own required hardware and the completed truss system must be reviewed for its intended use.

Does the spacer change truss capacity?

It does not increase capacity. Allowable loading depends on the complete system and its support and loading conditions.

Need a 7 Inch EVT12S Truss Spacer?

Contact us for truss spacer selection, listed compatibility information, product documentation, and quantity-quote support. For load-bearing or suspended truss systems, coordinate the completed system with qualified engineering or rigging personnel.
