What makes the matte black finish practical beyond just appearance?

The powder coat creates a non-reflective surface that eliminates glare under stage wash, studio lighting, and camera flash. In broadcast studios, themed attractions, and any environment where truss sits in a visible sightline, the finish prevents light bounce that would otherwise draw attention to the structure or create unwanted artifacts in video and photography. It also adds a thin protective layer over the aluminum that resists minor scuffs during transport and repeated assembly cycles.

Can I mix the EVT12S-8IN Black with standard brushed aluminum spacers and straights in the same structure?

Structurally, yes — the connection geometry, bolt pattern, and load characteristics are identical between the black and standard versions. Both use the same end-plated bolt system with Grade 8 hardware. The only difference is surface finish. Many builders use black spacers in audience-facing sections of a rig and standard aluminum in areas hidden from view, keeping costs lower where appearance does not matter.

How does the 8-inch length fit into builds that are designed around metric dimensions?

Eight inches converts to 203.2 mm, which falls close to a 200 mm metric increment. Builders working from metric drawings often use the 8-inch spacer as a practical match for 200 mm spacing requirements, especially in international co-productions or facilities originally designed to metric standards. The modular bolt connection lets you combine it with other spacer lengths to reach exact metric totals when needed.

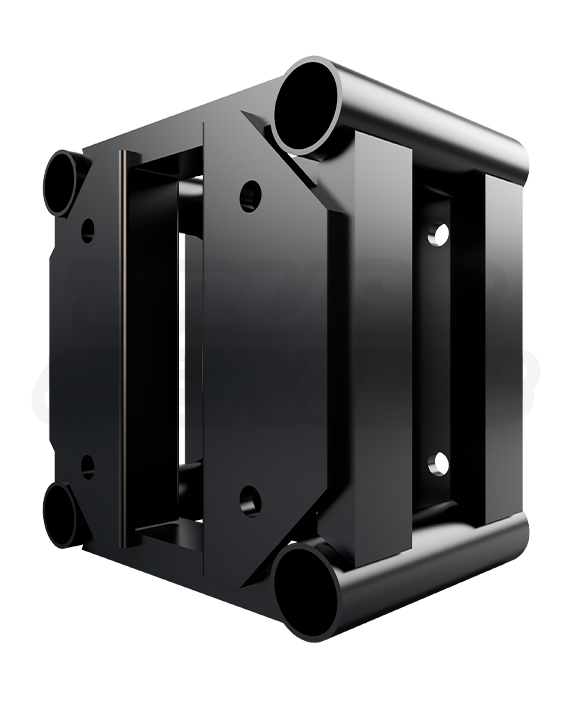

EVT12S-8IN Black — 8-Inch Black Plated Bolt Truss Spacer for 12-Inch Square Truss Systems

EVT12S-8IN-Black Truss Spacer

8 Inch Matte Black Truss Spacer.
Adds an 8 Inch Section Between Compatible End-Plate Truss Components.

The EVT12S-8IN-Black is a matte black, plated-bolt aluminum truss spacer for compatible EVT12S 12 inch square end-plate truss components. It supplies an 8 inch / 203.2 mm section within a truss run. The finish is listed as matte black powder coat. This component adds length and a bolted connection; it does not increase the capacity of the completed truss system.

Product Facts

Model / SKUEVT12S-8IN-Black

Product Type8 Inch Black Plated-Bolt Truss Spacer

Overall Size12 x 12 x 8 in

MaterialEN AW-6061 T6 Aluminum

FinishMatte Black Powder Coat

Weight16.50 lb / 7.48 kg

8 inAdded Length

203.2 mmAdded Length

Matte BlackPowder-Coat Finish

16.50 lbSpacer Weight

4-BoltEnd-Plate Connection

Product Overview

An 8 Inch Black Spacer for Compatible Truss Systems.

The EVT12S-8IN-Black supplies an eight-inch section for compatible 12 inch square plated truss systems. Its 8 inch / 203.2 mm length offers a single-component option between shorter spacers and one-foot sections. The listed finish is matte black powder coat for compatible dark-finish truss systems.

8 Inch Section

Adds 8 in / 203.2 mm at a compatible end-plate connection.

Matte Black Finish

Listed factory-applied powder-coat surface.

12 Inch Square Size

Overall dimensions: 12 x 12 x 8 in / 304.8 x 304.8 x 203.2 mm.

Bolt Connection

Uses end-plated nut-and-bolt hardware.

Application Uses

For Dark-Finish Truss in Staging, Touring, and Display Systems.

The eight-inch black component may be considered for compatible lighting grids, scenic structures, trade-show displays, venue systems, touring equipment, and rental inventory where a dark-finish, eight-inch section is specified. The required supports, span, and loads must be evaluated for the full installation rather than inferred from the spacer length.

Dark-Finish Systems

A matte black component for compatible dark-finish truss runs.

Lighting Grids

For compatible end-plated truss grid systems.

Scenic Structures

For compatible stage and scenic truss assemblies.

Trade Displays

For compatible exhibit structures that call for an eight-inch section.

Rental Inventory

Provides an eight-inch black-finish option in compatible inventory.

Included Hardware

Supplied with Hardware for One Four-Point Connection.

The source lists four Grade 8 bolts, four nuts, and four washers. Hardware finish may differ from the matte black spacer finish. Confirm the fastener requirements at every actual joint, including bolt length, condition, engagement, and the manufacturer tightening procedure.

4 Grade 8 Bolts

Listed for the four-point end-plate connection.

4 Nuts

Listed with the supplied bolts.

4 Washers

Included in the listed hardware set.

Connection Count

Account for the hardware needed at each joint in the full system.

Technical Reference

EVT12S-8IN-Black Truss Spacer Specifications.

Identification

Product Details

Model / SKUEVT12S-8IN-Black

BrandEvolve Truss

Product Type8 Inch Black Plated-Bolt Truss Spacer

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions and Weight

Overall Size

Width12 in / 304.8 mm

Height12 in / 304.8 mm

Depth / Length8 in / 203.2 mm

Weight16.50 lb / 7.48 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061 T6

Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall

Brace Tubing0.98 in / 25 mm OD, 0.11 in / 3 mm Wall

FinishMatte Black Powder Coat

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware4 Grade 8 Bolts, Nuts, and Washers

CompatibilityCompatible EVT12S 12 Inch Plated Bolt Truss Components

CertificationTÜV Certified

3D ResourceGLB Model Listed

System Compatibility

For EVT12S Plated Bolt Truss. Verify Every Connection.

The product is listed for EVT12S and other standard 12 inch plated truss systems using compatible bolt connections. The coating is a finish characteristic and does not establish connection compatibility. Before connecting different systems, verify end-plate dimensions and thickness, bolt-hole positions, chord alignment, hardware, fastener engagement, and completed-joint seating.

EVT12S

Designed for compatible EVT12S plated bolt truss components.

End Plates

Compare plate dimensions and bolt-hole positions.

Hardware

Confirm the appropriate fasteners and engagement.

Completed Joint

Inspect alignment and full seating before use.

Assembly Overview

Align the End Plates. Install and Check All Four Fasteners.

Assembly should be performed by personnel qualified for the truss system in accordance with applicable manufacturer requirements. This outline provides neither torque values nor installation approval.

01 — Inspect

Check tubing, welds, plates, holes, and hardware for damage.

02 — Align

Bring compatible end plates together without forcing distorted parts.

03 — Install Hardware

Fit the specified fasteners at all four locations with adequate engagement.

04 — Tighten

Follow the applicable manufacturer fastener procedure.

05 — Check Seating

Confirm the required hardware and full plate seating.

06 — Inspect Before Service

Review the completed truss system and supports before loading.

Safety and Engineering

A Truss Spacer Adds Length. It Does Not Increase Truss Capacity.

Allowable loading depends on the complete truss system, including span, supports, orientation, joints, suspension method, and applied loads. Suspended, load-bearing, dynamic-load, and complex applications require qualified structural or entertainment-rigging review. No stand-alone load rating or torque value is provided here.

Inspect the spacer, welds, plates, bolt holes, hardware, and connected truss before every use.

Remove any component with cracks, bends, elongated holes, plate deformation, damaged welds, or substantial finish damage from service.

Install and tighten all required fasteners using the applicable manufacturer procedure.

Do not support loads directly from spacer connection points without approval for the complete truss system.

Verify connection interfaces and completed-system suitability before combining different systems.

Have a competent person perform a documented inspection at least annually and remove unsafe parts from service.

Truss Spacer Questions

EVT12S-8IN-Black Frequently Asked Questions.

What is different about the black version?

This version is listed with a matte black powder-coat finish. Its listed dimensions, material, weight, and end-plate connection format match the eight-inch spacer format.

What hardware is included?

The listing identifies four Grade 8 bolts, four nuts, and four washers. Hardware finish may differ from the spacer finish. Confirm the hardware needed at every connection in the completed system.

Can I combine it with another spacer length?

Additional compatible sections may be considered, but every added joint needs its required hardware and the completed truss system must be reviewed for the intended use.

Does the spacer change truss capacity?

It does not increase capacity. Allowable loading depends on the complete system and its support and loading conditions.

Need a Black 8 Inch EVT12S Truss Spacer?

Contact us for truss spacer selection, listed compatibility information, product documentation, and quantity-quote support. For load-bearing or suspended truss systems, coordinate the completed system with qualified engineering or rigging personnel.
