EVT12S‑Block Black 12"×12" matte black heavy‑duty 6‑way corner block for end‑plated box truss systems

EVT12S-Block Black

Original price was: $1,069.00.Current price is: $819.00.

EVT12S-Block Black
Heavy-Duty Square Aluminum Truss
6-Way Corner Block

Dimensions
Overall Length: 12.79 in (325 mm)
Overall Width: 12.79 in (325 mm)

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter
0.11 in (3 mm) Wall Thickness
Brace Tubing: 1.0 in (25.4 mm) Diagonal Bracing

Finish & Features
Surface: Matte Black Powder Coat Finish
Connection Type: End-Plated Nut and Bolt
Certification: TUV certified
Included: 2 (two) Sets of connecting hardware
Weight: 35 lb (15.87 kg)

In stock

SKU: EVT12S-Block-Black Category:

EVT12S System Knowledge Center

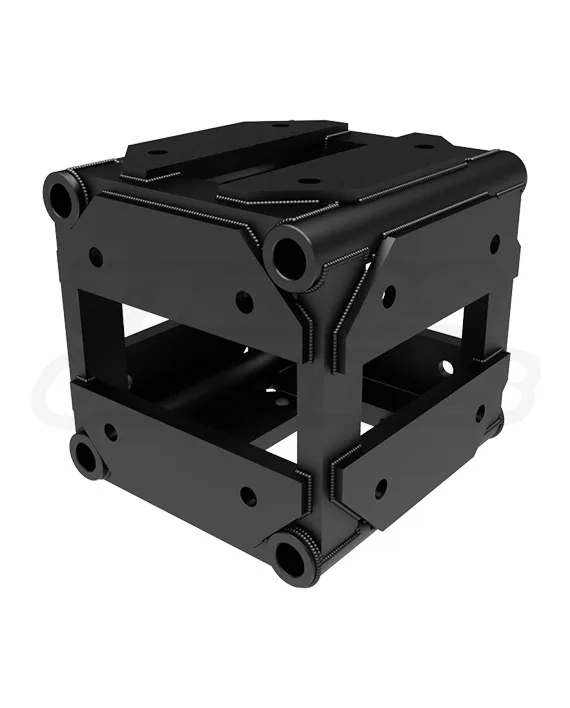

6-Way Black Square Box Truss Corner Block.
A 12 Inch Junction Block for End-Plate Box Truss Systems.

The EVT12S-Block-Black is a matte black aluminum six-way corner block for standard 12-inch end-plate box truss systems. It provides connection faces along the X, Y, and Z axes at a single junction. Allowable loading depends on the complete system, including span, supports, connections, orientation, and applied loads.

Product Facts

Model / SKUEVT12S-Block-Black
Product TypeBlack 6-Way Corner Block
Overall Size325 x 325 x 325 mm / 12.79 in cube
MaterialEN AW-6061-T6 Aluminum
FinishMatte Black Powder Coat
Weight35 lb / 15.88 kg
6-WayConnection Faces
12 inTruss Profile
325 mmCube Dimension
35 lbListed Weight
2 SetsConnecting Hardware

Product Overview

One Central Black Block with Six Connection Faces.

This corner block joins end-plated 12-inch box truss at a single junction. Listed construction includes EN AW-6061-T6 aluminum and a matte black powder coat finish. Evaluate all loading and connection requirements at the completed-system level.

Six-Way Junction
Provides connection faces along the X, Y, and Z axes.
Matte Black Powder Coat
Listed matte black powder coat finish.
EN AW-6061-T6 Aluminum
Listed aluminum alloy construction.
End-Plate Connection
Listed end-plated nut-and-bolt connection format.

Application Uses

For Black End-Plate Truss Systems Needing A Six-Way Junction.

This matte black six-way block may be specified within completed end-plate box truss systems for stage, studio, projection, theater, and touring applications. Confirm the completed system’s configuration, supports, connections, orientation, attachment points, environmental conditions, and applied loads before use.

Dark-Stage Corner Frames
For corners and junctions in stage structures that specify matte black components.
Studio and Broadcast Junctions
For production frames built from standard 12-inch end-plated truss.
Projection Screen Frames
For project-specific screen and display frames subject to completed-system engineering review.
Black-Box Theater Rigs
For theater structures where a multi-axis black junction is specified.
Touring Corner Inventory
For touring inventories that include black six-way corner blocks.

Included Hardware

Listed Hardware for Block Connections.

The product data lists two sets of connecting hardware. Confirm fastener requirements at every actual joint, including bolt grade, length, condition, engagement, and the applicable manufacturer tightening procedure.

2 Sets of Hardware
Listed as two sets of connecting hardware.
Fastener Type
Confirm bolt grade, length, and condition for each connection.
Fastener Engagement
Confirm adequate engagement at every joint.
Connection Count
Account for hardware at each joint in the complete system.

Technical Reference

EVT12S-Block-Black Corner Block Specifications.

Identification

Product Details

Model / SKUEVT12S-Block-Black
BrandEvolve Truss
Product TypeBlack 6-Way Corner Block
Warranty1-Year Limited Warranty Against Manufacturing Defects

Dimensions

Overall Size

Width325 mm / 12.79 in
Height325 mm / 12.79 in
Depth325 mm / 12.79 in
Weight35 lb / 15.88 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061-T6
Main Tubing1.96 in / 50 mm OD, 0.11 in / 3 mm Wall
Brace Tubing1.0 in / 25.4 mm
FinishMatte Black Powder Coat

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt
Included Hardware2 Sets of Connecting Hardware
CompatibilityStandard 12-Inch End-Plated Truss Systems
CertificationTÜV Certified
Fit NoticeExact fit with other systems is not guaranteed

System Compatibility

For Standard 12-Inch End-Plated Truss Systems. Verify Every Connection.

This block is identified for standard 12-inch end-plated truss systems. Exact fit with other systems is not guaranteed. Before combining components, verify end-plate dimensions and thickness, bolt-hole positions, chord alignment, hardware, fastener engagement, and completed-joint seating.

System Match
Confirm the system uses a standard 12-inch end-plated format.
End Plates
Compare plate dimensions and bolt-hole positions.
Hardware
Confirm appropriate fasteners and engagement.
Completed Joint
Inspect alignment and full seating before use.

Assembly Overview

Align Each Face. Install and Check Every Fastener.

Assembly should be performed by personnel qualified for the truss system in accordance with applicable manufacturer requirements. This outline provides neither torque values nor installation approval.

01 — Inspect
Check the block, plates, holes, finish, and hardware for damage.
02 — Align
Bring compatible end plates to the block face without forcing distorted parts.
03 — Install Hardware
Fit specified fasteners at every connection with adequate engagement.
04 — Tighten
Follow the applicable manufacturer fastener procedure.
05 — Check Seating
Confirm required hardware and full plate seating.
06 — Inspect Before Service
Review the completed truss system and supports before loading.

Safety and Engineering

A Corner Block Adds Connection Points. It Does Not Increase Truss Capacity.

Allowable loading depends on the complete truss system, including span, supports, orientation, joints, suspension method, and applied loads. Suspended, load-bearing, dynamic-load, and complex applications require qualified structural or entertainment-rigging review. No stand-alone capacity value or torque value is provided here.

Inspect the block, plates, bolt holes, hardware, and connected truss before every use.
Remove any component with cracks, bends, elongated holes, plate deformation, damaged welds, or substantial finish damage from service.
Install and tighten all required fasteners using the applicable manufacturer procedure.
Do not support loads directly from the block’s connection points without approval for the complete truss system.
Verify connection interfaces and completed-system suitability before combining different systems.
Licensed structural-engineer review is required for every truss system.
Have a competent person perform a documented inspection at least annually and remove unsafe parts from service.

Corner Block Questions

EVT12S-Block-Black Frequently Asked Questions.

What construction details are listed?

The product data lists EN AW-6061-T6 aluminum, 50 mm main tubing, and a matte black powder coat finish.

What hardware is listed?

The listed product data identifies two sets of connecting hardware.

What is the listed weight?

The listed weight is 35 lb / 15.88 kg.

Does it have a separate load capacity?

No stand-alone capacity value is provided here. Allowable loading depends on the complete system and its support and loading conditions.
