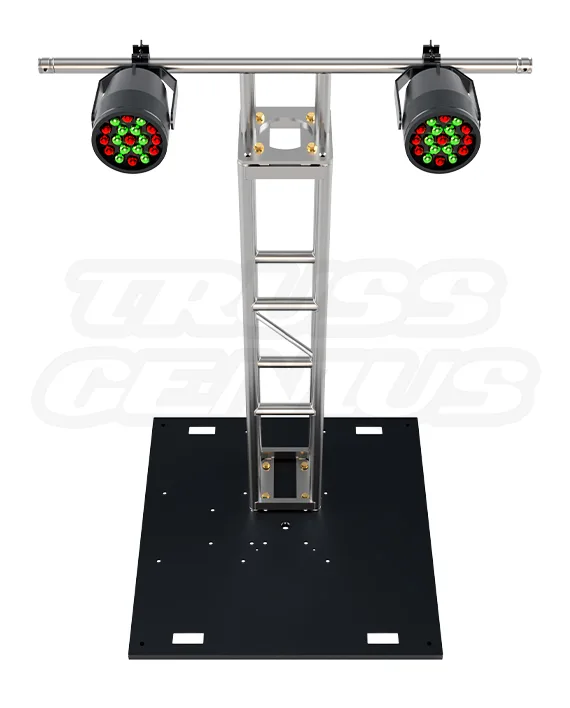

Evt12s Ttm With Led Lights
EVT12S-TTM60
Evt12s Ttm Mounted On End Plate Truss With 4 Foot Steel Base Plate
Evt12s Ttm With Led Lights

EVT12S-TTM

Price range: $270.00 through $360.00

EVT12S-TTM — Heavy-Duty Top Mount Bar for 12″ x 12″ Truss

Dimensions & Specs
Overall Height: 12 in (304.8 mm)
Available Lengths: 24 in, 36 in, 48 in, 60 in
Compatibility: Fits EVT290S (Conical) and EVT12S (Bolted) Square Trussing
Type: Equipment Support / Lighting Bar

Construction
Main Tubing: 2.0 in (50 mm) OD
Wall Thickness: 0.19 in (5 mm) Heavy-Duty Wall
Profile Width: 1.96 in (50 mm)

Finish & Features
Surface: Aluminum Brush Finish
Application: Secure support for lighting, effects, or motion capture gear
Hardware Requirement: Must specify connection type when purchasing (Conical or 12″ Standard Bolt Plate)

SKU: EVT12S-TTM Category:

EVT12S System Knowledge Center

Truss Top Mount Bar for 12 x 12 Box Truss.
A Length-Selectable Mounting Bar for EVT12S Truss Systems.

The EVT12S-TTM is a brushed aluminum mounting-bar family available in 24, 36, 48, and 60 inch lengths. The product data identifies a 12-inch overall height and connection selection for conical or 12-inch standard bolt-plate truss. Review the complete truss, attachment method, equipment, and applied loads before use.

Product Facts

Product Family / SKUEVT12S-TTM
Product TypeLength-Selectable Truss Top Mount Bar
Available Lengths24, 36, 48, and 60 in
Overall Height12 in / 304.8 mm
MaterialEN AW-6061-T6 Aluminum
FinishBrushed Aluminum
24–60 inAvailable Lengths
12 inOverall Height
50 mmMain Tubing
12 lbListed Variant Weight
4 LengthsProduct Variants

Product Overview

A Length-Selectable Mounting Bar for 12 x 12 Truss Systems.

This product family provides a mounting-bar option for the documented truss systems. Listed construction includes EN AW-6061-T6 aluminum, 50 mm main tubing, and a 5 mm wall. The complete truss, attachments, connection hardware, and applied loads require review before use.

Four Length Options
Listed in 24, 36, 48, and 60 inch versions.
Brushed Aluminum Finish
Listed brushed aluminum surface finish.
50 mm Main Tubing
Listed as 2.0 in / 50 mm outside diameter.
Connection Selection
Specify conical or 12-inch standard bolt-plate connection type when purchasing.

Application Uses

For Truss Systems Using A Length-Selectable Mounting Bar.

This top mount bar may be specified within completed truss systems for documented equipment-mounting arrangements. Confirm the complete system’s configuration, supports, connections, attachment method, equipment, environmental conditions, and applied loads before use.

Motion Capture Arrays
For project-specific mounting arrangements used with motion capture equipment.
Lighting Fixture Mounting
For completed truss systems with specified lighting fixture attachments.
Studio Equipment Positions
For studio systems using a documented mounting-bar configuration.
Special Effects Equipment
For specified attachment arrangements within the completed system.
Technical Demonstration Systems
For controlled technical, training, or demonstration environments.

Available Variants

Choose the Length That Matches The Documented System Design.

The EVT12S-TTM product group is listed in four length variants. Confirm the selected variant SKU, connection type, equipment, attachment method, and complete-system requirements before ordering or use.

24 Inch — EVT12S-TTM24
Listed weight: 12 lb. Product variation offered in the 24-inch length option.
36 Inch — EVT12S-TTM36
Listed weight: 12 lb. Product variation offered in the 36-inch length option.
48 Inch — EVT12S-TTM48
Listed weight: 12 lb. Product variation offered in the 48-inch length option.
60 Inch — EVT12S-TTM60
Listed weight: 12 lb. Product variation offered in the 60-inch length option.

Connection Selection

Specify the Connection Type When Purchasing.

The product data requires the buyer to specify conical or 12-inch standard bolt-plate connection type. The source does not provide a separate included-hardware list for this product family.

Conical Connection
Select this option only when the documented truss connection calls for a conical interface.
12-Inch Standard Bolt Plate
Select this option only when the documented truss connection calls for a 12-inch standard bolt-plate interface.
Connection Verification
Confirm the connection type before ordering.
System Documentation
Review current product drawings and manufacturer instructions before use.

Technical Reference

EVT12S-TTM Top Mount Bar Specifications.

Identification

Product Family Details

Product Family / SKUEVT12S-TTM
BrandEvolve Truss
Product TypeLength-Selectable Truss Top Mount Bar
VariantsEVT12S-TTM24, EVT12S-TTM36, EVT12S-TTM48, EVT12S-TTM60

Dimensions

Shared Dimensions

Overall Height12 in / 304.8 mm
Available Lengths24, 36, 48, and 60 in
Listed Variant Weight12 lb
Source Variation FieldDo not use the source 38 x 2 x 2 in field; it is identical across all lengths and not consistent with the variant labels.

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061-T6
Main Tubing2.0 in / 50 mm OD
Wall Thickness0.19 in / 5 mm
Profile Width1.96 in / 50 mm
FinishBrushed Aluminum

Connection Context

System Interface

Connection SelectionConical or 12-Inch Standard Bolt Plate
RequirementSpecify connection type when purchasing
CompatibilityVerify the documented truss connection interface before purchase
Fit NoticeExact fit with other systems is not guaranteed

System Compatibility

Select the Required Connection Type. Verify the Complete Interface.

The source identifies a choice of conical or 12-inch standard bolt-plate connection. It does not establish general cross-system fit. Verify the applicable connection interface, hardware, attachment method, and completed-system suitability before ordering or use.

Connection Type
Specify conical or 12-inch standard bolt-plate connection type at purchase.
Truss Interface
Compare the documented connection interface before ordering.
Attachment Method
Confirm the mounting-bar attachment method for the completed system.
Completed System
Review the truss, equipment, hardware, supports, and applied loads together.

Assembly Overview

Confirm the Connection Selection. Inspect the Complete Mounting Arrangement.

Assembly should be performed by personnel qualified for the truss and attachment system in accordance with applicable manufacturer requirements. This outline provides neither capacity values nor installation approval.

01 — Confirm Variant
Confirm the selected length SKU and required connection type.
02 — Inspect
Check the bar, mounting points, truss connection, hardware, and attachments for damage.
03 — Connect
Use the applicable documented connection interface and required hardware.
04 — Attach Equipment
Install equipment only as specified for the complete mounting arrangement.
05 — Check Seating
Confirm all required connections and hardware are fully seated.
06 — Review Before Service
Review the completed truss, equipment, supports, and attachments before use.

Safety and Engineering

A Mounting Bar Supports a Documented Arrangement. It Does Not Establish System Capacity.

Allowable loading depends on the complete truss and attachment system, including the selected bar length, connection type, equipment, attachment method, supports, orientation, and applied loads. No stand-alone capacity value or torque value is provided here.

Inspect the top mount bar, truss connection, hardware, mounting points, attachments, and connected truss before every use.
Remove any component with cracks, bends, deformation, damaged welds, damaged attachment points, or substantial finish damage from service.
Use only the documented connection type and applicable manufacturer assembly procedure.
Do not treat this mounting bar as a stand-alone rated support point.
Confirm the complete truss, equipment, attachment method, supports, connection hardware, and applied loads before use.
Suspended, load-bearing, dynamic-load, and complex applications require qualified structural or entertainment-rigging review.
Have a competent person perform a documented inspection at least annually and remove unsafe parts from service.

Top Mount Bar Questions

EVT12S-TTM Frequently Asked Questions.

What lengths are available?

The product group lists 24, 36, 48, and 60 inch variants.

What is the listed weight?

Each variation is listed at 12 lb.

Which connection type should I choose?

The product data requires selection of either conical or 12-inch standard bolt-plate connection type. Confirm the documented truss connection before ordering.

Does the bar have a separate capacity rating?

No stand-alone capacity value is provided here. Capacity depends on the complete truss and attachment system.
