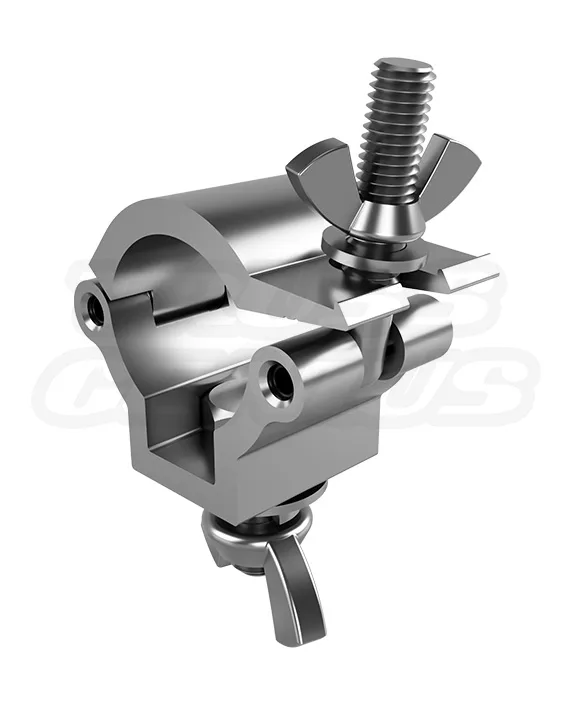

EVT20C-ALC Light Duty Clamp for 20mm Tube or Truss, secure and reliable mounting solution

EVT20C-ALC

Original price was: $19.00.Current price is: $12.00.

EVT20C-ALC
Light Duty 20mm 0.78-Inch Clamp
Great for small lighting fixtures or light duty applications
For EVT100S Mini Square Aluminum Truss
Corrosion Resistant 304 Stainless Steel Hardware
Minimum Tube Size 18mm
Maximum Tube Size 20mm
Maximum Load 10 Kgs.
Profile Width 20mm
Weight - 0.06 Lbs.

In stock

SKU: EVT20C-ALC Categories: ,

Mini Truss Clamp Knowledge Center

A Lightweight Clamp for 18–20 mm Tubing.
Compact Support for Mini Truss, Small Fixtures, Displays, and Specialty Installations.

The EVT20C-ALC is a light-duty aluminum clamp designed for 18–20 mm / 0.70–0.78 in tubing. It is compatible with EVT100S Mini Square Aluminum Truss and uses upgraded 304 stainless steel hardware for improved corrosion resistance and durability.

Product Facts

ModelEVT20C-ALC
Tube Range18–20 mm
Safe Working Load22 lb / 10 kg
Product Weight0.06 lb / 0.03 kg
Body Material6061-T6 Aluminum
Hardware304 Stainless Steel
18–20 mmTube Range
10 kgSafe Working Load
0.03 kgProduct Weight
M6 x 16 mmAttachment Bolt
TUVCertification

Product Overview

A Compact Clamp for Mini Truss and Small-Diameter Tubing.

The EVT20C-ALC provides a lightweight attachment point for small fixtures, display hardware, and accessories mounted to compatible 18–20 mm tubing.

Mini Truss Compatibility
Designed for EVT100S Mini Square Aluminum Truss and other verified 18–20 mm tube applications.
Light-Duty Load Rating
Supports a documented safe working load of 10 kg / 22 lb when correctly installed.
Upgraded Stainless Hardware
304 stainless steel hardware improves corrosion resistance and service durability.
Extremely Lightweight
At approximately 0.03 kg / 0.06 lb, the clamp adds minimal weight to compact installations.

Applications

Designed for Small Lighting, Displays, Mini Truss, and Specialty Mounting.

Small Lighting Fixtures
Supports compact fixtures and accessories within the documented clamp and supporting-structure limits.
Mini Truss Displays
Provides a matching attachment solution for EVT100S Mini Square Aluminum Truss.
Retail and Exhibit Displays
Suitable for lightweight signage, display accessories, and specialty exhibit hardware.
Decorative Installations
Can support properly rated decorative elements in temporary or permanent environments.
Specialty Fabrication
Useful where a compact clamp is required for verified 18–20 mm tubing.

Who It Is For

Built for Display, Lighting, Exhibit, and Production Professionals.

Lighting Technicians
For small fixtures and accessories mounted to compatible mini-truss tubing.
Exhibit Builders
For compact displays, signage, and lightweight presentation hardware.
Retail Installers
For specialty display systems using verified 18–20 mm tubing.
Rental Companies
For reusable mini-truss clamp inventory and small-format event systems.
Fabrication Shops
For controlled custom applications using compatible tubing and approved loading.

Functional Details

Lightweight Construction with Upgraded Corrosion-Resistant Hardware.

6061-T6 Aluminum Body
Provides low weight and durable construction for light-duty installations.
304 Stainless Steel Hardware
Improves resistance to corrosion and supports a longer service life.
Wing-Nut Closure
Allows the collar to open, close, and tighten around compatible tubing.
Anodized Surface Treatment
The source specifies an anodized surface treatment and silver finish.

Technical Details

Detailed Specifications.

Identification

Product Information

Model / SKUEVT20C-ALC
BrandEvolve Truss
Product TypeLight-Duty Mini Truss Clamp
Measurement SystemMetric

Tube and Load Data

Compatibility and Capacity

Minimum Tube Size18 mm / 0.70 in
Maximum Tube Size20 mm / 0.78 in
Safe Working Load22 lb / 10 kg
Product Weight0.06 lb / 0.03 kg

Materials and Finish

Construction

Clamp Material6061-T6 Aluminum
Hardware304 Stainless Steel
ColorSilver
Surface TreatmentAnode Treatment
CertificationTUV

Attachment Hardware

Connection Details

Attachment BoltM6 x 16 mm
WasherSpring Lock Washer
ClosureWing Nut and Collar
Source-Listed Tensile Strength611.1 kN

Tube and Truss Compatibility

EVT100S Mini Square Truss and Verified 18–20 mm Tube Applications.

The EVT20C-ALC is designed for tubing measuring from 18 mm to 20 mm outside diameter. Compatibility requires verifying the actual tube size, clamp seating, attachment method, and allowable load of the complete installation.

EVT100S Compatibility
Designed for EVT100S Mini Square Aluminum Truss using compatible small-diameter tubing.
18 mm Tube Compatibility
Fits verified tubing with an 18 mm / 0.70 in outside diameter.
20 mm Tube Compatibility
Fits verified tubing with a 20 mm / 0.78 in outside diameter.
Other Tube Applications
Use only when the actual outside diameter falls within the documented range and the complete installation is approved.

Installation Sequence

Position and Tighten the Clamp in A Controlled Five-Step Process.

01 — Release the Wing Nut
Turn the wing nut counterclockwise to release the bolt and open the collar.
02 — Place the Clamp
Position the EVT20C-ALC on the compatible truss, tube, or pipe and close the collar.
03 — Reinstall the Bolt
Return the bolt to position with the washer and wing nut above the collar.
04 — Confirm Final Position
Verify the clamp is located in the correct area before tightening.
05 — Tighten the Wing Nut
Turn the wing nut clockwise until the clamp is securely seated without damaging the tube.
06 — Add Secondary Safety
Use an independently rated safety cable whenever required for the attached fixture or installation.

Inspection and Maintenance

Inspect Before Every Use. Remove Damaged Clamps from Service.

Clamp Body
Check the aluminum collar for cracks, deformation, impact damage, or excessive wear.
Stainless Hardware
Inspect the M6 bolt, spring lock washer, wing nut, and threads for damage or corrosion.
Tube Contact Surfaces
Keep the clamping surfaces clean and free from debris that could interfere with full seating.
Closure Operation
Confirm the collar opens, closes, and tightens smoothly before installation.
Service Condition
Do not use the clamp when any damage, defect, or questionable condition is present.

Safety and Load Limits

Treat the Clamp as One Part of the Complete Installation.

Do not exceed the documented 10 kg / 22 lb safe working load.
Do not exceed the allowable load capacity of the supporting truss, tube, pipe, fixture, or attachment hardware.
Use the clamp only on verified tubing measuring between 18 mm and 20 mm outside diameter.
Fully inspect the clamp before each use and remove it from service when damage or defects are present.
Use an independently rated safety cable for maximum security and whenever required by the fixture manufacturer or installation rules.
The purchase of this clamp does not authorize or approve a specific installation or use.
A licensed professional engineer must review structures, lighting plots, and other clamp uses where required.

Frequently Asked Questions

EVT20C-ALC Questions.

What tube sizes fit this clamp?

The documented tube range is 18–20 mm outside diameter, or approximately 0.70–0.78 in.

What is the safe working load?

The source lists a safe working load of 10 kg / 22 lb.

What truss is it designed for?

It is compatible with EVT100S Mini Square Aluminum Truss and other approved applications using verified 18–20 mm tubing.

What hardware is included?

The clamp uses upgraded 304 stainless steel hardware with an M6 x 16 mm attachment bolt and spring lock washer.

How much does the clamp weigh?

The documented product weight is approximately 0.03 kg / 0.06 lb.

Should a safety cable be used?

Yes. The source recommends a safety cable for maximum security. Use secondary retention whenever required by the fixture manufacturer or installation rules.

Does the clamp require engineering review?

The source states that a licensed professional engineer shall review structures, lighting plots, or other clamp uses.

Need the correct clamp for your fixture and truss?

Contact us for clamp selection, fixture compatibility, truss matching, rigging guidance, CAD resources, and quantity pricing.
