Product Description

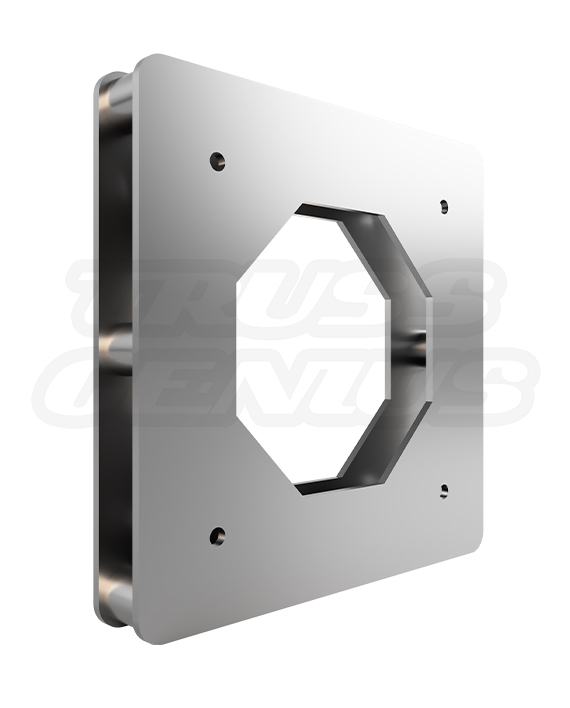

EVT20T-3IN | 3-Inch Aluminum Truss Spacer (20.5×20.5 Box Truss Plated)

The EVT20T-3IN Aluminum Truss Spacer is a precision-engineered 3-inch structural spacer designed for plated aluminum truss systems (typically 20.5″ x 20.5″ Heavy Duty). This component allows for intentional spacing between truss sections, maintaining proper alignment and load transfer while providing the critical adjustments needed for complex rigging challenges.

Function & Application:

Truss spacers are essential for fine-tuning overall grid height, compensating for uneven ground surfaces, and making controlled horizontal span adjustments without cutting truss. Manufactured from high-quality 6061-T6 aluminum alloy, the EVT20T-3IN utilizes an industry-standard nut-and-bolt end-plate connection, ensuring it integrates seamlessly into professional touring and production rigs where precision geometry is mandatory.

Key Features

• Precision Adjustment: Adds exactly 3 inches to truss runs for leveling and span control.
• Leveling Solution: Essential for correcting uneven surfaces in ground-support systems.
• Heavy-Duty Construction: Fabricated from 6061-T6 Aluminum Alloy for maximum strength and durability.
• End-Plated Design: Compatible with EVT20T and standard plated truss systems using bolt connections.
• TÜV Specifications: Fabricated in accordance with strict TUV manufacturing standards.
• Professional Finish: Clean aluminum surface integrates seamlessly with standard silver trussing.

Designed by Evolve Truss, the EVT20T-3IN eliminates the need for improvised shims or unsafe stacking methods, providing a safe, engineered solution for alignment issues.

⚠️ Safety & Engineering Notice

❗ Critical Load Rating Information: The use of spacers affects the overall beam deflection and load capacity. Do not suspend loads directly from the spacer itself. Always consult the official Load Tables and a qualified engineer when modifying truss spans with spacers.

Important Guidelines for Safe Use:

• Inspect the end plates and bolt holes for deformation or wear before every use.
• Ensure all bolts and nuts are properly torqued to manufacturer specifications; spacers must be fully bolted on all connection points.
• Do not mix truss components from different manufacturers unless the bolt pattern and plate dimensions have been strictly verified.
• The purchase of this product does not authorize specific installations; a licensed professional engineer shall review all structures, particularly those requiring leveling spacers.

⚠️ Compatibility Warning for Mixed-Brand Builds

Crucial Steps for Safe Assembly:

• Verify Bolt Patterns: Plated truss varies by manufacturer. Compare your existing truss plate dimensions against EVT20T specifications before purchase.
• Check Alignment: Ensure chord alignment is precise to prevent uneven loading on the bolts.

⚠️ CAD Resources Available

STEP & DWG Files Available: Engineers, designers, and project managers can request these files for seamless integration into CAD drawings and structural planning.
