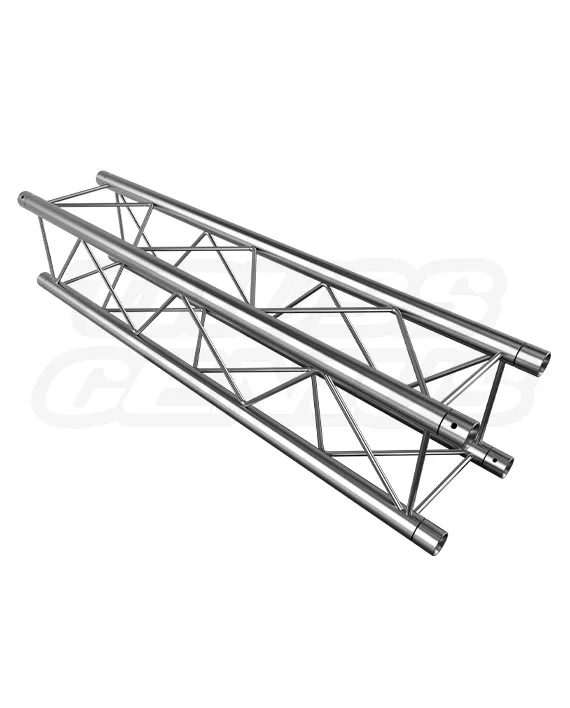

EVT220S-150 4.92-Foot Square Truss Straight Section, durable and versatile truss component

EVT220S-100 | 3.28ft (1.0m)

Original price was: $420.00.Current price is: $280.00.

EVT220S-100 | 3.28 ft (1.0 m)
Light-Duty Square Aluminum Truss

Dimensions
Overall Truss Length: 3.28 ft (1.0 m) Straight Segment
Overall Truss Width: 8.66 in (220 mm)

Construction
Material: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.37 in (35 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.31 in (8 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 10 lb (4.53 kg)

In stock

SKU: EVT220S-100 Category:

EVT220S System Knowledge Center

Compact Square Truss.
Built for Lightweight Event Structures.

The EVT220S-100 is a 1.0 m (3.28 ft) light-duty square aluminum truss section designed for portable displays, mobile entertainment, decorative structures, step-and-repeat backdrops, and entry-level event installations. Its compact 220 mm profile provides a smaller visual footprint while maintaining the rigidity of a square truss design.

Product Facts

Model EVT220S-100
Length 1.0 m / 3.28 ft
Truss Profile 220 mm Square
Weight 10 lb / 4.53 kg
Material EN AW-6082 T6
Finish Brushed Aluminum
1.0 m Section Length
220 mm Square Profile
10 lb Section Weight
35 mm Main Chords
Conical Connection System

Product Overview

A Compact 1.5 Meter Section for Portable Event Builds.

The EVT220S-100 combines a lightweight square profile with welded diagonal bracing and a secure conical connection system for quick assembly.

Compact 220 mm Profile
Provides a smaller visual footprint than larger square truss systems.
Lightweight Handling
At 10 lb, the section is easy to move, stage, and assemble for portable applications.
Conical Connection System
Couplers, pins, and retaining clips support quick repeatable connections.
Square Truss Rigidity
Four main chords and welded diagonal bracing provide stiffness for light-duty structures.

Common Applications

Designed for Portable and Decorative Structures.

The EVT220S-100 is intended for light-duty applications where compact size, portability, and a clean professional appearance are priorities.

01
Step-and-Repeat Backdrops
Build lightweight media walls, photo backdrops, and branded display frames.
02
Mobile Entertainment
Use for DJ setups, compact lighting frames, and portable event structures.
03
Trade Show Displays
Create small booth frames, signage supports, and decorative exhibit elements.
04
Event Entrances
Build compact entry frames for branded activations and guest experiences.
05
Decorative Installations
Support visual displays and lightweight decorative elements within rated limits.

Who It’s For

Built for Teams That Need Compact, Portable Truss.

Best suited for professionals creating smaller light-duty structures and portable event displays.

Mobile DJs
For compact lighting frames, facades, and portable presentation systems.
Event Decorators
For decorative frames, backdrops, entrances, and branded displays.
Trade Show Exhibitors
For small booth structures, signage, and modular visual elements.
Rental Companies
For portable light-duty truss inventory and repeatable small-system packages.
Photo & Video Teams
For backdrop frames, lightweight lighting supports, and visual installations.
Small Venue Production Teams
For compact event structures and entry-level production systems.

Included Hardware

Supplied for Standard Conical Connections.

The section includes the standard connection hardware required for compatible EVT220S components.

Conical Couplers
Align and join the mating truss receivers.
Coupler Pins
Secure the couplers inside the connected truss sections.
Cotter or Retaining Pins
Prevent the connection pins from backing out during use.
Confirm hardware requirements for the complete structure.

Additional clamps, corners, base plates, couplers, pins, ballast, or accessories may be required.

Technical Reference

Complete Product Specifications

Dimensions, tubing, finish, weight, connection type, and construction details.

Identification

Product Details

ModelEVT220S-100
SKUEVT220S-100
BrandEvolve Truss
Product TypeLight-Duty Square Straight Truss

Overall Size

Dimensions

Length1.0 m / 3.28 ft
Width220 mm / 8.66 in
Height220 mm / 8.66 in
Weight10 lb / 4.53 kg

Tubing & Material

Construction

MaterialEN AW-6082 T6 Aluminum
Main Chord Tubing35 mm OD / 2 mm Wall
Diagonal Brace Rod8 mm Diameter
FinishBrushed Aluminum

Connection & Quality

System Details

Connection TypeConical Coupler System
Included HardwareConnecting Hardware
CertificationTUV
Truss CompatibilityEVT220S, F24 and Standard 220 mm Square Truss Systems

System Compatibility

EVT220S, F24, and Standard 220 mm Square Truss Systems.

The EVT220S-100 is designed for EVT220S, F24, and standard 220 mm square truss systems using matching conical connection geometry.

EVT220S Compatibility
Designed to connect directly with the EVT220S square aluminum truss series.
35 mm Clamp Compatibility
Use clamps specifically designed for 35 mm main chord tubing.
F24 Compatibility
Compatible with matching F24 220 mm square truss geometry and conical hardware.
Standard 220 mm Systems
Compatible with standard 220 mm square truss systems using matching conical connection geometry.

Connection Overview

Seat the Couplers. Secure Every Pin.

Connections should be assembled by trained personnel using the complete required hardware.

01 — Inspect Components
Check chords, braces, welds, receivers, couplers, pins, and retaining clips.
02 — Insert Couplers
Place the conical couplers into the receivers on one section.
03 — Align the Sections
Bring the mating truss section into alignment without forcing the receivers.
04 — Install Connection Pins
Drive each pin fully through the aligned receiver and coupler.
05 — Install Retaining Pins
Secure every connection pin with its cotter or retaining pin.
06 — Final Inspection
Verify every connection before lifting or applying load.

Safety & Engineering

Light-Duty Truss Still Requires Proper Load Planning.

Allowable loading depends on span, orientation, supports, connection details, load placement, structure geometry, and the complete assembled system.

Do not exceed the allowable load capacity of the complete EVT220S structure.
Do not support loads directly from truss connection points.
Inspect every chord, brace, weld, receiver, coupler, pin, and retaining clip before use.
Do not use damaged truss or assemble connections with missing or damaged hardware.
Confirm all coupler pins and retaining pins are correctly installed and secured.
Use clamps designed for the 35 mm main chord diameter.
Assembly must be performed by personnel familiar with truss systems.

Product Questions

Frequently Asked Questions

What type of application is the EVT220S-100 designed for?

It is intended for light-duty portable displays, mobile entertainment, decorative structures, step-and-repeat backdrops, and similar event installations.

What connection hardware is included?

The product includes the standard connecting hardware used by the EVT220S conical system.

What clamps fit the main chords?

Use compatible clamps designed for 35 mm, or approximately 1.37-inch, tubing.

Can loads be attached at the connection point?

No. Loads should not be supported directly from the truss connection point.

Is the EVT220S-100 suitable for heavy-duty structures?

No. It is identified as a light-duty truss section and should be used only within the limits of the complete engineered EVT220S structure.

Building a compact EVT220S truss system?

Contact us for compatible lengths, corners, base plates, 35 mm clamps, system planning, and freight assistance.

Contact Us Request a Quote

Structural Solutions, Unmatched Innovation

EVT220S-100 - Technical Information

Weight 10.0 lbs
Dimensions 40 × 9 × 9 in
BRAND

Evolve Truss
MANUFACTURER ID

EVT220S-100
TRUSS SERIES

EVT220S
SHAPE

Square Straight Section
MEASUREMENT SYSTEM

Metric
LENGTH

1.0 Meter
OVERALL TRUSS WIDTH

220mm
DIAGONAL BRACING

8mm
DIAGONAL BRACING THICKNESS

Aluminum Rod
OUTER DIAMETER TUBING

35mm
OUTER DIAMETER TUBING THICKNESS

2mm
CONNECTION TYPE

Conical
MATERIAL TYPE

Aluminum Alloy EN AW-6082 T6
FINISH

Brushed Aluminum
CERTIFICATION

TUV
PLACE OF ORIGIN

Shenzhen, China
