Product Description

12″ x 12″ Aluminum Base Plate – Compatible with EVT220S Truss Series

EVT220S-ABP12 Aluminum Base Plate
Mounts to Top or Bottom of EVT220S Square Aluminum Truss

The EVT220S-ABP12 is a versatile aluminum base plate designed to serve as a stable foundation for EVT220S truss segments. Ideal for supporting Truss Totems or Glow Totems, it mounts directly to the top or bottom of truss sections and offers flexibility in compact or elevated display environments.

Quality and Durability

Crafted from corrosion-resistant aluminum alloy with a brushed finish, this base plate combines strength and style. Designed for long-term use in demanding environments, it provides a professional appearance while standing up to repeated use.

Easy Assembly

Each plate ships with compatible connection hardware for EVT220S truss, enabling fast, tool-friendly installation. Whether you’re a seasoned pro or setting up your first rig, the EVT220S-ABP12 is designed to make your setup experience smooth and efficient.

Why Bigger Matters: Stability & Safety

The purpose of the larger dimensions of the base plate, like the 12-inch size for the 220mm (approx. 8.66-inch) truss, is to provide a more stable foundation. This is crucial for:

• Preventing tipping: Especially for vertical truss structures or “totems”, the wider base makes them far less likely to tip over, even with loads at the top.
• Increased leverage: A larger base plate allows for greater leverage, which helps stabilize the truss, reducing the need for additional ballast.
• Safety and load distribution: A stable base ensures the truss can safely support the weight of lighting, equipment, or other elements placed on it. The wider surface area helps distribute the load more evenly, reducing stress on the truss structure itself.

So, while the 12-inch dimensions may seem bigger than the truss itself, it’s this increased size that enhances stability and allows for safe and effective use of the truss system.

Key Features

• Compatible With: EVT220S square aluminum truss
• Mounting Options: Top or bottom of truss
• Footprint: 12 in × 12 in (304.8 mm × 304.8 mm)
• Material: Aluminum alloy 6061-T6
• Finish: Brushed aluminum
• Ideal Use: Totems, vertical display anchors, or truss bases
• Weight: 4.0 lb (1.81 kg)

⚠️ Safety Notice

• Inspect before each use—do not use if damaged or warped.
• Never suspend loads from the truss connection point.
• Use only with properly secured truss hardware.
• Ensure all couplers, bolts, and R-clips are fully seated and locked.
• Installation should be done by qualified personnel.
• Have a licensed engineer evaluate for all load-bearing installations.

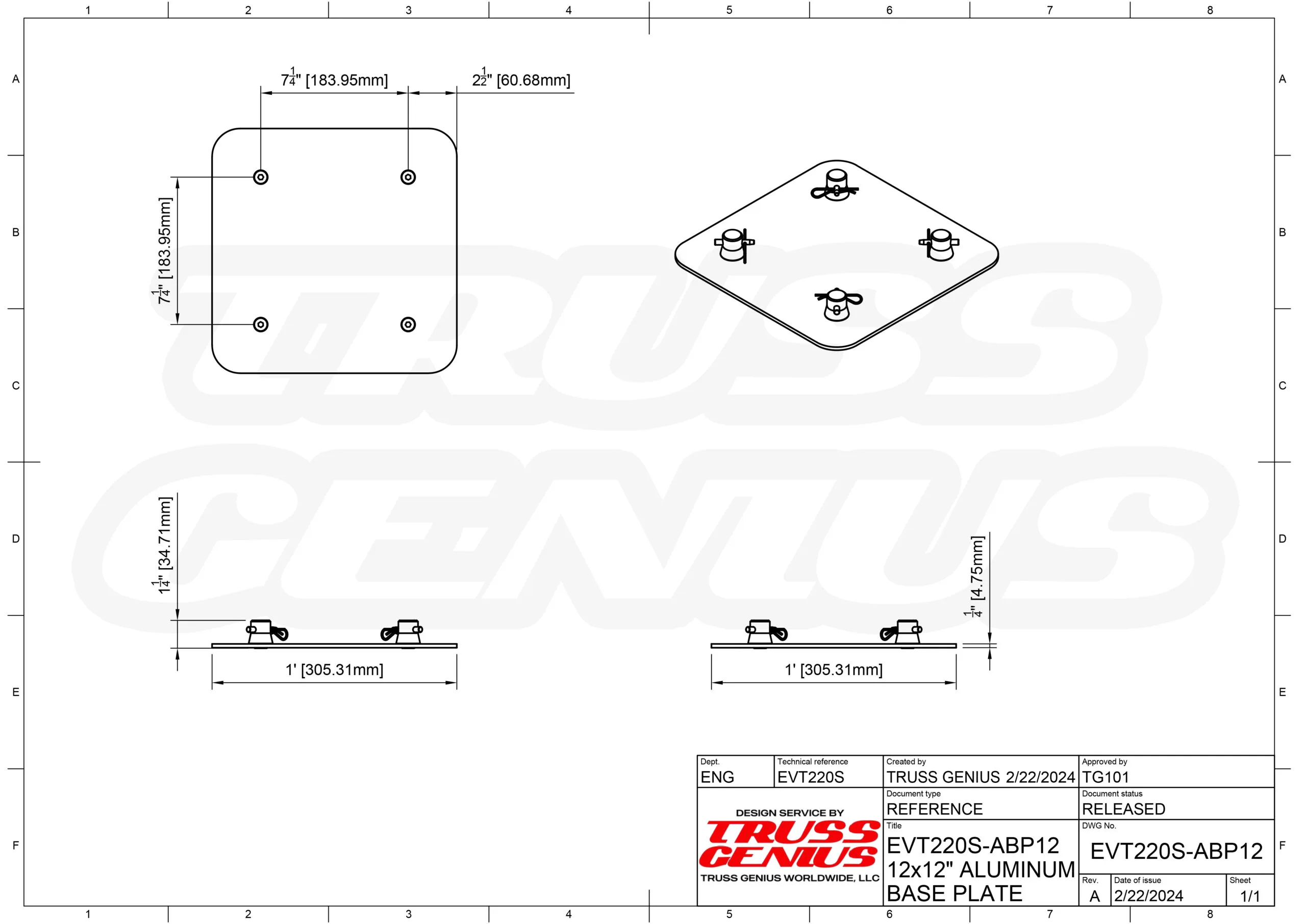

EVT220S-ABP12 Technical Drawing

Disclaimer: The purchase of this product does not imply authorization for any specific installation or usage. A licensed professional engineer must review all designs and applications. These technical drawings are intended solely for guidance purposes.

⚠️ STEP & DWG Files Available

Engineers, Designers & Project Managers: Request STEP & DWG files for seamless integration into CAD drawings and structural planning.
