EVT25C-ALC
Original price was: $15.00.$10.00Current price is: $10.00.
EVT25C-ALC
High Grade 304 Stainless Steel Hardware for Maximum Corrosion Resistance
M6 (10mm Long) Attachment Flanged Button-Head Cap Screw
Minimum Tube Size 24mm
Maximum Tube Size 27mm
Maximum Load 100 Kgs.
Profile Width 30mm
Weight - 0.28 Lbs.
In stock
Product Knowledge Center
EVT25C-ALC
How to attach EVT25C-ALC to Trussing, Tube, or Pipe
1. Release the Nylon-Insert Locknut by turning it counterclockwise to release the bolt and open the collar.
2. Place the EVT25C-ALC on the Truss, Tube, or Pipe and close the collar.
3. Put the bolt back in place with the washer and nylon-insert locknut above the collar.
4. Make sure the EVT25C-ALC is located in its proper place on the Truss, Tube, or Pipe before tightening the nylon-insert locknut.
5. Turn the nylon-insert locknut clockwise to tighten and secure the EVT25C-ALC into place.
Do not exceed the load capacity of the EVT25C-ALC or Truss System. The EVT25C-ALC should be fully inspected before use. In the occurrence of any damage or defect, the EVT25C-ALC should not be used. The use of safety cables is recommended for maximum security. The purchase of this product in no way shall be conceived as authorizing or approving a specific installation or usage of the clamp. A licensed professional engineer shall review all structures, lighting plots, or other clamp uses.

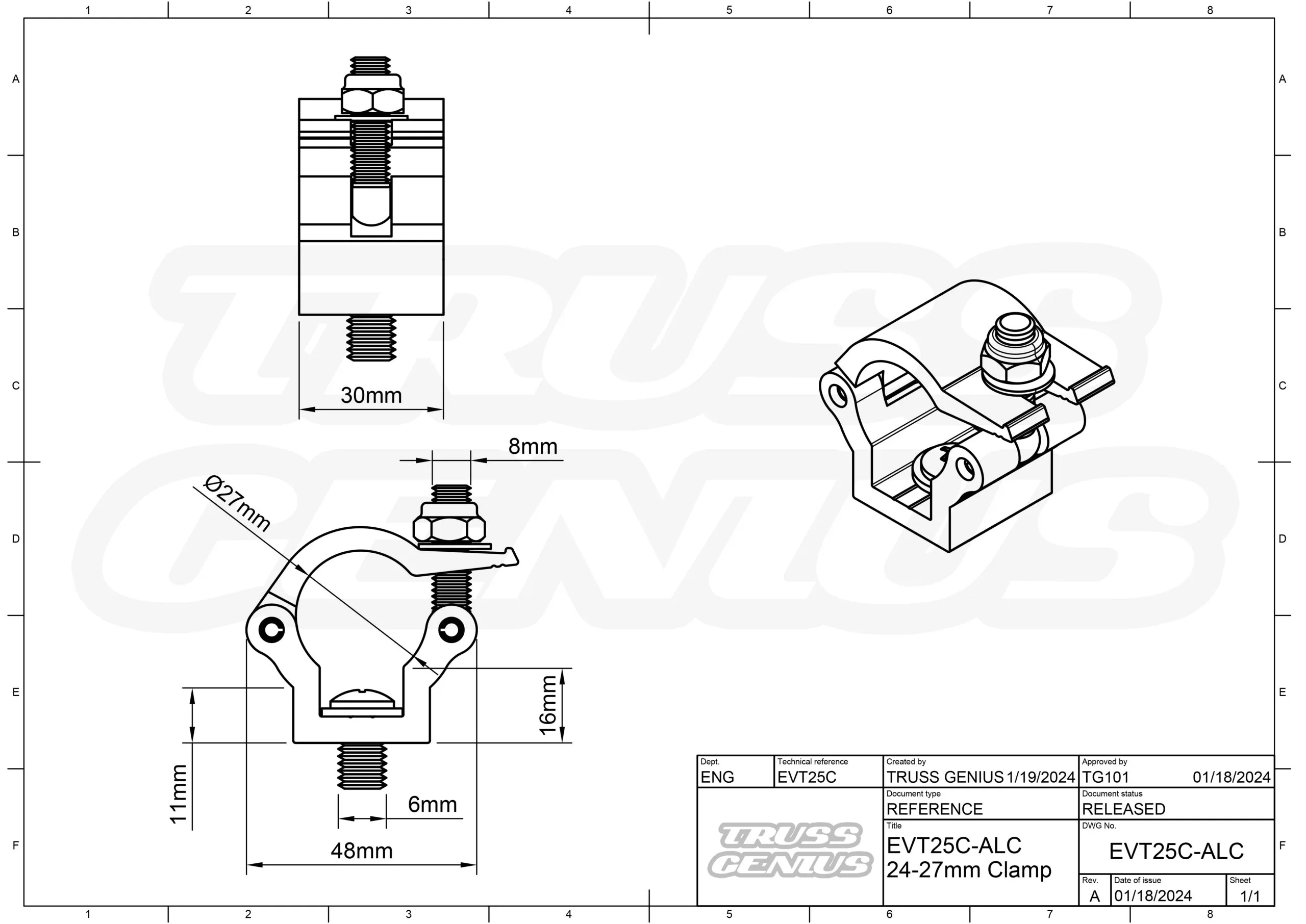

EVT25C-ALC Specifications:
304-Stainless Steel Hardware
M6 (10mm Long) Attachment Flanged Button-Head Cap Screw
Nylon-Insert Locknut M8
Made of the Highest Quality 6061-T6 Alloy Aluminum.
