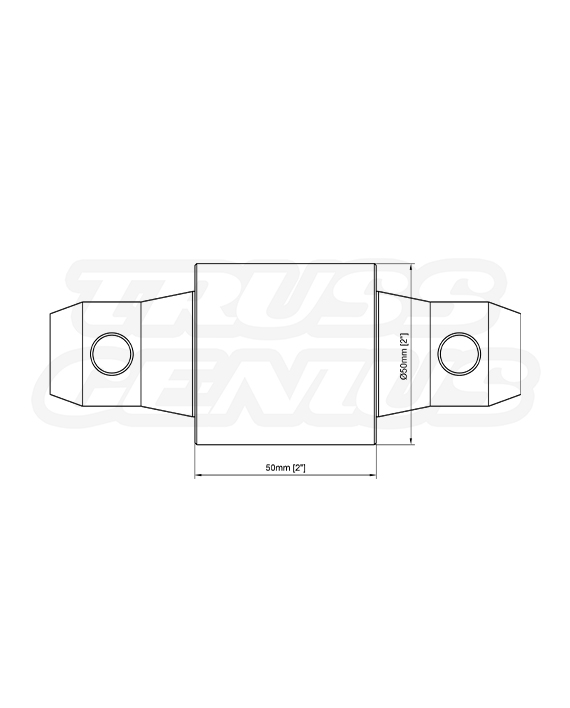

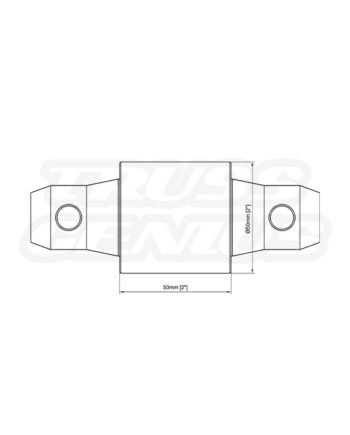

EVT290A‑CS50 technical drawing showing a 50 mm (1.97") spacer segment
Male-to-male conical coupler spacer installed between truss segments in a 290 mm system
EVT290A‑CS50 spacer with 50 mm (1.97") extension
EVT290A‑CS50 technical drawing showing a 50 mm (1.97") spacer segment
Male-to-male conical coupler spacer installed between truss segments in a 290 mm system

EVT290A-CS50

Original price was: $43.00.Current price is: $28.00.

EVT290A-CS50 — 50mm Coupler Spacer for 290mm Truss

Dimensions & Specs
Spacer Length: 1.96 in (50 mm)
Outer Diameter: 1.96 in (50 mm) (Matches standard truss tubing)
Function: Expands truss length for custom measurements and adjustments

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Type: Double-Ended Male Conical Coupler
Compatibility: Fits standard 290mm Truss Conical Connection points

Finish & Features
Surface: Aluminum Brush Finish
Included: 50mm Spacer Coupler Only
Note: Coupler Pins and Cotter Pins are NOT included
Weight: 0.87 lb (0.39 kg)

In stock

SKU: EVT290A-CS50 Categories: , , ,

EVT290S System Knowledge Center

When Standard Truss Lengths Miss by 50 mm,
Close the Joint with a Fixed 290 mm System Spacer.

The EVT290A-CS50 is a double-ended male conical aluminum spacer that adds a fixed 50 mm / 1.97 in at one standard 290 mm square conical truss connection. It is compatible with EVT290S, F34, and all standard 290 mm square conical truss systems. The 50 mm collar provides a repeatable layout correction where standard truss lengths do not meet the documented span dimension. Before lifting or applying load, fully seat the joint and install the correct pins, cotter pins, and retaining hardware.

Identity and Core Facts

Model / SKUEVT290A-CS50
Product ClassMale Truss Coupler Spacer
Added Length50 mm / 1.97 in
Outside Diameter50 mm / 1.96 in
FinishBrushed Aluminum
Weight0.87 lb / 0.39 kg
50 mmAdded Connection Length
1.97 inAdded Connection Length
50 mmOutside Diameter
130 mmDocumented Overall Height
290 mmStandard Conical Truss Fit

What It Is

A Fixed 50 mm Spacer for Standard 290 mm Conical Truss Connections.

The EVT290A-CS50 is a single-piece, double-ended male conical spacer with an integrated 50 mm collar. It connects standard 290 mm square conical truss systems, including EVT290S and F34, while adding a fixed 50 mm / 1.97 in adjustment at the selected joint.

Fixed 50 mm Collar
The collar adds a fixed 50 mm / 1.97 in dimension. It does not provide adjustable travel or telescoping length.
Male-to-Male Connection Form
The component provides male conical ends for insertion into the receivers of adjoining standard 290 mm conical truss sections.
50 x 130 x 50 mm Envelope
The documented component dimensions are 50 x 130 x 50 mm. Use the current technical drawing for the exact layout review.
Connection-Level Component
The spacer modifies one joint. It is not a truss section, a separate support point, or a direct load-attachment location.

What It Changes

It Adds 50 mm at One Joint. It Does Not Establish a New Structural Rating.

When installed in a standard 290 mm square conical truss connection, the spacer increases the effective length at the selected joint by 50 mm / 1.97 in. This is a fixed correction within the CS spacer family. It does not independently establish allowable span, load capacity, pick-point location, or support arrangement for the modified structure.

Changes
Adds 50 mm / 1.97 in to the effective length of one selected connection.
Does Not Change
Does not independently establish a load rating, allowable span, pick-point location, or support arrangement.
Does Not Include
Does not include coupler pins, cotter pins, or other retaining hardware.
Does Not Permit
Does not permit direct attachment or support of loads from the spacer connection point.

Selection Guidance

Select the CS50 When The Layout Requires a 50 mm Correction.

Use the EVT290A-CS50 when the documented layout requires a fixed 50 mm / 1.97 in correction at one standard 290 mm conical truss joint. Do not use it as an adjustable fitting or as a substitute for a smaller correction. Select the spacer length that matches the measured layout requirement.

Measured 50 mm Difference
Use when the planned layout identifies a fixed 50 mm correction at one selected joint.
Custom Architectural Dimensions
Use where a standard 290 mm truss run must meet a measured scenic, exhibit, architectural, or technical interface.
Large Fixed Adjustment
Use where the 50 mm connection-length correction is required to close the intended truss span.
Not an Adjustable Coupler
Do not use to create an unmeasured correction, force a damaged joint, or replace a required engineered connection solution.

System Compatibility

EVT290S, F34, and All Standard 290 mm Square Conical Truss Systems.

The EVT290A-CS50 is a double-ended male conical spacer designed for standard 290 mm square conical truss connection points. It adds 50 mm / 1.97 in at one connection and is compatible with EVT290S, F34, and all standard 290 mm square conical truss systems. The 50 mm collar provides a fixed, repeatable adjustment where a standard truss length does not meet the documented layout dimension.

EVT290S Compatibility
Designed to integrate with EVT290S sections, corners, bases, and accessories for a 50 mm connection-length correction.
F34 Compatibility
Compatible with F34 290 mm square truss geometry and standard conical connection hardware.
Standard 290 mm Compatibility
Compatible with all standard 290 mm square conical truss systems using standard matching conical coupler geometry.
Connection Engagement
The 50 mm spacer changes connection depth. Before lifting or applying load, verify complete receiver engagement and use the correct pins, cotter pins, and retaining hardware.
Mixed-System Verification
When joining components from different manufacturers, ground-test the complete joint before lifting to confirm seating, pin alignment, and proper retention.

Specifications

EVT290A-CS50 Factual Product Reference.

Identity

Product Record

Model / SKUEVT290A-CS50
BrandEvolve Truss
Product TypeMale Truss Coupler Spacer
Connection FormDouble-Ended Male Conical

Dimensions

Spacer Geometry

Added Connection Length50 mm / 1.97 in
Outside Diameter50 mm / 1.96 in
Documented Dimensions50 x 130 x 50 mm
Weight0.87 lb / 0.39 kg

Construction

Material and Finish

MaterialEN AW-6061 T6 Aluminum
FinishBrushed Aluminum
Functional Output50 mm Connection-Length Expansion

Compatibility and Supply

System Dependencies

Connection FitStandard 290 mm Conical Connection Points
Compatible SystemsEVT290S, F34, and Standard 290 mm Square Conical Truss
IncludedSpacer Coupler Only
Not IncludedCoupler Pins and Cotter Pins

Installation Checks

Seat the Joint Fully. Then Secure It Before Service.

The 50 mm collar changes the effective length and connection depth at the selected joint. Before the truss is lifted or loaded, confirm the required correction, inspect all components, fully seat the conical connection, and install the correct pins, cotter pins, and retaining hardware.

01 — Confirm the 50 mm Requirement
Confirm the planned layout requires a fixed 50 mm correction at the selected connection.
02 — Inspect the Components
Do not use damaged, deformed, cracked, worn, or otherwise compromised spacers, truss receivers, couplers, pins, or retainers.
03 — Test-Fit Before Lifting
Assemble and check the full joint on the ground before it is lifted, especially when joining components from different manufacturers.
04 — Verify Full Engagement
Confirm the male spacer ends and conical hardware are completely seated in both truss receivers.
05 — Install Pins and Cotters
Use correct pins, cotter pins, and retaining hardware for the completed connection. Pins and cotter pins are not included with the spacer.
06 — Inspect the Complete Structure
Verify the completed connection and surrounding structure against the approved plan before load is applied or the structure is lifted.

Safety Limits and Review

The Spacer Changes Geometry. It Does Not Override System Limits.

The EVT290A-CS50 is a structural connection component. It does not independently establish a load rating for the modified structure. Do not exceed the capacity of the spacer or the truss system it modifies. Do not support loads directly from the spacer connection point. Review the complete structure and the modified connection for the actual installation.

Do not exceed the capacity of the spacer or the truss system it modifies.
Do not attach or support loads directly from the connection where the spacer is installed.
Do not use the spacer to force a misaligned connection or compensate for damaged truss components.
Fully seat the conical joint and verify complete engagement at both truss receivers.
Use the correct pins, cotter pins, and retaining hardware for the completed connection geometry.
Do not use fewer connectors, pins, or retainers than the approved connection configuration requires.
Ground-test mixed-manufacturer joints before lifting to confirm seating, alignment, and retention.
Have the complete structure reviewed by a qualified authority as required for the actual installation.

Variant Relationship

Select the Spacer That Matches the Required Correction.

Spacer selection begins with the documented dimension at the specific joint. The 50 mm correction is not a substitute for a 10 mm, 20 mm, or 30 mm spacer. Do not stack, substitute, or combine spacer variants unless the exact arrangement is approved for the complete structure.

EVT290A-CS10
Use for a documented 10 mm / 0.39 in correction in brushed aluminum.
EVT290A-CS10 Black
Use for a documented 10 mm / 0.39 in correction where a matte black finish is required.
EVT290A-CS20
Use for a documented 20 mm / 0.79 in correction in brushed aluminum.
EVT290A-CS20 Black
Use for a documented 20 mm / 0.79 in correction where a matte black finish is required.
EVT290A-CS30
Use for a documented 30 mm / 1.18 in correction in brushed aluminum.
EVT290A-CS50
Use for a documented 50 mm / 1.97 in correction in a standard 290 mm conical truss connection.

Evidence and Review

What This Page Confirms, and What the Installation Must Still Confirm.

This page records the product identity, fixed 50 mm correction, dimensions, material, finish, weight, and compatibility with standard 290 mm square conical truss systems, including EVT290S and F34. It does not establish the final structural capacity, load arrangement, pick point, span, or support plan for a particular installation.

Confirmed Product Facts
50 mm / 1.97 in fixed correction, 50 mm outside diameter, 50 x 130 x 50 mm documented dimensions, EN AW-6061 T6 aluminum, brushed finish, and 0.87 lb / 0.39 kg weight.
Installation-Specific Facts
Final connection assembly, pins, cotters, retention method, structural capacity, load arrangement, and project approval must be determined for the actual installation.
Evidence Worth Retaining
Keep the current technical drawing, component specification, ground test-fit record, hardware selection, inspection record, and required approvals with the project file.
No Invented Capacity Claims
Do not describe the spacer as suitable for a particular load, span, suspended layout, or support arrangement unless supported by attributable technical records and the required review.

Product Questions

Frequently Asked Questions

What does the EVT290A-CS50 do?

It adds a fixed 50 mm / 1.97 in at one standard 290 mm square conical truss connection.

What truss systems is it compatible with?

It is compatible with EVT290S, F34, and all standard 290 mm square conical truss systems.

Is the CS50 a standard truss section?

No. It is a connection-level spacer component. It does not replace a truss section, establish a new support point, or permit direct loading at the spacer joint.

What does the product include?

It includes one EVT290A-CS50 spacer coupler. Coupler pins and cotter pins are not included.

Why must the joint be checked after installation?

The fixed 50 mm collar changes connection depth. Before lifting or applying load, confirm complete seating and install the correct pins, cotter pins, and retaining hardware.

Can I combine this spacer with other spacers?

Do not stack or combine spacers unless the exact configuration has been approved for the complete structure. A combined arrangement changes connection geometry and requires review.

Need to close a 50 mm gap in a standard 290 mm conical truss layout?

Contact us for product identification, compatibility guidance, connection-hardware planning, layout review, spacer quantities, technical drawings, and project support.

Contact UsRequest a Quote

Structural Solutions, Unmatched Innovation
