EVT290A‑CS60 male‑to‑male spacer with a 60 mm (2.36") extension for truss spacing

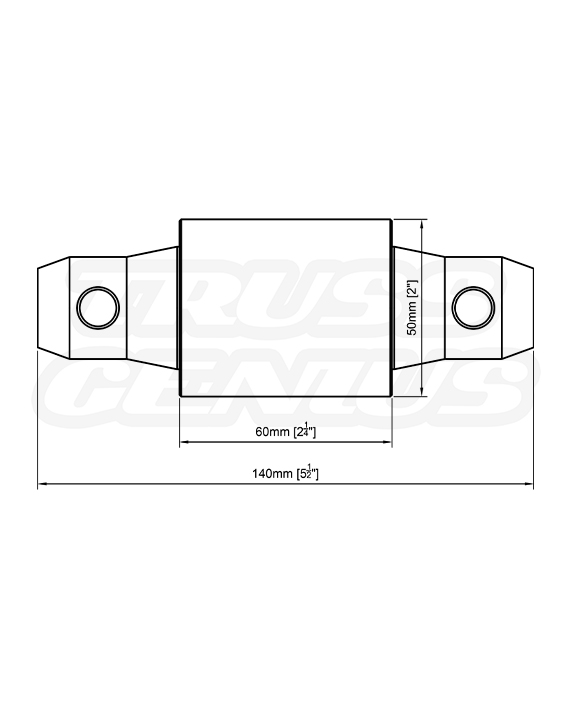

EVT290A‑CS60 technical drawing showing a 60 mm (2.36") spacer segment

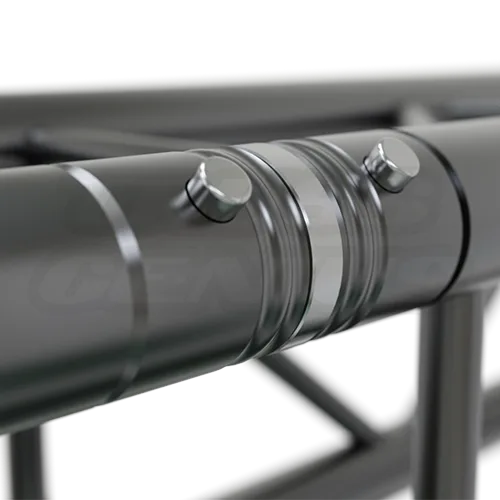

Male-to-male conical coupler spacer installed between truss segments in a 290 mm system
EVT290A‑CS60 male‑to‑male spacer with a 60 mm (2.36") extension for truss spacing
EVT290A‑CS60 technical drawing showing a 60 mm (2.36") spacer segment
Male-to-male conical coupler spacer installed between truss segments in a 290 mm system

EVT290A-CS60

Original price was: $47.00.Current price is: $31.00.

EVT290A-CS60 — 60mm Coupler Spacer for 290mm Truss

Dimensions & Specs
Spacer Length: 2.36 in (60 mm)
Outer Diameter: 1.96 in (50 mm) (Matches standard truss tubing)
Function: Expands truss length for custom measurements and adjustments

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Type: Double-Ended Male Conical Coupler
Compatibility: Fits standard 290mm Truss Conical Connection points

Finish & Features
Surface: Aluminum Brush Finish
Included: 60mm Spacer Coupler Only
Note: Coupler Pins and Cotter Pins are NOT included
Weight: 0.99 lb (0.45 kg)

In stock

SKU: EVT290A-CS60 Categories: , , ,

EVT290S System Knowledge Center

EVT290A-CS60 60 mm / 2.36 in Truss Spacer.
A Male-to-Male Conical Spacer for Modular 290 mm Truss Builds.

The EVT290A-CS60 is a double-ended male conical aluminum spacer that adds a fixed 60 mm / 2.36 in at one compatible 290 mm square truss connection. Its brushed aluminum finish supports standard aluminum-truss layouts. The spacer changes connection geometry at one joint; it is not a truss section, independent support point, or direct load-attachment location. Confirm full coupler engagement, pins, retention hardware, and the complete engineered structure before lifting or applying load.

Product Facts

Model / SKUEVT290A-CS60
Product ClassMale Truss Coupler Spacer
Added Length60 mm / 2.36 in
Connection TypeDouble-Ended Male Conical
FinishBrushed Aluminum
Weight0.99 lb / 0.45 kg
60 mmAdded Connection Length
2.36 inAdded Connection Length
290 mmSquare Conical Truss Fit
Brushed AluminumFinish
0.99 lbDocumented Product Weight

Product Overview

A Fixed 60 mm Spacer for One Compatible 290 mm Conical Truss Connection.

The EVT290A-CS60 is a single-piece male-to-male conical spacer with an integrated 60 mm collar. It inserts into compatible conical receivers between adjoining 290 mm square truss sections and creates a fixed 60 mm / 2.36 in correction at that joint. The brushed aluminum finish supports visual continuity in standard aluminum-truss installations.

Fixed 60 mm Collar
Adds a fixed 60 mm / 2.36 in dimension at one selected connection. It does not provide adjustable travel or telescoping length.
Male-to-Male Conical Form
Provides male conical ends for insertion into the receivers of adjoining compatible truss sections.
Brushed Aluminum Finish
The brushed aluminum surface is identified in the product source and is intended to visually coordinate with standard aluminum truss systems.
Connection-Level Component
The spacer changes one joint. It is not a truss section, separate support point, or direct load-attachment location.

What It Changes

It Adds 60 mm at One Joint. It Does Not Establish a New Structural Rating.

When installed in a compatible conical connection, the spacer increases the effective length at the selected joint by 60 mm / 2.36 in. It does not independently establish allowable span, load capacity, pick-point location, support arrangement, or approval for the modified structure. Evaluate the complete system after the connection geometry has changed.

Changes
Adds a fixed 60 mm / 2.36 in to the effective length of one selected truss connection.
Does Not Change
Does not independently establish a load rating, allowable span, pick-point location, or support plan.
Does Not Include
The product source identifies the 60 mm spacer coupler only. Coupler pins and cotter pins are not included.
Does Not Permit
Does not permit direct attachment or support of loads from the spacer connection point.

Selection Guidance

Select the CS60 When The Layout Requires a 60 mm Correction.

Use the EVT290A-CS60 when the documented layout requires a fixed 60 mm / 2.36 in correction at one compatible 290 mm conical truss joint. Do not use it as an adjustable fitting, a generic extension, a repair for damaged truss, or a substitute for a different measured correction.

Measured 60 mm Difference
Use when the approved layout identifies a fixed 60 mm correction at one specific compatible connection.
Custom Layout Alignment
Use in a reviewed scenic, exhibit, architectural, lighting, or technical layout where 60 mm is the required correction.
Aluminum-Finish Systems
Use where a brushed aluminum connection accessory is appropriate for the planned truss finish.
Not an Adjustable Coupler
Do not use to force alignment, create an unmeasured correction, or replace a required engineered connection solution.

Technical Reference

EVT290A-CS60 Product Specifications.

Identification

Product Details

Model / SKUEVT290A-CS60
BrandEvolve Truss
Product TypeMale Truss Coupler Spacer
Connection FormDouble-Ended Male Conical

Verified Dimensions

Spacing and Weight

Added Connection Length60 mm / 2.36 in
Weight0.99 lb / 0.45 kg
Outside DiameterNot Listed in Supplied Product Data
Overall DimensionsNot Listed in Supplied Product Data

Construction

Material and Finish

MaterialEN AW-6061 T6 Aluminum Alloy
FinishBrushed Aluminum
Functional Output60 mm Connection-Length Expansion

Compatibility and Supply

System Dependencies

Connection FitStandard 290 mm Conical Connection Points
Compatible SystemsF34 and Standard 290 mm Square Conical Truss Systems
Included60 mm Spacer Coupler Only
Not IncludedCoupler Pins and Cotter Pins

System Compatibility

EVT290S, F34, and Compatible 290 mm Square Conical Truss Systems.

The EVT290A-CS60 is designed for compatible 290 mm square conical truss connection points, including EVT290S and F34-style systems. Verify the actual receiver spacing, conical coupler dimensions, chord geometry, pin length, retaining hardware, and complete structural plan before combining separately sourced components or lifting the completed structure.

EVT290S Compatibility
Designed to integrate with compatible EVT290S square truss sections, corners, bases, and accessories when the complete connection is physically verified.
F34 Compatibility
Compatible with matching F34 290 mm square geometry and conical connection hardware when the interface fits correctly.
Full Coupler Engagement
Verify that the selected conical coupler is long enough to fully engage both truss receivers after the 60 mm spacer is installed.
Mixed-System Verification
Test-fit mixed-brand or separately sourced components on the ground before lifting and verify the completed connection and structure.

Installation Checks

Confirm the 60 mm Requirement. Then Verify the Entire Connection.

The spacer changes the effective length and connection depth at one joint. Install it only after confirming the required 60 mm correction, inspecting the components, test-fitting the connection, and verifying coupler engagement, pins, retention hardware, and the complete structural plan.

01 — Confirm the Correction
Confirm that the approved layout requires a fixed 60 mm / 2.36 in correction at the selected connection.
02 — Inspect Components
Do not use damaged, deformed, cracked, worn, or otherwise compromised spacers, truss receivers, couplers, pins, or retaining hardware.
03 — Test-Fit Before Lifting
Confirm that the spacer, receivers, coupler arrangement, pins, and retaining hardware fit together with required engagement.
04 — Verify Coupler Engagement
Confirm that the selected conical coupler fully engages both truss receivers after the 60 mm spacer is added.
05 — Install Retaining Hardware
Supply and install the required pins and cotter pins. They are not included with the spacer coupler.
06 — Inspect the Complete Structure
Verify the completed connection and surrounding structure against the approved plan before any load is applied or the structure is lifted.

Safety and Engineering

The Spacer Changes Connection Geometry. It Does Not Override System Limits.

The EVT290A-CS60 is a structural connection component. It does not independently establish a load rating for the modified structure. Do not exceed the capacity of the spacer or the truss system it modifies. Do not support loads directly from the spacer connection point. Review the complete structure—including the modified joint—for the actual installation.

Do not exceed the capacity of the spacer or the truss system it modifies.
Do not attach or support loads directly from the connection where the spacer is installed.
Do not use the spacer to force a misaligned connection or compensate for damaged truss components.
Verify full conical coupler engagement in both receivers after the spacer is installed.
Use pins and cotter pins of sufficient length and suitability for the completed connection geometry.
Do not use fewer connectors, pins, or retainers than the approved connection configuration requires.
Test-fit mixed-brand connections on the ground before lifting.
Have the complete structure reviewed by a qualified authority or licensed professional engineer where required.

Evidence and Review

What This Page Confirms, and What the Installed Connection Must Still Establish.

This page confirms the supplied product facts: a fixed 60 mm correction, EN AW-6061 T6 aluminum construction, brushed aluminum finish, 0.99 lb / 0.45 kg weight, and the stated conical connection interface. The supplied product data does not list the outside diameter or overall dimensions; those values are not claimed here. The page does not establish a safe span, capacity, pick point, support plan, mixed-brand installation, or complete structural outcome.

Confirmed Product Facts
60 mm / 2.36 in fixed correction, EN AW-6061 T6 aluminum, brushed finish, and 0.99 lb / 0.45 kg weight.
Unlisted Source Data
The supplied product data does not list CS60 outside diameter or complete overall dimensions. Confirm current drawings or manufacturer documentation if those values are required.
Installation-Specific Facts
Actual receiver fit, coupler configuration, engagement depth, pin length, retention method, structural capacity, load arrangement, and required approvals must be determined for the project.
No Invented Capacity Claims
Do not describe the spacer as suitable for a particular load, brand mix, suspended layout, or installation type unless supported by attributable technical records and required review.

Product Questions

Frequently Asked Questions.

What does the EVT290A-CS60 do?

It adds a fixed 60 mm / 2.36 in at one compatible 290 mm square conical truss connection.

What does the product include?

The source identifies the 60 mm spacer coupler only. Coupler pins and cotter pins are not included.

What truss systems does it fit?

It is designed for compatible 290 mm square conical truss connections, including EVT290S and F34-style systems. Verify the actual interface, coupler engagement, pins, and complete structural design before use.

What are the CS60 overall dimensions?

The supplied product data confirms the fixed 60 mm / 2.36 in correction but does not list the CS60 outside diameter or complete overall dimensions. Confirm the current technical drawing or manufacturer documentation if those measurements are required.

Can it be used as a load point?

No. Do not attach or support loads directly from the spacer connection point. The complete structure must be evaluated for the actual installation.

Can I combine this spacer with other spacers?

Do not stack or combine spacers unless the exact configuration has been approved for the complete structure. A combined arrangement changes connection geometry and requires review.

Need to close a 60 mm gap in a 290 mm truss layout?

Contact us for product identification, compatibility guidance, connection-hardware planning, layout review, spacer quantities, technical drawings, and engineering coordination.
