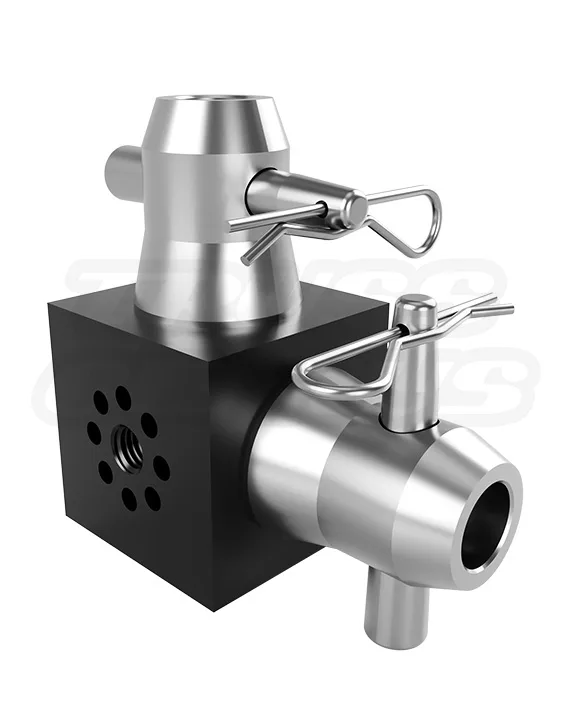

EVT290A-MultiCube Black 6-Way Truss Connector, durable and versatile truss solution
EVT290A‑MultiCube corner junction connecting two single tubes with locking pins
EVT290A-MultiCube Black 6-Way Truss Connector, durable and versatile truss solution
EVT290A‑MultiCube corner junction connecting two single tubes with locking pins

EVT290A-MultiCube Black

Original price was: $83.00.Current price is: $56.00.

EVT290A-MultiCube Black — Universal 6-Way Cube Connector (50mm) (Matte Black)

Dimensions & Specs
Cube Dimensions: 1.96 in (50 mm) x 1.96 in (50 mm) x 1.96 in (50 mm)
Function: Modular universal junction for creating 90 Degree turns and crosses
Configuration Capacity: Configurable from 2-way up to 6-way junction

Construction
Cube Material: Aluminum Alloy EN AW-6061 T6
Type: 6-Way Cube Junction Block
Compatibility: Fits all standard 290mm Truss systems

Finish & Features
Surface: Matte Black Powder Coat Finish
Included: Multi-Cube with Connecting Hardware for 2 Sides only
Expansion: A single unit of the EVT290S-BCS can be used to add an additional side to the cube
Weight: 1.33 lb (0.60 kg)

In stock

SKU: EVT290A-MultiCube-Black Categories: , , ,

EVT290S Truss Systems Knowledge Center

EVT290A-MultiCube Black 50 mm Six-Way Junction Block.
Matte Black Finish for Light-Duty Single-Tube Structures.

The EVT290A-MultiCube Black is a 50 mm, six-face aluminum junction block for light-duty single-tube structures. Its matte black powder coat supports black tube structures that remain exposed to view. Configure two through six connection directions with compatible receivers. To add a connection point to a cube face, use an EVT290S-BCS expansion receiver. The finish does not change the MultiCube's light-duty application class or structural limits.

Product Facts

Model / SKUEVT290A-MultiCube-Black
Product TypeSix-Way Junction Block
Cube Dimensions50 x 50 x 50 mm
Connection Capacity2 through 6 Ways
FinishMatte Black Powder Coat
Component Weight1.33 lb / 0.60 kg
6Available Faces
50 mmCube Size
Matte BlackPowder-Coat Finish
2 SidesHardware Included
Light DutyApplication Class

Product Overview

A Six-Face Junction Block with a Matte Black Finish.

The MultiCube Black is the black-finish version of the 50 mm MultiCube. Its six faces can be configured for two through six connection directions using compatible receivers. It is intended for light-duty single-tube frames, displays, signage, and modular tube structures.

Six Available Faces
Configure connection directions across all six faces of the cube.
50 mm Cube
A 50 x 50 x 50 mm aluminum block for compatible single-tube components.
Matte Black Powder Coat
Matches exposed black tube structures and black truss accessories.
Light-Duty Only
Not an independent load-bearing junction or direct load point.

Finish Context

Finish Is a Selection Attribute. It Is Not a Structural Difference.

Choose the black variant when the structure uses exposed black tube or black truss accessories. The matte black finish does not change the cube dimensions, connection capacity, receiver requirements, or light-duty structural limits.

Same Six-Face Function
Supports the same two through six connection-direction configurations as the brushed MultiCube.
Visual Continuity
Maintains a matching black finish where the structure stays exposed to view.
No Engineering Change
Finish selection does not alter the product's light-duty class or safety limits.

Application Uses

Build Light-Duty Black Tube Frames, Displays, and Signage Structures.

01
Display Frames
Create light-duty black display frames with multiple connection directions.
02
DJ Booths
Form modular black single-tube booth frames and accessory structures.
03
Signage Structures
Create light-duty black signage and banner support frames using compatible receivers.
04
Modular Grid Frames
Create cube-like black tube frames with only the connection directions needed.

Connection Configuration

Start With the Faces You Need. Add Receivers Only Where Required.

The cube provides the six-face junction body. Use an EVT290S-BCS expansion receiver to add a connection point to an available face. Select the number and direction of receivers based on the approved structure.

Two-Way
Connect two tubes at a selected 90-degree relationship.
Three- and Four-Way
Add faces as needed for light-duty corners and frame intersections.
Five- and Six-Way
Use additional receivers only when all required faces and structure requirements are confirmed.
EVT290S-BCS Required
Use a compatible expansion receiver for every added connection face.

Included Hardware

MultiCube Hardware for Two Connection Sides.

The source lists the MultiCube Black with connecting hardware for two sides only. Additional connection sides require compatible EVT290S-BCS expansion receivers and the appropriate connection hardware.

1 MultiCube Black
One 50 mm six-face aluminum junction block with matte black powder coat.
Hardware for 2 Sides
Included connecting hardware supports two connection sides.
Additional Sides
Add compatible EVT290S-BCS expansion receivers and required hardware separately.

Technical Reference

EVT290A-MultiCube Black Specifications.

Identification

Product Details

Model / SKUEVT290A-MultiCube-Black
Product TypeSix-Way Junction Block
Weight1.33 lb / 0.60 kg

Dimensions

Cube Size

Dimensions50 x 50 x 50 mm
Available Faces6
Connection Capacity2 through 6 Ways

Construction

Material and Finish

MaterialAluminum Alloy EN AW-6061 T6
FinishMatte Black Powder Coat
Included HardwareMultiCube and Hardware for 2 Sides

Expansion

Additional Connections

Expansion ReceiverEVT290S-BCS
Application ClassLight Duty

System Compatibility

Single-Tube Structures and 290 mm Truss Expansion Receivers.

The MultiCube Black is primarily a light-duty single-tube junction block. It may be used with 290 mm truss systems only through compatible EVT290S-BCS expansion receivers. Confirm actual receivers, tubes, hardware, and complete-structure requirements before use.

Assembly

Configure, Inspect, and Secure Each Active Face.

01 — Confirm Use
Confirm the structure is a light-duty application and identify the required active faces.
02 — Inspect Components
Do not use the cube, receivers, tubes, or hardware if damaged, deformed, cracked, or defective.
03 — Add Receivers
Install compatible EVT290S-BCS receivers on each additional face needed.
04 — Secure Connections
Ensure all connectors, coupler-pins, and r-clips are correctly installed and secured.

Safety and Engineering

Light-Duty Use Only. Do Not Create a Direct Load Point.

The EVT290A-MultiCube Black is rated for light-duty use only. Do not exceed the capacity of the cube or connected single tubes. Do not support loads directly from a cube connection point. A licensed professional engineer must review all structures and installations using this component.

Use the MultiCube for light-duty applications only.
Do not support loads directly from a connection point on the cube.
Inspect the MultiCube before every use; do not use it if damage or a defect is present.
Handle powder-coated components carefully; do not drop, drag, or throw accessories.
Have the complete structure reviewed by a licensed professional engineer.
Confirm Current Documentation Before Ordering or Installing
Confirm current manufacturer drawings, instructions, included hardware, receiver selection, and complete structure requirements before ordering or installing the EVT290A-MultiCube Black. Light-duty, public-facing, suspended, outdoor, or other load-bearing uses require project-specific review by qualified rigging and engineering personnel before use.

Product Questions

EVT290A-MultiCube Black Frequently Asked Questions.

What is different about the Black MultiCube?

It has the same 50 mm six-face, light-duty function as the brushed MultiCube, finished in matte black powder coat for black tube structures that remain exposed to view.

How many connection directions can it support?

It has six available faces and can be configured for two through six connection directions using compatible receivers.

What is EVT290S-BCS used for?

An EVT290S-BCS expansion receiver is used to add a connection point to an available MultiCube face.

Can the MultiCube be used as a load point?

No. It is light-duty only; do not support loads directly from a cube connection point.
