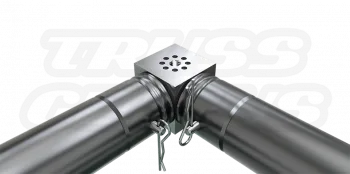

EVT290A‑MultiCube corner junction connecting two single tubes with locking pins
EVT290A‑MultiCube aluminum connector block with dual tapered fittings and clevis pins
EVT290A‑MultiCube corner junction connecting two single tubes with locking pins

EVT290A-MultiCube

Original price was: $77.00.Current price is: $51.00.

EVT290A-MultiCube — Universal 6-Way Cube Connector (50mm)

Dimensions & Specs
Cube Dimensions: 1.96 in (50 mm) x 1.96 in (50 mm) x 1.96 in (50 mm)
Function: Modular universal junction for creating 90 Degree turns and crosses
Configuration Capacity: Configurable from 2-way up to 6-way junction

Construction
Cube Material: Aluminum Alloy EN AW-6061 T6
Type: 6-Way Cube Junction Block
Compatibility: Fits all standard 290mm Truss systems

Finish & Features
Surface: Aluminum Brush Finish
Included: Multi-Cube with Connecting Hardware for 2 Sides only
Expansion: A single unit of the EVT290S-BCS can be used to add an additional side to the cube
Weight: 1.33 lb (0.60 kg)

In stock

SKU: EVT290A-MultiCube Categories: , , ,

EVT290S Truss Systems Knowledge Center

EVT290A-MultiCube 50 mm Six-Way Junction Block.
For Light-Duty Single-Tube Structures and 290 mm Truss Expansion.

The EVT290A-MultiCube is a 50 mm aluminum junction block for light-duty single-tube structures. Its six faces can be configured for two through six connection directions using compatible receivers. It is suited to display frames, DJ booths, signage, and modular tube structures. To add a connection point to a cube face, use an EVT290S-BCS expansion receiver. The MultiCube is light-duty only and does not independently establish a load rating or direct load point.

Product Facts

Model / SKUEVT290A-MultiCube
Product TypeSix-Way Junction Block
Cube Dimensions50 x 50 x 50 mm
Connection Capacity2 through 6 Ways
MaterialAluminum Alloy EN AW-6061 T6
Component Weight1.33 lb / 0.60 kg
6Available Faces
50 mmCube Size
2 SidesHardware Included
Light DutyApplication Class
1.33 lbComponent Weight

Product Overview

A Six-Face Junction Block for Light-Duty Tube Structures.

The MultiCube is a precision-machined 50 mm cube with potential connection faces on all six sides: up, down, left, right, front, and back. Add compatible receivers only to the faces needed for the structure, allowing two-way, three-way, four-way, five-way, or six-way configurations.

Six Available Faces
Configure connection directions across all six faces of the cube.
50 mm Cube
A 50 x 50 x 50 mm aluminum block for compatible single-tube components.
Receiver Expansion
Use an EVT290S-BCS expansion receiver to activate an additional connection side.
Light-Duty Only
Intended for light-duty structures, not as an independent load-bearing junction or direct load point.

Application Uses

Build Light-Duty Frames, Displays, and Modular Tube Structures.

The MultiCube supports modular single-tube structures where multiple directions are required from one small connection block. Confirm tube, receiver, hardware, and complete-structure requirements before assembly.

01
Display Frames
Build light-duty display frames with connections in multiple directions.
02
DJ Booths
Form modular single-tube booth frames and accessory structures.
03
Signage Structures
Create light-duty signage and banner support frames using compatible receivers.
04
Modular Grid Frames
Create cube-like single-tube frames with only the connection directions needed.

Connection Configuration

Start With the Faces You Need. Add Receivers Only Where Required.

The cube itself provides the six-face junction body. An EVT290S-BCS expansion receiver is used to add a connection point to an available face. Select the number and direction of receivers based on the approved structure.

Two-Way
Connect two tubes at a selected 90-degree relationship.
Three- and Four-Way
Add faces as needed for light-duty corners and frame intersections.
Five- and Six-Way
Use additional receivers only when all required faces and structure requirements are confirmed.
EVT290S-BCS Required
Use a compatible expansion receiver for every added connection face.

Included Hardware

MultiCube Hardware for Two Connection Sides.

The source lists the MultiCube with connecting hardware for two sides only. Additional connection sides require compatible EVT290S-BCS expansion receivers and the appropriate connection hardware.

1 MultiCube
One 50 mm six-face aluminum junction block.
Hardware for 2 Sides
Included connecting hardware supports two connection sides.
Additional Sides
Add compatible EVT290S-BCS expansion receivers and required hardware separately.

Technical Reference

EVT290A-MultiCube Specifications.

Identification

Product Details

Model / SKUEVT290A-MultiCube
Product TypeSix-Way Junction Block
Weight1.33 lb / 0.60 kg

Dimensions

Cube Size

Dimensions50 x 50 x 50 mm
Available Faces6
Connection Capacity2 through 6 Ways

Construction

Material and Finish

MaterialAluminum Alloy EN AW-6061 T6
FinishBrushed Aluminum
Included HardwareMultiCube and Hardware for 2 Sides

Expansion

Additional Connections

Expansion ReceiverEVT290S-BCS
Application ClassLight Duty

System Compatibility

Single-Tube Structures and 290 mm Truss Expansion Receivers.

The MultiCube is primarily a light-duty single-tube junction block. It may be used with 290 mm truss systems only through compatible EVT290S-BCS expansion receivers. Do not assume physical fit establishes structural equivalence; confirm actual receivers, tubes, hardware, and complete-structure requirements before use.

Single-Tube Structures
Designed for compatible 50 mm single-tube applications.
EVT290S-BCS Expansion
Use compatible expansion receivers to interface with 290 mm truss systems.
Receiver Match
Confirm every receiver and tube matches the required connection method.

Assembly

Configure, Inspect, and Secure Each Active Face.

01 — Confirm Use
Confirm the structure is a light-duty application and identify the required active faces.
02 — Inspect Components
Do not use the cube, receivers, tubes, or hardware if damaged, deformed, cracked, or defective.
03 — Add Receivers
Install compatible EVT290S-BCS receivers on each additional face needed.
04 — Secure Connections
Ensure all connectors, coupler-pins, and r-clips are correctly installed and secured.

Safety and Engineering

Light-Duty Use Only. Do Not Create a Direct Load Point.

The EVT290A-MultiCube is rated for light-duty use only. Do not exceed the capacity of the cube or connected single tubes. Do not support loads directly from a cube connection point. A licensed professional engineer must review all structures and installations using this component.

Use the MultiCube for light-duty applications only.
Do not support loads directly from a connection point on the cube.
Inspect the MultiCube before every use; do not use it if damage or a defect is present.
Do not use damaged components or fewer connectors than the approved configuration requires.
Have the complete structure reviewed by a licensed professional engineer.
Confirm Current Documentation Before Ordering or Installing
Confirm current manufacturer drawings, instructions, included hardware, receiver selection, and complete structure requirements before ordering or installing the EVT290A-MultiCube. Light-duty, public-facing, suspended, outdoor, or other load-bearing uses require project-specific review by qualified rigging and engineering personnel before use.

Product Questions

EVT290A-MultiCube Frequently Asked Questions.

How many connection directions can the MultiCube support?

It has six available faces and can be configured for two through six connection directions using compatible receivers.

What hardware is included?

The source lists the MultiCube with connecting hardware for two sides. Additional sides require compatible expansion receivers and required hardware.

What is EVT290S-BCS used for?

An EVT290S-BCS expansion receiver is used to add a connection point to an available MultiCube face.

Can the MultiCube be used as a load point?

No. It is light-duty only; do not support loads directly from a cube connection point.
