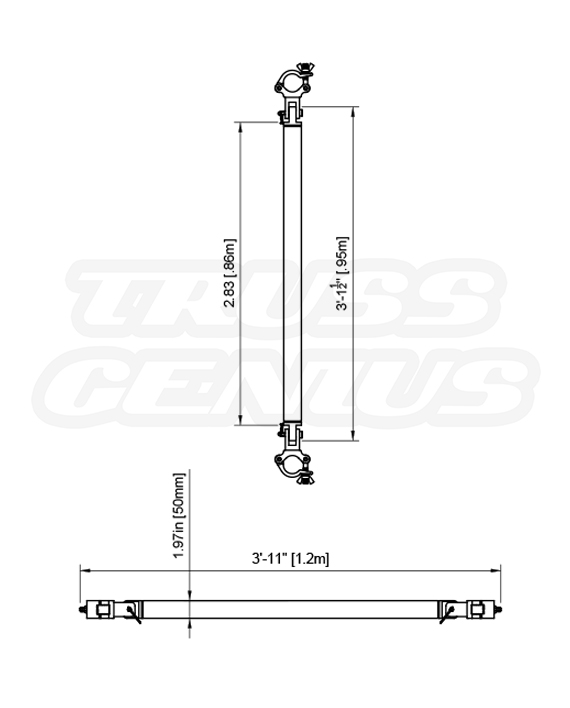

EVT290A‑TCB technical drawing showing brace dimensions and clamp layout

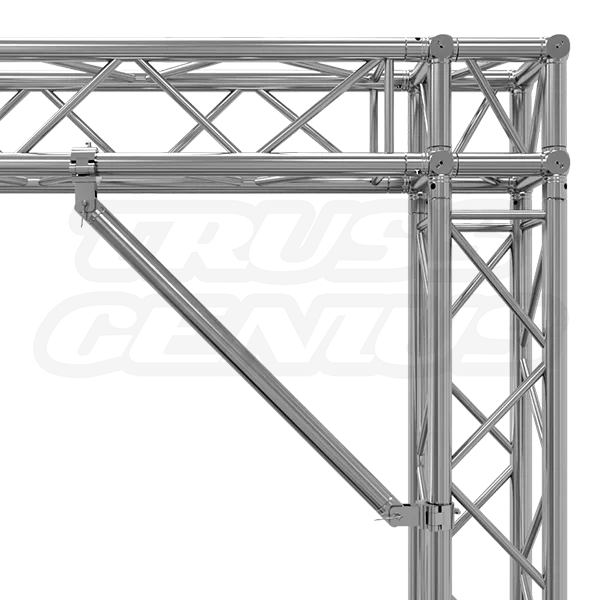

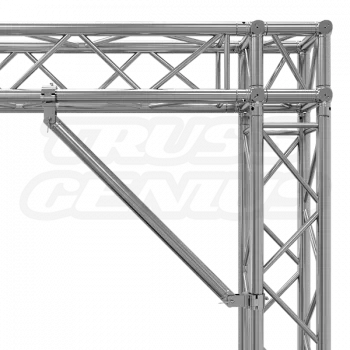

EVT290A‑TCB installed corner brace reinforcing 90 degree truss junction
EVT290A‑TCB aluminum corner brace with 180‑degree swivel clamps for 290 mm and F34 truss systems
EVT290A‑TCB technical drawing showing brace dimensions and clamp layout
EVT290A‑TCB installed corner brace reinforcing 90 degree truss junction

EVT290A-TCB

Original price was: $135.00.Current price is: $128.00.

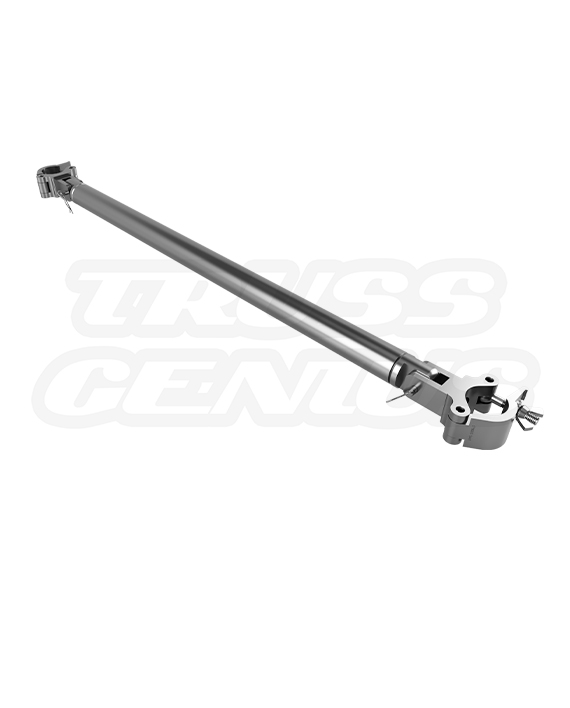

EVT290A-TCB — Universal Truss Corner Stabilizer Bar with Swivel Clamps (37″ Length)

Dimensions & Specs
Overall Length: 37.40 in (950 mm)
Tubing Dimensions: 2.0 in (50 mm) OD / 0.08 in (2 mm) Wall Thickness
Clamp Range: 48 mm – 51 mm (Fits 2″ Tube)
Function: Rigidifies truss structures to minimize flexibility and movement

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Attachment: Narrow Pro Clamp at each end (Swivel 180 Degree)
Compatibility: EVT290I, EVT290T, EVT290S, EVT12S, EVT20S, and all 290mm, F34, and F33 Truss Systems

Finish & Features
Surface: Aluminum Brush Finish
Feature: Clamps swivel 180 degrees for versatile installation angles
Weight: 12 lb (5.44 kg)

In stock

SKU: EVT290A-TCB Categories: , , , ,

Truss Corner Reinforcement Knowledge Center

EVT290A-TCB Aluminum Corner Brace.
A 950 mm / 37.40 in Reinforcement Bar with 180-Degree Swivel Clamps for 50 mm Truss Chords.

The EVT290A-TCB is an aluminum corner reinforcement bar for bracing compatible 90-degree truss junctions. Its two Narrow Pro Clamps fit 48–51 mm tubing and swivel 180 degrees to support positioning on standard 50 mm / 2 in main chords. The brace is intended to help stiffen truss geometry and reduce flex, sway, and racking in reviewed ground-support structures, large display frames, staging, lighting, and event layouts. It is a reinforcement accessory only—not a lighting bar, rigging point, direct load-attachment location, or substitute for full structural design and required engineering review.

Product Facts

Model / SKUEVT290A-TCB
Product ClassAluminum Truss Corner Brace
Overall Length950 mm / 37.40 in
Clamp Fit Range48–51 mm Tubing
Clamp Movement180-Degree Swivel
Weight12 lb / 5.44 kg
950 mmOverall Length
37.40 inOverall Length
48–51 mmClamp Fit Range
180°Clamp Swivel Range
90°Corner Reinforcement Context

Product Overview

A Corner Brace for Reinforcing Compatible 90-Degree Truss Junctions.

The EVT290A-TCB bridges the inside of a compatible truss corner using a rigid aluminum bar and a Narrow Pro Clamp at each end. It is designed for use on 50 mm / 2 in main chords where the clamp range, bracing clearance, junction geometry, and complete structure have been verified. Its 180-degree swivel clamps support positioning, but the final installation must be appropriate for the actual corner, truss system, load arrangement, and approved structural plan.

Corner Reinforcement
Braces a compatible 90-degree truss junction to help stiffen the geometry and reduce flex, sway, and racking.
Narrow Pro Clamps
A Narrow Pro Clamp at each end is intended to seat on compatible 48–51 mm tubing, including standard 50 mm main chords.
180-Degree Swivel
Each clamp swivels 180 degrees to support positioning within a verified compatible truss-corner arrangement.
Reinforcement Only
The brace is not a lighting bar, direct load point, rigging point, or substitute for a complete engineered structure.

What It Does

It Braces a Verified Corner. It Does Not Create a New Load Rating.

When correctly installed across a compatible 90-degree junction, the brace helps resist unwanted movement of the corner geometry. It does not independently establish permitted loading, span, pick-point location, support arrangement, or approval for the structure. Evaluate the complete assembled system, including the truss sections, connections, supports, loads, and installed brace.

Supports
Helps stiffen a compatible 90-degree corner against flex, sway, and racking when installed in an appropriate reviewed configuration.
Does Not Establish
Does not establish a load rating, allowable span, pick point, support plan, or approval for the completed structure.
Does Not Replace
Does not replace proper truss connections, supports, bracing design, load calculations, inspection, or required engineering review.
Does Not Permit
Does not permit hanging fixtures, rigging hardware, cable loads, or other loads directly from the brace.

Selection Guidance

Select the TCB When A Reviewed 90-Degree Corner Requires Additional Stiffening.

Use the EVT290A-TCB when a compatible ground-support structure, display frame, staging layout, lighting structure, or event build includes a reviewed 90-degree truss junction that requires corner reinforcement. Confirm that the truss has compatible 48–51 mm main chords, adequate diagonal-brace clearance, and a suitable location for the complete brace assembly.

90-Degree Junctions
Use across a verified 90-degree truss junction where the brace geometry and clamp positions can be properly seated.
50 mm Main Chords
Use only where the clamp range matches the actual main-chord diameter; the stated clamp range is 48–51 mm.
Ground-Support Context
Use in reviewed ground-support, staging, display-frame, and other structural layouts where corner bracing is part of the plan.
Not a General Clamp Bar
Do not treat the brace as a universal hanging bar, pipe support, substitute connector, or correction for damaged truss geometry.

Technical Reference

EVT290A-TCB Product Specifications.

Identification

Product Details

Model / SKUEVT290A-TCB
BrandEvolve Truss
Product TypeAluminum Truss Corner Brace
Primary Function90-Degree Corner Reinforcement

Dimensions and Weight

Physical Reference

Overall Length950 mm / 37.40 in
Documented Width1196.01 mm
Documented Height110.11 mm
Documented Depth64.76 mm
Weight12 lb / 5.44 kg

Construction

Material and Clamps

MaterialEN AW-6061 T6 Aluminum Alloy
FinishBrushed Aluminum
End ClampsNarrow Pro Clamp at Each End
Clamp Swivel Range180 Degrees
Clamp Fit Range48–51 mm Tubing

System Context

Compatibility Reference

Main-Chord ContextStandard 50 mm / 2 in Tubing
Evolve Truss ContextEVT290I, EVT290T, EVT290S, EVT12S, EVT20S
Other System ContextCompatible 290 mm, F34, and F33 Systems
Direct Load UseNot a Load Attachment or Rigging Point

System Compatibility

Compatible 50 mm Main Chords. Verify the Actual Tube, Clearance, and Corner Geometry.

The EVT290A-TCB is intended for compatible professional truss systems with 48–51 mm main chords, including the listed EVT290I, EVT290T, EVT290S, EVT12S, EVT20S, 290 mm, F34, and F33 contexts. Compatibility is not automatic. Verify actual tube diameter, clamp seating, diagonal-brace clearance, junction angle, structural layout, and the full installation before use.

50 mm Main-Chord Fit
Confirm the actual main chord falls within the 48–51 mm clamp range before installation.
Diagonal-Brace Clearance
Confirm that diagonal bracing and other truss geometry allow both clamps to seat fully on the main chords.
Compatible System Context
The product source identifies EVT290I, EVT290T, EVT290S, EVT12S, EVT20S, and compatible 290 mm, F34, and F33 systems.
Mixed-System Verification
Test-fit separately sourced or mixed-brand components on the ground before lifting and verify the completed structure.

Installation Checks

Inspect the Corner. Then Seat, Secure, and Review the Complete Brace Assembly.

Install the brace only after confirming that it is part of the reviewed corner-bracing plan. The bar must be straight, clamps and swivel mechanisms must be serviceable, both clamps must seat fully on compatible main chords, and all hardware must be tightened to the applicable manufacturer specification before loading or lifting the structure.

01 — Confirm the Bracing Plan
Confirm that the brace location, 90-degree corner geometry, support arrangement, loading condition, and required approvals match the reviewed design.
02 — Inspect the Brace
Do not use a brace that is bent, cracked, damaged, or otherwise compromised. Inspect clamps and swivel mechanisms before installation.
03 — Verify Tube Fit and Clearance
Verify 48–51 mm main-chord diameter, full clamp seating, and adequate clearance from diagonal bracing or adjacent components.
04 — Position Both Clamps
Use the clamp swivel range to position the brace appropriately for the verified corner geometry; do not force a misaligned assembly.
05 — Tighten to Specification
Tighten clamp wing nuts, bolts, or other fasteners to the applicable manufacturer-specified torque and inspect both clamp connections.
06 — Inspect the Structure
Verify the full truss structure, its supports, connections, loads, and installed brace assembly before lifting or applying load.

Safety and Engineering

A Corner Brace Reinforces Geometry. It Does Not Replace Structural Design.

The EVT290A-TCB is a structural reinforcement accessory for appropriate truss corners. It does not independently establish a load rating for the completed structure and is not a load-attachment point. Do not hang loads from the brace. Do not infer permitted span, loading, support arrangement, or approval from its installation. Evaluate the complete configuration, including the truss, connections, supports, load arrangement, and required engineering review.

Do not hang, rig, suspend, or support loads directly from the corner brace.
Do not use the brace as a lighting bar, rigging point, cable support, or substitute for properly designed truss and support components.
Do not exceed the capacity of the brace, clamps, truss system, connections, supports, hoists, or the complete structure.
Inspect the bar, clamps, and swivel mechanisms before every installation; remove damaged or deformed components from service.
Use only on compatible 48–51 mm main chords and verify full clamp seating without diagonal-brace interference.
Tighten clamp hardware to the applicable manufacturer specification; do not rely on partial seating or incomplete tightening.
Do not use the brace to force damaged, incompatible, or misaligned truss sections into position.
Have the complete structure reviewed by a qualified authority or licensed professional engineer where required.

Product Questions

Frequently Asked Questions.

What does the EVT290A-TCB do?

It is a corner reinforcement bar for bracing compatible 90-degree truss junctions to help reduce flex, sway, and racking in the reviewed complete structure.

Can I hang a light or rigging load from the brace?

No. The brace is reinforcement only. It is not a lighting bar, rigging point, or direct load-attachment location.

What tubing does it clamp to?

The stated Narrow Pro Clamp range is 48–51 mm tubing, intended for standard 50 mm / 2 in truss main chords. Verify the actual tube diameter and full clamp seating before use.

Do the clamps swivel?

Yes. The Narrow Pro Clamps have a stated 180-degree swivel range for positioning within a compatible verified corner arrangement.

What truss systems are listed as compatible?

The source identifies EVT290I, EVT290T, EVT290S, EVT12S, EVT20S, and compatible 290 mm, F34, and F33 truss-system contexts. Confirm actual tube fit, clearance, geometry, and structural suitability before installation.

Does the brace establish a load rating for my corner?

No. Permitted loading depends on the complete structure, including truss sections, supports, connections, loading arrangement, and required engineering review.

Need to reinforce a compatible 90-degree truss corner?

Contact us for product identification, clamp-fit guidance, corner-bracing planning, compatibility checks, technical documents, and engineering coordination.
