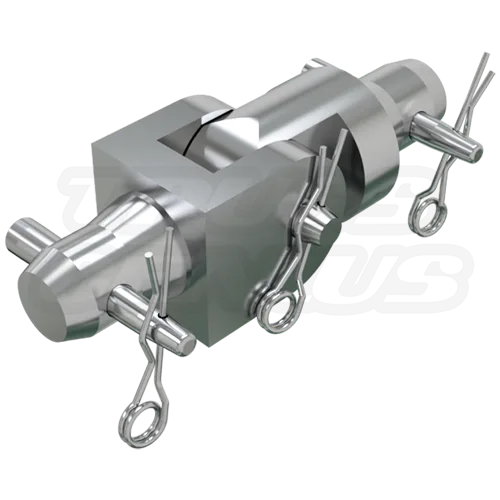

EVT290A-TMH — Variable Angle Low Profile Truss Hinge
Dimensions & Specs
Function: Variable angle connection for creating custom shapes and angles
Range: 180 Degree rotation
Mechanism: Non-lockable (Free rotation)
Design: Low Profile design for minimal gap between truss segments
Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Type: Variable Angle Truss Hinge
Compatibility: Fits all standard 290mm Truss systems
Finish & Features
Surface: Aluminum Brush Finish
Weight: 1.82 lb (0.83 kg)
In stock
EVT290S Truss Systems Knowledge Center
EVT290A-TMH Variable-Angle Truss Hinge.
For Adjustable 290 mm Truss Connections from 0 through 180 Degrees.
The EVT290A-TMH is a free-moving, non-lockable variable-angle hinge for compatible 290 mm square conical truss systems. It allows angular connections from 0 through 180 degrees for arches, closed polygon structures, and custom display frames. A closed structure, external bracing, guying, or another approved restraint method must maintain the final angle.
Product Facts
Product Overview
A Free-Moving Hinge for Adjustable Truss Angles.
The TMH replaces a rigid connection where a truss structure needs an adjustable angle. Its hinge range supports flat, folded, and intermediate configurations, but it is not a locking corner. The final angle must be controlled by the complete truss structure or by approved external restraint.
Application Uses
Create Controlled Angles in Closed or Properly Restrained Structures.
The TMH is intended for compatible truss structures where the completed assembly maintains the selected angle through its own form, bracing, guying, or other approved restraint.
Mechanism Limits
The Hinge Allows an Angle. It Does Not Hold the Angle by Itself.
The TMH is free-moving and non-lockable. It may find its final angle within a closed or properly braced structure, but the hinge alone cannot establish or retain that angle. Do not use it as a rigid corner, fixed angle block, or substitute for restraint.
Included Hardware
One Variable Hinge and Two Complete Coupler-Pin Sets.
Each unit includes 1 variable-angle hinge, 2 coupler-pins, and 2 r-clips. One coupler-pin and r-clip set secures each truss-side connection of the hinge.
Technical Reference
EVT290A-TMH Specifications.
Identification
Product Details
Mechanism
Angle Movement
Construction
Material and Hardware
Compatibility
System Fit
System Compatibility
Compatibility Requires More Than a Nominal 290 mm Match.
The TMH is designed for compatible 290 mm square conical truss systems. Physical fit alone does not establish equivalent capacity, an approved angle, or a safe completed structure.
Assembly
Connect Both Sides, Then Confirm How the Final Angle Is Restrained.
Safety and Engineering
A Free-Moving Hinge Cannot Hold an Angle Alone.
The TMH does not lock into a fixed position. Do not rely on the hinge alone to hold an angle. The completed structure must maintain its shape through its connected sections, bracing, guying, or another approved restraint method.
Product Questions
EVT290A-TMH Frequently Asked Questions.
Does the TMH lock at a selected angle?
No. It is a free-moving, non-lockable hinge. The completed structure or approved external restraint must maintain the final angle.
What angle range does it allow?
The hinge allows movement from 0 through 180 degrees.
What hardware is included?
Each unit includes 1 hinge, 2 coupler-pins, and 2 r-clips.
Can it replace a rigid corner?
Not when a rigid fixed-angle connection is required. The TMH is non-lockable and requires the completed structure or approved restraint to control the angle.
Need an Adjustable Hinge for a 290 mm Truss System?
Contact us for hinge selection, hardware guidance, restraint planning, and engineering coordination.
