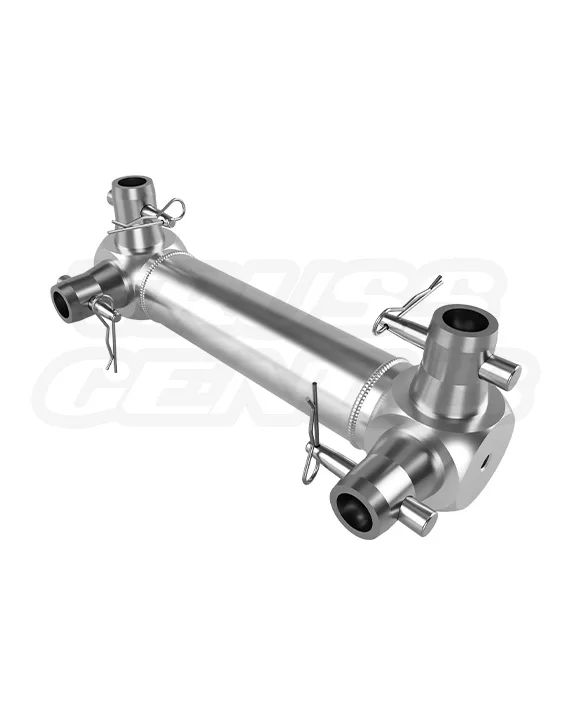

EVT290I-5DB

Product Knowledge Center

EVT290I-5DB

Custom Powder Coat Finishes Available Upon Request

Our line of 50mm 1.96" - Clamps were developed explicitly for this truss system.

Do not exceed the load capacity of the EVT290I-5DB. No loads are permitted or should be supported from the connection point of the trusses. The EVT290I-5DB should be thoroughly inspected before use. If any damage or defect occurs, the EVT290I-5DB should not be used. Handle the truss segments with care and caution. Don’t drop them, drag them, and don’t throw truss segments on top of each other. Truss assembly should be carried out by those who are familiar with trussing. Do not attach the truss with damaged or fewer coupler connectors than required. Ensure the coupler connectors are installed correctly and that the coupler pin and cotter pins are in place and secured.

EVT290I-5DB Specifications
Model Number: EVT290I-5DB
Truss Series: EVT290I
Brand Name: Evolve Truss
Place of Origin: Shenzhen, China
Material: Aluminum Alloy AW-6082 T6
Measurement System: Metric
Length: 0.05-Meter
Overall Truss Diameter: 290mm x 290mm
Main Tubing Outer Diameter: 50mm
Main Tubing Wall Thickness: 2mm
Brace Tubing Outer Diameter: 20mm
Brace Tubing Wall Thickness: 2mm
Finish: Brushed Aluminum
Shape: I-Beam Straight Section
Certification: TUV
Product Weight: 1.70Kgs
