EVT290S-050 Evolve Truss 1.64-Foot Truss Straight Section - Durable Medium-Duty Aluminum Truss, TUV-Certified

EVT290S-050 | 1.64ft (0.5m)

Original price was: $389.00.Current price is: $295.00.

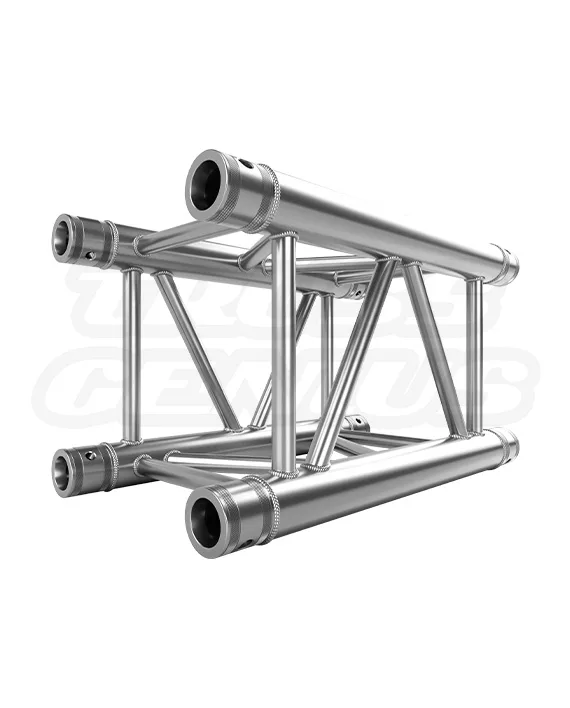

EVT290S-050 — 0.5 Meter (1.64 ft) Medium-Duty Square Aluminum Conical Truss

Technical Specifications

Dimensions & Sizing
Overall Length: 1.64 ft (0.5 m) straight truss segment
Outer Width: 11.41 in (290 mm) Square

Professional Construction
Material: EN AW-6082 T6 Aluminum Alloy
Main Tubing: 1.96 in (50 mm) outer diameter with 0.078 in (2 mm) wall thickness
Brace Tubing: 0.78 in (20 mm) diagonal bracing with 0.078 in (2 mm) wall thickness

Finish & Connection Features
Surface Finish: Brushed Aluminum (Natural)
Certification: TUV-certified for international safety and quality standards
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 12 lb (5.45 kg)

In stock

SKU: EVT290S-050 Category:

EVT290S Truss Systems Knowledge Center

0.5 m Square Aluminum Truss for Short Runs and Layout Adjustments.
A Half-Meter Straight Section for Stage, Display, Lighting, and Production Builds.

The EVT290S-050 is a 0.5 m / 1.64 ft straight section for compatible EVT290S, F34, and matching 290 mm square-truss systems. Use it when a truss layout calls for a half-meter section to complete a run, finish a frame, set an opening, or adjust the length of a stage, exhibit, lighting, or display build.

Identity and Core Facts

Model / SKUEVT290S-050
Section Length0.5 m / 1.64 ft
Truss Profile290 x 290 mm Square
Weight12 lb / 5.45 kg
ConnectionConical Coupler System
CertificationTUV Certified
0.5 mStraight Length
290 mmSquare Profile
50 x 2 mmMain Chords
20 x 2 mmDiagonal Braces
12 lbSection Weight

Straight Section Overview

A Short Straight Section for the EVT290S Truss System.

The EVT290S-050 is a half-meter straight member for completing short sections of a compatible 290 mm square-truss build. It is selected when a planned structure needs a shorter section than a standard 1 m or longer piece can provide—such as closing a frame, finishing a perimeter, setting an opening, or adjusting a stage, exhibit, lighting, or display run.

Half-Meter Section
Use the 0.5 m length where the drawing calls for a short straight section between compatible truss connection points.
Build with the Series
Combine the section with longer compatible EVT290S members, corners, and support components to complete the required truss layout.
Matching Profile
The 0.5 m section uses the same 290 mm square profile and conical connection system as compatible EVT290S components.

Length Selection

Why Choose a 0.5 m Straight Section?

A half-meter section gives a build team another option when fitting the overall truss run. Use it with longer EVT290S sections when the planned layout calls for a short addition rather than a full-meter section.

Finish a Run
Use a 0.5 m section when the drawing calls for a short addition to a run, perimeter, header, entry opening, or support frame.
Set the Required Spacing
Use a short straight section where the planned spacing between lighting, scenic, display, camera-support, or other attachment locations calls for a half-meter run.
Combine Section Lengths
Pair the 0.5 m section with longer EVT290S straight sections to build the overall run called for in the project drawing.

Applications

A Short Straight Member for Production and Display Builds.

Use the EVT290S-050 wherever a compatible truss build calls for a half-meter section. The completed structure determines the required supports, rigging method, loads, and accessories.

Exhibit Displays
Finish booth frames, headers, entry structures, display bays, and branded environments where the required run includes a 0.5 m section.
Stage and Scenic Structures
Use within planned scenic frames, presentation structures, lighting grids, and stage architecture built from compatible truss components.
Studios and AV Systems
Add a short straight section to studio frames, display structures, camera-support layouts, and project-specific production systems.
Lighting Grids and Display Towers
Close a planned perimeter, add a short run, or complete a goalpost or display-tower assembly in a compatible system.

Series Construction

290 mm Square Truss with Conical Coupler Connections.

The EVT290S-050 carries the core construction of the EVT290S series in a half-meter straight section: a 290 x 290 mm square profile, 50 mm main chords, 20 mm diagonal braces, EN AW-6082 T6 aluminum, brushed-aluminum finish, and conical end connections.

290 mm Square Profile
The 290 x 290 mm profile is designed for compatible square-truss components with matching receiver spacing and connection interfaces.
50 mm Main Chords
Main chords measure 50 mm outside diameter with 2 mm wall thickness and provide the primary connection and accessory-attachment tubing.
20 mm Diagonal Braces
Diagonal braces measure 20 mm outside diameter with 2 mm wall thickness.
Conical Connection System
Conical couplers, coupler pins, and r-clips create the mechanical interface between compatible truss sections.

Included Connection Hardware

What Ships with the EVT290S-050.

Each straight section ships with the connection hardware used to join it to compatible conical-receiver components. Confirm the project component schedule before assembly; a finished structure may also require longer sections, corners, base plates, clamps, ballast, rigging hardware, and other project-specific items.

4 Conical Couplers
Couplers create the mechanical connection between the section and compatible receiver ends.
8 Coupler Pins
Pins secure the couplers after the mating components have been aligned and fully seated.
8 R-Clips
R-clips retain each fully seated coupler pin and must be installed before the structure is moved or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-050
BrandEvolve Truss
Product TypeSquare Aluminum Straight Truss Section
CertificationTUV Certified

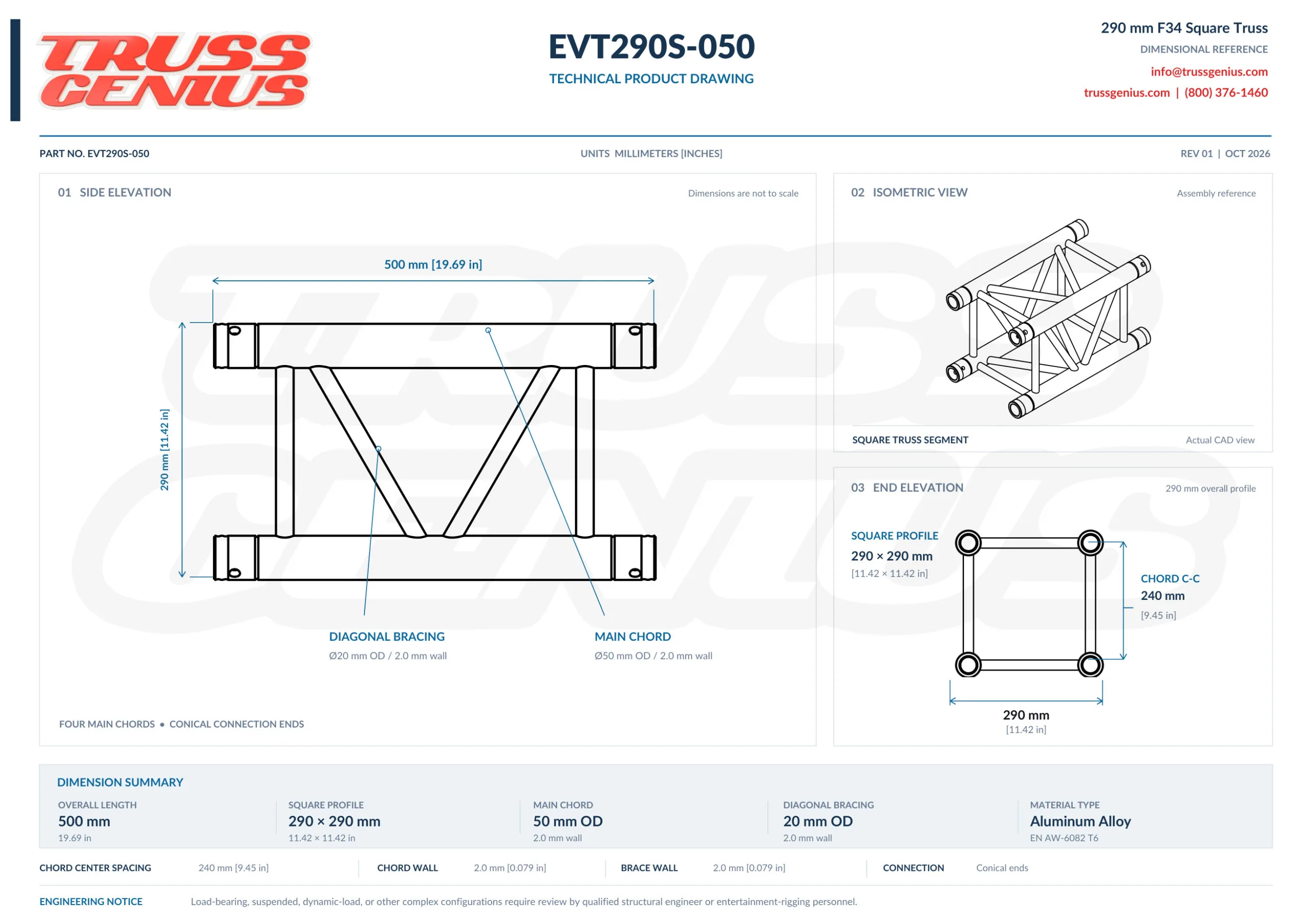

Dimensions

Section Size

Length0.5 m / 1.64 ft
Width290 mm / 11.41 in
Height290 mm / 11.41 in
Weight12 lb / 5.45 kg

Construction

Tube and Material Data

Main Chords50 mm OD x 2 mm Wall
Diagonal Braces20 mm OD x 2 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum

Connection Set

Included Hardware

Connection TypeConical Coupler System
Couplers4 Included
Coupler Pins8 Included
R-Clips8 Included

System Compatibility

Match the Truss Profile and Connection Before You Build.

The EVT290S-050 is intended for compatible EVT290S, F34, and matching 290 mm square-truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm the receiver spacing, coupler fit, chord spacing, alignment, and applicable system documentation before assembly.

Receiver Spacing
All four receiver positions should align without pulling, spreading, or forcing the truss faces together.
Coupler Seating
Use couplers that match the receiver interface of both connected components and verify even seating before installing pins.
50 mm Clamp Fit
The 50 mm OD main chords accept compatible 50 mm / 1.96 in clamps for approved equipment and accessory attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Related System Components

Add the Accessories Required by Your Configuration.

The EVT290S-050 fits within a broader 290 mm truss system. Related components should be selected separately according to the planned structure and approved application; their product pages carry their own fit, use, and working-load information where applicable.

Matching Truss Components
Add compatible straight sections, corners, base plates, and connection hardware to complete the required truss layout.
50 mm Clamps
Use compatible 50 mm / 1.96 in clamps for approved lighting, equipment, and accessory attachment to the main chords.
Rigging and Retention
Select truss picks, slings, shackles, and safety cables from their individual product data and the requirements of the complete rigging plan.
Ground-Support Components
Select base plates, ballast, and related support components according to the completed structure and its reviewed requirements.

Connection and Inspection

Confirm Fit First. Then Seat, Pin, and Retain.

Once receiver spacing and compatible hardware are confirmed, assemble the connection in this order. Prepare the current project drawing, compatible mating components, supplied connection hardware, and approved support or rigging plan. Assemble on a stable work surface with access to inspect every receiver and pin location.

01 — Inspect Components
Inspect the section, receiver ends, couplers, pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Insert Couplers
Place the four conical couplers into the receiver positions and confirm that they sit correctly.
03 — Align the Truss Faces
Bring the mating component into position evenly. The truss faces should close without excessive force.
04 — Pin and Retain
After alignment is confirmed, install every coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

Engineering Reference

F34 Load-Span Information Applies to the Completed Truss Run.

Compatible F34 load-span tables are available as a general reference for simply supported truss runs up to 12 m / 39.4 ft. The tables address the completed truss configuration—not an individual EVT290S-050 straight section—and should be used only with the applicable engineering notes, connection requirements, and project review.

Published Load Cases
Reference tables identify uniformly distributed loads, center-point loads, third-point loads, and quarter-point loads for applicable simply supported F34 truss spans.
Panel-Point Loading
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved load-attachment point.
Loads Are Not Additive
Published load cases are alternatives, not values to combine. Evaluate the actual span, support condition, load location, and load type using applicable engineering information.
Engineer Review Required
The engineering reference is general guidance only. Each finished truss structure, lighting plot, and use must be reviewed as required for the specific project by a licensed professional engineer.

System Responsibility

Capacity Comes from the Completed Configuration.

This 0.5 m section does not establish an independent span or load rating for a finished structure. Determine capacity from the complete arrangement, including connected components, span, orientation, supports, attachment locations, rigging method, applied loads, and environmental exposure. Use applicable manufacturer load tables and engineering information for the system being built.

Do not load an unverified connection point or treat one section as proof of capacity for the larger structure.
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved loading location.
Published load cases are not additive. Evaluate the actual span, support condition, load location, and load type using applicable engineering information for the completed truss run.
Do not use bridles unless they have been approved in writing by a licensed structural engineer. Dynamic or shock loads require separate consideration.
Inspect every coupler, pin, r-clip, clamp, sling, shackle, safety cable, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
Use trained personnel and obtain the project review required for suspended, public-facing, outdoor, or load-bearing truss systems.
Documentation and Project Review
Product specifications, included hardware, compatibility information, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular truss layout, span, loading condition, rigging plan, support arrangement, outdoor installation, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, or otherwise regulated truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Frequently Asked Questions

EVT290S-050 Questions.

Why choose a 0.5 m straight truss section?

Choose a 0.5 m section when a compatible 290 mm square-truss layout needs a short addition to finish a run, close a perimeter, set an opening, or complete a planned build.

What conical connection hardware is included?

Each EVT290S-050 section includes 4 conical couplers, 8 coupler pins, and 8 r-clips for compatible conical connections.

Can EVT290S-050 be connected to F34 truss?

Use it with F34 or other 290 mm systems only when receiver spacing, conical coupler fit, chord spacing, connection interface, and applicable engineering information are confirmed.

Can compatible 50 mm clamps and other EVT290S accessories be used with this section?

The 50 mm OD main chords accept compatible 50 mm / 1.96 in clamps for approved attachments. Select clamps, rigging accessories, and support components according to their individual product information and the requirements of the complete configuration.

Planning an EVT290S truss layout?

Contact us for matching straight sections, corners, base plates, 50 mm clamps, current technical documents, quantity pricing, and project coordination.
