Product Description

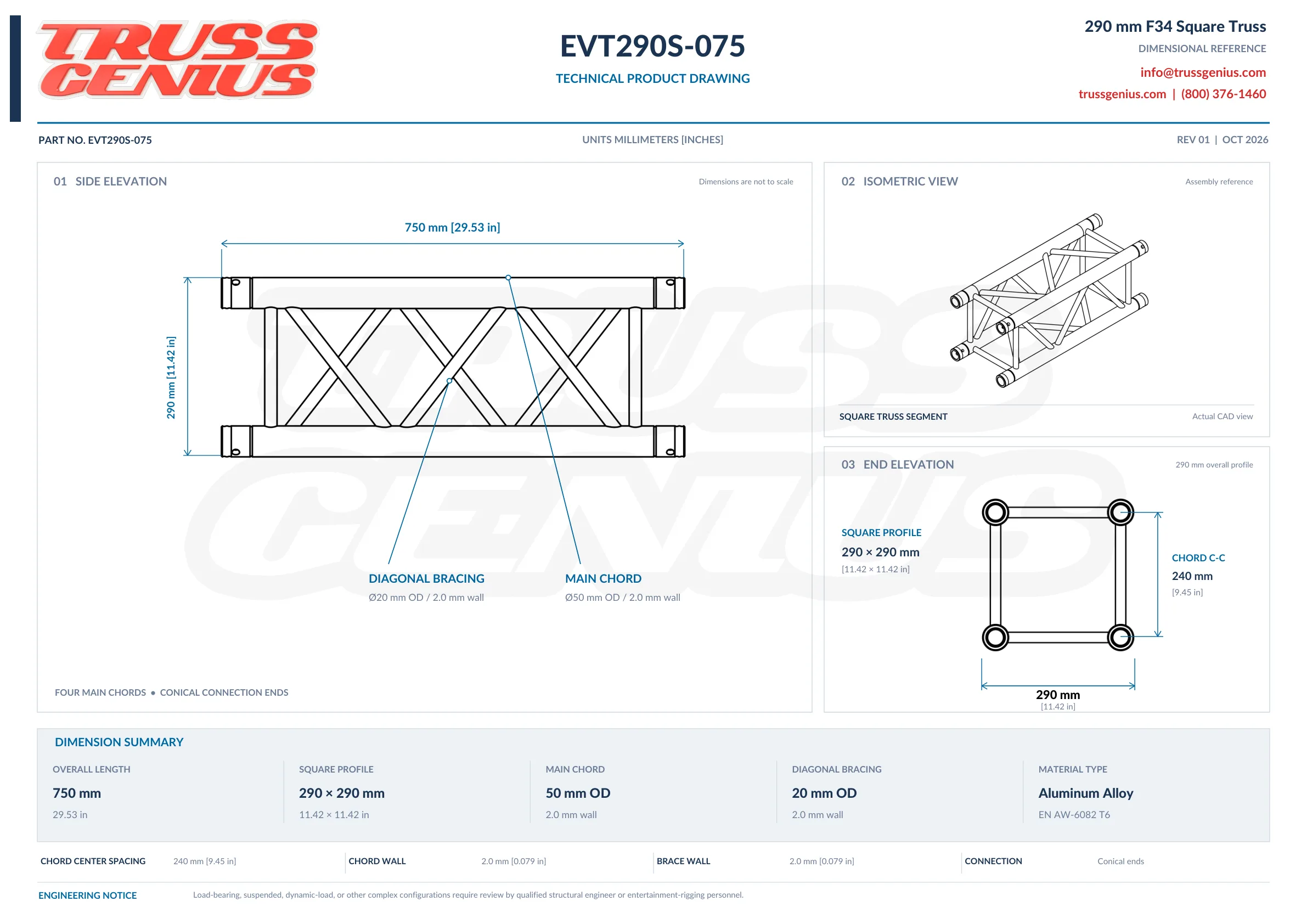

EVT290S-075 0.75 Meter (2.46 ft) Medium-Duty Conical Truss Section | 290 mm Square Truss

The EVT290S-075 Square Aluminum Truss is a precision-engineered 0.75 m (2.46 ft) straight segment designed for EVT290S 290 mm square conical aluminum truss systems. It is ideal for compact spans, spacing control, clean modular frames, goal-post builds, base structures, and tight layouts while maintaining proper alignment, load continuity, and full system compatibility.

Manufactured from high-grade 6082-T6 aluminum alloy and fabricated in accordance with TUV specifications, the EVT290S-075 delivers dependable structural performance without compromising strength or geometric accuracy. It features a secure conical connection system consisting of a conical receiver and conical coupler, always secured together with a Coupler Pin and R-clip for fast, repeatable assembly in professional production environments.

Finished in a clean brushed aluminum appearance, this truss section integrates seamlessly into lighting, staging, and AV systems where both structural performance and visual consistency are critical. It is designed for use with EVT290S 290 mm square truss systems and professional truss hardware in applications such as event production, staging, lighting grids, video wall support structures, trade-show exhibits, touring systems, and modular truss installations.

Key Features

• Truss Length: 2.46 ft (0.75 m) straight truss section for compact builds and modular layouts.
• Layout Control Segment: Ideal for tightening dimensions, adding short runs, and building clean frames.
• 290 mm Square Truss Compatibility: Compatible with F34, EVT290S, and all other brands using the 290 mm square truss system. Exact fit with other brands is not guaranteed.
• Structural Alignment & Load Continuity: Maintains straight truss runs and consistent load paths.
• Secure Conical Connection System: Conical receiver and coupler secured with a pin and R-clip.
• Durable, Corrosion-Resistant Construction: Built from 6082-T6 aluminum for long service life.
• Clean, Professional Appearance: Brushed aluminum finish integrates with existing EVT290S sections.
• Modular & Reusable Design: Ideal for touring systems, rental inventories, and reconfigurable builds.

Designed by Evolve Truss, the EVT290S-075 is compatible with 50 mm (1.97″) clamps, allowing seamless integration with common truss accessories and rigging hardware.

⚠️ Safety & Engineering Notice

❗ Critical Load Rating Information: The rated load capacity of this truss section depends on the complete
system configuration and total span length. This segment is typically not the limiting factor in a properly engineered structure.
Always consult applicable EVT290S load tables and a qualified engineer when determining load limits.

Important Guidelines for Safe Use:

• Never exceed the rated load capacity of the truss system.
• No loads shall be supported directly from truss connection points.
• Inspect all truss components before each use and remove damaged parts from service.
• Handle truss components with care—avoid dropping, dragging, or improper stacking.
• Assembly and installation must be performed only by trained and qualified personnel.
• Ensure all couplers, pins, and R-clips are correctly installed and fully secured.
• Account for all applicable forces, including dynamic and transverse forces such as wind loads.
• Do not mix truss components from different manufacturers.
• All truss structures must be reviewed and approved by a licensed professional engineer.

⚠️ Compatibility Warning for Mixed-Brand Builds

Crucial Steps for Safe Assembly:

• Verify all dimensions before integrating with other truss brands.
• Confirm conical connector type, node spacing, and system geometry.
• Mixing components without verification may compromise structural integrity and safety.
