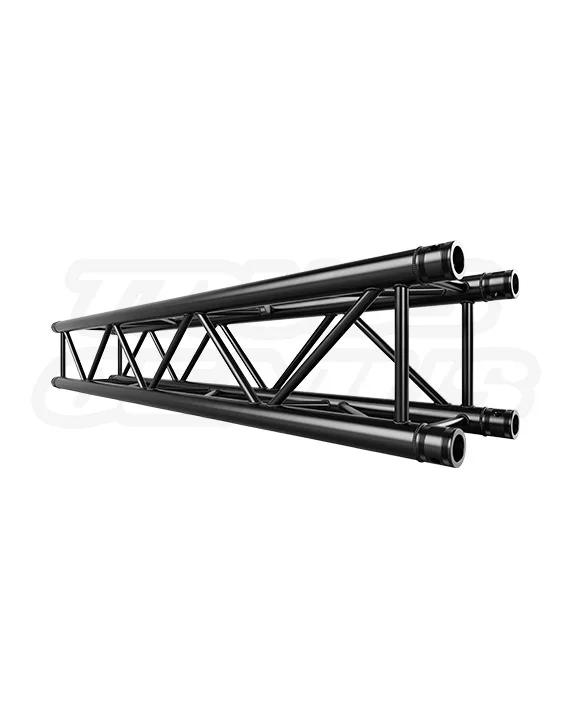

EVT290S‑175 Black — 5.74 ft square truss segment with matte black finish

EVT290S-175 Black | 5.74ft (1.75m)

Original price was: $805.00.Current price is: $536.00.

EVT290S-175 Black — 1.75 Meter (5.74 ft) Medium-Duty Square Aluminum Conical Truss (Matte Black)

Dimensions
Overall Truss Length: 5.74 ft (1.75 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 25 lb (11.33 kg)

In stock

SKU: EVT290S-175-Black Category:

EVT290S Truss Systems Knowledge Center

1.75 m Matte Black Square Truss Straight Section.
For Stable Motion Capture, Studio Grids, and Stage Structures.

The EVT290S-175 Black is a matte-black 1.75 m / 5.74 ft straight section for compatible EVT290S, F34, and matching 290 mm square-truss systems. Use this member where a stable motion-capture camera structure, studio grid, stage framework, trade-show exhibit, or other compatible build calls for a 1.75 m straight run.

Identity and Core Facts

Model / SKUEVT290S-175 Black
Section Length5.74 ft / 1.75 m
Truss Profile11.41 in / 290 mm Square
Weight25 lb / 11.33 kg
ConnectionConical Coupler System
CertificationTUV Certified
5.74 ftStraight Length
290 mmSquare Profile
50 x 2 mmMain Chords
20 x 2 mmDiagonal Braces
25 lbSection Weight

Straight Section Overview

1.75 m F34 Square Truss for Stable Camera-Mount Systems.

The EVT290S-175 Black is a 1.75 m straight member for compatible 290 mm square-truss systems. It is selected when a project needs an intermediate-length module between shorter straight sections and longer standard members. Use it for planned stable camera-mount structures, studio grids, stage frameworks, trade-show exhibits, and other truss runs that require this length.

5.74 ft Straight Section
Use this section where the drawing calls for a 1.75 m member between compatible truss connection points.
Intermediate-Length Module
The 1.75 m length fills planned runs between shorter fillers and longer standard members without adding unnecessary intermediate joints.
Matte Black Finish
The matte-black powder coat supports installations where the truss should remain visually subdued around cameras, lighting, scenic elements, displays, and stage work.

Length Selection

Why Choose a 5.74 ft Straight Truss Section?

A 1.75 m section is useful when the project drawing calls for an intermediate span between shorter straight sections and longer standard members. It can replace a combination of shorter sections where the completed layout calls for one 1.75 m straight run.

Add a 1.75 m Run
Use the 5.74 ft section when the drawing calls for a 1.75 m addition to a studio grid, camera-mount structure, stage frame, exhibit display, perimeter, or support structure.
Plan Around the Drawing
Select the straight-section length called for in the project drawing, then confirm corners, bases, supports, accessories, and connection hardware for the complete build.
Combine System Components
Pair this member with compatible EVT290S straight sections, corners, base plates, and other components required for the planned structure.

Matte Black Finish

Built to Support the Scene—Not Compete with It.

The EVT290S-175 Black uses a matte-black powder-coated finish for installations where truss should be visually restrained. Compared with bright aluminum surfaces, a matte-black truss finish can help reduce visible reflection and allow the structure to recede into darker production, presentation, studio, and exhibit environments.

Studio and Broadcast
A low-reflective black finish can help reduce the visual prominence of truss in camera-facing studio, livestream, broadcast, and virtual-production environments.
Stage and Live Production
Use matte black where lighting grids, goalposts, scenic frames, and support structures should remain less conspicuous to an audience or camera under controlled stage lighting.
Motion Capture Systems
Matte-black truss can help a structural frame stay visually subdued around a motion-capture area. Camera placement, illumination, markers, calibration, cable routing, and tracking performance remain project-specific decisions.
Exhibits and Branded Spaces
Choose matte black for a restrained architectural look when lighting, graphics, video walls, products, or scenic elements should carry the viewer's attention.

Camera Stability Infrastructure

Truss Support for Stable Camera-Mount Structures.

The EVT290S-175 Black can be used within a project-specific truss layout for stable mounting of compatible optical-tracking cameras and related studio equipment. A properly designed, secured truss camera structure can help keep cameras fixed in position around the capture area and reduce the need for recalibration caused by movement. The truss does not perform motion capture or establish tracking accuracy; camera placement, line of sight, calibration, lighting, cable routing, support conditions, and the completed system design remain project-specific.

Stable Camera-Mount Structure
Use compatible truss sections to create a stable, configurable camera-mount structure for a planned motion-capture or studio installation.
Fixed Camera Positions
Select straight-section lengths and corners according to planned camera positions, coverage area, mounting elevations, support conditions, and access requirements.
Approved Camera Mounts
Confirm clamp fit, attachment orientation, equipment mass, secondary retention, and applicable manufacturer instructions before mounting tracking cameras or other equipment.
Project-Specific Planning
Camera placement, line of sight, calibration, lighting, markers, cable routing, support conditions, vibration exposure, and tracking performance must be planned for the complete installation.

Applications

A 1.75 m Member for Camera, Studio, Stage, and Exhibit Systems.

Use the EVT290S-175 Black wherever a compatible truss build calls for a 1.75 m / 5.74 ft section. The completed structure determines the required supports, rigging method, loads, and accessories.

Stable Motion-Capture Camera Mounts
Use within a project-specific truss layout for mounting compatible optical-tracking cameras and related studio equipment. Confirm camera clamps, equipment mass, secondary retention, mounting locations, line of sight, calibration, cable routing, support conditions, and the complete system design before use.
Studio Grids
Add a 1.75 m section to a planned studio lighting grid, camera-support framework, virtual-production frame, or overhead equipment layout.
Stage Frameworks
Use within planned scenic frames, goalposts, presentation structures, and stage architecture where the drawing calls for this length.
Trade Show Exhibits
Build exhibit display frameworks, overhead branding, entryways, graphic-support frames, product display areas, and integrated lighting structures around the required truss run.

Series Construction

290 mm Square Truss with Conical Coupler Connections.

The EVT290S-175 Black carries the core construction of the EVT290S series in a 1.75 m straight section: a 290 x 290 mm square profile, 50 mm main chords, 20 mm diagonal braces, EN AW-6082 T6 aluminum, matte-black powder coat, and conical end connections.

290 mm Square Profile
The 290 x 290 mm profile is designed for compatible square-truss components with matching receiver spacing and connection interfaces.
50 mm Main Chords
Main chords measure 50 mm outside diameter with 2 mm wall thickness and provide the primary connection and accessory-attachment tubing.
20 mm Diagonal Braces
Diagonal braces measure 20 mm outside diameter with 2 mm wall thickness.
Conical Connection System
Conical couplers, coupler pins, and r-clips create the mechanical interface between compatible truss sections.

Included Connection Hardware

What Ships with the EVT290S-175 Black.

Each straight section ships with the connection hardware used to join it to compatible conical-receiver components. Confirm the project component schedule before assembly; a finished structure may also require longer sections, corners, base plates, clamps, ballast, rigging hardware, and other project-specific items.

4 Conical Couplers
Couplers create the mechanical connection between the section and compatible receiver ends.
8 Coupler Pins
Pins secure the couplers after the mating components have been aligned and fully seated.
8 R-Clips
R-clips retain each fully seated coupler pin and must be installed before the structure is moved or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-175 Black
BrandEvolve Truss
Product TypeMatte Black Square Aluminum Straight Truss Section
CertificationTUV Certified

Dimensions

Section Size

Length5.74 ft / 1.75 m
Width11.41 in / 290 mm
Height11.41 in / 290 mm
Weight25 lb / 11.33 kg

Construction

Tube and Material Data

Main Chords1.96 in / 50 mm OD x .08 in / 2 mm Wall
Diagonal Braces.79 in / 20 mm OD x .08 in / 2 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishMatte Black Powder Coat

Connection Set

Included Hardware

Connection TypeConical Coupler System
Couplers4 Included
Coupler Pins8 Included
R-Clips8 Included

System Compatibility

Match the Truss Profile and Connection Before You Build.

The EVT290S-175 Black is intended for compatible EVT290S, F34, and matching 290 mm square-truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm the receiver spacing, coupler fit, chord spacing, alignment, and applicable system documentation before assembly.

Receiver Spacing
All four receiver positions should align without pulling, spreading, or forcing the truss faces together.
Coupler Seating
Use couplers that match the receiver interface of both connected components and verify even seating before installing pins.
1.96 in / 50 mm Clamp Fit
The 1.96 in / 50 mm OD main chords accept compatible clamps for approved equipment and accessory attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Related System Components

Add the Accessories Required by Your Configuration.

The EVT290S-175 Black fits within a broader 290 mm truss system. Related components should be selected separately according to the planned structure and approved application; their product pages carry their own fit, use, and working-load information where applicable.

Matching Truss Components
Add compatible straight sections, corners, base plates, and connection hardware to complete the required truss layout.
1.96 in / 50 mm Clamps
Use compatible clamps for approved lighting, camera, equipment, and accessory attachment to the main chords.
Rigging and Retention
Select truss picks, slings, shackles, and safety cables from their individual product data and the requirements of the complete rigging plan.
Ground-Support Components
Select base plates, ballast, and related support components according to the completed structure and its reviewed requirements.

Connection and Inspection

Confirm Fit First. Then Seat, Pin, and Retain.

Once receiver spacing and compatible hardware are confirmed, assemble the connection in this order. Prepare the current project drawing, compatible mating components, supplied connection hardware, and approved support or rigging plan. Assemble on a stable work surface with access to inspect every receiver and pin location.

01 — Inspect Components
Inspect the section, receiver ends, couplers, pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Insert Couplers
Place the four conical couplers into the receiver positions and confirm that they sit correctly.
03 — Align the Truss Faces
Bring the mating component into position evenly. The truss faces should close without excessive force.
04 — Pin and Retain
After alignment is confirmed, install every coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

Engineering Reference

F34 Load-Span Information Applies to the Completed Truss Run.

Compatible F34 load-span tables are available as a general reference for simply supported truss runs up to 39.4 ft / 12 m. The tables address the completed truss configuration—not an individual EVT290S-175 Black straight section—and should be used only with the applicable engineering notes, connection requirements, and project review.

Published Load Cases
Reference tables identify uniformly distributed loads, center-point loads, third-point loads, and quarter-point loads for applicable simply supported F34 truss spans.
Panel-Point Loading
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved load-attachment point.
Loads Are Not Additive
Published load cases are alternatives, not values to combine. Evaluate the actual span, support condition, load location, and load type using applicable engineering information.
Engineer Review Required
The engineering reference is general guidance only. Each finished truss structure, lighting plot, camera-support layout, and use must be reviewed as required for the specific project by a licensed professional engineer.

System Responsibility

Capacity Comes from the Completed Configuration.

This 5.74 ft / 1.75 m section does not establish an independent span or load rating for a finished structure. Determine capacity from the complete arrangement, including connected components, span, orientation, supports, attachment locations, rigging method, applied loads, camera and lighting equipment, and environmental exposure. Use applicable manufacturer load tables and engineering information for the system being built.

Do not load an unverified connection point or treat one section as proof of capacity for the larger structure.
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved loading location.
Published load cases are not additive. Evaluate the actual span, support condition, load location, and load type using applicable engineering information for the completed truss run.
Do not use bridles unless they have been approved in writing by a licensed structural engineer. Dynamic or shock loads require separate consideration.
Inspect every coupler, pin, r-clip, clamp, camera mount, sling, shackle, safety cable, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
A matte-black finish can help reduce visible reflection, but it does not replace project-specific camera, lighting, tracking, calibration, or safety planning.
Use trained personnel and obtain the project review required for suspended, public-facing, outdoor, load-bearing, camera-support, motion-capture, or otherwise regulated truss systems.
Documentation and Project Review
Product specifications, included hardware, compatibility information, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular truss layout, span, loading condition, camera-mount arrangement, camera calibration plan, rigging plan, support arrangement, outdoor installation, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, camera-support, motion-capture, or otherwise regulated truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Frequently Asked Questions

EVT290S-175 Black Questions.

Why choose a 5.74 ft / 1.75 m straight truss section?

Choose this section when a compatible 290 mm square-truss design calls for a 1.75 m member. It provides an intermediate-length option between shorter straight sections and longer standard modules.

Can this truss support stable motion-capture camera mounting?

It can be used as part of a properly designed and secured compatible truss layout for stable camera mounting. Confirm camera clamps, equipment mass, secondary retention, mounting locations, line of sight, calibration, cable routing, support conditions, vibration exposure, and the complete system design before use.

Why use a matte-black truss finish?

Matte-black powder coating can help reduce visible reflection and make the structural framework less visually prominent in darker, camera-facing, or presentation-focused environments. It is a finish-selection benefit, not a guarantee of camera or tracking performance.

What conical connection hardware is included?

Each EVT290S-175 Black section includes 4 conical couplers, 8 coupler pins, and 8 r-clips for compatible conical connections.

Planning a stable motion-capture or studio truss system?

Contact us for matching straight sections, corners, base plates, compatible 1.96 in / 50 mm clamps, current technical documents, quantity pricing, and project coordination.
