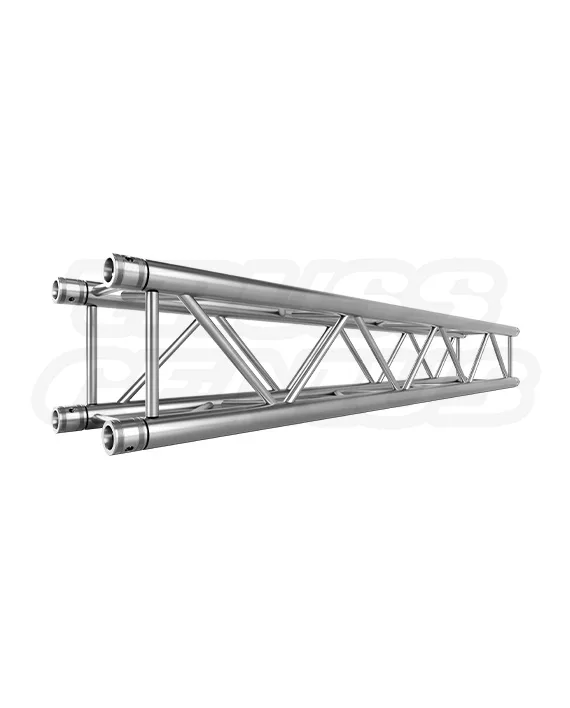

EVT290S‑194 — 6.36 ft square truss straight section in aluminum finish

EVT290S-194 | 6.36ft (1.94m)

Original price was: $719.00.Current price is: $479.00.

EVT290S-194 — 1.94 Meter (6.36 ft) Medium-Duty Square Aluminum Conical Truss

Dimensions
Overall Truss Length: 6.36 ft (1.94 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 30 lb (13.6 kg)

In stock

SKU: EVT290S-194 Category:

EVT290S Truss Systems Knowledge Center

1.94 m Square Truss Straight Section.
For Truss Goal Posts, Lighting Gateways, and Ground-Support Structures.

The EVT290S-194 is a brushed-aluminum 1.94 m / 6.36 ft straight section for compatible EVT290S, F34, and matching 290 mm square-truss systems. Use this member as a horizontal header or upright component where a project-specific truss goal post, lighting gateway, ground-support structure, exhibit frame, or other compatible layout calls for a 1.94 m straight run.

Identity and Core Facts

Model / SKUEVT290S-194
Section Length6.36 ft / 1.94 m
Truss Profile11.41 in / 290 mm Square
Weight30 lb / 13.6 kg
ConnectionConical Coupler System
CertificationTUV Certified
6.36 ftStraight Length
290 mmSquare Profile
50 x 2 mmMain Chords
20 x 2 mmDiagonal Braces
30 lbSection Weight

Straight Section Overview

1.94 m F34 Square Truss for Goal-Post Structures.

The EVT290S-194 is a 1.94 m straight member for compatible 290 mm square-truss systems. It is selected when a project needs a longer modular section without moving to a full 2 m member. Use it as part of planned truss goal posts, lighting gateways, ground-support frames, exhibit structures, stage layouts, and other truss runs that require this length.

6.36 ft Straight Section
Use this section where the drawing calls for a 1.94 m member between compatible truss connection points.
Goal-Post Header or Upright
Use as a compatible header or upright member within the geometry specified for a complete, project-specific ground-support goal-post system.
Brushed Aluminum Finish
The brushed-aluminum surface coordinates with standard EVT290S and F34-style truss components in lighting, stage, display, and event-production systems.

Length Selection

Why Choose a 6.36 ft Straight Truss Section?

A 1.94 m section is useful when the project drawing calls for a longer modular run without using a full 2 m section. It can replace a combination of shorter sections where the completed layout calls for one 1.94 m straight run.

Add a 1.94 m Run
Use the 6.36 ft section when the drawing calls for a 1.94 m addition to a goal-post header, upright, lighting gateway, exhibit frame, stage frame, perimeter, or support structure.
Plan Around the Drawing
Select the straight-section length called for in the project drawing, then confirm corners, towers, base plates, supports, accessories, and connection hardware for the complete build.
Combine System Components
Pair this member with compatible EVT290S straight sections, corners, base plates, towers, and other components required for the planned structure.

Brushed Aluminum Finish

A Standard Aluminum Look for Visible Event and Production Frameworks.

The EVT290S-194 has a brushed-aluminum finish that coordinates with standard aluminum truss systems used in lighting, staging, displays, exhibits, event production, and ground-support structures. Choose this finish when the truss is intended to be a visible part of the installation or when it needs to match existing brushed-aluminum components.

Lighting Gateways
Coordinate with standard aluminum truss components in planned lighting gateways, goal posts, stage architecture, and production support structures.
Event Structures
Use in reviewed event gateways, entry frames, sponsor-display structures, signage frames, and other ground-supported truss applications.
Exhibit and Display Builds
Use in exhibit display frameworks, overhead branding, entryways, graphic-support frames, product display areas, and integrated lighting structures.
Rental Inventory
Brushed aluminum aligns with the common appearance of standard 290 mm square-truss inventory used across event, exhibit, lighting, and production applications.

Goal-Post Infrastructure

One Truss Member in a Complete Ground-Supported Goal Post.

The EVT290S-194 can be used as a horizontal header or upright component within a project-specific truss goal-post structure. It is not a complete goal-post kit and does not independently establish a safe span, upright height, base requirement, ballast or anchorage requirement, equipment capacity, signage capacity, wind rating, or outdoor approval.

Goal-Post Header
Use compatible straight sections, corners, uprights, base plates, and connection hardware to build the header geometry specified by the reviewed goal-post design.
Lighting Gateway
Use within a planned ground-supported lighting gateway for approved fixtures, event graphics, signage, video equipment, or other approved attachments.
Stage and Event Goal Posts
Build project-specific stage, DJ, presentation, entry, or event goal-post frames around the required truss layout, equipment package, clearance requirements, and access plan.
Outdoor and Public-Facing Planning
Outdoor or public-facing structures require project-specific review of wind, weather, surface conditions, ballast or anchorage, crowd exposure, equipment loads, site access, and local requirements.

Applications

A 1.94 m Member for Goal Posts, Lighting, Stage, and Display Systems.

Use the EVT290S-194 wherever a compatible truss build calls for a 1.94 m / 6.36 ft section. The completed structure determines the required supports, rigging method, loads, and accessories.

Truss Goal Posts
Use within a project-specific ground-supported goal-post system for approved lighting, signage, banners, screens, event graphics, and production equipment.
Lighting Gateways
Build reviewed lighting gateways, entry structures, presentation frames, and event gateways around the required truss run.
Stage and DJ Frames
Add a 1.94 m section to planned stage frames, DJ goal posts, lighting grids, scenic structures, and production support layouts where the drawing calls for this length.
Exhibits and Displays
Use in trade-show exhibit frameworks, overhead branding, entryways, graphic-support frames, product display areas, and integrated lighting structures.

Series Construction

290 mm Square Truss with Conical Coupler Connections.

The EVT290S-194 carries the core construction of the EVT290S series in a 1.94 m straight section: a 290 x 290 mm square profile, 50 mm main chords, 20 mm diagonal braces, EN AW-6082 T6 aluminum, brushed aluminum finish, and conical end connections.

290 mm Square Profile
The 290 x 290 mm profile is designed for compatible square-truss components with matching receiver spacing and connection interfaces.
50 mm Main Chords
Main chords measure 50 mm outside diameter with 2 mm wall thickness and provide the primary connection and accessory-attachment tubing.
20 mm Diagonal Braces
Diagonal braces measure 20 mm outside diameter with 2 mm wall thickness.
Conical Connection System
Conical couplers, coupler pins, and r-clips create the mechanical interface between compatible truss sections.

Included Connection Hardware

What Ships with the EVT290S-194.

Each straight section ships with the connection hardware used to join it to compatible conical-receiver components. Confirm the project component schedule before assembly; a finished structure may also require longer sections, corners, towers, base plates, clamps, ballast, rigging hardware, and other project-specific items.

4 Conical Couplers
Couplers create the mechanical connection between the section and compatible receiver ends.
8 Coupler Pins
Pins secure the couplers after the mating components have been aligned and fully seated.
8 R-Clips
R-clips retain each fully seated coupler pin and must be installed before the structure is moved or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-194
BrandEvolve Truss
Product TypeSquare Aluminum Straight Truss Section
CertificationTUV Certified

Dimensions

Section Size

Length6.36 ft / 1.94 m
Width11.41 in / 290 mm
Height11.41 in / 290 mm
Weight30 lb / 13.6 kg

Construction

Tube and Material Data

Main Chords1.96 in / 50 mm OD x .08 in / 2 mm Wall
Diagonal Braces.79 in / 20 mm OD x .08 in / 2 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum

Connection Set

Included Hardware

Connection TypeConical Coupler System
Couplers4 Included
Coupler Pins8 Included
R-Clips8 Included

System Compatibility

Match the Truss Profile and Connection Before You Build.

The EVT290S-194 is intended for compatible EVT290S, F34, and matching 290 mm square-truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm the receiver spacing, coupler fit, chord spacing, alignment, and applicable system documentation before assembly.

Receiver Spacing
All four receiver positions should align without pulling, spreading, or forcing the truss faces together.
Coupler Seating
Use couplers that match the receiver interface of both connected components and verify even seating before installing pins.
1.96 in / 50 mm Clamp Fit
The 1.96 in / 50 mm OD main chords accept compatible clamps for approved equipment and accessory attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Related System Components

Add the Accessories Required by Your Configuration.

The EVT290S-194 fits within a broader 290 mm truss system. Related components should be selected separately according to the planned structure and approved application; their product pages carry their own fit, use, and working-load information where applicable.

Matching Truss Components
Add compatible straight sections, corners, uprights, base plates, and connection hardware to complete the required goal-post layout.
1.96 in / 50 mm Clamps
Use compatible clamps for approved lighting, signage, screens, equipment, and accessory attachment to the main chords.
Rigging and Retention
Select truss picks, slings, shackles, and safety cables from their individual product data and the requirements of the complete rigging plan.
Ground-Support Components
Select base plates, ballast, anchorage, and related support components according to the completed structure, site conditions, and reviewed requirements.

Connection and Inspection

Confirm Fit First. Then Seat, Pin, and Retain.

Once receiver spacing and compatible hardware are confirmed, assemble the connection in this order. Prepare the current project drawing, compatible mating components, supplied connection hardware, and approved support or rigging plan. Assemble on a stable work surface with access to inspect every receiver and pin location.

01 — Inspect Components
Inspect the section, receiver ends, couplers, pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Insert Couplers
Place the four conical couplers into the receiver positions and confirm that they sit correctly.
03 — Align the Truss Faces
Bring the mating component into position evenly. The truss faces should close without excessive force.
04 — Pin and Retain
After alignment is confirmed, install every coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

Engineering Reference

F34 Load-Span Information Applies to the Completed Truss Run.

Compatible F34 load-span tables are available as a general reference for simply supported truss runs up to 39.4 ft / 12 m. The tables address the completed truss configuration—not an individual EVT290S-194 straight section—and should be used only with the applicable engineering notes, connection requirements, and project review. A goal-post structure requires separate review of its header span, upright heights, base plates, ballast or anchorage, attachment locations, equipment and signage loads, and environmental exposure.

Published Load Cases
Reference tables identify uniformly distributed loads, center-point loads, third-point loads, and quarter-point loads for applicable simply supported F34 truss spans.
Panel-Point Loading
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved load-attachment point.
Loads Are Not Additive
Published load cases are alternatives, not values to combine. Evaluate the actual span, support condition, load location, and load type using applicable engineering information.
Engineer Review Required
The engineering reference is general guidance only. Each finished truss structure, goal post, lighting gateway, stage frame, and use must be reviewed as required for the specific project by a licensed professional engineer.

System Responsibility

Capacity Comes from the Completed Configuration.

This 6.36 ft / 1.94 m section does not establish an independent span or load rating for a finished structure. Determine capacity from the complete arrangement, including connected components, span, orientation, upright height, supports, base plates, ballast or anchorage, attachment locations, rigging method, applied loads, signage, lighting equipment, screens, wind exposure, and environmental conditions. Use applicable manufacturer load tables and engineering information for the system being built.

Do not load an unverified connection point or treat one section as proof of capacity for the larger structure.
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved loading location.
Published load cases are not additive. Evaluate the actual span, support condition, load location, and load type using applicable engineering information for the completed truss run.
Do not use bridles unless they have been approved in writing by a licensed structural engineer. Dynamic or shock loads require separate consideration.
Inspect every coupler, pin, r-clip, clamp, lighting mount, signage attachment, sling, shackle, safety cable, base, ballast or anchor, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
A brushed-aluminum finish is a visual selection and does not replace project-specific lighting, branding, crowd-management, wind, or safety planning.
Use trained personnel and obtain the project review required for suspended, public-facing, outdoor, load-bearing, goal-post, ground-support, or otherwise regulated truss systems.
Documentation and Project Review
Product specifications, included hardware, compatibility information, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular truss layout, span, loading condition, goal-post structure, lighting gateway, upright height, base or ballast arrangement, anchorage plan, rigging plan, support arrangement, outdoor installation, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, goal-post, ground-support, or otherwise regulated truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Frequently Asked Questions

EVT290S-194 Questions.

Why choose a 6.36 ft / 1.94 m straight truss section?

Choose this section when a compatible 290 mm square-truss design calls for a 1.94 m member. It provides a longer modular option without using a full 2 m straight section.

Can this truss be used in a goal-post structure?

It can be used as one component within a project-specific compatible ground-supported goal post. Confirm the completed layout, header span, upright height, base plates, ballast or anchorage, equipment and signage loads, wind exposure, site conditions, and required engineering review before use.

What finish does the EVT290S-194 have?

The EVT290S-194 has a brushed aluminum finish that coordinates with standard EVT290S and F34-style truss components.

What conical connection hardware is included?

Each EVT290S-194 section includes 4 conical couplers, 8 coupler pins, and 8 r-clips for compatible conical connections.
