EVT290S-225 Black 7.38-Foot / 2.25-Meter Square Truss Straight Section

EVT290S-225 Black | 7.38ft (2.25m)

Original price was: $975.00.Current price is: $650.00.

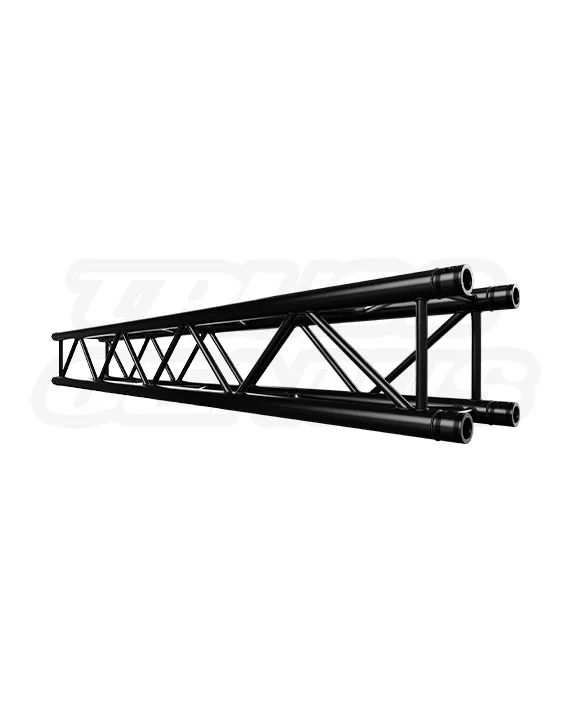

EVT290S-225 Black — 2.25 Meter (7.38 ft) Medium-Duty Square Aluminum Conical Truss (Matte Black)

Dimensions
Overall Truss Length: 7.38 ft (2.25 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 34 lb (15.42 kg)

In stock

SKU: EVT290A-225-Black Category:

EVT290S Truss Systems Knowledge Center

2.25 m Matte Black Square Truss Straight Section.
For Brand Activations, Festivals, Concerts, Lighting Grids, and Modular Event Structures.

The EVT290S-225 Black is a matte-black 2.25 m / 7.38 ft straight section for compatible EVT290S, F34, and matching 290 mm square truss systems. Use this standard-length member where a brand activation, festival gateway, concert production structure, sponsor display, lighting grid, goal-post frame, or other compatible planned truss layout calls for a 2.25 m straight run.

Identity and Core Facts

Model / SKUEVT290S-225 Black
Section Length7.38 ft / 2.25 m
Truss Profile11.41 in / 290 mm Square
ConnectionConical Coupler System
MaterialEN AW-6082 T6 Aluminum
FinishMatte Black Powder Coat
7.38 ftStraight Length
290 mmSquare Profile
50 x 2 mmMain Chords
20 x 2 mmDiagonal Braces
ConicalConnection System

Straight Section Overview

2.25 m F34 Square Truss for Activation, Festival, and Concert Systems.

The EVT290S-225 Black is a 2.25 m / 7.38 ft straight member for compatible 290 mm square truss systems. It supports controlled spacing in planned brand activations, festival entry features, concert lighting grids, sponsor displays, stage-side frames, event signage, goal-post structures, and other compatible modular builds.

7.38 ft Straight Section
Use this section where the project drawing calls for a 2.25 m member between compatible truss connection points.
Long-Run Spacing Control
The 2.25 m length supports planned spacing and alignment in longer compatible truss runs, activation structures, festival gateways, concert production systems, and exhibit frameworks.
Matte Black Finish
The matte-black powder coat supports installations where the truss should remain visually subdued around stage lighting, video, sponsor graphics, scenic elements, cameras, and live-production work.

Brand Activations

Build Branded Environments with Modular Event Truss.

Use the EVT290S-225 Black as one component of a compatible, project-specific brand activation structure. Its 7.38 ft length can support repeatable spacing in branded gateways, product-launch environments, experiential marketing displays, sponsor zones, photo opportunities, event wayfinding, temporary retail activations, and customer-engagement areas.

Branded Gateways
Build compatible entrance arches, welcome structures, registration frames, and branded arrival moments for experiential marketing and event activations.
Sponsor Activation Zones
Create planned sponsor displays, product sampling areas, interactive experiences, presentation frames, and branded engagement spaces.
Product Launch Environments
Use within compatible display structures for new-product presentations, video and lighting frames, press moments, demonstrations, and promotional events.
Event Wayfinding
Add planned truss runs for directional-sign frames, queue-line identifiers, photo opportunities, registration areas, and visible branded landmarks.
Activation Planning Reminder
A brand activation structure is a completed project-specific system. Confirm display loads, signage, lighting, video, public access, egress, ballast or anchorage, venue rules, weather exposure, and required engineering review before installation.

Festivals & Concerts

A Standard Module for Live Event and Concert Production.

The EVT290S-225 Black fits within compatible modular systems for festival and concert production. Use it where the planned drawing calls for a 2.25 m straight run in lighting grids, stage-side frames, sponsor installations, festival entrance features, signage structures, display perimeters, or other approved event infrastructure.

Festival Entrances
Build planned entry gateways, branded arrival features, ticketing or registration frames, and wayfinding structures for festival environments.
Concert Lighting Grids
Add a standard 2.25 m member to a compatible concert lighting grid, stage frame, technical production run, or controlled live-event layout.
Sponsor and VIP Areas
Create compatible structures for sponsor zones, VIP presentation areas, hospitality spaces, product displays, photo moments, and branded event experiences.
Scenic and Video Frames
Use within planned truss structures for scenic elements, video presentation areas, graphics, screens, and production support where the complete configuration is reviewed.

Applications

A 2.25 m Member for Brand, Festival, and Concert Structures.

Use the EVT290S-225 Black wherever a compatible 290 mm square-truss build calls for a 2.25 m / 7.38 ft section. The completed structure determines required supports, rigging method, loads, accessories, anchorage, environmental limits, and site approvals.

Experiential Marketing
Build compatible activation frames, event displays, product-demo areas, branded environments, pop-up experiences, and promotional structures.
Festival Event Infrastructure
Use within planned festival signage, vendor-zone structures, entry features, sponsor displays, activation areas, and lighting frameworks.
Concert Production
Use in planned concert lighting grids, stage-side structures, scenic frames, technical display areas, and compatible production runs.
Goal-Post Frames
Use as part of a reviewed goal-post configuration where the required geometry, supports, base plates, ballast, connections, and loads are confirmed for the complete structure.

Series Construction

290 mm Square Truss with Conical Coupler Connections.

The EVT290S-225 Black carries the core construction of the EVT290S series in a 2.25 m straight section: a 290 x 290 mm square profile, 50 mm main chords, 20 mm diagonal braces, EN AW-6082 T6 aluminum, matte-black powder coat, and conical end connections.

290 mm Square Profile
The 290 x 290 mm profile is designed for compatible square-truss components with matching receiver spacing and connection interfaces.
50 mm Main Chords
Main chords measure 50 mm outside diameter with 2 mm wall thickness and provide the primary connection and accessory-attachment tubing.
20 mm Diagonal Braces
Diagonal braces measure 20 mm outside diameter with 2 mm wall thickness.
Conical Connection System
Conical couplers, coupler pins, and r-clips create the mechanical interface between compatible truss sections.

Included Connection Hardware

What Ships with the EVT290S-225 Black.

Each straight section ships with the connection hardware used to join it to compatible conical-receiver components. Confirm the project component schedule before assembly; a finished activation, festival, concert, or event structure may also require longer sections, corners, base plates, clamps, ballast, rigging hardware, and other project-specific items.

4 Conical Couplers
Couplers create the mechanical connection between the section and compatible receiver ends.
8 Coupler Pins
Pins secure the couplers after the mating components have been aligned and fully seated.
8 R-Clips
R-clips retain each fully seated coupler pin and must be installed before the structure is moved or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-225 Black
BrandEvolve Truss
Product TypeMatte Black Square Aluminum Straight Truss Section
CertificationTUV Certified

Dimensions

Section Size

Length7.38 ft / 2.25 m
Width11.41 in / 290 mm
Height11.41 in / 290 mm
WeightVerify current product documentation

Construction

Tube and Material Data

Main Chords1.96 in / 50 mm OD x .08 in / 2 mm Wall
Diagonal Braces.79 in / 20 mm OD x .08 in / 2 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishMatte Black Powder Coat

Connection Set

Included Hardware

Connection TypeConical Coupler System
Couplers4 Included
Coupler Pins8 Included
R-Clips8 Included

System Compatibility

Match the Truss Profile and Connection Before You Build.

The EVT290S-225 Black is intended for compatible EVT290S, F34, and matching 290 mm square truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm receiver spacing, coupler fit, chord spacing, alignment, and applicable system documentation before assembly.

Receiver Spacing
All four receiver positions should align without pulling, spreading, or forcing the truss faces together.
Coupler Seating
Use couplers that match the receiver interface of both connected components and verify even seating before installing pins.
1.96 in / 50 mm Clamp Fit
The 1.96 in / 50 mm OD main chords accept compatible clamps for approved equipment and accessory attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Connection and Inspection

Confirm Fit First. Then Seat, Pin, and Retain.

Once receiver spacing and compatible hardware are confirmed, assemble the connection in this order. Prepare the current project drawing, compatible mating components, supplied connection hardware, and approved support or rigging plan. Assemble on a stable work surface with access to inspect every receiver and pin location.

01 — Inspect Components
Inspect the section, receiver ends, couplers, pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Insert Couplers
Place the four conical couplers into the receiver positions and confirm that they sit correctly.
03 — Align the Truss Faces
Bring the mating component into position evenly. The truss faces should close without excessive force.
04 — Pin and Retain
After alignment is confirmed, install every coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

Engineering Reference

Load-Span Reference for Completed Truss Runs.

All truss loading calculations are based on a completed compatible 290 mm square-truss run supported or suspended at both ends: static loading only; loads applied at approved truss panel points; truss self-weight included in listed capacities; spans may consist of different truss lengths; and bending-moment and shear interaction at truss connections is considered. Values are limited by strength and reduced per ANSI E1.21.

Allowable loading reference, limited by strength and reduced per ANSI E1.21.
Load CaseUnit2.0 m2.5 m3.0 m3.5 m4.0 m4.5 m5.0 m5.5 m6.0 m6.5 m7.0 m7.5 m8.0 m8.5 m9.0 m9.5 m10.0 m10.5 m11.0 m11.5 m12.0 m
Spanft6.568.209.8411.4813.1214.7616.4118.0519.6921.3322.9724.6126.2527.8929.5331.1732.8134.4536.0937.7339.37
Center Point Load (CPL)lb1,3601,2651,1701,075980905830755680640595555510484460435410390375360340
Deflectionin0.090.140.200.250.300.390.470.560.650.770.891.011.131.301.471.641.812.042.272.502.73
Third Point Loads (TPL)lb810765725680640595555510470450435415400370340310280265245230215
Deflectionin0.080.140.210.270.340.440.540.640.740.911.091.271.451.611.771.932.082.282.472.672.86
Quarter Point Loads (QPL)lb510505500490485455420390355330305280255240230215205195185170160
Deflectionin0.070.140.210.280.350.470.580.700.810.941.071.191.321.521.731.942.142.362.582.793.01
Uniformly Distributed Load (UDL)lb/ft230202174147119107948270615345373330272422201917
Deflectionin0.060.120.180.240.300.430.560.690.820.941.061.181.301.501.711.912.112.352.592.833.07
Load cases: CPL — one center load · TPL — two equal third-point loads · QPL — two equal quarter-point loads · UDL — load distributed over the complete span
Load-Span Assumptions and Project Review

Table assumptions: The reference evaluates unbraced truss configured as a simply supported beam. The primary analyzed spans were 2 m, 4 m, 6 m, 8 m, 10 m, and 12 m; intervening published values are interpolated. If CPL, TPL, or QPL loading occurs at a truss connection, a minimum of two chords is assumed to support the vertical load.

Not included: Shock loads, dynamic loads, and resultant horizontal rigging forces, including forces from bridles or baskets. UDL applies only when the load is evenly distributed across the entire span. Published load cases are alternatives and are not additive.

Licensed structural-engineer review is required for every truss system. These values are general planning reference only and do not approve or rate an individual straight section, a completed lighting plot, a ground-support structure, a goal post, a tower, a start/finish arch, a suspended configuration, an outdoor installation, a mixed-component build, or any other assembled truss system. Confirm the complete configuration, supports, connections, span, applied loads, attachment points, rigging, ballast or anchorage, environmental conditions, and applicable code requirements with a licensed structural engineer before use.

Current documentation: Product specifications, included hardware, compatibility information, and availability are subject to change. Verify current product drawings, manufacturer instructions, connection hardware, and applicable engineering information before ordering, assembling, or using this product.

System Responsibility

Capacity Comes from the Completed Configuration.

This 7.38 ft / 2.25 m section does not establish an independent span or load rating for a finished structure. Determine capacity from the complete arrangement, including connected components, span, orientation, supports, attachment locations, rigging method, applied loads, lighting, video, sponsor graphics, scenic equipment, public access, outdoor exposure, and event or venue requirements.

Do not load an unverified connection point or treat one section as proof of capacity for the larger structure.
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved loading location.
Published load cases are not additive. Evaluate the actual span, support condition, load location, and load type using applicable engineering information for the completed truss run.
Do not use bridles unless they have been approved in writing by a licensed structural engineer. Dynamic or shock loads require separate consideration.
Inspect every coupler, pin, r-clip, clamp, sling, shackle, safety cable, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
For brand activations, festivals, concerts, public-facing displays, outdoor events, suspended structures, or other regulated installations, confirm organizer, venue, and project-review requirements before use.
