EVT290S-250 Black 8.20-Foot Square Truss Straight Section

EVT290S-250 Black | 8.20ft (2.5m)

Original price was: $1,035.00.Current price is: $690.00.

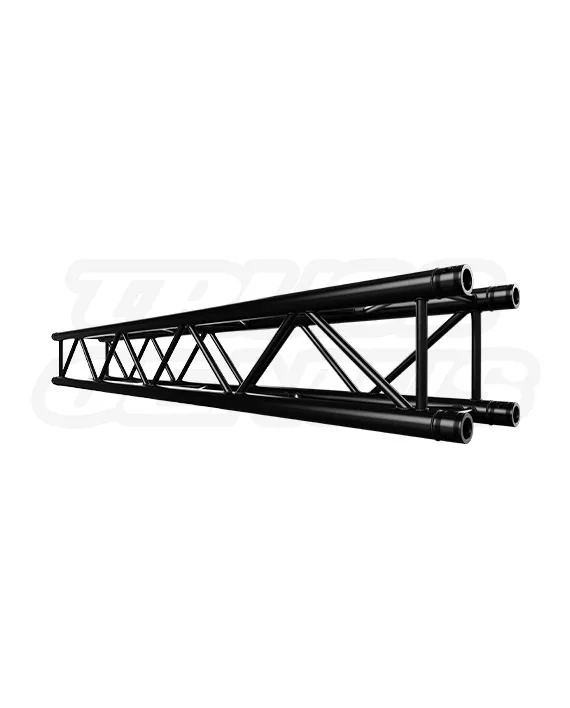

EVT290S-250 Black — 2.5 Meter (8.20 ft) Medium-Duty Square Aluminum Conical Truss (Matte Black)

Dimensions
Overall Truss Length: 8.20 ft (2.5 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 34 lb (15.42 kg)

In stock

SKU: EVT290S-250-Black Category:

EVT290S Truss Systems Knowledge Center

2.5 m Matte Black Square Truss Straight Section.
For TV Studios, Film Studios, Podcast Studios, and Green-Screen Production Systems.

The EVT290S-250 Black is a matte-black 2.5 m / 8.20 ft straight section for compatible EVT290S, F34, and matching 290 mm square truss systems. Use this standard-length member where a TV studio, film production stage, podcast studio, green-screen environment, cyc-wall support frame, studio lighting grid, or other compatible planned truss layout calls for a 2.5 m straight run.

Identity and Core Facts

Model / SKUEVT290S-250 Black
Section Length8.20 ft / 2.5 m
Truss Profile11.41 in / 290 mm Square
ConnectionConical Coupler System
MaterialEN AW-6082 T6 Aluminum
FinishMatte Black Powder Coat
8.20 ftStraight Length
290 mmSquare Profile
50 x 2 mmMain Chords
20 x 2 mmDiagonal Braces
ConicalConnection System

Straight Section Overview

2.5 m F34 Square Truss for Studio and Production Systems.

The EVT290S-250 Black is a 2.5 m / 8.20 ft straight member for compatible 290 mm square truss systems. It supports controlled spacing in planned TV studio grids, film production stages, podcast studio builds, green-screen frameworks, cyc-wall support structures, camera and backdrop systems, and other compatible modular builds.

8.20 ft Straight Section
Use this section where the studio drawing calls for a 2.5 m member between compatible truss connection points.
Long-Run Spacing Control
The 2.5 m length supports planned spacing and alignment in longer compatible truss runs, studio lighting grids, and production support frameworks.
Matte Black Finish
The matte-black powder coat supports installations where the truss should remain visually subdued around studio lighting, cameras, backdrops, green-screen surfaces, and on-camera talent.

TV, Film, Podcast & Green-Screen Studios

A Modular Framework for Studio and Content-Production Environments.

Use the EVT290S-250 Black as one component of a compatible, project-specific studio truss system. Its 8.20 ft length can support planned spacing in TV studio grids, film-production stages, podcast studio builds, streaming and content-creation environments, green-screen backdrops, and cyc-wall support frameworks.

TV and Broadcast Studios
Build compatible lighting grids, camera-support structures, set frameworks, and backdrop systems for broadcast and studio production environments.
Film Production Stages
Use within planned soundstage lighting grids, scenic support structures, camera rigging frames, and production infrastructure for film and video projects.
Podcast and Content Studios
Create compatible lighting frames, backdrop supports, camera mounts, and modular studio structures for podcast, livestream, and content-creation spaces.
Green-Screen Environments
Use within planned cyc-wall support frames, green-screen backdrop systems, and lighting grids designed for chroma-key production.
Studio Rigging Reminder
Studio truss systems commonly support lighting fixtures, cameras, backdrops, and scenic elements above cast, crew, and equipment. Confirm the complete configuration, mounting points, rigging method, ceiling or grid attachment, applied loads, and required engineering review before use.

Applications

A 2.5 m Member for Studio and Broadcast Structures.

Use the EVT290S-250 Black wherever a compatible 290 mm square-truss build calls for a 2.5 m / 8.20 ft section. The completed structure determines required supports, rigging method, loads, accessories, ceiling attachment, and facility approvals.

Studio Lighting Grids
Add a 2.5 m section to a planned studio lighting grid, key-light support structure, or overhead fixture framework.
Camera and Backdrop Support
Use within compatible camera-rigging frames, backdrop-support structures, and set-dressing frameworks for studio and production environments.
Cyc-Wall and Green-Screen Frames
Build planned support structures around cyc walls, green-screen backdrops, and chroma-key production areas.
Broadcast Set Infrastructure
Use within planned news, talk-show, esports, and livestream set structures for lighting, camera, and scenic support.

Series Construction

290 mm Square Truss with Conical Coupler Connections.

The EVT290S-250 Black carries the core construction of the EVT290S series in a 2.5 m straight section: a 290 x 290 mm square profile, 50 mm main chords, 20 mm diagonal braces, EN AW-6082 T6 aluminum, matte-black powder coat, and conical end connections.

290 mm Square Profile
The 290 x 290 mm profile is designed for compatible square-truss components with matching receiver spacing and connection interfaces.
50 mm Main Chords
Main chords measure 50 mm outside diameter with 2 mm wall thickness and provide the primary connection and accessory-attachment tubing.
20 mm Diagonal Braces
Diagonal braces measure 20 mm outside diameter with 2 mm wall thickness.
Conical Connection System
Conical couplers, coupler pins, and r-clips create the mechanical interface between compatible truss sections.

Included Connection Hardware

What Ships with the EVT290S-250 Black.

Each straight section ships with the connection hardware used to join it to compatible conical-receiver components. Confirm the project component schedule before assembly; a finished studio structure may also require longer sections, corners, base plates, clamps, ceiling hardware, rigging accessories, and other project-specific items.

4 Conical Couplers
Couplers create the mechanical connection between the section and compatible receiver ends.
8 Coupler Pins
Pins secure the couplers after the mating components have been aligned and fully seated.
8 R-Clips
R-clips retain each fully seated coupler pin and must be installed before the structure is moved or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-250 Black
BrandEvolve Truss
Product TypeMatte Black Square Aluminum Straight Truss Section
CertificationTUV Certified

Dimensions

Section Size

Length8.20 ft / 2.5 m
Width11.41 in / 290 mm
Height11.41 in / 290 mm
WeightVerify current product documentation

Construction

Tube and Material Data

Main Chords1.96 in / 50 mm OD x .08 in / 2 mm Wall
Diagonal Braces.79 in / 20 mm OD x .08 in / 2 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishMatte Black Powder Coat

Connection Set

Included Hardware

Connection TypeConical Coupler System
Couplers4 Included
Coupler Pins8 Included
R-Clips8 Included

System Compatibility

Match the Truss Profile and Connection Before You Build.

The EVT290S-250 Black is intended for compatible EVT290S, F34, and matching 290 mm square truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm receiver spacing, coupler fit, chord spacing, alignment, and applicable system documentation before assembly.

Receiver Spacing
All four receiver positions should align without pulling, spreading, or forcing the truss faces together.
Coupler Seating
Use couplers that match the receiver interface of both connected components and verify even seating before installing pins.
1.96 in / 50 mm Clamp Fit
The 1.96 in / 50 mm OD main chords accept compatible clamps for approved lighting, camera, and studio-equipment attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Connection and Inspection

Confirm Fit First. Then Seat, Pin, and Retain.

Once receiver spacing and compatible hardware are confirmed, assemble the connection in this order. Prepare the current studio drawing, compatible mating components, supplied connection hardware, and approved support or rigging plan. Assemble on a stable work surface with access to inspect every receiver and pin location.

01 — Inspect Components
Inspect the section, receiver ends, couplers, pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Insert Couplers
Place the four conical couplers into the receiver positions and confirm that they sit correctly.
03 — Align the Truss Faces
Bring the mating component into position evenly. The truss faces should close without excessive force.
04 — Pin and Retain
After alignment is confirmed, install every coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

Engineering Reference

Load-Span Reference for Completed Truss Runs.

All truss loading calculations are based on a completed compatible 290 mm square-truss run supported or suspended at both ends: static loading only; loads applied at approved truss panel points; truss self-weight included in listed capacities; spans may consist of different truss lengths; and bending-moment and shear interaction at truss connections is considered. Values are limited by strength and reduced per ANSI E1.21.

Allowable loading reference, limited by strength and reduced per ANSI E1.21.
Load CaseUnit2.0 m2.5 m3.0 m3.5 m4.0 m4.5 m5.0 m5.5 m6.0 m6.5 m7.0 m7.5 m8.0 m8.5 m9.0 m9.5 m10.0 m10.5 m11.0 m11.5 m12.0 m
Spanft6.568.209.8411.4813.1214.7616.4118.0519.6921.3322.9724.6126.2527.8929.5331.1732.8134.4536.0937.7339.37
Center Point Load (CPL)lb1,3601,2651,1701,075980905830755680640595555510484460435410390375360340
Deflectionin0.090.140.200.250.300.390.470.560.650.770.891.011.131.301.471.641.812.042.272.502.73
Third Point Loads (TPL)lb810765725680640595555510470450435415400370340310280265245230215
Deflectionin0.080.140.210.270.340.440.540.640.740.911.091.271.451.611.771.932.082.282.472.672.86
Quarter Point Loads (QPL)lb510505500490485455420390355330305280255240230215205195185170160
Deflectionin0.070.140.210.280.350.470.580.700.810.941.071.191.321.521.731.942.142.362.582.793.01
Uniformly Distributed Load (UDL)lb/ft230202174147119107948270615345373330272422201917
Deflectionin0.060.120.180.240.300.430.560.690.820.941.061.181.301.501.711.912.112.352.592.833.07
Load cases: CPL — one center load · TPL — two equal third-point loads · QPL — two equal quarter-point loads · UDL — load distributed over the complete span
Load-Span Assumptions and Project Review

Table assumptions: The reference evaluates unbraced truss configured as a simply supported beam. The primary analyzed spans were 2 m, 4 m, 6 m, 8 m, 10 m, and 12 m; intervening published values are interpolated. If CPL, TPL, or QPL loading occurs at a truss connection, a minimum of two chords is assumed to support the vertical load.

Not included: Shock loads, dynamic loads, and resultant horizontal rigging forces, including forces from bridles or baskets. UDL applies only when the load is evenly distributed across the entire span. Published load cases are alternatives and are not additive.

Licensed structural-engineer review is required for every truss system. These values are general planning reference only and do not approve or rate an individual straight section, a completed lighting plot, a ceiling-mounted grid, a cyc-wall support structure, a ground-support structure, a suspended configuration, a mixed-component build, or any other assembled truss system. Confirm the complete configuration, supports, connections, span, applied loads, attachment points, rigging, ceiling or grid anchorage, environmental conditions, and applicable code requirements with a licensed structural engineer before use.

Current documentation: Product specifications, included hardware, compatibility information, and availability are subject to change. Verify current product drawings, manufacturer instructions, connection hardware, and applicable engineering information before ordering, assembling, or using this product.

System Responsibility

Capacity Comes from the Completed Configuration.

This 8.20 ft / 2.5 m section does not establish an independent span or load rating for a finished structure. Determine capacity from the complete arrangement, including connected components, span, orientation, supports, ceiling or grid attachment, rigging method, applied loads, lighting fixtures, cameras, backdrops, cyc-wall elements, and studio facility requirements.

Do not load an unverified connection point or treat one section as proof of capacity for the larger structure.
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved loading location.
Published load cases are not additive. Evaluate the actual span, support condition, load location, and load type using applicable engineering information for the completed truss run.
Do not use bridles unless they have been approved in writing by a licensed structural engineer. Dynamic or shock loads require separate consideration.
Inspect every coupler, pin, r-clip, clamp, sling, shackle, safety cable, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
For studio ceiling grids, suspended lighting structures, cyc-wall support systems, or other regulated installations above cast, crew, or equipment, confirm facility, rigging, and required engineering review before use.

Frequently Asked Questions

EVT290S-250 Black Questions.

Why choose an 8.20 ft / 2.5 m straight truss section?

Choose this section when a compatible 290 mm square-truss design calls for a 2.5 m member. It provides controlled spacing for TV studios, film production stages, podcast studios, green-screen frameworks, and compatible modular structures.

Can this truss be used for a studio lighting grid?

It may be used as one component of a compatible completed studio truss system. Confirm the complete configuration, ceiling or grid attachment, rigging method, applied loads, and required engineering review before installation.

What does the load-span reference apply to?

It applies only to a completed compatible 290 mm square-truss run configured as a simply supported beam under the published assumptions. It does not independently rate this section, a studio ceiling grid, a cyc-wall structure, a ground-support system, or a mixed-component assembly. A licensed structural engineer must review every truss system before use.

What conical connection hardware is included?

Each EVT290S-250 Black section includes 4 conical couplers, 8 coupler pins, and 8 r-clips for compatible conical connections.

Planning a TV, film, podcast, or green-screen studio truss system?

Contact us for matching straight sections, corners, base plates, compatible 1.96 in / 50 mm clamps, current technical documents, quantity pricing, and studio-project coordination.

Contact UsRequest a Quote

Structural Solutions, Unmatched Innovation
