EVT290S-250 8.20-Foot / 2.5-Meter Square Truss Straight Section

EVT290S-250 | 8.20ft (2.5m)

Original price was: $877.00.Current price is: $584.00.

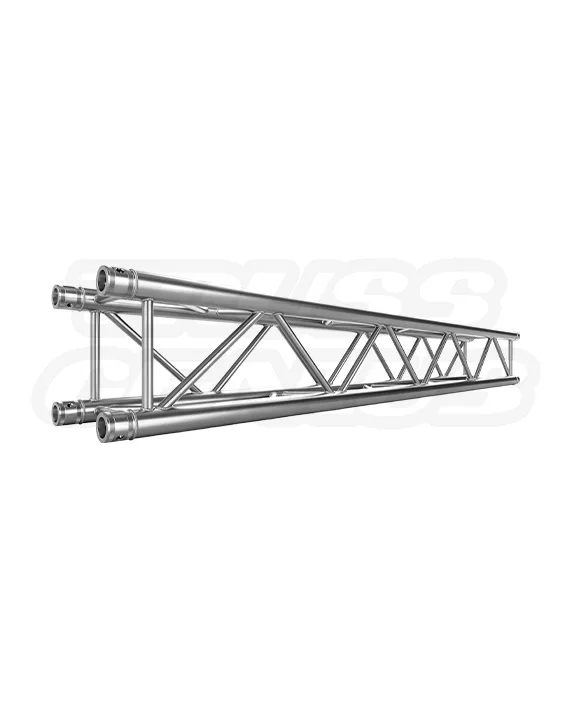

EVT290S-250 — 2.5 Meter (8.20 ft) Medium-Duty Square Aluminum Conical Truss

Dimensions
Overall Truss Length: 8.20 ft (2.5 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 34 lb (15.42 kg)

In stock

SKU: EVT290S-250 Category:

EVT290S Truss Systems Knowledge Center

2.5 m Brushed Aluminum Square Truss Straight Section.
For Trade Show Booths, Custom Modular Exhibits, and Booth Display Systems.

The EVT290S-250 is a brushed-aluminum 2.5 m / 8.20 ft straight section for compatible EVT290S, F34, and matching 290 mm square truss systems. Use this standard-length member where a trade show booth, custom modular exhibit, overhead branding structure, backwall frame, booth lighting grid, or other compatible planned truss layout calls for a 2.5 m straight run.

Identity and Core Facts

Model / SKUEVT290S-250
Section Length8.20 ft / 2.5 m
Truss Profile11.41 in / 290 mm Square
ConnectionConical Coupler System
MaterialEN AW-6082 T6 Aluminum
FinishBrushed Aluminum
8.20 ftStraight Length
290 mmSquare Profile
50 x 2 mmMain Chords
20 x 2 mmDiagonal Braces
ConicalConnection System

Straight Section Overview

2.5 m Square Truss for Trade Show Booths and Exhibit Systems.

The EVT290S-250 is a 2.5 m / 8.20 ft straight member for compatible 290 mm square truss systems. It supports controlled spacing in planned trade show booths, custom modular exhibits, backwall structures, overhead branding frames, booth lighting grids, and other compatible modular builds.

8.20 ft Straight Section
Use this section where the booth or exhibit drawing calls for a 2.5 m member between compatible truss connection points.
Long-Run Spacing Control
The 2.5 m length supports planned spacing and alignment in longer compatible truss runs, booth frames, and exhibit-hall display structures.
Brushed Aluminum Finish
The brushed-aluminum appearance provides a clean, technical look for visible booth structures, backwalls, overhead branding, and exhibit-hall display frames.

Trade Show Booths & Custom Exhibits

A Practical Module for Modular Trade Show Booth Design.

Use the EVT290S-250 as one component of a compatible, project-specific trade show booth or custom modular exhibit. Its 8.20 ft length can support planned spacing in inline, corner, peninsula, and island booth formats, including common 10x10, 10x20, 20x20, and 20x30 booth layouts.

Backwall Structures
Build compatible backwall frames for graphics, branding, monitors, and product displays in inline and corner booth configurations.
Overhead Branding
Use within compatible hanging-sign frames, banner structures, and overhead identifiers for island and peninsula booth formats, subject to venue and rigging approval.
Booth Lighting Grids
Add a 2.5 m straight run to a compatible booth lighting grid designed to accent products, graphics, and focal-point structures.
Reusable Modular Exhibits
Use as a repeatable component within a reusable, multi-show modular exhibit system built from compatible straight sections, corners, and connection hardware.
Booth Planning Reminder
Exhibitor manuals, general service contractor rules, venue requirements, height limits, rigging restrictions, fire and egress codes, and ballast or anchorage needs vary by show and facility. Confirm the complete booth design with the event organizer, venue, and required qualified reviewers before installation.

Applications

A 2.5 m Member for Exhibit and Display Systems.

Use the EVT290S-250 wherever a compatible 290 mm square-truss build calls for a 2.5 m / 8.20 ft section. The completed structure determines required supports, rigging method, loads, accessories, anchorage, and show-site approvals.

Custom Modular Booths
Build compatible booth frames, backwalls, display towers, entryways, and branded presentation structures for exhibit halls and convention centers.
Trade Show Booth Rentals
Use as part of a reusable rental inventory for turnkey booth builds, multi-show exhibit programs, and modular display systems.
Product Display Focal Points
Create planned truss frameworks for product pedestals, demo stations, lightboxes, and interactive display areas within a booth footprint.
Exhibit Lounges and Engagement Zones
Support planned lounge structures, meeting areas, branded seating zones, and attendee-engagement features within larger booth designs.

Series Construction

290 mm Square Truss with Conical Coupler Connections.

The EVT290S-250 carries the core construction of the EVT290S series in a 2.5 m straight section: a 290 x 290 mm square profile, 50 mm main chords, 20 mm diagonal braces, EN AW-6082 T6 aluminum, brushed-aluminum finish, and conical end connections.

290 mm Square Profile
The 290 x 290 mm profile is designed for compatible square-truss components with matching receiver spacing and connection interfaces.
50 mm Main Chords
Main chords measure 50 mm outside diameter with 2 mm wall thickness and provide the primary connection and accessory-attachment tubing.
20 mm Diagonal Braces
Diagonal braces measure 20 mm outside diameter with 2 mm wall thickness.
Conical Connection System
Conical couplers, coupler pins, and r-clips create the mechanical interface between compatible truss sections.

Included Connection Hardware

What Ships with the EVT290S-250.

Each straight section ships with the connection hardware used to join it to compatible conical-receiver components. Confirm the project component schedule before assembly; a finished booth or exhibit structure may also require longer sections, corners, base plates, clamps, ballast, rigging hardware, and other project-specific items.

4 Conical Couplers
Couplers create the mechanical connection between the section and compatible receiver ends.
8 Coupler Pins
Pins secure the couplers after the mating components have been aligned and fully seated.
8 R-Clips
R-clips retain each fully seated coupler pin and must be installed before the structure is moved or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-250
BrandEvolve Truss
Product TypeBrushed Aluminum Square Truss Straight Section
CertificationTUV Certified

Dimensions

Section Size

Length8.20 ft / 2.5 m
Width11.41 in / 290 mm
Height11.41 in / 290 mm
WeightVerify current product documentation

Construction

Tube and Material Data

Main Chords1.96 in / 50 mm OD x .08 in / 2 mm Wall
Diagonal Braces.79 in / 20 mm OD x .08 in / 2 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum

Connection Set

Included Hardware

Connection TypeConical Coupler System
Couplers4 Included
Coupler Pins8 Included
R-Clips8 Included

System Compatibility

Match the Truss Profile and Connection Before You Build.

The EVT290S-250 is intended for compatible EVT290S, F34, and matching 290 mm square truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm receiver spacing, coupler fit, chord spacing, alignment, and applicable system documentation before assembly.

Receiver Spacing
All four receiver positions should align without pulling, spreading, or forcing the truss faces together.
Coupler Seating
Use couplers that match the receiver interface of both connected components and verify even seating before installing pins.
1.96 in / 50 mm Clamp Fit
The 1.96 in / 50 mm OD main chords accept compatible clamps for approved lighting, monitor, and graphics-panel attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Connection and Inspection

Confirm Fit First. Then Seat, Pin, and Retain.

Once receiver spacing and compatible hardware are confirmed, assemble the connection in this order. Prepare the current booth or exhibit drawing, compatible mating components, supplied connection hardware, and approved support or rigging plan. Assemble on a stable work surface with access to inspect every receiver and pin location.

01 — Inspect Components
Inspect the section, receiver ends, couplers, pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Insert Couplers
Place the four conical couplers into the receiver positions and confirm that they sit correctly.
03 — Align the Truss Faces
Bring the mating component into position evenly. The truss faces should close without excessive force.
04 — Pin and Retain
After alignment is confirmed, install every coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

Engineering Reference

Load-Span Reference for Completed Truss Runs.

All truss loading calculations are based on a completed compatible 290 mm square-truss run supported or suspended at both ends: static loading only; loads applied at approved truss panel points; truss self-weight included in listed capacities; spans may consist of different truss lengths; and bending-moment and shear interaction at truss connections is considered. Values are limited by strength and reduced per ANSI E1.21.

Allowable loading reference, limited by strength and reduced per ANSI E1.21.
Load CaseUnit2.0 m2.5 m3.0 m3.5 m4.0 m4.5 m5.0 m5.5 m6.0 m6.5 m7.0 m7.5 m8.0 m8.5 m9.0 m9.5 m10.0 m10.5 m11.0 m11.5 m12.0 m
Spanft6.568.209.8411.4813.1214.7616.4118.0519.6921.3322.9724.6126.2527.8929.5331.1732.8134.4536.0937.7339.37
Center Point Load (CPL)lb1,3601,2651,1701,075980905830755680640595555510484460435410390375360340
Deflectionin0.090.140.200.250.300.390.470.560.650.770.891.011.131.301.471.641.812.042.272.502.73
Third Point Loads (TPL)lb810765725680640595555510470450435415400370340310280265245230215
Deflectionin0.080.140.210.270.340.440.540.640.740.911.091.271.451.611.771.932.082.282.472.672.86
Quarter Point Loads (QPL)lb510505500490485455420390355330305280255240230215205195185170160
Deflectionin0.070.140.210.280.350.470.580.700.810.941.071.191.321.521.731.942.142.362.582.793.01
Uniformly Distributed Load (UDL)lb/ft230202174147119107948270615345373330272422201917
Deflectionin0.060.120.180.240.300.430.560.690.820.941.061.181.301.501.711.912.112.352.592.833.07
Load cases: CPL — one center load · TPL — two equal third-point loads · QPL — two equal quarter-point loads · UDL — load distributed over the complete span
Load-Span Assumptions and Project Review

Table assumptions: The reference evaluates unbraced truss configured as a simply supported beam. The primary analyzed spans were 2 m, 4 m, 6 m, 8 m, 10 m, and 12 m; intervening published values are interpolated. If CPL, TPL, or QPL loading occurs at a truss connection, a minimum of two chords is assumed to support the vertical load.

Not included: Shock loads, dynamic loads, and resultant horizontal rigging forces, including forces from bridles or baskets. UDL applies only when the load is evenly distributed across the entire span. Published load cases are alternatives and are not additive.

Licensed structural-engineer review is required for every truss system. These values are general planning reference only and do not approve or rate an individual straight section, a completed booth structure, a hanging-sign installation, a ground-support structure, a suspended configuration, a mixed-component build, or any other assembled truss system. Confirm the complete configuration, supports, connections, span, applied loads, attachment points, rigging, ballast or anchorage, venue conditions, and applicable code requirements with a licensed structural engineer before use.

Current documentation: Product specifications, included hardware, compatibility information, and availability are subject to change. Verify current product drawings, manufacturer instructions, connection hardware, and applicable engineering information before ordering, assembling, or using this product.

System Responsibility

Capacity Comes from the Completed Configuration.

This 8.20 ft / 2.5 m section does not establish an independent span or load rating for a finished structure. Determine capacity from the complete arrangement, including connected components, span, orientation, supports, attachment locations, rigging method, applied loads, graphics panels, monitors, lighting, and venue or show-site requirements.

Do not load an unverified connection point or treat one section as proof of capacity for the larger structure.
Attach loads only at approved truss panel points. Do not assume that an arbitrary position along a chord is an approved loading location.
Published load cases are not additive. Evaluate the actual span, support condition, load location, and load type using applicable engineering information for the completed truss run.
Do not use bridles unless they have been approved in writing by a licensed structural engineer. Dynamic or shock loads require separate consideration.
Inspect every coupler, pin, r-clip, clamp, sling, shackle, safety cable, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
For overhead-hanging booth signage, multi-story exhibit structures, or other regulated installations, confirm general service contractor, venue, and required engineering review before use.

Frequently Asked Questions

EVT290S-250 Questions.

Why choose an 8.20 ft / 2.5 m straight truss section?

Choose this section when a compatible 290 mm square-truss booth or exhibit design calls for a 2.5 m member. It provides controlled spacing for trade show booths, custom modular exhibits, backwalls, overhead branding, and booth lighting grids.

Can this section be used in a trade show booth?

It may be used as one component of a compatible completed booth or exhibit structure. Confirm the exhibitor manual, event organizer requirements, venue rules, booth height limits, rigging restrictions, ballast or anchorage, and required project review before installation.

What does the load-span reference apply to?

It applies only to a completed compatible 290 mm square-truss run configured as a simply supported beam under the published assumptions. It does not independently rate this section, a booth structure, a hanging sign, a ground-support system, or a mixed-component assembly. A licensed structural engineer must review every truss system before use.

What conical connection hardware is included?

Each EVT290S-250 section includes 4 conical couplers, 8 coupler pins, and 8 r-clips for compatible conical connections.

Planning a trade show booth or custom modular exhibit?

Contact us for matching straight sections, corners, base plates, compatible 1.96 in / 50 mm clamps, current technical documents, quantity pricing, and exhibit-project coordination.

Contact UsRequest a Quote

Structural Solutions, Unmatched Innovation
