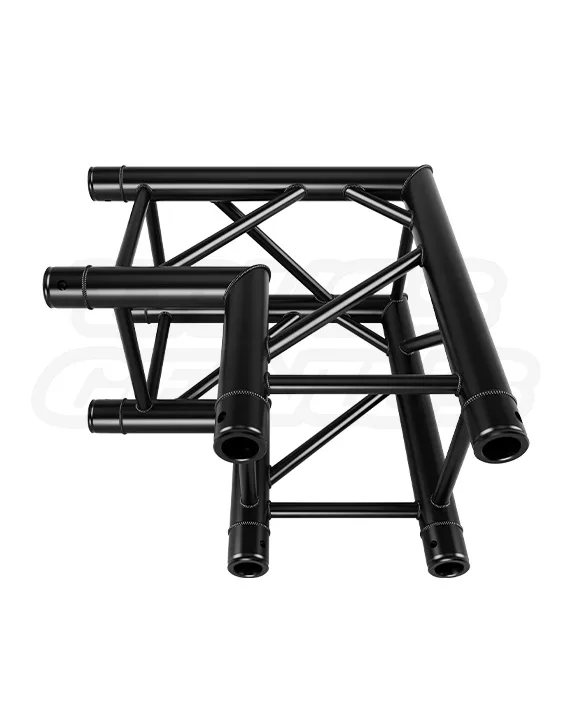

EVT290S‑2WC Black is a matte black 2‑way 90‑degree fixed corner for 290 mm (F34) square truss, purpose‑built for goal‑post systems and modular truss grids. Conical connections deliver fast, repeatable alignment and secure load transfer, making it ideal for lighting, AV, and ceiling installations where right‑angle stability matters.

EVT290S-2WC Black | 90° 2-Way Corner

Original price was: $647.00.Current price is: $431.00.

EVT290S-2WC Black — 90-Degree 2-Way Corner Square Aluminum Truss (Matte Black)

Dimensions
Overall Truss Length: 1.64 ft (0.5 m)
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 14 lb (6.35 kg)

In stock

SKU: EVT290S-2WC-Black Category:

EVT290S Truss Systems Knowledge Center

90-Degree 2-Way Fixed Corner.
For Goal Posts, Finish Lines, Trade Show Displays, Brand Activations, and Step and Repeats.

The EVT290S-2WC Black is a matte-black, 2-way 90-degree fixed corner for compatible EVT290S, F34, and matching 290 mm square truss systems. Use this right-angle corner where a planned goal post, finish line, trade show display, brand activation, step-and-repeat frame, booth structure, modular truss grid, or other compatible layout requires a fixed 90-degree connection.

Identity and Core Facts

Model / SKUEVT290S-2WC Black
Corner Type2-Way 90-Degree Fixed Corner
Leg Length.5 m / 1.64 ft
Truss Profile11.41 in / 290 mm Square
ConnectionConical Coupler System
FinishMatte Black Powder Coat
90°Fixed Angle
2-WayCorner Configuration
0.5 mCorner Leg Length
290 mmSquare Profile
ConicalConnection System

Fixed Corner Overview

A 90-Degree F34 Square Truss Corner for Goal Posts, Displays, and Modular Frames.

The EVT290S-2WC Black is a 2-way fixed corner that joins compatible 290 mm square truss members at a 90-degree angle. Use it to create planned right-angle geometry in goal-post frames, finish-line structures, trade show displays, brand activations, step-and-repeat backdrops, exhibition portals, and compatible modular truss grids.

Fixed 90-Degree Geometry
The fixed corner supports consistent right-angle layout where compatible truss members need to form a planned L-shaped or goal-post connection.
2-Way Connection
Two conical receiver ends connect compatible straight sections to form the top corner of a modular frame or grid.
Matte Black Finish
The matte-black powder coat supports installations where the truss should remain visually subdued around graphics, sponsor banners, signage, displays, lighting, cameras, and branded content.

Goal Posts & Finish Lines

Right-Angle Frameworks for Goal Posts, Finish Lines, and Event Gateways.

Use the EVT290S-2WC Black as one component within a compatible, project-specific goal-post or finish-line truss system. Its fixed 90-degree geometry can join vertical and horizontal runs in planned race finish lines, start and finish gateways, event entrances, sponsor portals, course markers, and other compatible presentation structures.

Goal-Post Frames
Create compatible top-corner geometry for planned goal-post structures using matching straight sections, base plates, and project-specific supports.
Finish-Line Structures
Use within reviewed start, finish, and race-course gateway layouts for approved signage, lighting, timing displays, sponsor elements, and presentation infrastructure.
Event Entrances
Build compatible portals for controlled event entry points, branded gateways, directional signage, photo opportunities, and sponsor presentation elements.
Modular Truss Grids
Add a fixed right angle to compatible exhibition, lighting, display, or presentation grids where the completed configuration has been reviewed.
Goal Post and Finish-Line Clarification
Goal post, finish line, gateway, entrance, race, and course references describe potential end-use environments for a completed compatible truss system. This individual fixed corner is not a complete goal-post system, is not finish-line-rated, is not wind-rated, and is not approved for any particular race, outdoor event, public-facing installation, or freestanding structure.

Trade Show Displays, Brand Activation & Step and Repeats

Build Planned Corners for Branded Displays and Photo-Opportunity Structures.

The EVT290S-2WC Black can be incorporated into compatible, project-specific trade show displays, brand activations, step-and-repeat frames, media walls, sponsor backdrops, product launches, convention exhibits, retail pop-ups, and experiential marketing environments.

Trade Show Displays
Build compatible right-angle frames for planned booth structures, overhead identity, graphics, lighting, video, product presentation, and customer-engagement infrastructure.
Brand Activation
Use within planned activation structures for sponsor experiences, product reveals, interactive displays, signage, photo moments, and promotional environments.
Step and Repeats
Create compatible framework corners for planned branded backdrops, sponsor walls, media interviews, red-carpet photo areas, and event presentation spaces.
Exhibits and Pop-Ups
Build planned modular corners for convention exhibits, retail displays, sponsor activations, video systems, and branded customer-experience areas.

Applications

A Fixed 90-Degree Corner for Event, Display, and Promotional Structures.

Use the EVT290S-2WC Black wherever a compatible 290 mm square-truss layout requires a 2-way, fixed 90-degree connection. The completed structure determines required straight sections, supports, base plates, rigging, loads, ballast or anchorage, accessories, venue requirements, and project approvals.

Race and Sports Events
Build compatible framework corners for reviewed finish lines, goal posts, sponsor gateways, timing-display structures, and event presentation systems.
Trade Show Booths
Use within planned trade show displays, exhibit structures, hanging-sign frames, graphics, lighting, video, and product-display environments.
Media Walls
Add a fixed corner to a compatible step-and-repeat, sponsor backdrop, media wall, photo-op frame, or branded presentation structure where the complete configuration has been reviewed.
Brand Experiences
Create planned modular frames for promotional activations, product launches, retail pop-ups, sponsor events, and branded customer-experience areas.

Series Construction

290 mm Square Truss Corner with Conical Coupler Connections.

The EVT290S-2WC Black provides a fixed 90-degree, 2-way corner in the EVT290S series. Its compatible 290 mm square profile, matte-black powder coat, and conical receiver ends support repeatable connection to compatible F34 square truss sections.

90-Degree Fixed Angle
The fixed geometry supports planned right-angle alignment for compatible goal-post, display, backdrop, and modular grid layouts.
290 mm Square Profile
The 290 x 290 mm profile is designed for compatible square-truss components with matching receiver spacing and connection interfaces.
Matte Black Powder Coat
The matte-black finish supports visually discreet truss infrastructure around event graphics, video, displays, lighting, signage, and sponsor content.
Conical Connection System
Conical couplers, coupler pins, and r-clips create the mechanical interface between the corner and compatible straight sections.

Included Connection Hardware

What Ships with the EVT290S-2WC Black.

This fixed corner ships with the connection hardware used to join it to compatible conical-receiver straight sections. Confirm the project component schedule before assembly; a finished goal post, finish line, trade show display, brand activation, or step-and-repeat frame may also require straight sections, base plates, clamps, ballast or anchorage, rigging hardware, and other project-specific items.

4 Conical Couplers
Four conical couplers are included to create the mechanical connection between the corner’s receiver ends and compatible square truss sections.
8 Coupler Pins
Eight coupler pins are included to secure the couplers after compatible truss components have been aligned and fully seated.
8 R-Clips
Eight r-clips are included to retain every fully seated coupler pin. Install all pins and r-clips before the completed structure is moved, lifted, rigged, or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-2WC Black
BrandEvolve Truss
Product TypeMatte Black 2-Way 90-Degree Fixed Square Truss Corner
CertificationTUV Certified

Dimensions

Corner Size

Corner Configuration2-Way Fixed 90-Degree
Leg Length.5 m / 1.64 ft
Profile Width11.41 in / 290 mm
WeightVerify current product documentation

Construction

Material and Finish

System Profile290 mm / 11.41 in Square
MaterialAluminum Alloy EN AW-6082 T6
FinishMatte Black Powder Coat
Connection TypeConical Coupler System

Connection Set

Included Hardware

Included Couplers4 Conical Couplers
Included Coupler Pins8 Coupler Pins
Included R-Clips8 R-Clips
Straight-Run Load TableNot Applicable to This Corner Component

System Compatibility

Match the Truss Profile and Connection Before You Build.

The EVT290S-2WC Black is intended for compatible EVT290S, F34, and matching 290 mm square truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm receiver spacing, coupler fit, chord spacing, alignment, and applicable system documentation before assembly.

Receiver Spacing
Each receiver position should align without pulling, spreading, or forcing the corner and mating truss faces together.
Coupler Seating
Use couplers that match the receiver interface of both connected components and verify even seating before installing pins.
1.96 in / 50 mm Clamp Fit
Compatible main chords accept compatible clamps for approved lighting, signage, graphics, banner, display, and accessory attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Connection and Inspection

Confirm Fit First. Then Seat, Pin, and Retain.

Once receiver spacing and compatible hardware are confirmed, assemble the connection in this order. Prepare the current goal-post, finish-line, trade show display, brand activation, or step-and-repeat drawing, compatible mating components, supplied connection hardware, and approved support plan. Assemble on a stable work surface with access to inspect every receiver and pin location.

01 — Inspect Components
Inspect the corner, receiver ends, couplers, pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Insert Couplers
Place the conical couplers into the receiver positions and confirm that they sit correctly.
03 — Align the Truss Faces
Bring each mating component into position evenly. The truss faces should close without excessive force.
04 — Pin and Retain
After alignment is confirmed, install every coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

System Responsibility

Capacity Comes from the Completed Configuration.

This 2-way 90-degree fixed corner does not establish an independent span, load, wind, or freestanding-structure rating. Determine capacity from the complete configuration, including compatible straight sections, supports, base plates, ballast or anchorage, span, orientation, connection hardware, applied loads, graphics, banners, signage, lighting, video, displays, event equipment, environmental conditions, and venue requirements.

Do not treat this corner as proof of capacity for a goal post, finish line, display, step-and-repeat frame, brand activation, or other completed structure.
Do not apply a straight-section load-span table to this corner. Load data for a completed truss run does not independently rate a fixed corner or the larger assembled system.
Confirm the support, base plate, ballast, anchorage, and any required bracing for the complete configuration before the structure is erected or opened to the public.
Assess outdoor exposure, wind, signage area, banners, display panels, and other environmental forces as part of the complete project review.
Inspect every coupler, pin, r-clip, clamp, base connection, ballast point, sling, shackle, safety cable, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
For goal posts, finish lines, trade show displays, brand activations, step and repeats, suspended structures, public-facing installations, or other regulated uses, confirm venue, facility, event, engineering, and required approvals before use.
Project Review Required
Licensed structural-engineer review is required for every truss system. This component does not approve or rate any assembled goal post, finish line, event gateway, trade show display, branded activation, step-and-repeat structure, freestanding structure, suspended configuration, or public-facing installation. Verify current product drawings, manufacturer instructions, compatible connection hardware, and applicable engineering information before ordering, assembling, or using this product.

Frequently Asked Questions

EVT290S-2WC Black Questions.

What is the EVT290S-2WC Black used for?

It is a 2-way, fixed 90-degree corner for compatible 290 mm square truss systems. Use it to create planned right-angle connections in compatible goal posts, finish lines, trade show displays, brand activations, step and repeats, exhibition portals, and modular truss grids.

Can this corner create a goal-post or finish-line frame?

It may be used as one component of a compatible completed goal-post or finish-line system. The corner itself does not independently rate, approve, or certify a finished gateway, race structure, outdoor installation, or public-facing frame.

What connection hardware is included?

Each EVT290S-2WC Black corner includes 4 conical couplers, 8 coupler pins, and 8 r-clips for compatible conical connections.

Is there a load-span table for this corner?

No. Straight-run load-span references apply only to the completed compatible truss runs described by their published assumptions; they do not independently rate a 2-way fixed corner. Review the complete configuration with a licensed structural engineer before use.

Can it be used in a trade show display, brand activation, or step and repeat?

It may be used as one component of a compatible completed display or activation system. Confirm the full structure, supports, ballast or anchorage, signage, graphics, lighting, venue rules, and applicable engineering requirements before use.

Planning a goal post, finish line, trade show display, brand activation, or step-and-repeat frame?

Contact us for matching straight sections, fixed corners, base plates, compatible 1.96 in / 50 mm clamps, current technical documents, quantity pricing, and project coordination.
