EVT290S‑3WC Black — 3‑way 90‑degree fixed corner for 290 mm (F34) square truss; matte black finish and rugged conical connections for clean corners on lighting and ceiling grids.

EVT290S-3WC Black | 90° 3-Way Corner

Original price was: $839.00.Current price is: $559.00.

EVT290S-3WC Black — 0.5m (1.64 ft) 90-Degree 3-Way Corner Square Aluminum Truss (Matte Black)

Dimensions
Overall Truss Length: 1.64 ft (0.5 m)
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 21 lb (9.52 kg)

In stock

SKU: EVT290S-3WC-Black Category:

EVT290S 3-Way Corner Knowledge Center

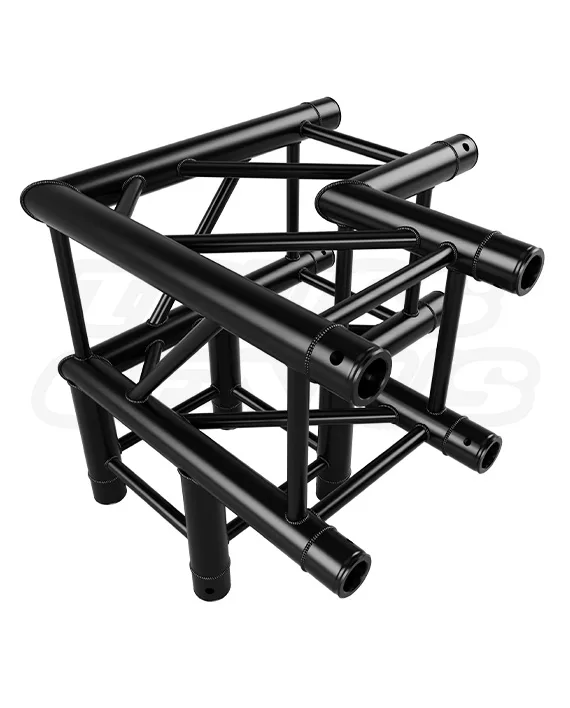

EVT290S-3WC Black 90-Degree 3-Way Square Truss Corner.
A Fixed 290 mm Corner for Building Three-Directional Matte Black Truss Structures.

The EVT290S-3WC Black is a fixed 90-degree 3-way corner for compatible 290 mm square aluminum truss systems. Its 0.5 m / 1.64 ft overall section length, matte black powder coat, and conical connection system make it suited for three-direction junctions in lighting grids, stage frameworks, ceiling grids, and modular structures.

Product Facts

Model EVT290S-3WC Black
Corner Type 3-Way 90-Degree
Overall Length 0.5 m / 1.64 ft
Overall Width 290 mm / 11.41 in
Weight 21 lb / 9.52 kg
Finish Matte Black Powder Coat
3.0 m Half-Meter Length
290 mm Square Profile
40 lb Section Weight
50 mm Main Chords
Conical Connection System

Product Overview

A Fixed 3-Way Corner for 290 mm Square Truss.

The EVT290S-3WC Black creates a three-direction 90-degree junction while maintaining the geometry of compatible 290 mm square conical truss.

3-Way 90-Degree Geometry
Creates a fixed three-direction corner for modular square truss layouts.
0.5 m Corner Section
Provides a 1.64 ft overall section length for the fixed corner assembly.
Matte Black Finish
Matches black truss systems used in stage, exhibit, and ceiling-grid environments.
Conical Connection System
Uses couplers, tapered pins, and R-clips for compatible square truss connections.

Common Applications

Build Three-Directional Truss Junctions Without a Universal Block.

Use the fixed 3-way corner where the approved layout requires three square truss directions meeting at 90 degrees.

01
Lighting Grids
Create fixed three-direction nodes in overhead or freestanding lighting structures.
02
Stage Frameworks
Build branching stage structures with a dedicated 3-way corner.
03
Ceiling Grids
Form three-direction corner transitions in compatible suspended or supported grid layouts.
04
Trade Show Structures
Create fixed corners for booth frames, entrances, and overhead exhibit structures.
05
Modular AV Structures
Connect three structural runs in approved display and production frameworks.

Who It’s For

For Teams Building Fixed 3-Way 290 mm Truss Corners.

Designed for professional users assembling compatible modular square truss systems.

Event Production Companies
For fixed three-direction grid and stage layouts.
Trade Show Contractors
For modular booth and exhibit structures using 90-degree junctions.
Rental Companies
For inventory requiring a dedicated 3-way corner configuration.
Stage Technicians
For assembling approved three-direction truss junctions.
Scenic & Fabrication Shops
For fixed structural frames and custom modular builds.
AV Integrators
For display, video wall, and equipment-support structures using compatible square truss.

Connection Hardware

Conical Couplers, Tapered Pins, and R-Clips.

The source lists a conical connection system with the connection hardware used to join the corner to compatible truss sections.

Conical Couplers
Couplers seat between the corner receivers and adjoining truss receivers.
Tapered Pins
Pins secure the couplers through the aligned receiver holes.
R-Clips
Retaining clips secure the tapered pins after installation.
Confirm hardware requirements for the complete structure.

Use only compatible connection hardware and confirm every active connection is fully seated and secured before lifting or applying load.

Technical Reference

EVT290S-3WC Black Specifications

Verified dimensions, tubing, material, finish, weight, certification, connection type, and compatibility.

Identification

Product Details

ModelEVT290S-3WC Black
Product TypeFixed 3-Way 90-Degree Square Truss Corner
Overall Length0.5 m / 1.64 ft
Overall Width290 mm / 11.41 in

Overall Size

Construction

MaterialEN AW-6082 T6 Aluminum
Main Tubing50 mm OD / 2 mm Wall
Brace Tubing20 mm OD / 2 mm Wall
FinishMatte Black Powder Coat
Weight
21 lb / 9.52 kg

Tubing & Material

Connection & Certification

Connection TypeConical Connection System
Included HardwareCouplers, Tapered Pins, R-Clips
CertificationTUV Specifications

Connection & Compatibility

System Fit

Truss CompatibilityEVT290S, F34, Standard 290 mm Square Systems
Main Tube Diameter50 mm
Corner Geometry3-Way / 90-Degree

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

EVT290S-3WC Black uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility
Designed for the EVT290S square aluminum truss series.
F34 Compatibility
Compatible when receiver spacing and conical connection dimensions match.
Standard 290 mm Square Systems
May fit other 290 mm square conical systems after dimensional verification.
50 mm Clamp Compatibility
The 50 mm main chords accept compatible clamps designed for standard 50 mm truss tubing.

Assembly Overview

Align All Three Directions Before Final Connection Inspection.

Assembly must be completed by trained personnel using compatible conical hardware and the approved structural layout.

01 — Inspect the Corner
Check chords, braces, welds, receivers, couplers, pins, and clips before use.
02 — Confirm Orientation
Position the fixed 3-way corner to match the approved three-direction layout.
03 — Insert Couplers
Seat the conical couplers into the required receivers.
04 — Align Truss Sections
Bring each mating truss section into alignment without forcing the receivers.
05 — Install Pins & R-Clips
Fully seat every tapered pin and secure it with an R-clip.
06 — Final Inspection
Verify all three active directions and all connection hardware before lifting or applying load.

Safety & Engineering

Corner Capacity Depends on the Complete Engineered Structure.

Allowable loading depends on connected span directions, supports, bracing, connection details, load placement, geometry, and the complete structural configuration.

Inspect all chords, braces, welds, receivers, couplers, pins, and clips before use.
Do not use components with cracks, bends, damaged welds, deformation, or excessive wear.
Confirm every tapered pin is fully seated and every R-clip is installed.
Do not place loads directly at unverified connection locations.
Balance loading across the structure and use appropriate secondary safeties where required.
Have the complete structure reviewed by a qualified engineer when required.
Assembly and use must be performed by trained personnel.

Product Questions

Frequently Asked Questions

What is the EVT290S-3WC Black?

It is a fixed 90-degree 3-way corner for compatible 290 mm square aluminum truss systems.

What are the main dimensions?

The source lists an overall section length of 0.5 m / 1.64 ft and an overall truss width of 290 mm / 11.41 in.

What tubing is used?

The source lists 50 mm OD main tubing with a 2 mm wall and 20 mm diagonal bracing with a 2 mm wall.

What connection system does it use?

It uses a conical connection system with couplers, tapered pins, and R-clips.

What systems are listed as compatible?

The source lists F34, EVT290S, and standard 290 mm square truss systems. Mixed-brand fit should be verified before use.

Building a custom EVT290S truss layout?

Contact us for compatibility checks, matching lengths, corners, base plates, engineering support, and freight assistance.
