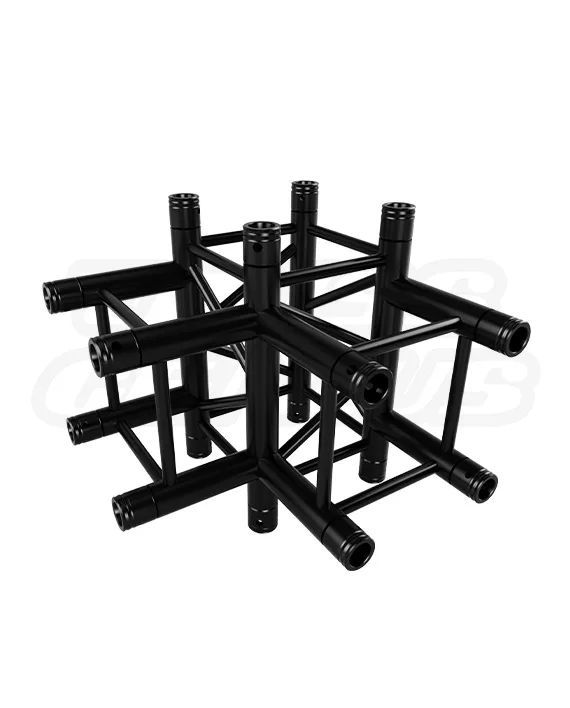

EVT290S‑4WT Black — matte‑black 4‑way T‑junction for EVT290S 290 mm (F34) truss; connects Up/Down/Left/Right to form vertical columns and intersecting horizontal grids — view gallery & layout examples.

EVT290S-4WT Black | 4-Way T-Junction

Original price was: $1,010.00.Current price is: $688.00.

EVT290S-4WT Black — 0.5m (1.64 ft) 4-Way T-Junction Square Aluminum Truss (Matte Black)

Dimensions
Overall Truss Length: 1.64 ft (0.5 m)
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 27 lb (12.24 kg)

In stock

SKU: EVT290S-4WT-Black Category:

EVT290S Truss Systems Knowledge Center

EVT290S-4WT Black 4-Way T-Junction.
For F34 Square Truss Systems.

The EVT290S-4WT Black is a matte-black fixed 4-way T-junction for compatible EVT290S, F34-format, and matching 290 mm square truss systems. Its Up, Down, Left, and Right connection layout is used in planned vertical columns and intersecting horizontal grids for stage structures, lighting grids, AV frameworks, modular exhibit frames, display systems, and other compatible production layouts.

Product Facts

Model / SKUEVT290S-4WT-Black
Junction ConfigurationFixed 4-Way T-Junction
Overall Size500 × 500 × 500 mm
Truss Profile290 mm / 11.41 in Square
Section Weight27 lb / 12.25 kg
FinishMatte Black Powder Coat
4-WayT-Junction Configuration
500 mmOverall Width / Height / Depth
290 mmSquare Truss Profile
27 lbComponent Weight
2 SidesHardware Included

F34 4-Way T-Junction Overview

A Fixed T-Junction for F34 Square Truss Systems.

The EVT290S-4WT Black is a fixed 4-way T-junction for compatible 290 mm square truss systems. It provides Up, Down, Left, and Right connection directions at a planned junction point. It is not a 3-way T-junction, a 4-way cross junction, a 3-way 90-degree corner, or a universal junction block.

Fixed 4-Way T-Junction
Use this component where a compatible truss system requires an Up, Down, Left, and Right junction at a planned intersection.
Vertical and Horizontal Layouts
The product can be positioned within compatible vertical-column and intersecting horizontal-grid layouts specified by the project drawing.
500 mm Overall Size
The 500 × 500 × 500 mm outer dimensions fit within planned 290 mm square-truss layouts.
Fixed Connection Layout
The EVT290S-4WT Black is a dedicated fixed T-junction component, not an adjustable or universal connection block.

How the T-Junction Is Used

A Planned Junction for Columns and Intersecting Grids.

Use the EVT290S-4WT Black when the project drawing requires a fixed four-direction T-junction in a compatible 290 mm square-truss system. Its Up, Down, Left, and Right layout can be used in compatible vertical columns, lighting grids, ceiling grids, stage structures, AV layouts, exhibit systems, and production frameworks.

Vertical Column Intersections
Use the fixed T-junction where a reviewed truss layout requires a vertical column to meet intersecting horizontal truss components.
Lighting Grid Junctions
Use in compatible lighting-grid layouts where approved lighting positions and related production elements require a planned junction point.
Exhibit Frame Intersections
Use in compatible exhibit and trade-show layouts where a vertical support member meets horizontal display-frame directions.
Stage and AV Frameworks
Use in planned stage, video, projection, camera, lighting, audio, and cable-management truss layouts.
T-Junction Use Note
The EVT290S-4WT Black is a component for a compatible completed truss layout. It does not independently approve or rate a lighting grid, vertical column, stage structure, AV framework, exhibit structure, ceiling grid, suspended configuration, or public-facing installation.

Common Applications

For Intersections in Production and Exhibit Systems.

The EVT290S-4WT Black can be incorporated into compatible, project-specific truss systems that use a fixed 4-way T-junction. The completed system determines support points, loading, rigging, equipment attachment, connection hardware, bracing, and required approvals.

01
Lighting Grids
Use at planned junctions in lighting-grid systems for theater, studio, venue, and event-production applications.
02
Stage Structures
Use in compatible stage frames, scenic structures, video frameworks, backdrop systems, and presentation layouts.
03
AV Systems
Use within reviewed truss layouts for video, projection, lighting, audio, camera, cable-management, and display equipment.
04
Trade-Show Displays
Use in compatible booth frames, overhead identity elements, display structures, and branded presentation environments.
05
Visible Black Frameworks
Use the matte black finish in layouts where the truss is intended to visually recede within a stage, studio, exhibit, or display environment.

Matte Black Powder-Coat Finish

A Finish for Low-Visibility Truss Layouts.

The EVT290S-4WT Black uses a matte black powder-coat finish for compatible black EVT290S components. It is suited to stage, theater, studio, AV, exhibit, and display environments where a darker truss appearance is desired or where visible structural elements should be less prominent.

Theater and Stage
Use matte black truss in compatible stage and theater layouts where truss should visually recede behind lighting, scenery, curtains, and production elements.
Studio and AV Layouts
Use in compatible studio, broadcast, camera, lighting, and AV truss systems that call for a coordinated black finish.
Exhibit and Display Systems
Use in compatible exhibit and display structures where matte black supports the visual direction of the installation.
Finish Does Not Set Capacity
Finish selection does not change load capacity, connection requirements, inspection requirements, engineering review, or safety obligations.

Included Connection Hardware

Hardware for Two Connecting Sides Only.

The confirmed hardware package is supplied for two connecting sides of the EVT290S-4WT Black. Its four connection directions do not mean that hardware for all four sides is included. Confirm the project drawing and connection schedule to identify any additional compatible hardware needed for the remaining truss connections.

8 Conical Couplers
Eight Conical Couplers are included for the two supplied connecting sides.
16 Coupler-Pins
Sixteen Coupler-Pins are included to secure compatible connection positions after the mating truss components are aligned and fully seated.
16 R-Clips
Sixteen R-Clips are included to retain the installed Coupler-Pins at the supplied connecting sides.

Technical Reference

EVT290S-4WT Black Specifications.

These values describe the EVT290S-4WT Black as manufactured. Confirm current drawings, manufacturer instructions, connection hardware, component condition, and technical documentation before ordering or assembling a compatible system.

Identification

Product Details

Model / SKUEVT290S-4WT-Black
BrandEvolve Truss
Product TypeFixed 4-Way T-Junction Square Truss Component
CertificationTUV Certified

Overall Size

Dimensions

Overall Width500 mm / 19.69 in
Overall Height500 mm / 19.69 in
Overall Depth500 mm / 19.69 in
Weight27 lb / 12.25 kg

Construction

Material and Tubing

MaterialAluminum Alloy EN AW-6082 T6
Main Tubing50 mm OD / 1.96 in
Diagonal Bracing20 mm OD / 0.78 in
FinishMatte Black Powder Coat

Connections

System Interface

Junction ConfigurationFixed Up / Down / Left / Right T-Junction
Connection TypeConical Coupler System
Included Hardware8 Conical Couplers, 16 Coupler-Pins, 16 R-Clips
Included Hardware ScopeTwo Connecting Sides Only

System Compatibility

Verify the Connection Interface Before Combining Components.

The EVT290S-4WT Black is intended for compatible EVT290S, F34-format, and matching 290 mm square truss systems using conical connections. Compatibility requires more than matching profile size: confirm receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information.

EVT290S Series
Designed for the EVT290S square aluminum truss series.
F34 Format
Compatible with F34-format truss when receiver spacing and conical connection dimensions match.
Other 290 mm Square Truss
Other 290 mm square conical systems may require dimensional and engineering verification before they are combined.
Compatible 50 mm Clamps
The 50 mm / 1.96 in main chords accept compatible clamps for approved attachments within the completed system design.

Assembly Overview

Set the Junction Position, Then Inspect Every Required Connection.

Assembly should be completed by trained personnel using compatible components, the project drawing, supplied hardware for the two included connecting sides, and the approved support or rigging plan. Work on a stable surface and retain access to inspect every required connection position.

01 — Inspect the Component
Check chords, braces, welds, receivers, Conical Couplers, Coupler-Pins, and R-Clips. Do not use damaged, worn, contaminated, or improperly fitting components.
02 — Confirm the T-Junction Layout
Position the component to match the approved Up, Down, Left, and Right truss layout before connection work begins.
03 — Plan Connection Hardware
The supplied hardware covers two connecting sides. Identify and obtain compatible hardware for the other required connection positions.
04 — Align Mating Truss
Bring compatible truss faces together evenly. They should close without forcing, spreading, or pulling the connections into alignment.
05 — Secure Coupler-Pins and R-Clips
Fully install each required Coupler-Pin and secure every installed Coupler-Pin with its R-Clip.
06 — Perform Final Inspection
Verify connection retention, support planning, and the completed configuration before movement, lifting, rigging, or load application.
If a Connection Does Not Close
Stop assembly. Inspect receiver spacing, coupler fit, debris, hardware condition, damage, and alignment. Do not modify the component or drive a Coupler-Pin against resistance.

Safety and Engineering

A T-Junction Is Not a Standalone Load or Span Rating.

The EVT290S-4WT Black does not independently establish a span, load, wind, suspension, or freestanding-structure rating. Determine suitability from the complete configuration, including connected components, spans, orientation, supports, connection hardware, bracing, rigging method, applied loads, lighting, AV equipment, displays, signage, base plates, ballast or anchorage, environmental conditions, venue requirements, and applicable approvals.

Do not use a straight-section load-span table to independently rate this T-junction or the completed truss system.
Do not treat an individual T-junction as evidence that a lighting grid, vertical column, stage structure, AV framework, exhibit structure, ceiling grid, suspended configuration, or public-facing structure has adequate capacity.
Confirm project-specific support, rigging, bracing, base-plate, ballast, and anchorage plans before erection or loading.
Assess wind, banners, screens, displays, suspended equipment, public access, and other operational or environmental forces as part of the complete project review.
Inspect every Conical Coupler, Coupler-Pin, R-Clip, clamp, base connection, sling, shackle, safety cable, and attachment point before use.
Use trained personnel and obtain the project-specific engineering, facility, venue, and regulatory review required for the intended use.
Documentation and Project Review
Product specifications, included hardware, compatibility information, pricing, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, component condition, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular entertainment-truss layout, span, loading condition, rigging plan, support arrangement, outdoor installation, suspended configuration, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, theatrical, concert, touring, or otherwise regulated entertainment-truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Product Questions

EVT290S-4WT Black Frequently Asked Questions.

What is an F34 4-way T-junction used for?

A fixed 4-way T-junction is used where a compatible 290 mm square-truss layout calls for Up, Down, Left, and Right connections at a planned intersection. The EVT290S-4WT Black can be used in compatible vertical-column, horizontal-grid, stage, lighting, AV, exhibit, and display layouts.

Is the EVT290S-4WT Black a 4-way cross junction?

No. The EVT290S-4WT Black is a fixed 4-way T-junction. It is not a 4-way cross junction, a 3-way T-junction, a 3-way 90-degree corner, or a universal junction block. Use the component specified by the project drawing.

What connection hardware is included?

The confirmed package contains hardware for two connecting sides: 8 Conical Couplers, 16 Coupler-Pins, and 16 R-Clips. The product has four connection directions, so confirm the project drawing and connection schedule for any additional compatible hardware needed for the remaining truss connections.

Why choose the matte black powder-coat finish?

The matte black powder coat matches compatible black EVT290S components and is suited to stage, theater, studio, AV, exhibit, and display environments where a darker, lower-visibility truss appearance is desired. It does not change capacity, engineering, connection, or inspection requirements.

Is it compatible with all 290 mm square truss?

No compatibility should be assumed from size or appearance alone. Confirm receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information before mixing components.

Does this T-junction establish capacity for a finished truss system?

No. Capacity depends on the complete configuration, including connected truss, supports, rigging, connection hardware, applied loads, attachments, environmental conditions, venue requirements, and approvals.

Connecting Vertical Truss Columns to Left-and-Right Horizontal Runs?

The EVT290S-4WT Black connects Up, Down, Left, and Right truss directions at a fixed 90-degree T-junction for compatible stage, lighting, AV, exhibit, and display structures. Contact Truss Genius for matching EVT290S truss sections, junctions, base plates, clamps, current technical documents, quantity pricing, and project coordination.
