EVT290S-4WT 4-Way T-Junction Corner for Square Truss, high-strength and reliable truss connector

EVT290S-4WT | 4 Way T-Junction

Original price was: $965.00.Current price is: $643.00.

EVT290S-4WT — 0.5m (1.64 ft) 4-Way T-Junction Square Aluminum Truss

Dimensions
Overall Truss Length: 1.64 ft (0.5 m)
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 27 lb (12.24 kg)

In stock

SKU: EVT290S-4WT Category:

EVT290S Truss Systems Knowledge Center

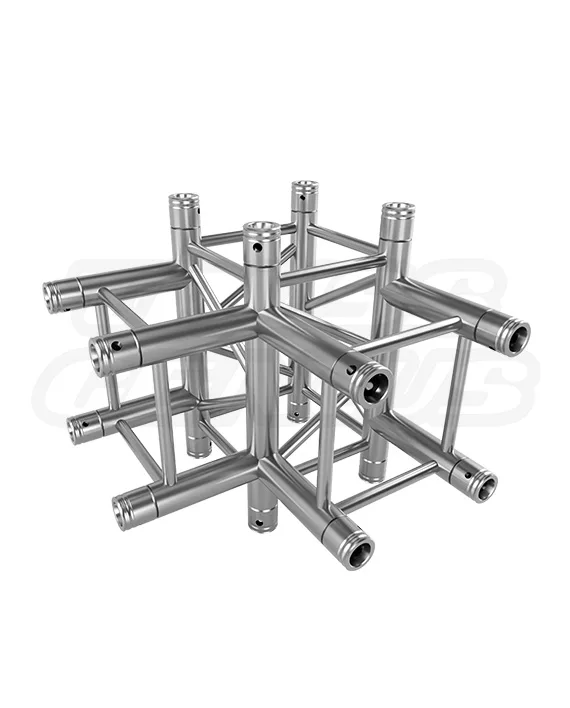

EVT290S-4WT 4-Way T-Junction.
For F34 Square Truss Systems.

The EVT290S-4WT is a brushed-aluminum fixed 4-way 90-degree T-junction for compatible EVT290S, F34-format, and matching 290 mm square truss systems. It connects Up, Down, Left, and Right truss directions where a vertical truss run meets left-and-right horizontal runs in visible stage, exhibit, lighting, AV, and display structures.

Product Facts

Model / SKUEVT290S-4WT
Junction ConfigurationFixed 4-Way 90-Degree T-Junction
Overall Size500 × 500 × 500 mm
Truss Profile290 mm / 11.41 in Square
Section Weight27 lb / 12.25 kg
FinishBrushed Aluminum
4-Way90-Degree T-Junction
500 mmOverall Width / Height / Depth
290 mmSquare Truss Profile
27 lbComponent Weight
2 SidesHardware Included

4-Way 90-Degree T-Junction Overview

A Fixed Junction for 290 mm Square Truss.

The EVT290S-4WT is a fixed 4-way 90-degree T-junction. It is a component for compatible 290 mm square aluminum truss layouts. It is not a 3-way T-junction, a 4-way cross junction, a 3-way 90-degree corner, or a universal junction block.

Product Identity
EVT290S-4WT is the brushed-aluminum 4-way 90-degree T-junction in the EVT290S square-truss family.
Fixed Configuration
The connection layout is fixed. Select this component only where the project drawing calls for the specified four-direction junction.
290 mm Square Profile
The product is intended for compatible 290 mm / 11.41 in square-truss connection interfaces.
Brushed Aluminum
The natural aluminum finish is intended for layouts where visible truss is part of the finished environment.

What Does a 4-Way 90-Degree T-Junction Connect?

One Vertical Truss Run and Two Horizontal 90-Degree Runs.

The EVT290S-4WT connects Up, Down, Left, and Right truss directions. In a planned layout, the Up and Down directions form a continuous vertical truss run. The Left and Right directions extend horizontal truss runs at 90 degrees. This creates a fixed intersection for a compatible stage, exhibit, lighting, AV, or display truss system.

Up and Down
Use the Up and Down directions for a continuous vertical truss line where specified by the project drawing.
Left and Right
Use the Left and Right directions for horizontal truss runs that extend from the vertical line at 90 degrees.
Fixed Intersection
The component establishes the connection configuration. It does not establish the completed system’s support, span, or loading limits.

Where Is This T-Junction Used?

For Visible Truss Intersections in Event and Display Structures.

Use the EVT290S-4WT in a compatible layout where a vertical truss line intersects with left-and-right horizontal runs. The brushed aluminum finish is well suited to applications where the natural aluminum truss appearance remains visible.

01
Trade-Show Exhibit Frames
Use at visible intersections in exhibit frames, overhead identity elements, and modular display structures.
02
Stage and Scenic Structures
Use in compatible stage frames, scenic structures, backdrop systems, and presentation layouts with exposed aluminum truss.
03
Lighting and AV Frameworks
Use in planned lighting, video, camera, projection, audio, and cable-management truss layouts.
04
Retail and Experiential Displays
Use in compatible branded environments, product displays, museums, retail activations, and experiential installations.

Why Choose Brushed Aluminum?

Choose a Finish That Keeps the Truss Visually Present.

Choose EVT290S-4WT brushed aluminum when the truss is intended to remain visible or must match existing natural-aluminum EVT290S components. The brushed finish supports a coordinated aluminum appearance in exhibit, stage, lighting, AV, display, and production environments.

Match Natural Aluminum Truss
Use with compatible brushed-aluminum EVT290S sections and components where a consistent natural aluminum finish is required.
Keep the Structure Visible
Select brushed aluminum when exposed truss contributes to the visual character of the exhibit, stage, or display environment.
Different From Matte Black
Matte black is often selected when truss should visually recede. Brushed aluminum is the finish choice for a visible natural-metal appearance.
Finish Does Not Set Capacity
Finish selection does not change load capacity, connection requirements, inspection requirements, engineering review, or safety obligations.

Included Connection Hardware

Hardware for Two Connecting Sides Only.

The included hardware package covers two connecting sides of the EVT290S-4WT. The T-junction has four connection directions, but hardware is not included for all four directions. Confirm the project drawing and connection schedule before ordering additional compatible hardware.

8 Conical Couplers
Eight Conical Couplers are included for the two supplied connecting sides.
16 Coupler-Pins
Sixteen Coupler-Pins are included for the two supplied connecting sides.
16 R-Clips
Sixteen R-Clips are included to retain the installed Coupler-Pins at the supplied connecting sides.

Technical Reference

EVT290S-4WT Specifications.

These values identify the EVT290S-4WT product. Confirm current manufacturer drawings, instructions, connection hardware, component condition, and technical documentation before ordering or assembling a compatible system.

Identification

Product Details

Model / SKUEVT290S-4WT
BrandEvolve Truss
Product TypeFixed 4-Way 90-Degree T-Junction
CertificationTUV Certified

Overall Size

Dimensions

Overall Width500 mm / 19.69 in
Overall Height500 mm / 19.69 in
Overall Depth500 mm / 19.69 in
Weight27 lb / 12.25 kg

Construction

Material and Tubing

MaterialAluminum Alloy EN AW-6082 T6
Main Tubing50 mm OD / 1.96 in
Diagonal Bracing20 mm OD / 0.78 in
FinishBrushed Aluminum

Connections

System Interface

Junction ConfigurationUp / Down / Left / Right
Connection TypeConical Coupler System
Included Hardware8 Conical Couplers, 16 Coupler-Pins, 16 R-Clips
Included Hardware ScopeTwo Connecting Sides Only

What Must Match Before Connection?

Verify the Interface Before Combining Components.

The EVT290S-4WT is intended for compatible EVT290S, F34-format, and matching 290 mm square truss systems using conical connections. Matching profile size alone does not confirm compatibility. Verify receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information.

EVT290S Series
Designed for the EVT290S square aluminum truss series.
F34 Format
Use with F34-format truss only when receiver spacing and Conical Coupler dimensions match.
Other 290 mm Square Truss
Other 290 mm square conical systems require dimensional and engineering verification before components are combined.
Compatible 50 mm Clamps
The 50 mm / 1.96 in main chords accept compatible clamps for approved attachments within the completed system design.

How Is the T-Junction Connected?

Plan the Connection, Then Inspect Every Required Point.

Assembly should be completed by trained personnel using compatible components, the project drawing, the approved support or rigging plan, and sufficient hardware for every required connection. The supplied hardware covers two connecting sides only.

01 — Inspect Components
Check chords, braces, welds, receivers, Conical Couplers, Coupler-Pins, and R-Clips. Do not use damaged, worn, contaminated, or improperly fitting components.
02 — Confirm the Layout
Position the T-junction to match the approved Up, Down, Left, and Right project layout before connection work begins.
03 — Plan Hardware
Use the supplied hardware for its two included connecting sides. Identify compatible hardware for other required connection positions.
04 — Align Mating Truss
Bring compatible truss faces together evenly. Connections should close without forcing, spreading, or pulling components into alignment.
05 — Secure the Connection
Fully install each required Coupler-Pin and secure every installed Coupler-Pin with its R-Clip.
06 — Final Inspection
Verify retention, component condition, support planning, and the completed configuration before movement, lifting, rigging, or load application.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, debris, hardware condition, damage, and alignment. Do not modify the component or drive a Coupler-Pin against resistance.

Safety and Engineering

A T-Junction Is Not a Standalone Load or Span Rating.

The EVT290S-4WT does not independently establish a span, load, wind, suspension, or freestanding-structure rating. Determine suitability from the complete configuration, including connected components, spans, orientation, supports, connection hardware, bracing, rigging method, applied loads, lighting, AV equipment, displays, signage, base plates, ballast or anchorage, environmental conditions, venue requirements, and applicable approvals.

Do not use a straight-section load-span table to independently rate this T-junction or the completed truss system.
Do not treat an individual T-junction as evidence that a lighting grid, vertical column, stage structure, AV framework, exhibit structure, ceiling grid, suspended configuration, or public-facing structure has adequate capacity.
Confirm project-specific support, rigging, bracing, base-plate, ballast, and anchorage plans before erection or loading.
Assess wind, banners, screens, displays, suspended equipment, public access, and other operational or environmental forces as part of the complete project review.
Inspect every Conical Coupler, Coupler-Pin, R-Clip, clamp, base connection, sling, shackle, safety cable, and attachment point before use.
Use trained personnel and obtain the project-specific engineering, facility, venue, and regulatory review required for the intended use.
Documentation and Project Review
Product specifications, included hardware, compatibility information, pricing, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, component condition, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular entertainment-truss layout, span, loading condition, rigging plan, support arrangement, outdoor installation, suspended configuration, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, theatrical, concert, touring, or otherwise regulated entertainment-truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Product Questions

EVT290S-4WT Frequently Asked Questions.

What does a 4-way 90-degree T-junction connect?

The EVT290S-4WT connects Up, Down, Left, and Right truss directions. It is used where a continuous vertical truss run meets left-and-right horizontal truss runs at 90 degrees.

When should I choose brushed aluminum instead of matte black?

Choose brushed aluminum when the truss will remain visible or must match natural-aluminum EVT290S components. Choose matte black when the project calls for a darker truss appearance that visually recedes.

What connection hardware is included?

The included package covers two connecting sides: 8 Conical Couplers, 16 Coupler-Pins, and 16 R-Clips. Additional compatible hardware may be required for remaining connection positions.

Is the EVT290S-4WT a 4-way cross junction?

No. The EVT290S-4WT is a fixed 4-way 90-degree T-junction. It is not a 4-way cross junction, a 3-way T-junction, a 3-way 90-degree corner, or a universal junction block.

Can I connect it to any 290 mm square truss?

No. Profile size alone does not confirm compatibility. Verify receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information before mixing components.

Does this component establish system capacity?

No. Capacity depends on the complete configuration, including connected components, supports, rigging, hardware, loading, attachments, environmental conditions, venue requirements, and applicable approvals.

Connecting Vertical Truss Columns to Left-and-Right Horizontal Runs?

The EVT290S-4WT creates a fixed 4-way 90-degree T-junction for a continuous vertical truss run and left-and-right horizontal runs. The brushed aluminum finish suits visible stage, exhibit, lighting, AV, and display structures. Contact Truss Genius for matching EVT290S truss sections, junctions, base plates, clamps, current technical documents, quantity pricing, and project coordination.
