EVT290S‑5WT 5‑way T‑junction — 0.5 m 5‑way T‑junction for 290 mm square truss, brushed finish

EVT290S-5WT | 5-Way T-Junction

Original price was: $1,127.00.Current price is: $751.00.

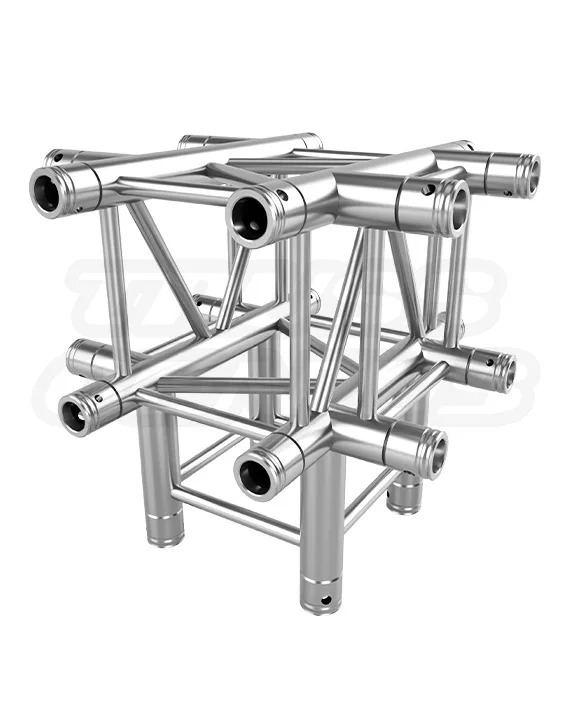

EVT290S-5WT — 0.5m (1.64 ft) 5-Way T-Junction Square Aluminum Truss

Dimensions
Overall Truss Length: 1.64 ft (0.5 m)
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 31 lb (14 kg)

In stock

SKU: EVT290S-5WT Category:

EVT290S Truss Systems Knowledge Center

EVT290S-5WT 5-Way T-Junction.
For F34 Square Truss Systems.

The EVT290S-5WT is a brushed-aluminum fixed 5-way T-junction for compatible EVT290S, F34-format, and matching 290 mm square truss systems. It connects Front, Back, Left, Right, and Down truss directions where a full horizontal intersection requires a single vertical down connection in a visible stage, exhibit, lighting, AV, or display structure.

Product Facts

Model / SKUEVT290S-5WT
Junction ConfigurationFixed 5-Way T-Junction
Overall Size500 × 500 × 500 mm
Truss Profile290 mm / 11.41 in Square
Section Weight31 lb / 14.06 kg
FinishBrushed Aluminum
5-WayT-Junction Configuration
500 mmOverall Width / Height / Depth
290 mmSquare Truss Profile
31 lbComponent Weight
2 SidesHardware Included

5-Way T-Junction Overview

A Five-Direction Junction for Horizontal Truss Intersections with a Down Connection.

The EVT290S-5WT is a fixed 5-way T-junction for compatible 290 mm square aluminum truss layouts. Front, Back, Left, and Right create a full horizontal intersection. Down adds a single vertical connection below that intersection. It is not a 4-way T-junction, a 4-way cross junction, a 3-way corner, or a universal junction block.

Four Horizontal Directions
Front, Back, Left, and Right form a full horizontal intersection for a planned truss grid or crossbar layout.
One Down Connection
The Down direction adds one vertical truss connection below the horizontal intersection.
Fixed Configuration
The connection layout is fixed. Use this component only where the project drawing calls for the specified five-direction junction.
Brushed Aluminum
The natural aluminum finish is intended for layouts where visible truss is part of the finished environment.

What Does a 5-Way T-Junction Connect?

A Horizontal Truss Intersection and One Vertical Down Run.

The EVT290S-5WT connects Front, Back, Left, Right, and Down truss directions. Front and Back form one continuous horizontal truss line. Left and Right form a second horizontal truss line. The Down direction connects a single vertical truss section below the horizontal intersection.

Front and Back
Use the Front and Back directions for a continuous horizontal truss line where specified by the project drawing.
Left and Right
Use the Left and Right directions to extend a second horizontal truss line through the intersection.
Down
Use the Down direction for the single vertical truss connection below the horizontal intersection.
System Limits
The junction defines the connection configuration. It does not establish the completed system’s support, span, or loading limits.

Where Is This T-Junction Used?

For Visible Horizontal Intersections with a Vertical Down Connection.

Use the EVT290S-5WT in compatible truss layouts where a full horizontal intersection must connect to a vertical truss section below. The brushed aluminum finish is suited to event, exhibit, stage, lighting, AV, and display environments where the natural aluminum truss appearance remains visible.

01
Trade-Show Exhibits
Use in visible exhibit frameworks, overhead identity structures, modular display systems, and branded presentation environments.
02
Stage and Scenic Structures
Use in compatible stage frames, scenic structures, backdrop systems, and presentation layouts with exposed aluminum truss.
03
Lighting and AV Frameworks
Use in planned lighting, video, camera, projection, audio, and cable-management truss layouts.
04
Retail and Experiential Displays
Use in compatible branded environments, product displays, museums, retail activations, and experiential installations.

Why Choose Brushed Aluminum?

Choose a Finish That Keeps the Truss Visually Present.

Choose EVT290S-5WT brushed aluminum when the truss is intended to remain visible or must match existing natural-aluminum EVT290S components. The brushed finish supports a coordinated aluminum appearance in exhibit, stage, lighting, AV, display, and production environments.

Match Natural Aluminum Truss
Use with compatible brushed-aluminum EVT290S sections and components where a consistent natural aluminum finish is required.
Keep the Structure Visible
Select brushed aluminum when exposed truss contributes to the visual character of the exhibit, stage, or display environment.
Different From Matte Black
Matte black is often selected when truss should visually recede. Brushed aluminum is the finish choice for a visible natural-metal appearance.
Finish Does Not Set Capacity
Finish selection does not change load capacity, connection requirements, inspection requirements, engineering review, or safety obligations.

Included Connection Hardware

Hardware for Two Connecting Sides Only.

Included connection hardware is supplied for two connecting sides of the EVT290S-5WT. The 5-way configuration does not mean hardware is included for every available connection direction. Confirm the current product package, project drawing, and connection schedule for the exact supplied hardware and for any additional compatible hardware required.

Included Scope
The supplied connection hardware covers two connecting sides only.
Additional Hardware
Additional compatible Conical Couplers, Coupler-Pins, and R-Clips may be required for the remaining connection positions.
Confirm Before Assembly
Verify the current package contents and the project connection schedule before assembly begins.

Technical Reference

EVT290S-5WT Specifications.

These values identify the EVT290S-5WT product. Confirm current manufacturer drawings, instructions, connection hardware, component condition, and technical documentation before ordering or assembling a compatible system.

Identification

Product Details

Model / SKUEVT290S-5WT
BrandEvolve Truss
Product TypeFixed 5-Way T-Junction
CertificationTUV Certified

Overall Size

Dimensions

Overall Width500 mm / 19.69 in
Overall Height500 mm / 19.69 in
Overall Depth500 mm / 19.69 in
Weight31 lb / 14.06 kg

Construction

Material and Finish

MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum
Truss Profile290 mm / 11.41 in Square
Nominal Section Length0.5 m / 1.64 ft

Connections

System Interface

Junction ConfigurationFront / Back / Left / Right / Down
Connection TypeConical Coupler System
Included Hardware ScopeTwo Connecting Sides Only
Hardware VerificationConfirm Current Package Contents

What Must Match Before Connection?

Verify the Interface Before Combining Components.

The EVT290S-5WT is intended for compatible EVT290S, F34-format, and matching 290 mm square truss systems using conical connections. Matching profile size alone does not confirm compatibility. Verify receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information.

EVT290S Series
Designed for the EVT290S square aluminum truss series.
F34 Format
Use with F34-format truss only when receiver spacing and Conical Coupler dimensions match.
Other 290 mm Square Truss
Other 290 mm square conical systems require dimensional and engineering verification before components are combined.
Compatible 50 mm Clamps
The main chords accept compatible clamps for approved attachments within the completed system design.

How Is the 5-Way T-Junction Connected?

Plan the Connection, Then Inspect Every Required Point.

Assembly should be completed by trained personnel using compatible components, the project drawing, the approved support or rigging plan, and sufficient hardware for every required connection. The supplied hardware covers two connecting sides only.

01 — Inspect Components
Check chords, braces, welds, receivers, Conical Couplers, Coupler-Pins, and R-Clips. Do not use damaged, worn, contaminated, or improperly fitting components.
02 — Confirm the Layout
Position the T-junction to match the approved Front, Back, Left, Right, and Down project layout before connection work begins.
03 — Plan Hardware
Use supplied hardware for its two included connecting sides. Identify compatible hardware for the remaining required connection positions.
04 — Align Mating Truss
Bring compatible truss faces together evenly. Connections should close without forcing, spreading, or pulling components into alignment.
05 — Secure the Connection
Fully install each required Coupler-Pin and secure every installed Coupler-Pin with its R-Clip.
06 — Final Inspection
Verify retention, component condition, support planning, and the completed configuration before movement, lifting, rigging, or load application.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, debris, hardware condition, damage, and alignment. Do not modify the component or drive a Coupler-Pin against resistance.

Safety and Engineering

A 5-Way T-Junction Is Not a Standalone Load or Span Rating.

The EVT290S-5WT does not independently establish a span, load, wind, suspension, or freestanding-structure rating. Determine suitability from the complete configuration, including connected components, spans, orientation, supports, connection hardware, bracing, rigging method, applied loads, lighting, AV equipment, displays, signage, base plates, ballast or anchorage, environmental conditions, venue requirements, and applicable approvals.

Do not use a straight-section load-span table to independently rate this 5-way T-junction or the completed truss system.
Do not treat an individual junction as evidence that a lighting grid, stage structure, AV framework, exhibit structure, suspended configuration, or public-facing structure has adequate capacity.
Confirm project-specific support, rigging, bracing, base-plate, ballast, and anchorage plans before erection or loading.
Assess wind, banners, screens, displays, suspended equipment, public access, and other operational or environmental forces as part of the complete project review.
Inspect every Conical Coupler, Coupler-Pin, R-Clip, clamp, base connection, sling, shackle, safety cable, and attachment point before use.
Use trained personnel and obtain the project-specific engineering, facility, venue, and regulatory review required for the intended use.
Documentation and Project Review
Product specifications, included hardware, compatibility information, pricing, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, component condition, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular entertainment-truss layout, span, loading condition, rigging plan, support arrangement, outdoor installation, suspended configuration, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, theatrical, concert, touring, or otherwise regulated entertainment-truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Product Questions

EVT290S-5WT Frequently Asked Questions.

What does a 5-way T-junction connect?

The EVT290S-5WT connects Front, Back, Left, Right, and Down truss directions. It creates a full horizontal intersection with a single vertical connection below.

When should I choose brushed aluminum instead of matte black?

Choose brushed aluminum when the truss will remain visible or must match natural-aluminum EVT290S components. Choose matte black when the project calls for a darker truss appearance that visually recedes.

What hardware is included?

Included connection hardware is supplied for two connecting sides only. Confirm the current product package and connection schedule for exact contents and for any additional compatible hardware required.

Can I connect it to any 290 mm square truss?

No. Profile size alone does not confirm compatibility. Verify receiver spacing, coupler dimensions, chord spacing, alignment, component condition, current manufacturer documentation, and applicable engineering information before mixing components.

Does this component establish system capacity?

No. Capacity depends on the complete configuration, including connected components, supports, rigging, hardware, loading, attachments, environmental conditions, venue requirements, and applicable approvals.

Connecting a Horizontal Truss Intersection to a Vertical Down Run?

The EVT290S-5WT connects Front, Back, Left, Right, and Down directions for a planned horizontal truss intersection with a vertical down connection. The brushed aluminum finish suits visible stage, exhibit, lighting, AV, and display structures.
