EVT290S-60DA 2-Way 60-Degree Fixed Angle Corner for Square Truss, durable and precise truss connector

EVT290S-60DA | 60° Corner

Original price was: $667.00.Current price is: $446.00.

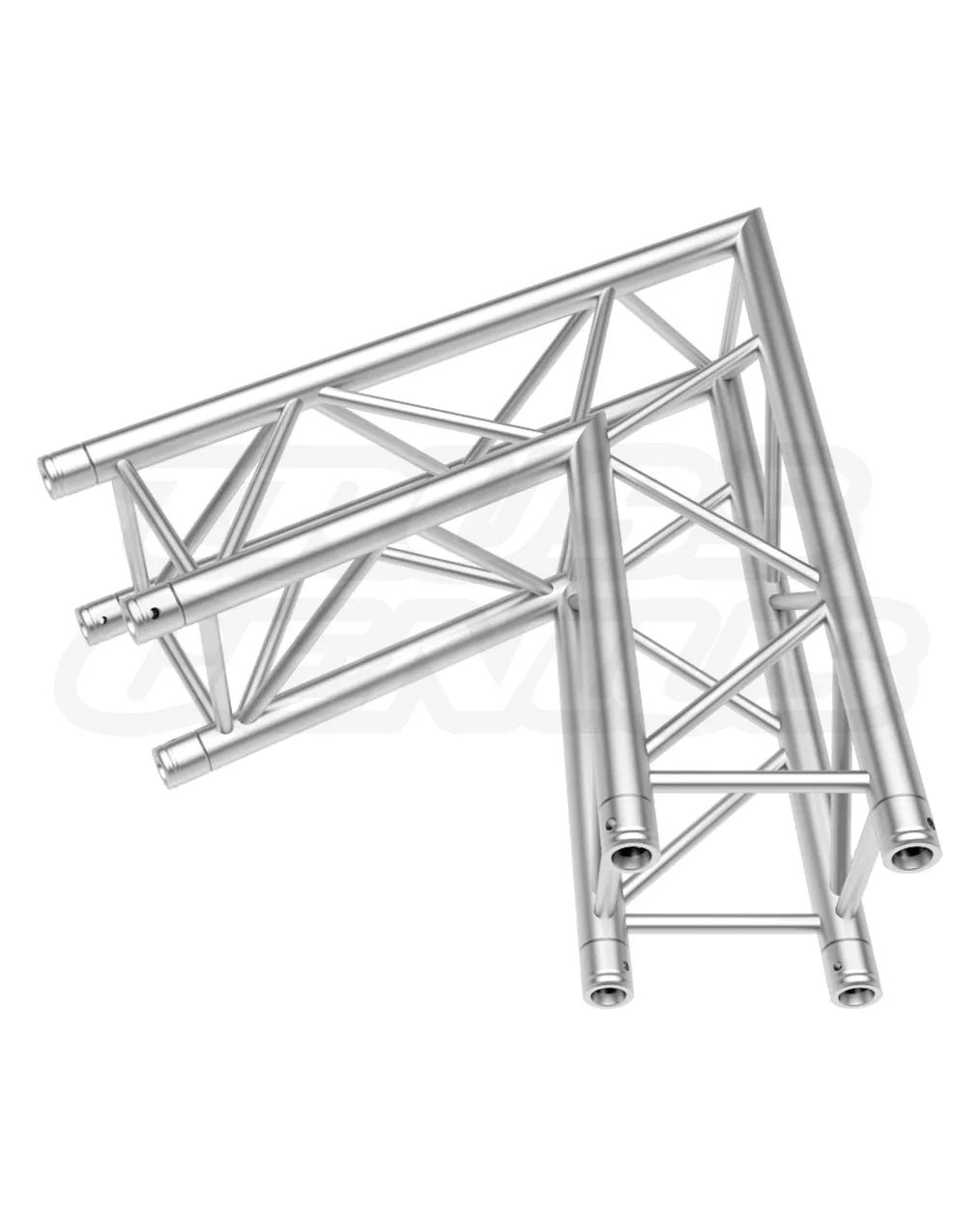

EVT290S-60DA — 60-Degree Fixed 2-Way Corner Square Aluminum Truss

Dimensions
Overall Truss Length: 1.64 ft (0.5 m)
Overall Truss Width: 11.41 in (290 mm)
Angle: 60 Degrees

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 24 lb (10.88 kg)

In stock

SKU: EVT290S-60DA Category:

EVT290S Truss Systems Knowledge Center

EVT290S-60DA 2-Way 60-Degree Corner.
Create Six-Sided Truss Structures with Compatible F34 and 290 mm Components.

The EVT290S-60DA is a brushed-aluminum fixed 2-way, 60-degree corner for compatible F34, EVT290S, and matching 290 mm square truss systems. It joins two compatible truss sections at a fixed 60-degree angle when a truss structure requires a 60-degree turn rather than a straight connection, 45-degree turn, or standard 90-degree corner. Six compatible 60-degree corners and straight truss sections can be combined to form a hexagonal truss structure.

Product Facts

Model / SKUEVT290S-60DA
Corner ConfigurationFixed 2-Way 60° Corner
Overall Size1,000 × 865.28 × 290 mm
Truss Profile290 mm / 11.41 in Square
Component Weight24 lb / 10.88 kg
FinishBrushed Aluminum
60°Fixed Angle
2-WayCorner Configuration
290 mmSquare Truss Profile
24 lbComponent Weight
1 SideHardware Included

60-Degree Corner Overview

A Fixed 60-Degree Corner for Compatible Square Truss Connections and Turns.

The EVT290S-60DA is a fixed 2-way, 60-degree corner for compatible 290 mm square aluminum truss systems. It provides the specified 60-degree connection where two truss sections must change direction by 60 degrees instead of continuing straight or meeting through a 45-degree or standard 90-degree corner.

Fixed 60-Degree Corner
Provides a defined 60-degree turn between two compatible 290 mm square-truss sections.
2-Way Truss Connection
Connects two compatible square-truss sections through the component’s fixed-angle configuration.
Hexagonal Structure Capability
Six compatible 60-degree corners and straight truss sections can be combined to form a six-sided truss structure.
Brushed Aluminum Finish
Provides a visible natural-metal surface for truss structures where brushed aluminum components are preferred.

What Does the 60-Degree Corner Do?

A Fixed 60-Degree Connection for F34 Square Truss Structures and Turns.

The EVT290S-60DA provides the fixed 60-degree corner used for F34 and compatible 290 mm square-truss systems when a 60-degree turn is required. Its angle is built into the component and is not field adjustable. Six repeated 60-degree turns provide the directional relationships used in a six-sided truss structure.

Defined 60-Degree Angle
Establishes a fixed 60-degree relationship between adjoining compatible square-truss sections.
Truss Direction Change
Changes the direction of a compatible truss run by 60 degrees where the approved structure requires that connection.
Two Connection Faces
Provides two conical connection faces for joining compatible truss sections at the fixed angle.
Six-Sided Structure Use
Use six matching 60-degree corners with compatible straight sections when the approved structure calls for a six-sided form.

Where Is This 60-Degree Corner Used?

For Hexagonal Truss Structures, Exhibit Features, and 60-Degree Turns.

The EVT290S-60DA is used in compatible 290 mm square-truss structures when the design calls for a fixed 60-degree turn between truss sections. Its distinguishing application is a six-sided truss structure, which uses six 60-degree corners with compatible straight sections. Final suitability depends on the full structure, connected components, supports, loads, hardware, and applicable review.

01
Hexagonal Truss Structures
Combine six EVT290S-60DA corners with compatible straight sections to form a six-sided truss structure.
02
Hexagonal Exhibit Features
Use a six-sided truss form as an overhead exhibit feature, display surround, or event focal point when specified for the complete structure.
03
Six-Sided Truss Grids
Use repeated 60-degree turns and compatible straight truss sections to build six-sided grid forms where the complete structure is specified and supported.
04
60-Degree Truss Turns
Add a fixed 60-degree directional change where a straight, 45-degree, or 90-degree connection does not meet the approved truss structure.
05
Custom Hexagonal Structures
Use in project-specific compatible 290 mm square-truss structures built around repeating 60-degree connections.

Why Choose Brushed Aluminum?

Choose a Natural-Metal Finish for a Coordinated Truss Appearance.

Choose the EVT290S-60DA when the fixed-angle corner must match brushed-aluminum truss components or when a natural-metal appearance is preferred in an exhibit, event, AV, production, or display environment. Brushed aluminum is a finish choice; it does not alter the component’s connection requirements, inspection requirements, or project-specific engineering needs.

Match Brushed Aluminum Truss
Use with compatible natural-finish truss sections and components where a coordinated brushed aluminum appearance is required.
Visible Natural-Metal Surface
Select brushed aluminum where the truss is intended to retain a visible aluminum appearance within the structure or display environment.
Different From Matte Black
Matte black is selected for a darker visual treatment. Brushed aluminum is selected for a natural-metal appearance.
Finish Does Not Set Capacity
Finish selection does not change load capacity, connection requirements, inspection requirements, engineering review, or safety obligations.

Included Connection Hardware

Hardware for One Connecting Side Only.

Included connection hardware is supplied for one connecting side of the EVT290S-60DA. The 2-way configuration does not mean hardware is included for both available connection directions. Confirm the current product package, project drawing, and connection schedule for the exact supplied hardware and for any additional compatible hardware required.

4 Conical Couplers
The supplied hardware set includes four conical couplers for one connecting side.
8 Coupler-Pins and 8 R-Clips
The supplied hardware set includes eight coupler-pins and eight r-clips for one connecting side.
Additional Hardware
Additional compatible conical couplers, coupler-pins, and r-clips may be required for the other connection position.

Technical Reference

EVT290S-60DA Specifications.

These values identify the EVT290S-60DA product. Confirm current manufacturer drawings, instructions, connection hardware, component condition, and technical documentation before ordering or assembling a compatible system.

Identification

Product Details

Model / SKUEVT290S-60DA
Product TypeFixed 2-Way 60-Degree Corner
Fixed Angle60 Degrees

Overall Size

Dimensions

Overall Width1,000 mm
Overall Height865.28 mm
Overall Depth290 mm
Weight24 lb / 10.88 kg

Construction

Material and Finish

MaterialAluminum Alloy EN AW-6082 T6
Main Tubing50 mm OD / 2 mm Wall
Brace Tubing20 mm OD / 2 mm Wall
FinishBrushed Aluminum

Connections

System Interface

Corner Configuration2-Way Fixed Angle
Connection TypeConical Coupler System
Included Hardware ScopeOne Connecting Side Only
Included Hardware4 Couplers, 8 Pins, 8 R-Clips
CertificationTUV Certified
CompatibilityFits F34, EVT290S, and all standard 290 mm Square Truss systems

System Compatibility

F34, EVT290S, and Compatible 290 mm Square Truss Systems.

The EVT290S-60DA has 290 mm square-truss geometry, 50 mm main chords, and conical connection receivers. It is intended for compatible F34, EVT290S, and standard 290 mm square-truss systems with matching receiver spacing and conical interface geometry. Confirm actual receiver geometry, full conical seating, pin engagement, component condition, and manufacturer or engineering data before combining separately sourced or mixed-brand components.

F34 System Context
Designed for use where the mating F34 connection geometry and receiver spacing match.
EVT290S Compatibility
Integrates with compatible EVT290S sections and related 290 mm square-truss components.
Matched Conical Interfaces
Connection suitability requires matching interfaces, full seating, coupler-pins, and r-clips.
Structural Verification
Mechanical fit does not independently establish equivalent load capacity or structural interchangeability.

How Is the 60-Degree Corner Connected?

Plan the Connection, Then Inspect Every Required Point.

Assembly should be completed by trained personnel using compatible components, the project drawing, the approved support or rigging plan, and sufficient hardware for every required connection. The supplied hardware covers one connecting side only.

01 — Inspect Components
Check chords, braces, welds, receivers, conical couplers, coupler-pins, and r-clips. Do not use damaged, worn, contaminated, or improperly fitting components.
02 — Confirm the Structure
Position the corner to match the required 60-degree direction in the truss structure before connection work begins.
03 — Plan Hardware
Use supplied hardware for its one included connecting side. Identify compatible hardware for every remaining required connection position.
04 — Align Mating Truss
Bring compatible truss faces together evenly. Connections should close without forcing, spreading, or pulling components into alignment.
05 — Secure the Connection
Fully install each required coupler-pin and secure every installed coupler-pin with its r-clip.
06 — Final Inspection
Verify retention, component condition, support planning, and the completed fixed-angle configuration before movement, lifting, rigging, or load application.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, debris, hardware condition, damage, and alignment. Do not modify the component or drive a coupler-pin against resistance.

Safety and Engineering

A Fixed 60-Degree Corner Is Not a Standalone Load, Span, or Structure Rating.

The EVT290S-60DA does not independently establish a span, load, wind, suspension, freestanding-structure, or public-facing structure rating. Determine suitability from the complete configuration, including connected components, spans, orientation, supports, connection hardware, bracing, rigging method, applied loads, lighting, AV equipment, displays, signage, base plates, ballast or anchorage, environmental conditions, venue requirements, and applicable approvals.

Do not use a straight-section load-span table to independently rate this fixed-angle corner or the completed truss system.
Do not treat an individual corner as evidence that a hexagonal truss structure, exhibit feature, suspended structure, or public-facing structure has adequate capacity.
Confirm project-specific support, rigging, bracing, base-plate, ballast, anchorage, and attachment plans before erection or loading.
Assess banners, screens, displays, suspended equipment, public access, dynamic forces, and other operational or environmental forces as part of the complete project review.
Inspect every conical coupler, coupler-pin, r-clip, clamp, base connection, sling, shackle, safety cable, and attachment point before use.
Use trained personnel and obtain the project-specific engineering, facility, venue, and regulatory review required for the intended use.
Documentation and Project Review
Product specifications, included hardware, compatibility information, pricing, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, component condition, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular entertainment-truss structure, span, loading condition, rigging plan, support arrangement, outdoor installation, suspended configuration, hexagonal truss structure, exhibit feature, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, theatrical, concert, touring, or otherwise regulated entertainment-truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Product Questions

EVT290S-60DA Frequently Asked Questions.

What is the EVT290S-60DA?

The EVT290S-60DA is a fixed 60-degree 2-way aluminum corner with a brushed aluminum finish for compatible 290 mm square conical truss systems.

Can the EVT290S-60DA be used to build a hexagon?

Six compatible EVT290S-60DA corners used with compatible straight truss sections can form a six-sided truss structure when the complete assembly is properly specified, supported, and reviewed.

What hardware is included?

One hardware set is supplied for one connecting side: 4 conical couplers, 8 coupler-pins, and 8 r-clips. Confirm the current package and connection schedule for any additional compatible hardware required.

What truss systems are compatible?

It fits F34, EVT290S, and standard 290 mm square truss systems when receiver spacing, conical interface dimensions, and all other relevant dimensions match. Mixed-brand fit should be verified before use.

Need a Fixed 60-Degree F34 Truss Corner?

The EVT290S-60DA provides a fixed 60-degree connection for compatible 290 mm square-truss structures, including hexagonal truss structures, exhibit features, six-sided truss grids, and custom 60-degree truss structures. The brushed aluminum finish suits structures where a natural-metal truss appearance is preferred.
