EVT290S-ABP12 - 12-Inch Aluminum Base Plate for Square Aluminum Truss

Aluminum Base Plate Knowledge Center

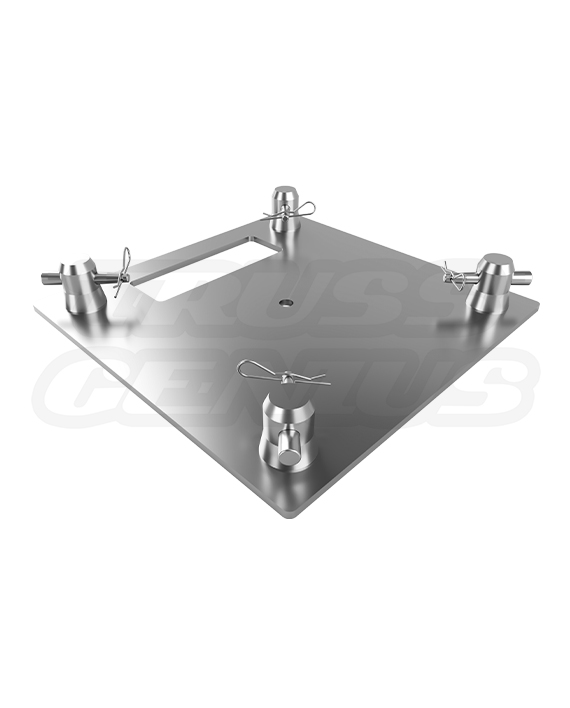

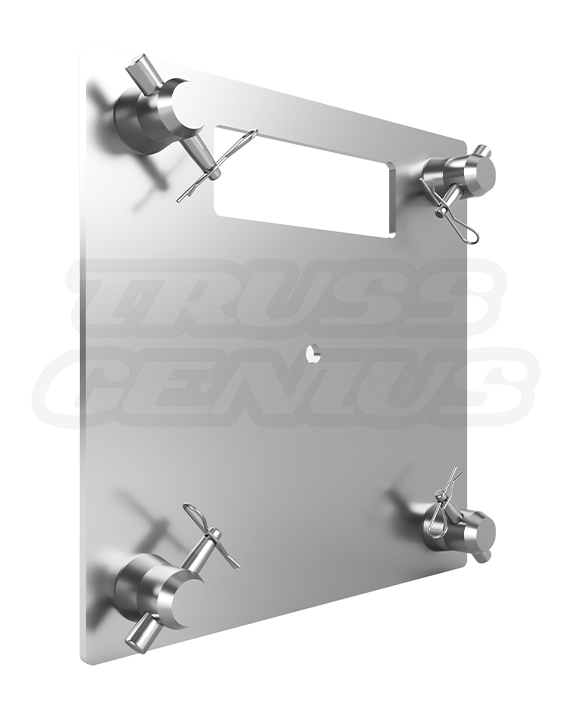

EVT290S-ABP12 12 x 12 Inch Aluminum Truss Base Plate.
A Lightweight Bottom or Top Plate for Compatible 290 mm Square Truss Columns.

The EVT290S-ABP12 is a 12 x 12 in / 304.8 x 304.8 mm aluminum base or top plate for compatible vertical 290 mm square truss columns. The 6 mm / 0.23 in plate has four factory-attached half couplers, includes four coupler pins and four R-clips, and provides an M12 threaded center hole plus a laser-cut carrying handle. At 4 lb / 1.81 kg, it is a compact component for controlled portable and display-oriented builds, but it is not a ballast calculation or stand-alone stability rating for tall, freestanding, outdoor, wind-exposed, or otherwise demanding structures.

Identity and Core Facts

Model / SKUEVT290S-ABP12

Product ClassAluminum Truss Base / Top Plate

Plate Dimensions12 x 12 in / 304.8 x 304.8 mm

Plate Thickness0.23 in / 6 mm

MaterialEN AW-6061 T6 Aluminum Alloy

Plate Weight4 lb / 1.81 kg

12 x 12 inPlate Footprint

6 mmPlate Thickness

4 lbDocumented Plate Weight

M12Threaded Center Hole

290 mmSquare Truss Compatibility

Product Overview

A Lightweight Foundation for Portable 290 mm Truss Installations.

The EVT290S-ABP12 provides a compact aluminum plate for compatible vertical truss columns, portable displays, exhibit structures, and compatible fixture-mounting applications. Its low-profile 12 x 12 in footprint is intended for builds where transport weight and a clean aluminum appearance matter. Use the plate only as part of a complete, approved support plan.

Bottom or Top Plate

Use as a bottom or top plate for compatible vertical 290 mm square truss columns.

Compact 12 x 12 Footprint

Fits display, event, retail, and presentation environments with limited floor or mounting area.

Lightweight 4 lb Design

At 4 lb / 1.81 kg, the aluminum plate is easy to transport, position, and store.

Conical Connection Interface

Four factory-attached half couplers provide the conical interface for one compatible truss-to-plate connection.

Applications

Designed for Displays, Short Columns, and Controlled Portable Builds.

Use the EVT290S-ABP12 where a lightweight aluminum base or top plate is appropriate for the complete structure. Common applications include compact truss displays, signage features, floral and scenic structures, retail installations, corporate presentation environments, and exhibit components that are separately stabilized as required.

Trade Show Displays

For compact vertical truss features, display frames, signage towers, and exhibit accents designed around a complete support plan.

Retail Installations

For temporary merchandising, branded displays, lighting features, and interior presentation structures.

Floral and Event Design

For decorative truss columns and floral structures that are separately ballasted, anchored, or otherwise stabilized as required.

Fixture Mounting

The M12 threaded center hole supports compatible fixture-mounting, spacer, and accessory applications when reviewed for the complete load arrangement.

Functional Details

Purpose-Built Features for Handling, Connection, and Mounting.

The base plate combines a compact aluminum panel with a factory-attached half-coupler layout, an M12 threaded center hole, and an integrated carrying handle. Each feature supports installation and handling; the complete truss assembly still requires correct setup, full engagement, inspection, and project-specific stabilization where needed.

Factory-Attached Half Couplers

Four installed half couplers support one compatible standard 290 mm square truss connection.

Included Pins and R-Clips

Four coupler pins and four R-clips are included for retention of the compatible truss-to-plate connection.

M12 Threaded Center Hole

Supports compatible M12 fixture-mounting, spacer, and accessory applications at the plate center.

Laser-Cut Carrying Handle

Provides a practical handhold for carrying, positioning, setup, breakdown, and storage.

Technical Details

EVT290S-ABP12 Factual Product Reference.

Identification

Product Information

Model / SKUEVT290S-ABP12

BrandEvolve Truss

Product Type12-Inch Aluminum Truss Base / Top Plate

FunctionBottom or Top Plate for Vertical Truss Columns

Physical Dimensions

Plate Size

Width12 in / 304.8 mm

Depth12 in / 304.8 mm

Plate Thickness0.23 in / 6 mm

Weight4 lb / 1.81 kg

Construction

Material and Finish

MaterialEN AW-6061 T6 Aluminum Alloy

FinishBrushed Aluminum

CertificationTUV

Warranty1-Year Limited Manufacturing-Defect Warranty

Mounting Features

Connection Detail

Connection SystemFactory-Attached Half Couplers with Coupler Pins and R-Clips

Included Half Couplers4 Factory-Attached

Included Coupler Pins4

Included R-Clips4

Center HoleM12 Threaded

Integrated HandleLaser-Cut Carrying Handle

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-ABP12 uses 290 mm square truss geometry and a conical connection system. It fits compatible EVT290S, F34, and standard 290 mm square truss systems. The plate has four factory-attached half couplers and includes four coupler pins and four R-clips for connecting one compatible truss section. Confirm the actual truss receiver geometry, full conical seating, and installation of all four pins and R-clips before use.

EVT290S Compatibility

Connects to compatible EVT290S vertical truss sections and related 290 mm square components using the factory-attached half couplers.

F34 Compatibility

Compatible with F34 290 mm square truss geometry and matching conical receiver interfaces when the actual connection fits correctly.

Standard 290 mm Square Systems

Fits compatible standard 290 mm square truss systems using matching conical receiver geometry. Verify the physical interface before combining separately sourced or mixed-brand components.

Included Conical Hardware

The plate includes four factory-attached half couplers, four coupler pins, and four R-clips for one compatible truss-to-plate connection. Install and retain all four pins and R-clips before use.

Installation Sequence

Install the Base Plate in a Controlled, Verified Sequence.

The plate is one component of the assembly. Before use, verify the support surface or mounting location, plate condition, installed half couplers, included retention hardware, full truss seating, stability measures, and final inspection requirements for the completed structure.

01 — Inspect the Plate

Confirm the plate is flat, undamaged, and free of cracks, deformation, excessive wear, or compromised threads.

02 — Verify Hardware

Confirm all four factory-attached half couplers, four coupler pins, and four R-clips are serviceable and appropriate for the compatible connected truss system.

03 — Position the Plate

Place or mount the plate on a stable, level, and approved surface or mounting location.

04 — Connect the Truss

Seat one compatible truss section fully in the conical connection interface and secure all four included coupler pins and R-clips.

05 — Add Required Stability

Use ballast, anchoring, barriers, bracing, or another approved support method required for the complete structure and site.

06 — Final Inspection

Check alignment, full hardware engagement, stability, and attached fixtures before the structure enters service.

Safety and Stability

A Lightweight Plate Is Not a Substitute for Ballast or Anchoring.

The documented plate weight is 4 lb / 1.81 kg. That lightweight construction supports portability but does not provide substantial ballast by itself. The required stability measures depend on the vertical structure, center of gravity, height, attached equipment, lateral loading, wind exposure, support surface, public access, and site conditions. Select ballast, anchoring, bracing, barriers, or other support measures as required for the complete installation.

At 4 lb / 1.81 kg, this aluminum plate does not provide significant ballast by itself.

Do not rely on the plate alone for tall freestanding towers, arches, outdoor structures, wind-exposed builds, or structures with lateral or eccentric loads.

Use appropriate ballast, anchoring, bracing, barriers, or a different support solution where the completed structure requires additional stability.

Inspect plate flatness, factory-attached half couplers, M12 threads, included pins, R-clips, and connected truss components before every use.

Ensure all four included coupler pins and R-clips are fully installed and retained before loading or using the structure.

Use the M12 center hole only with compatible hardware and a reviewed load arrangement.

Installation must be performed by personnel familiar with truss assembly, hardware retention, and ground-support practices.

Obtain qualified review where required by the structure, venue, local authority, attachment method, or operating conditions.

Evidence and Review

What This Page Confirms, and What the Build Must Still Establish.

This page confirms the documented product facts: 12 x 12 in plate size, 6 mm thickness, 4 lb weight, EN AW-6061 T6 aluminum construction, brushed finish, M12 threaded center hole, laser-cut handle, four factory-attached half couplers, four included coupler pins, four included R-clips, TUV certification, warranty, and standard 290 mm system compatibility. It does not establish safe height, capacity, ballast, anchor design, wind suitability, attachment load, or stability for a specific completed structure.

Confirmed Product Facts

12 x 12 in aluminum plate, 0.23 in / 6 mm thickness, 4 lb / 1.81 kg weight, brushed finish, M12 center hole, factory-attached half couplers, included pins and R-clips, handle, TUV certification, and 1-year limited warranty.

Installation-Specific Facts

Truss height, load, center of gravity, floor or mounting condition, ballast, anchoring, bracing, wind exposure, accessory use, and public-access controls must be determined for the specific installation.

Evidence Worth Retaining

Keep the current drawing, component and hardware schedule, support-surface or anchor review, ballast plan, inspection record, photos, and required approval with the project file.

No Invented Capacity Claims

Do not claim that the plate is adequate for a particular tower, fixture load, wind condition, anchor arrangement, or venue unless supported by attributable technical data and required project review.

Frequently Asked Questions

EVT290S-ABP12 Questions.

What is the plate size?

The plate measures 12 x 12 in / 304.8 x 304.8 mm and is 0.23 in / 6 mm thick.

How much does it weigh?

The documented product weight is 4 lb / 1.81 kg.

What hardware is included?

The plate includes four factory-attached half couplers, four coupler pins, and four R-clips for one compatible truss-to-plate connection.

What is the M12 center hole used for?

The threaded center hole supports compatible M12 fixture-mounting, spacer, and accessory applications. Confirm the hardware and complete load arrangement are appropriate before use.

Is the plate compatible with F34 truss?

It fits compatible F34, EVT290S, and standard 290 mm square truss systems using matching conical receiver geometry. Verify the actual connection and complete installation before use.

Can this plate stabilize a tall tower by itself?

No. The 4 lb / 1.81 kg aluminum plate is not substantial ballast. Tall, freestanding, outdoor, wind-exposed, or otherwise demanding structures require appropriate ballast, anchoring, bracing, or another approved support method.

Can it be used as a top plate?

Yes. The product is identified for use as a bottom or top plate for compatible vertical truss columns. Confirm the full connection, hardware, attachment, and load arrangement before use.

Need the correct plate for a 290 mm truss structure?

Contact us for compatibility guidance, connection-hardware planning, M12 accessory questions, ballast and anchoring coordination, CAD resources, engineering coordination, and quantity pricing.
